RME ADI6432 R BNC MULTI 19 Inch 2RU 24 Bit / 192kHz 2x 64-channel MADI AES Converter with Redundant PSU (MultiMode)

ITEM #: RME-ADI6432RBNMU MFG #: ADI6432 R BNC MULTI

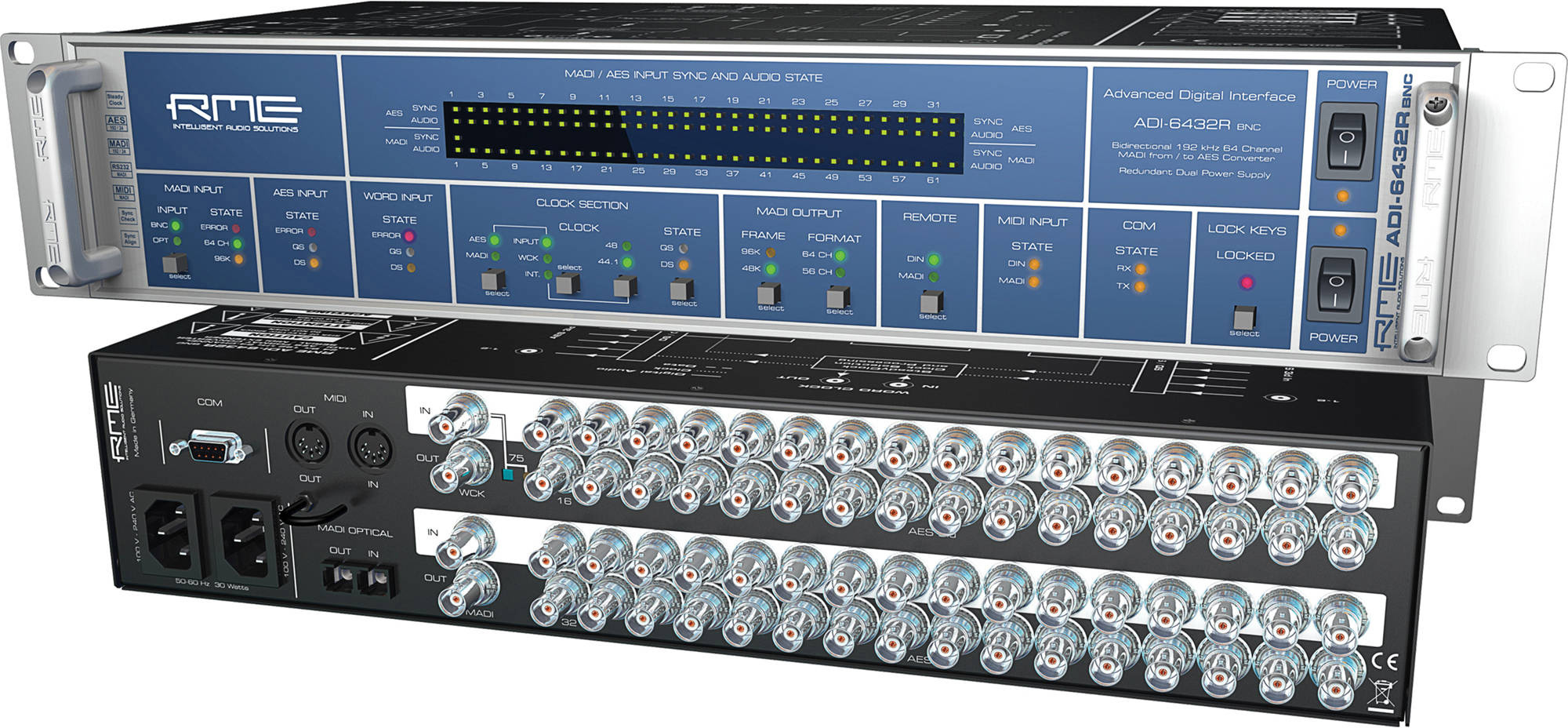

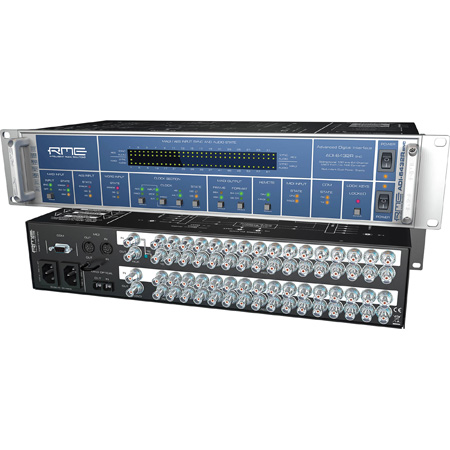

Primary Image
RME Audio
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ADI6432 R BNC MULTI - Overview

RME Audio ADI-6432R BNC MULTI provides 64 channels of format conversion from MADI to AES-3id and vice versa. Based on RME's highly successful bidirectional MADI-AES/AES-MADI converter ADI-6432, the newly developed ADI-6432R BNC offers broadcasters ease of integration and fail-safe operation through the utilization of industry standard BNC connectors and dual redundant power supplies, while offering 64 channels of I/O capability. The BNC version targets broadcast and professional users who require AES-3id connections - coaxial 75 Ohm cables with up to 300m length. Typical applications include two ADI-6432R used as digital multicore, or one unit used as AES-3id frontend for the HDSPe MADI card. Up to 192 kHz at 24 bits is supported. Built in 2 height units the ADI-6432R BNC provides enough space for all connectors and control elements.

  • Features:

    • Support for up to 192 kHz with MADI and AES
    • Unique status displays for MADI and AES
    • SteadyClock for maximum jitter reduction and clock regeneration
    • Completely remote controlable via MIDI
    • Transfer of MIDI data via MADI
    • Transfer of RS232 data via MADI
    • Redundant power supply


  • Specifications:

    • Input/Output MADI: 1 x BNC, 1 x optical
    • Input AES-3id: 32 x BNC (coaxial 75 Ohm)
    • Output AES-3id: 32 x BNC (coaxial 75 Ohm)
    • Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
    • Output word clock: BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
    • MIDI input and output: via two 5-pin DIN jacks
    • COM port: RS232 via 9-pin D-sub, 9600/19200/115200 Baud
    • Sync sources: MADI, AES, word clock, internal
    • Varipitch: by input signal or word clock
    • Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
    • Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
    • Jitter: Internal Clock < 1 ns, Word Clock In < 2 ns, AES-3id In < 2 ns
    • Jitter suppression: >30 dB (2.4 kHz)
    • Jitter sensitivity: all PLLs operate error-free even at 100 ns
    • Power supply: Internal switching mode PS, 100V - 240V AC, 20 Watt
    • Dimensions (WxHxD): 19.02" x 3.46" x 7.87"
    • Warranty: 2 years


  • Warranty:

    • 2 years


  • GTIN:

    0874792004443
