Rane RAD22 Universal Wall RAD - 2 Mic / 2 Line Inputs Via XLR/TRS Combo Jacks & 1/8 Inch (3.5mm) Stereo Line Output

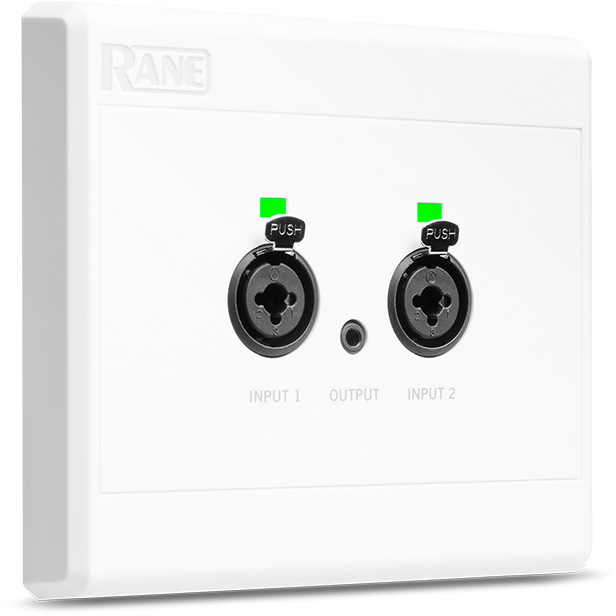

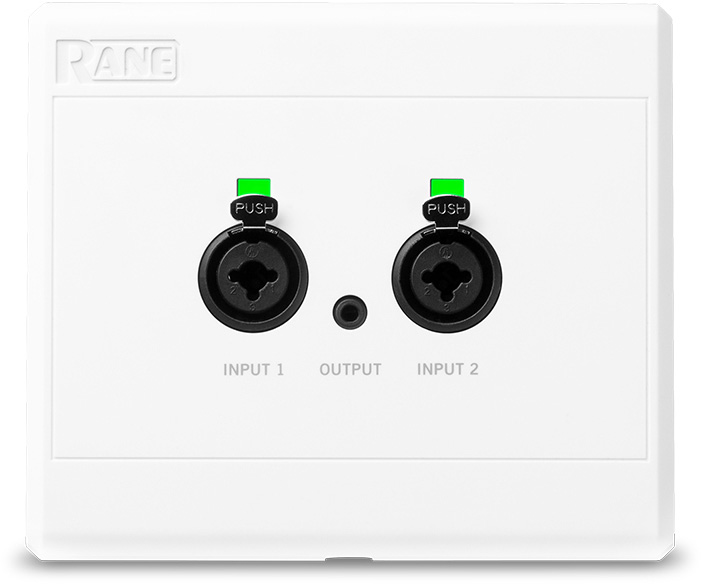

RAD22 - Overview

RAD22 - Overview

• Features:

  • (2) XLR/TRS combo jack inputs with auto-switching for MIC or LINE level inputs
  • Smart muting enables hot-swapping of inputs without sound system disruption
  • 3.5mm TRS line output for recording, monitoring with headphones, and live sound amplification

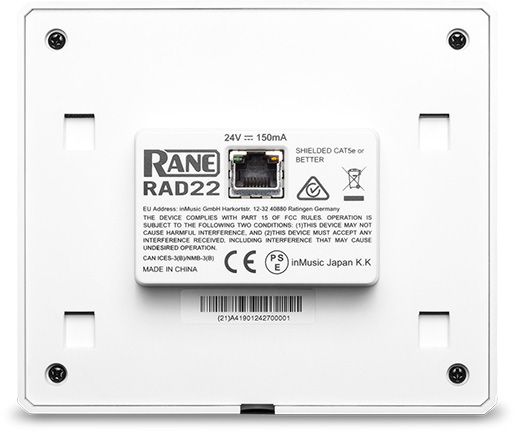

  • RJ45 connection to Rane multiprocessor
  • Standard enclosure and standard back box mounting options for US, UK and EU
  • Isolation circuitry prevents hum due to long cable runs with ground differentials
  • Improved codec for superior audio transmission
  • Completes the RAD family while complimenting the RAD16z


• Specifications:

  • Input Signal LEDs:
  • Green LED = 50 dBFS
  • Red LED = 0.5 dBFS

    Microphone Inputs: (Level set in hardware)
  • Input Impedance: 2.16 kΩ balanced (1.08 kΩ + 1.08 kΩ)
  • Gain Range (dynamic mic mode): 26 - 46 dB, in 1 dB steps
  • Gain Range (condenser mic mode): 14 - 34 dB, in 1 dB steps
  • Max Input (dynamic mic mode): -16 dBu, Gain = 26 dB
  • Max Input (condenser mic mode): -4 dBu, Gain = 14 dB
  • Equivalent input Noise: -121 dBu, 20 kHz BW, Rs = 150Ω, Gain = 26 dB
  • CMRR: -70 dB, Rs = 150Ω, 1kHz, Gain = 26dB
  • Frequency Response: 20 Hz - 20 kHz, +0, -0.5 dB at all Gain settings
  • THD + Noise: < 0.010% @ 1 kHz, 20 kHz BW, Rs = 150Ω, Output = -6 dBFS, Gain = 26
  • Phantom Power: 24VDC, 10mA Max
  • Digital Codec: 48kHz/24-bit

    1/8" (35mm) Output
  • Impedance: 200Ω, 1%, each leg
  • Maximum Output: 14 dBu, < 1% THD, 10 kΩ load
  • Dynamic Range: 106 dB, 0 dBFS, 20 kHz BW, A-weighted
  • Frequency Response: 20 Hz - 20 kHz, +0.0/-0.5 dB
  • THD + Noise: 0.008% @ 1 kHz, 20 kHz BW, -6 dBFS output

    Physical
  • Dimensions (width x depth x height): 5.6" x 1.4" x 4.8" (143 x 36 x 123mm)
  • Weight: 0.94 lb (0.45 kg)


• Item Includes:

  • 1x RAD22

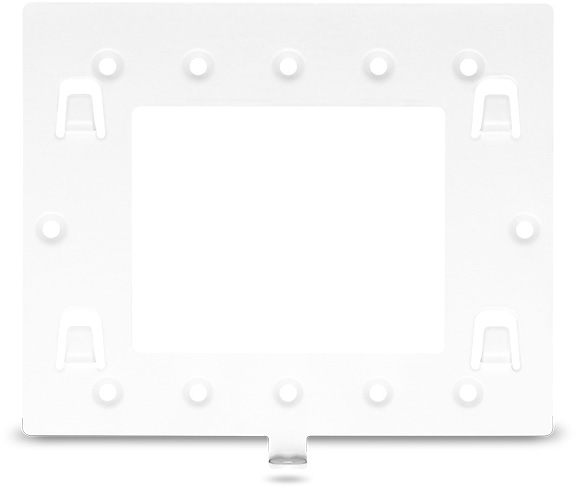

  • 1x Mounting Plate

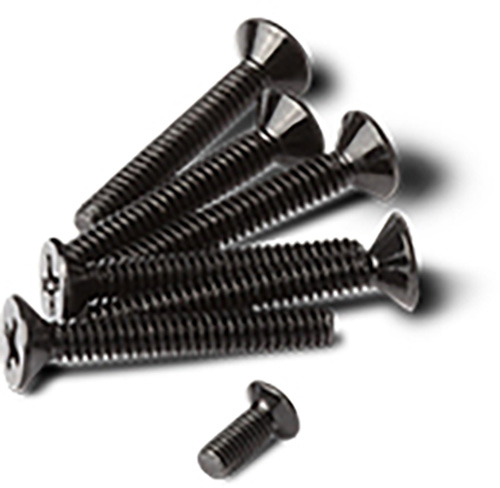

  • 1x Screws
  • 1x Installation Tools
  • 1x User Guide
  • 1x Safety & Warranty Manual


• GTIN:

  0694318024270
