Roland Systems Group UVC-02 USB Video Interface Presentation Dock

ITEM #: ROL-UVC-02 MFG #: UVC-02

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.95

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    UVC-02 - Overview

    Look and Sound Your Best in Video Meetings and Presentations
    Video streaming for business and pleasure has become a regular part of life. But you'll never look and sound your best with the webcam and microphone in your average computer. The Roland UVC-02 Web Presentation Dock helps you bridge the gap, providing a simple and affordable way to level up your video presentations with higher quality audio/visual gear and more control.

    Present with Confidence

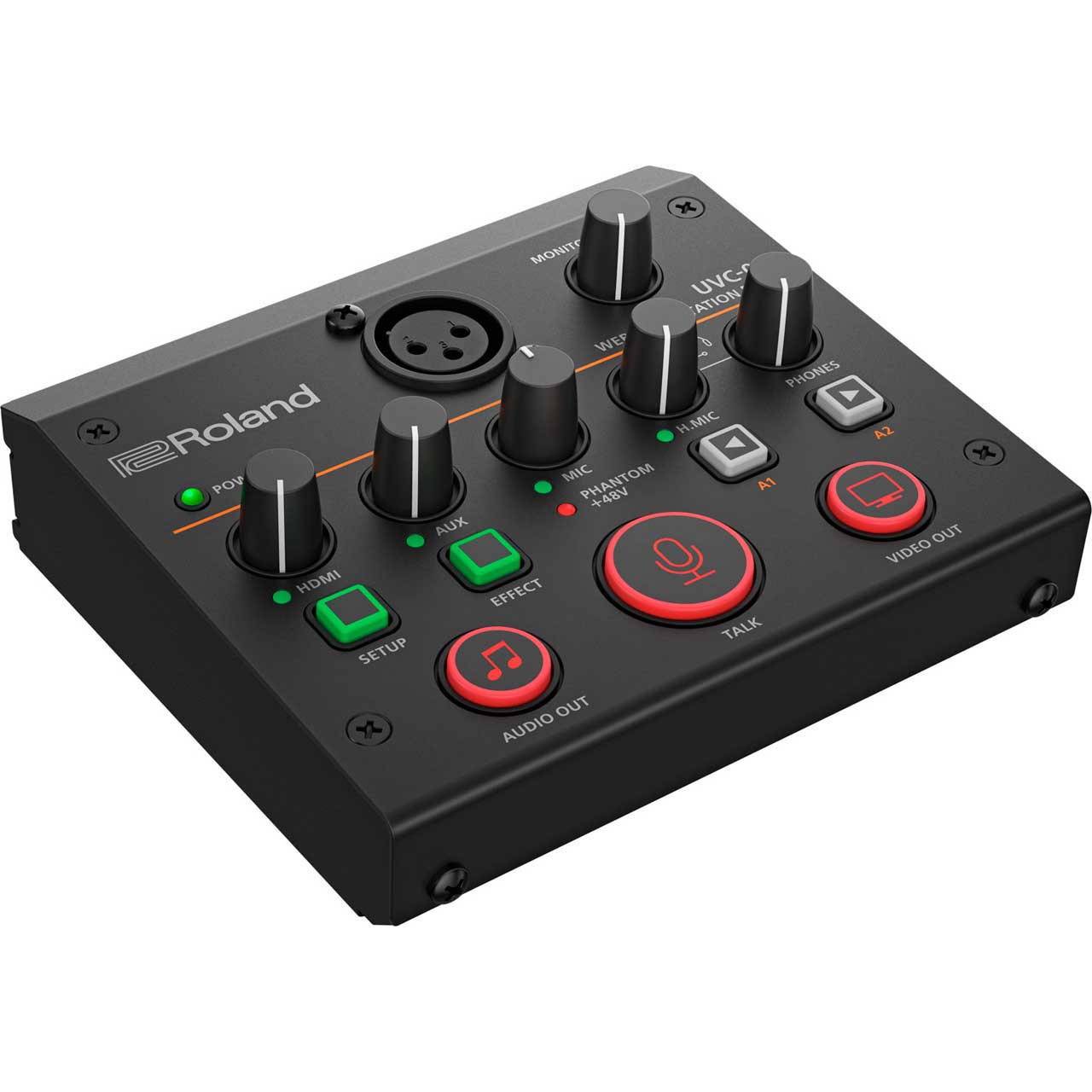

    The UVC-02 is a compact broadcast control center that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.

    Plug In and Play
    Once connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or set up required. That means it's ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.

    The Ultimate Webcam Upgrade
    Connect just about any HDMI-compatible camera and instantly elevate the image quality over your built-in or USB webcam. Many standalone cameras offer HDMI output, from action and point-and-shoot cameras to higher-grade mirrorless and DSLR models. They have much better lenses than any webcam and often include zoom capability to frame your perfect shot.

    Works with Professional Mics
    Pro broadcast and recording studios choose a specific microphone to get the best out of a performer's voice. Now, you can choose the mic type that's right for you and connect it via the XLR input on the UVC-02. Phantom power is also available, allowing you to use a studio-grade condenser mic for the very best sound quality.

    Sound Monitoring Made Simple

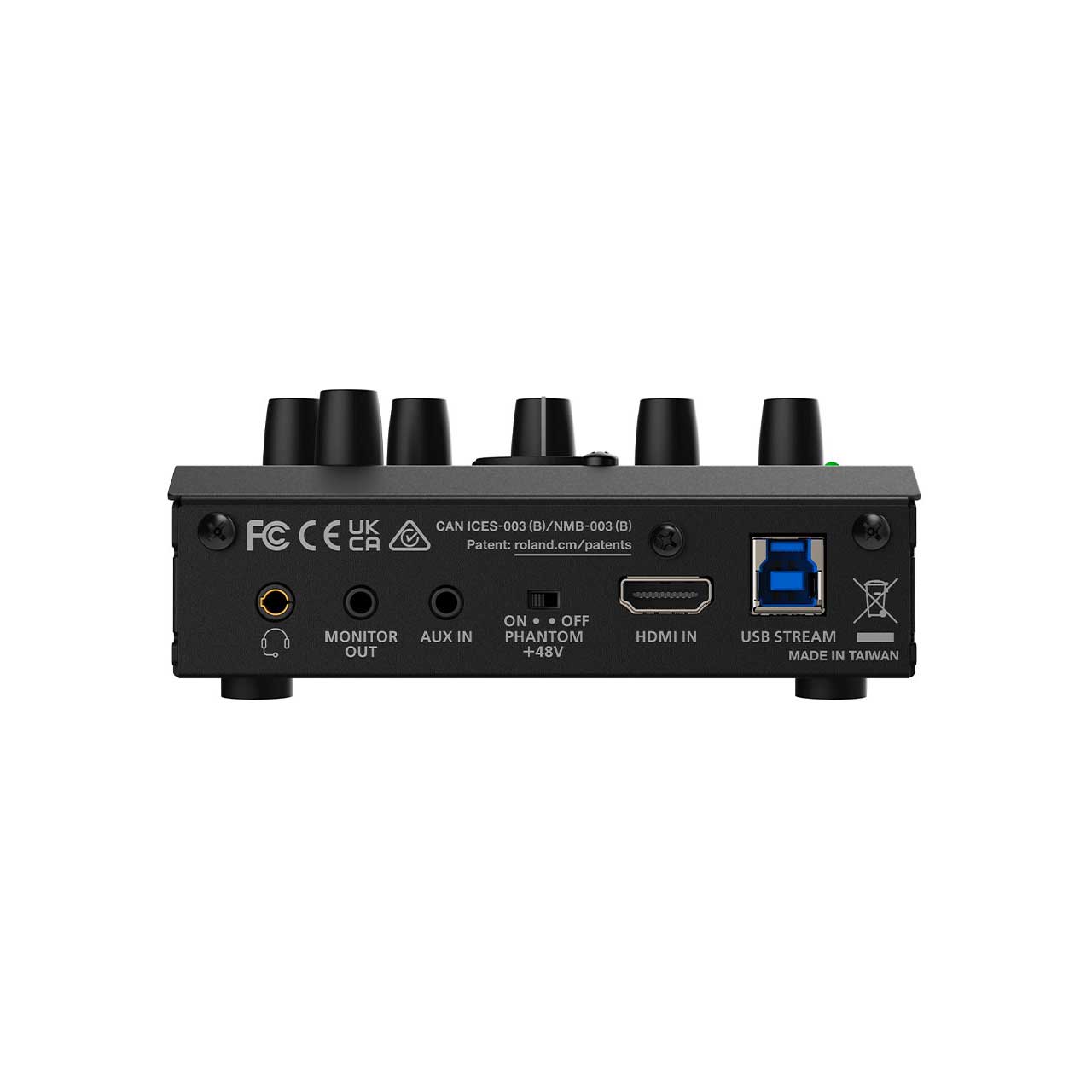

    The UVC-02 has a dedicated headphones jack, as well as a stereo monitor output for connecting to external speakers or a recorder. And both have dedicated panel knobs that allow you to reach out and control the listening level with a quick twist. The headphones jack also supports the inline mic on a standard set of earbuds, and there's a dedicated level knob for this as well.

    Bring Your Music to the Meeting
    Hate that awkward silence while waiting for everyone to join the meeting? Then connect your phone or other media player to the Aux In and play some background music while everyone gets online.

    • Features:

      • Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video
      • Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources
      • HDMI video input supports embedded sound and features automatic scaling for different video resolutions
      • Studio-grade sound with Roland's acclaimed digital audio technology
      • Plug and play operation-automatically appears as a webcam and audio source in your favorite streaming software
      • Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect
      • Hands-on control of volume levels plus audio and video muting
      • Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows

    • Specifications:

      • Video:
      • Input Connector: HDMI IN : HDMI type A
      • Input Formats:
        1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
        SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
        WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
        SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
        SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
        FHD (1920 x 1080) 60 Hz
      • Output Connectors: USB STREAM : USB 3.0 Type-B
      • USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
      • USB Video Output Resolution: 1920 x 1080, 1280 x 720, 640 x 480

        Audio:
      • Audio Processing: Sample Rate 48 kHz, 24 bits

        Analog Connectors:
      • Mic: XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
      • Headset: Stereo miniature phone type (CTIA, PLUG-IN power)
      • Aux In: Stereo miniature phone type
      • Monitor Out: Stereo miniature phone type

        Digital Connectors:
      • HDMI In: HDMI Type A
      • USB Stream: USB 3.0 Type-B

        Nominal Input Level:
      • Mic In: -54 to -14 dBu (Maximum input level : +4 dBu)
      • Headset: -20 dBu (Maximum input level : -2 dBu)
      • Aux In: -10 dBu (Maximum input level : +8 dBu)

        Nominal Output Level:
      • Monitor Out: -10 dBu
      • Headset: 9 mW + 9 mW (32 ohms load)

        Input Impedance:
      • Mic In: 5.8 k ohms
      • Aux In: 10 k ohms
      • Headset: 1 k ohms

        Output Impedance:
      • Monitor Out: 1 k ohms
      • Headset: 22 ohms

        Digital Audio Format:
      • Hdmi In : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
      • USB Stream : Linear PCM, 48 kHz, 16 bits, Stereo
      • Audio Effects: Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay

        Audio File Player:
      • Number of Tracks: 2
      • Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
      • Maximum Time: 5 seconds / track

    • Item Includes:

      • 1x UVC-02 Presentation Dock
      • 1x Leaflet "Read Me First"
      • 1x USB 3.0 Cable

    • GTIN:

      0761294518359
