CUF-112 - Overview

The Ross Video CUF-112 Carbonite Ultra Solo is a UHD production switcher that is designed to deliver professional switching in a compact and cost-effective package.

No matter its size or scope, live video production is demanding. The compact and powerful Carbonite Ultra Solo shares the same professional toolset as its larger counterparts, allowing operators to create compelling, eye-catching content easily.

Please Note: CUF-PSU Power Supply is Sold Separately

Small Size, Solid Performance
Carbonite Ultra Solo offers exceptional production capability in a compact, affordable footprint, making it an ideal choice for flypacks, space-constrained production facilities or mobile units.

Flexible ME Resources
Carbonite Ultra Solo's powerful ME bank and two independent MiniMEs, for added transition and layering capacity, allow even complex effects to be managed easily and confidently. The full ME provides six keyers, while the MiniMEs, with two independent keyers each, are the perfect tools for feeding on-set monitors or IMAG displays.

One-Button Control
Carbonite UItra Solo features a powerful macro system that allows operators to easily create customized events to control switcher operations and external devices. Its onboard memory system with flexible store and recall functionality provides simple, one-button access to operator-built effects.

Multiple Control Points

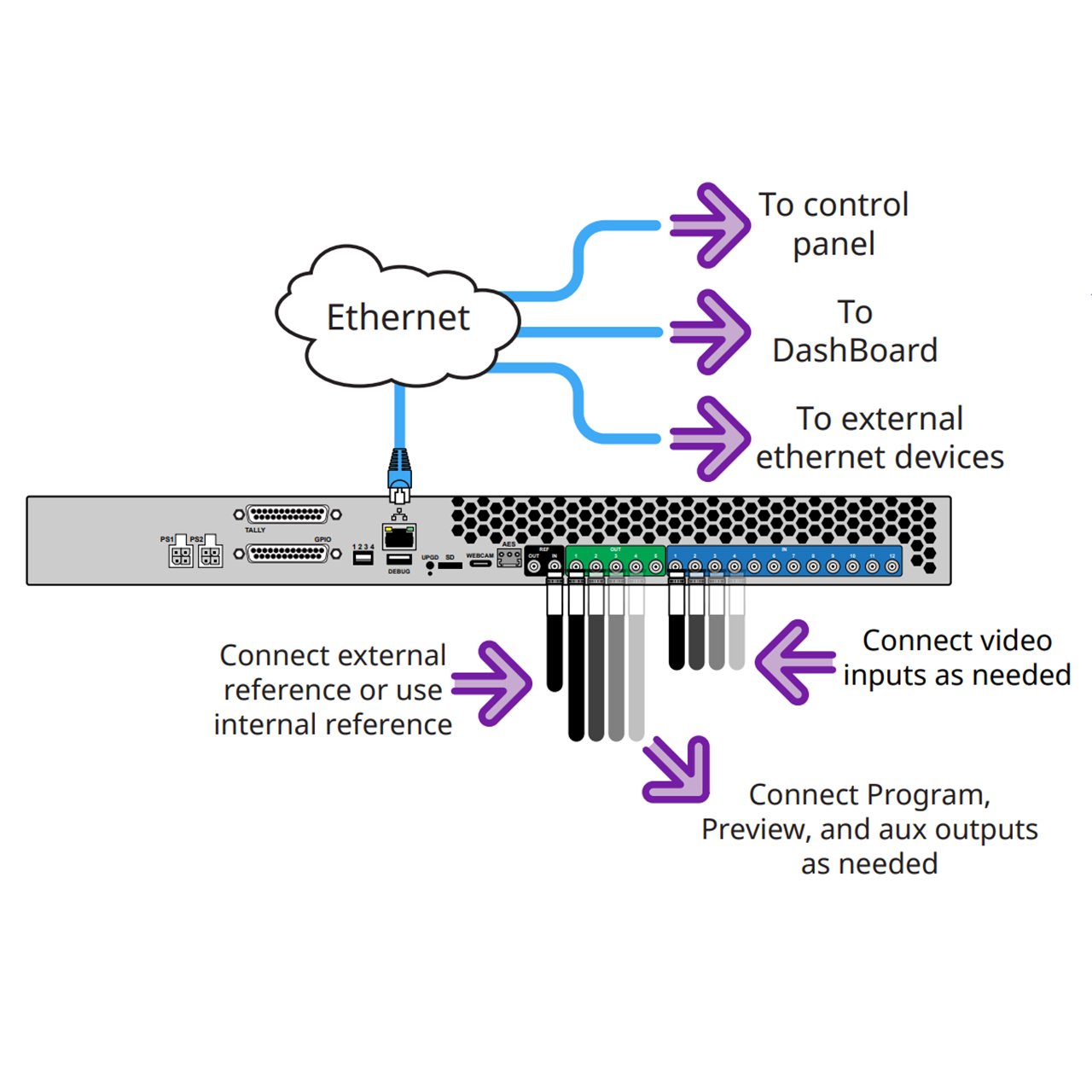

Carbonite Ultra Solo is fully compatible with the TouchDriveT line of physical Control Panels that put most switcher operational parameters at the operator's fingertips. In addition, DashBoard extends the configuration and control of Carbonite Ultra Solo to any network-connected computer, making remote system monitoring or multi-user operations simple.

Multiple Control Points
Carbonite Ultra Solo is fully compatible with the TouchDrive line of physical Control Panels that put most switcher operational parameters at the operator's fingertips. In addition, DashBoard extends the configuration and control of Carbonite Ultra Solo to any network-connected computer, making remote system monitoring or multi-user operations simple.

Multi-Format Capability
Carbonite Ultra Solo is designed to meet a facility's current and future needs by fully supporting HD and UHD operations. Input, output, ME and MiniME count are identical regardless of the switcher format, making Carbonite Ultra Solo a worry-free platform for growing productions.

USB Webcam
Carbonite Ultra Solo is the first Ross production switcher to incorporate a webcam output for conferencing or live streaming applications. This provides a means to easily integrate a user-selected switcher output with third-party streaming applications.

  • Features:

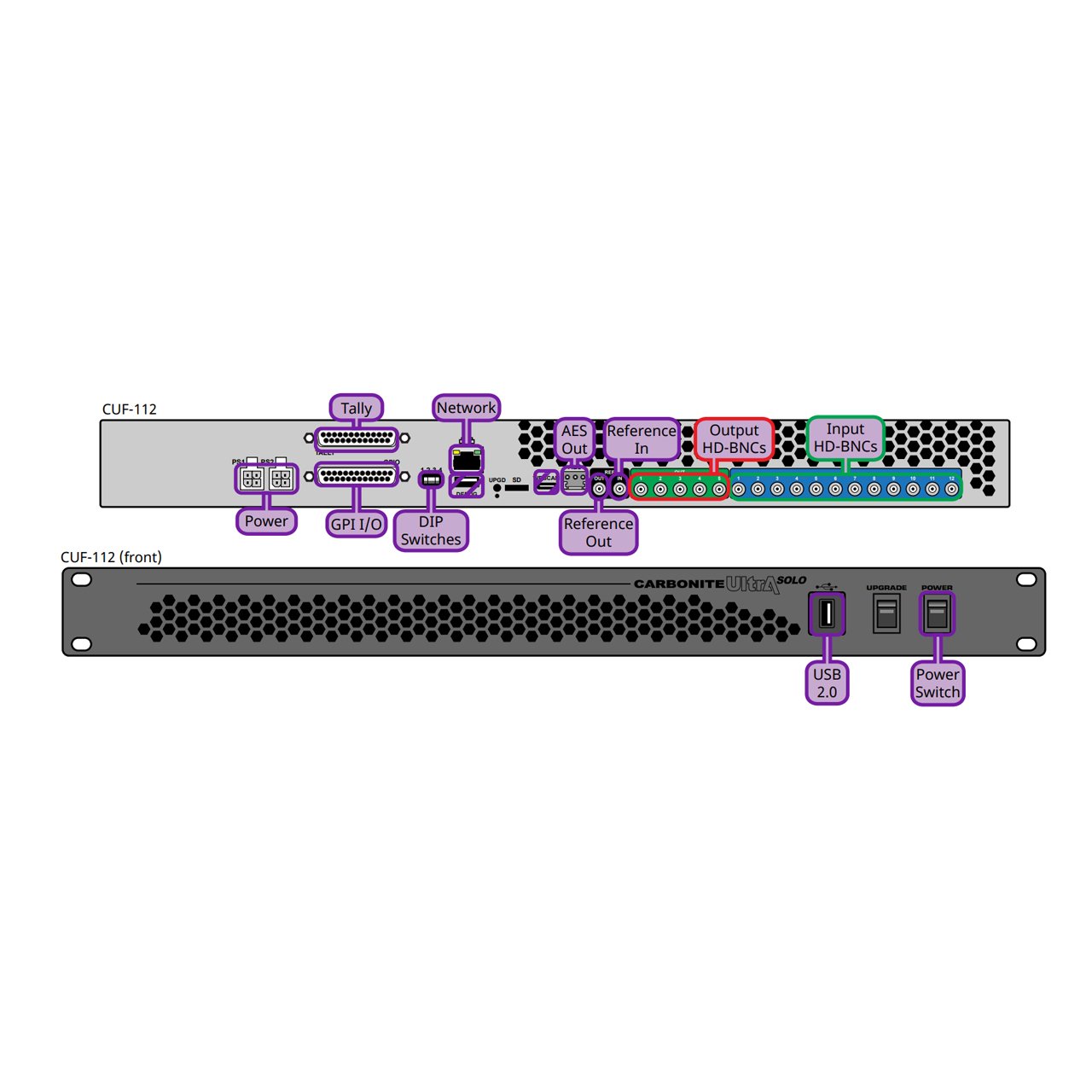

    • Compact 1RU frame that can be controlled by separate hardware or a software-based control panel
    • All-metal construction and high-quality components
    • RAVE Audio Mixer Software License Included
    • Production Sequencer Software Included
    • Control external devices with Device Control functionality
    • Built-in Multiviewer
    • Audio Equalization (EQ)
    • Compressor/Limiter (CL)
    • High Dynamic Range (HDR) and Wide Color Gamut (WCG) Conversion

  • Specifications:

    • SDI Input Formats:
      - 720p 50/59.94Hz
      - 1080i 50/59.94Hz
      - 1080pSF 23.98/24/25/29.97Hz
      - 1080p 23.98/24/25/30/29.97/30/50 (A)/59.94 (A)/60Hz
      - UHDTV1 23.98/24/25/29.97/30/50/59.94/60 (12Gb/s)
    • Input Voltage: 24VAC (rms)/40V DC
    • Maximum Current: 120mA
    • Impedance: < 15Ω
    • Max Power Consumption: 90W, 6A, 15V
    • Return Loss:
      - < -7.8dB @ 12Gb/s
      - < -10dB @ 3Gb/s
      - < -15dB @ 1.5Gb/s
    • Rise and Fall Time:
      - 27ps ±10% (UHD)
      - 240ps ±10% (HD)
      - 800ps ±10% (SD)
    • Signal Level: 800mV ±10%
    • DC Offset: 0 Volts
    • Overshoot: < 10%
    • SDI HD Mode: 10-bit SMPTE-292M/424M
    • SDI UHD Mode: SMPTE ST 2082-1:2015 (1:2016)
    • Audio Depth: 24-bit in HD
    • Channels: 1 Stereo Pair
    • File Format: Multi-Channel Waveform Audio File
    • Impedance: 110Ω, differential
    • Min/Max Output Voltage Swing: 1.5/6V peak-to-peak
    • Sample Rate: 48kHz
    • Synchronization: Locked to Video
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 185°F (-2°C - 85°C)

  • Item Includes:

    • 1x Ross CUF-112 Carbonite Ultra Solo UHD 1RU Frame
    • 1x RAVE Audio Mixer Software License

  • Warranty:

    • 1 Year Limited Warranty
