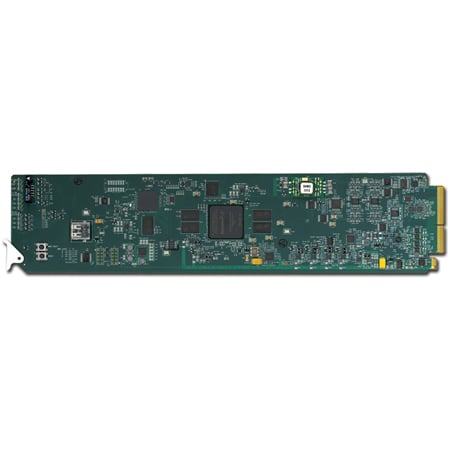

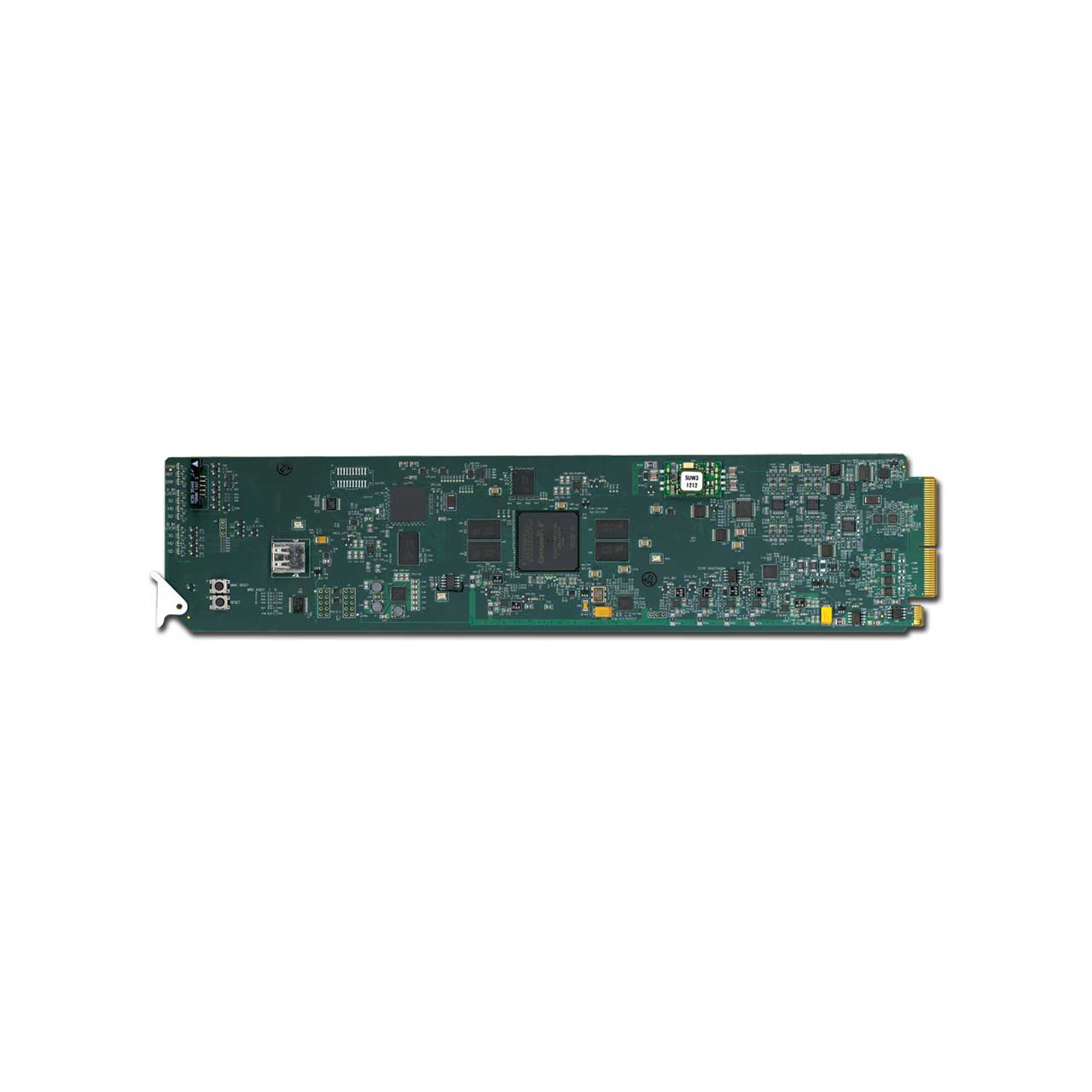

Ross HDC-8223A 3G/HD openGear Downconverter & DA w/ 4 Reclocked Outputs / 4 Configurable SD/Analog Outputs

ITEM #: ROSS-HDC-8223A MFG #: HDC-8223A

Primary Image
Ross Video
Free Shipping with $49 Minimum Order

Our Price:

$3,262.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HDC-8223A - Overview

    The Ross HDC-8223A is a 2 in / 4 out reclocking 3G / HD / SD distribution amplifier combined with 4 software configurable analog composite or SDI digital outputs with 10-bit HD down conversion. The HDC-8223A includes 2 inputs, which can be manually selected, or set up in automatic failover configuration mode.

    The HDC-8223A incorporates full aspect ratio conversion on the output with reticule overlays for full aperture and safe area in both 16x9 and 4x3. Embedded audio, timecode and EIA-608 captions are preserved and passed to the outputs. The HDC-8223A supports all popular standard and high-definition video formats including 1080p/50, 1080p/59.94, 1080psF/.98, 1080pSF/23.98, 1080p/29.97, 1080p/25,1080p/23.98, 1080i/29.97, 1080i/25, 720p/25, 720p/29.97, 720p/50, 720p/59.94, 486i/29.97, 576i/25.

    • Features:

      • Monitoring quality downconverter with 4 reclocked outputs and 4 configurable SD/analog outputs
      • 4 Channels of analog audio de-embedding with optional R2C-8223 rear module
      • Aspect ratio conversion with reticule overlays for full apeture and safe area
      • Occupies 2 Slots in an openGear frame
      • 1 3G/HD/SD SDI Input with 4 Reclocked Copies, 4 configurable SD SDI/analog outputs
      • Installs in openGear frames.


    • Specifications:

      • Supports all popular formats:
        -1080p: 23.98, 25, 29.97, 50, 59.94
        -1080pSF: 23.98,
        -1080i: 25, 29.97,
        -720p: 25, 29.97, 50, 59.94
        -480i: 29.97
        -576i: 25
      • 4 reclocked DA outputs
      • 4 software selectable SDI digital / analog composite outputs
      • Full HD to SD ARC functionality on output 16:9, 14:9, 4:3 center cut
      • SD to SD ARC functionality 16:9 / 4:3
      • Reticule overlay with safe area and cross-hair
      • Embedded audio, timecode and EIA-608 preserved from input to output


    • Item Includes:

      • 1x Ross HDC-8223A 3G/HD Downconverter & Distribution Amplifier with 4 Reclocked Outputs / 4 Configurable SD/Analog
