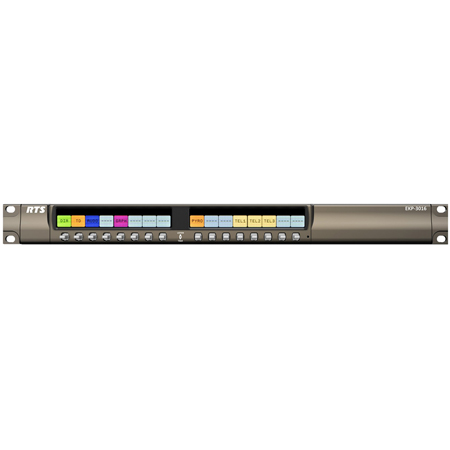

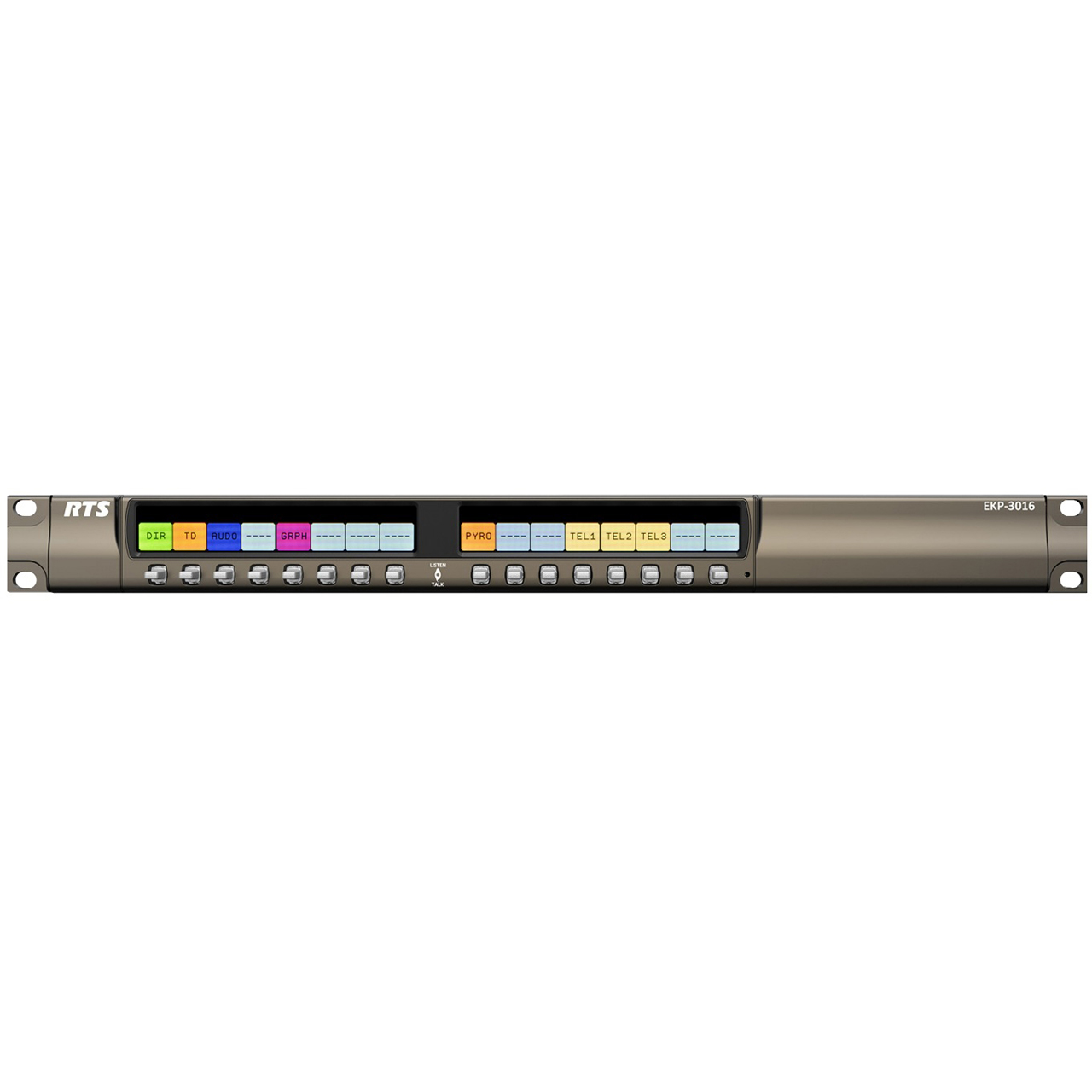

RTS EKP-3016 1RU Expansion Keypanel with 16 Operation Keys for KP-3016

ITEM #: RTS-EKP-3016 MFG #: F.01U.315.624

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at (800) 522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


F.01U.315.624 - Overview

The RTS EKP-3016 is a 1 RU expansion panel used exclusively with the KP-3016 keypanel, giving an additional 16 keys per unit attached. Up to seven EKPs can be connected. Part of the KP-Series keypanel family, the EKP-3016 provides exclusive superior digital audio by using OMNEO media networking technology (developed by RTS parent company Bosch and incorporating Dante high-quality audio of IP) as well as analog technology.

KP-Series keypanels deliver superior digital audio using the Bosch-developed OMNEO technology with Audinate's Dante audio over IP, via either copper or fiber. The KP-Series provides top-notch audio quality, free of noise, delay and other artifacts present in older technology. The family includes a rich set of connectors as standard, including GPIO and RC. As with other RTS products, emphasis has been placed on backward compatibility with previous generations of matrices, including analog technology. KP-Series keypanels utilize the latest generation of wide angle TFT displays, providing superior clarity, resolution and longer display life. The EKP-3016 is an expansion keypanel for the KP-3016

  • Features:

    • Wide-viewing angle color screen
    • Ergonomic lever keys for talk/listen

  • Specifications:

    • LCD Display:
      - Active Area: 4.7" (wide) x 0.75" (high)
      - Dot Resolution: 576 x 90 pixels
      - Color Resolution: 16-bit (64K) RGB color
      - View Angle: 80° (typical; all directions).
    • Connector: EXP IN, EXP OUT. (RJ45)
    • Storage Temperature: -40°F - 158°F
    • Operating Temperature: 32°F - 131°F
    • Power Consumption: @ 110V AC, @ 220V AC
    • Input Power: 100V - 240V AC, 50-60Hz
