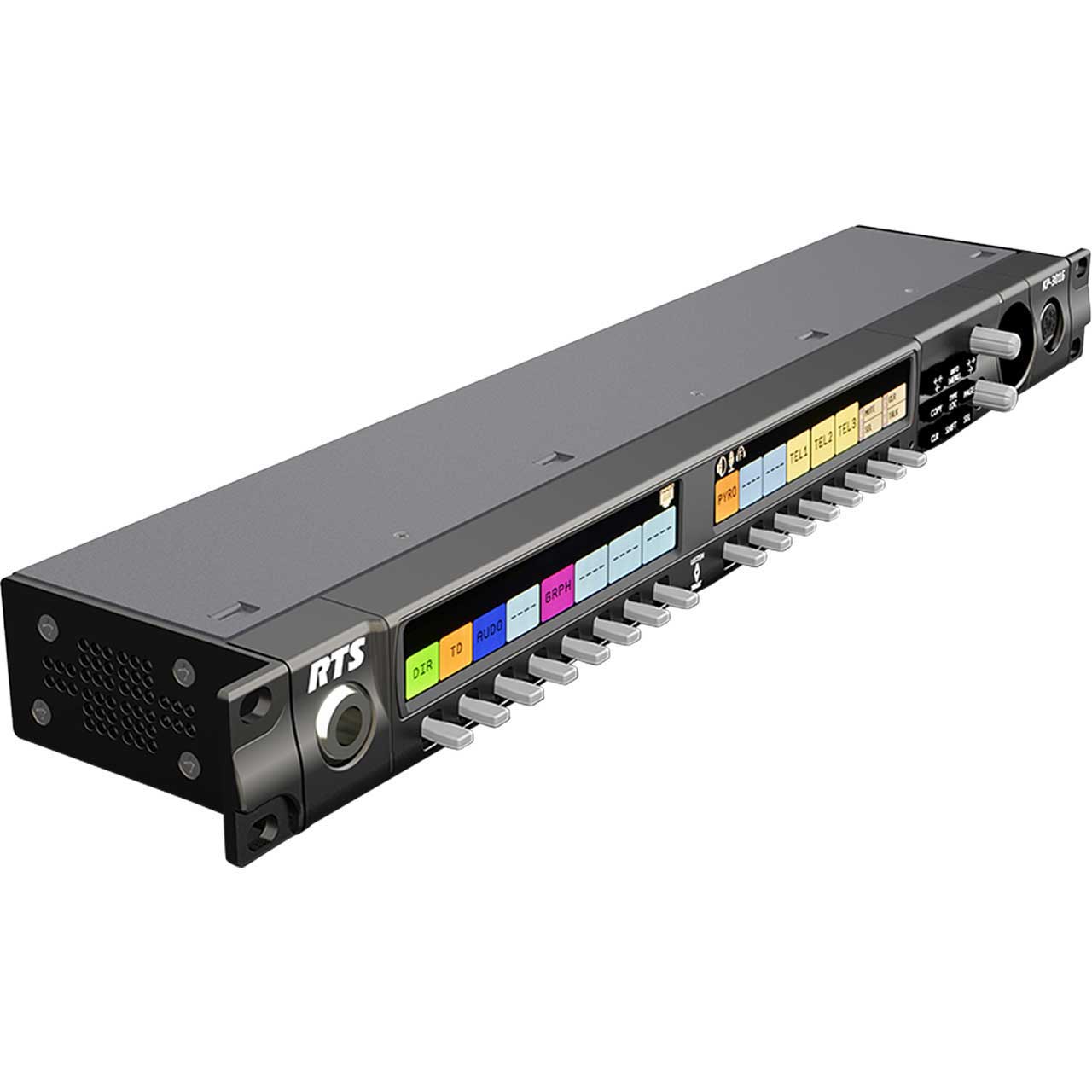

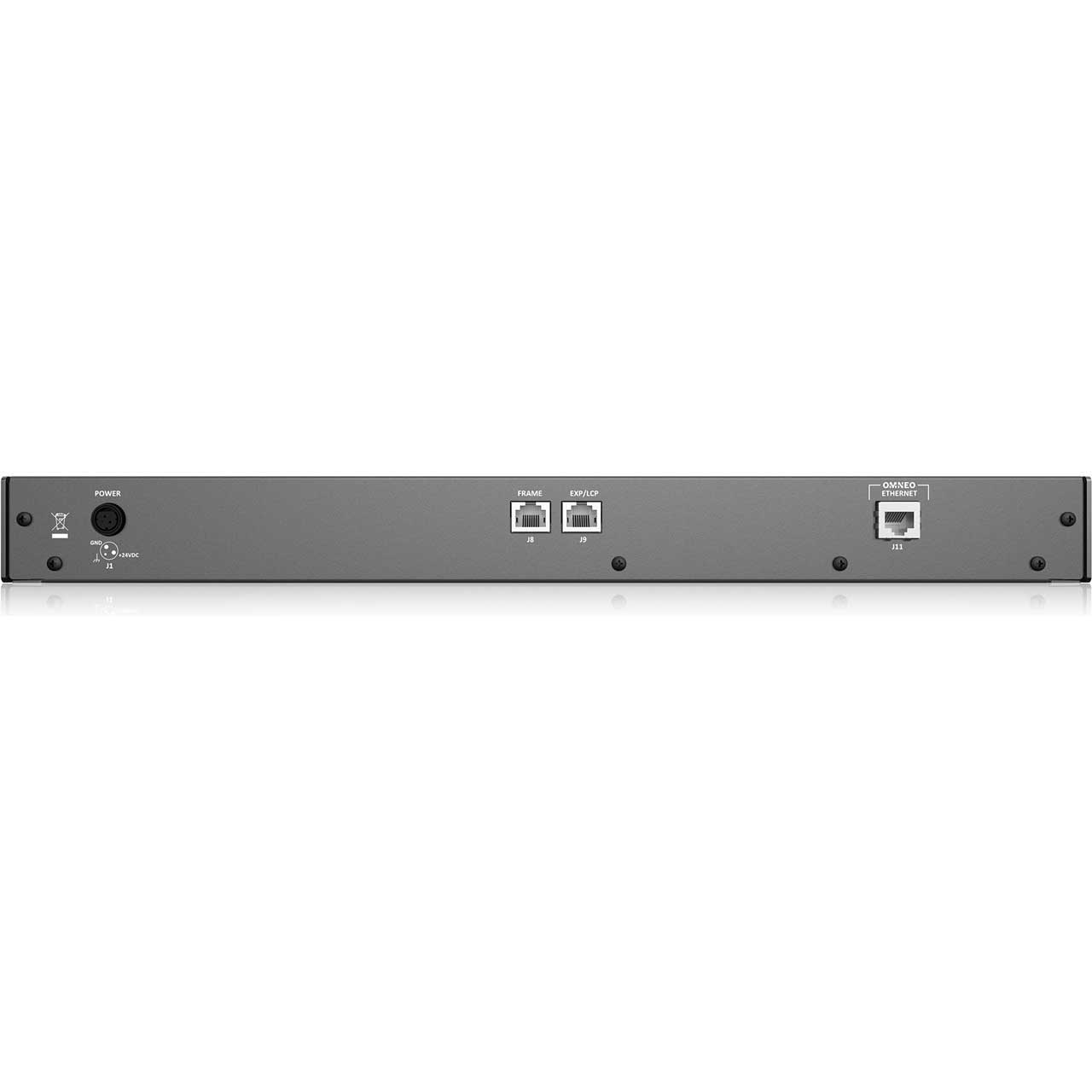

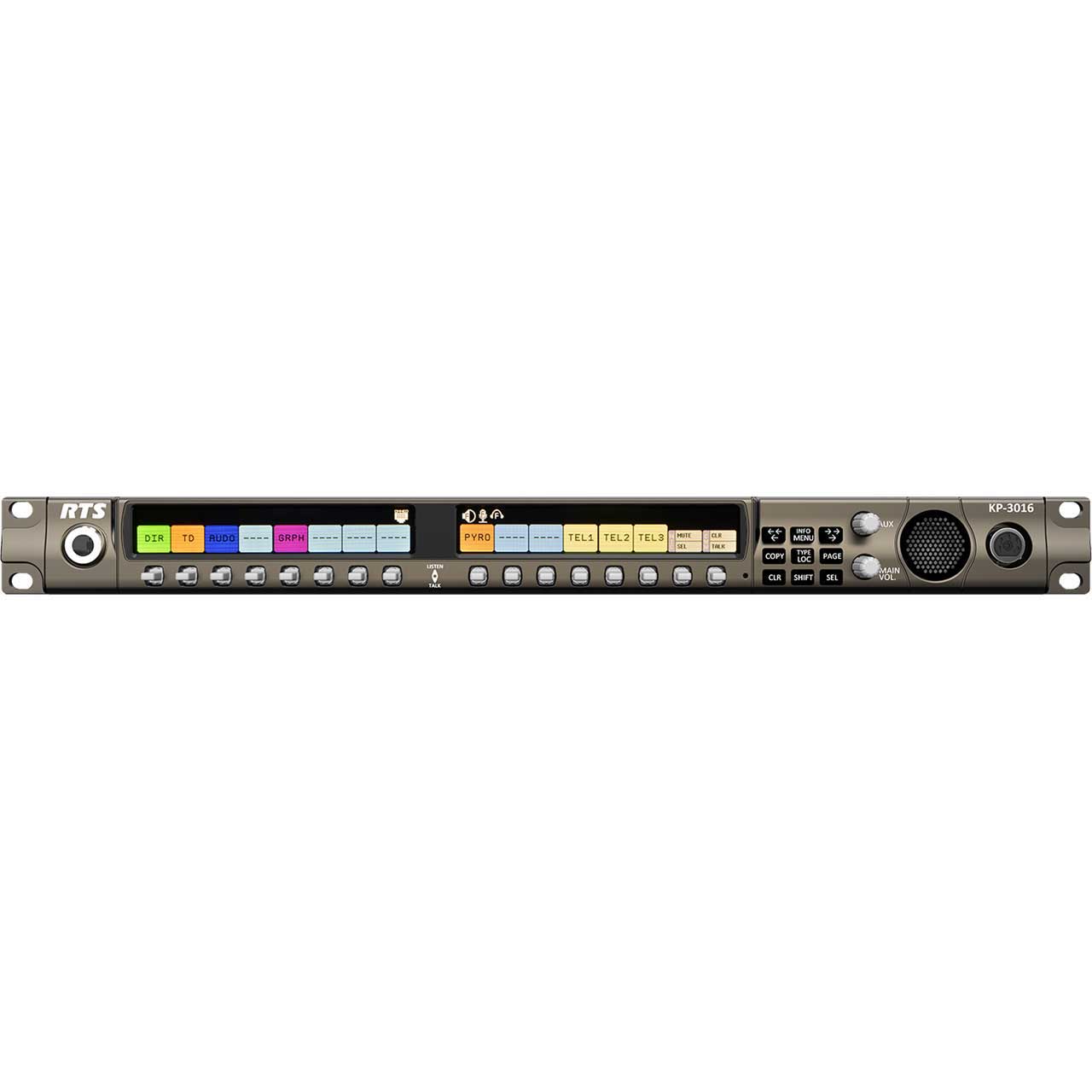

RTS KP-3016-A4F 1RU 16 Key Analog and IP Color Display Intercom Keypanel with 4pin XLR

ITEM #: RTS-KP-3016-A4F MFG #: KP-3016-A4F

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    KP-3016-A4F - Overview

    Part of the KP-Series keypanel family, the RTS KP-3016-A4F is a 1RU 16 Key Analog and IP Connection with 4pin XLR. KP-3016 provides the same superior digital audio as the flagship KP-4016 model by using OMNEO media networking technology (developed by RTS parent company Bosch and incorporating Dante™ high-quality audio over IP) as well as analog technology. For the analog-only users, the KP-3016A is available. Both versions deliver top-notch sound quality, free of noise, delay, and other artifacts present in older technology.

    • Features:

      • Wide viewing-angle color screen
      • Ergonomic levers for talk/listen
      • Full support for OMNEO - KP-3016 Only
      • Support for 4-wire analog connection
      • Expansion panel option available
      • Built-in speaker
      • Microphone input for dynamic or electret mics
      • User-replaceable XLR headset connector 4- or 5-pin available
      • Expansion panel available (EKP-3016)
      • Analog version available (KP-3016A)

    • Specifications:

      • LCD Display
      • Active Area: 120.10mm (wide) x 18.77mm (high)
      • Dot Resolution: 576 x 90 pixels
      • Color Resolution: 16-bit (64K)RGB color
      • View Angle: 80 degrees (typical; all directions)

        Power Supply
      • Type: External DC
      • AC Input: 100-240VAC 50/60Hz
      • Weight: 0.53lb (.24kg)
      • Mounting Bracket: 0.30lbs (.14kg)

        Inputs
      • Matrix
        Type: Balanced
        Typical Input Level: +8dBu
        Typical Input Impedance: >10kΩ
        Maximum Input Level: +20dBu
        Supported Bandwidth: 100Hz to 20KHz
      • Panel Mic
        Type: Electret
        Typical Input Level: -42dBu
        Typical Input Impedance: 1kΩ
        Maximum Input Level: -25dBu
      • Headset Mic - Electret
        Typical Input Level: -42dBu
        Typical Input Impedance: 1kΩ
        Maximum Input Level: -25dBu
      • Headset Mic - Dynamic
        Typical Input Level: -50dBu
        Typical Input Impedance: 600Ω
        Maximum Input Level: -25dBu

        Outputs
      • Matrix
        Type: Balanced
        Typical Output Level: +8dBu
        THD+N%: <0.20%
        Typical Output Impedance: 600Ω
        Maximum Output Level: +20dBu
        Frequency Response: 100Hz to 20KHz
      • Headset Maximum
        Output Power: 125mW for 32Ω load
        Earphone Impedance: 16Ω and above
        THD+N%: <0.20%
        Frequency Response: 100Hz to 20KHz
      • Speaker
        SPL: 84dBSPL for 1kHz sine wave @ 1 meter

        Digital
      • OMNEO Channels
      • Typical OMNEO Latency: 1ms
      • Frequency Response: 20Hz - 20KHz

        Environmental
      • Dimensions (without rack ears) (WxHxD): 17.39 x 1.72 x 3.84" [4.33" w/volume knobs & lever keys] (441.82 x 43.8 x 97.54mm ([109.99mm w/volume knobs & lever keys])
      • Weight: 3.35Lbs (1.52kg)
      • Operating Temperature: 32° to 131°F (0° to 55°C)
      • Storage Temperature: -4° to 158°F (-20° to 70°C)

        Power Consumption
      • Nominal: 8 Watts
      • Maximum: 10 Watts
      • Maximum Volt Amp: 36 VA

        Certification
      • CE Compliance
      • UL Certified
