ST-158002 - Overview

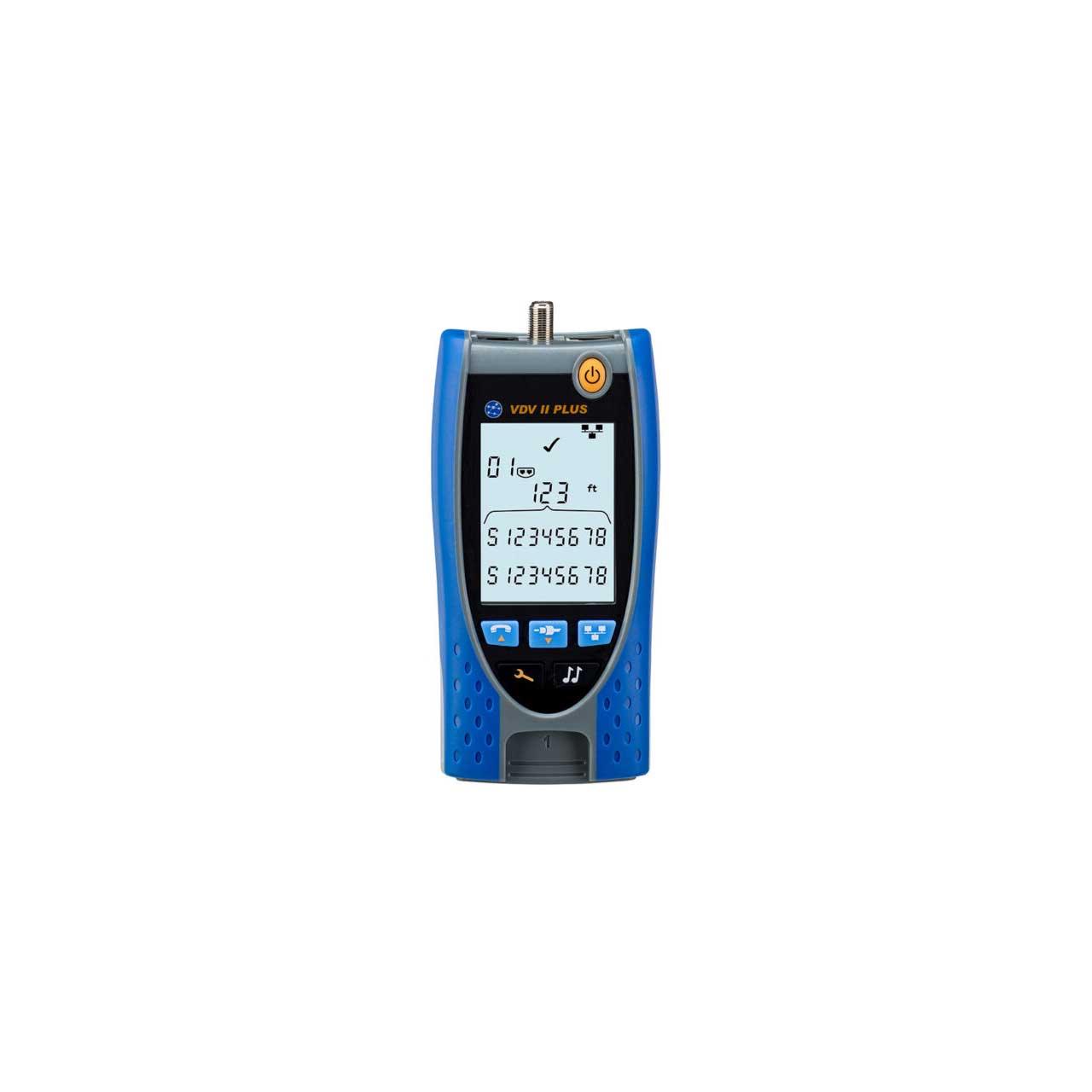

Simply45 ST-158002 is a VDV II Plus Cable Verifier Kit. The VDV II Series are easy to use cable testers that check the integrity of copper cables commonly found in domestic, commercial or industrial voice, data or video installations, including telephone wiring, data network and video/security cabling.

Employing state-of-the-art technology, VDV II offers functionality not previously available in a wiremapper. The advanced wiremap engine accurately displays complex wiring faults instantaneously while TDR (Time Domain Reflectometry) aids troubleshooting and improves on-site productivity.

  • Features:

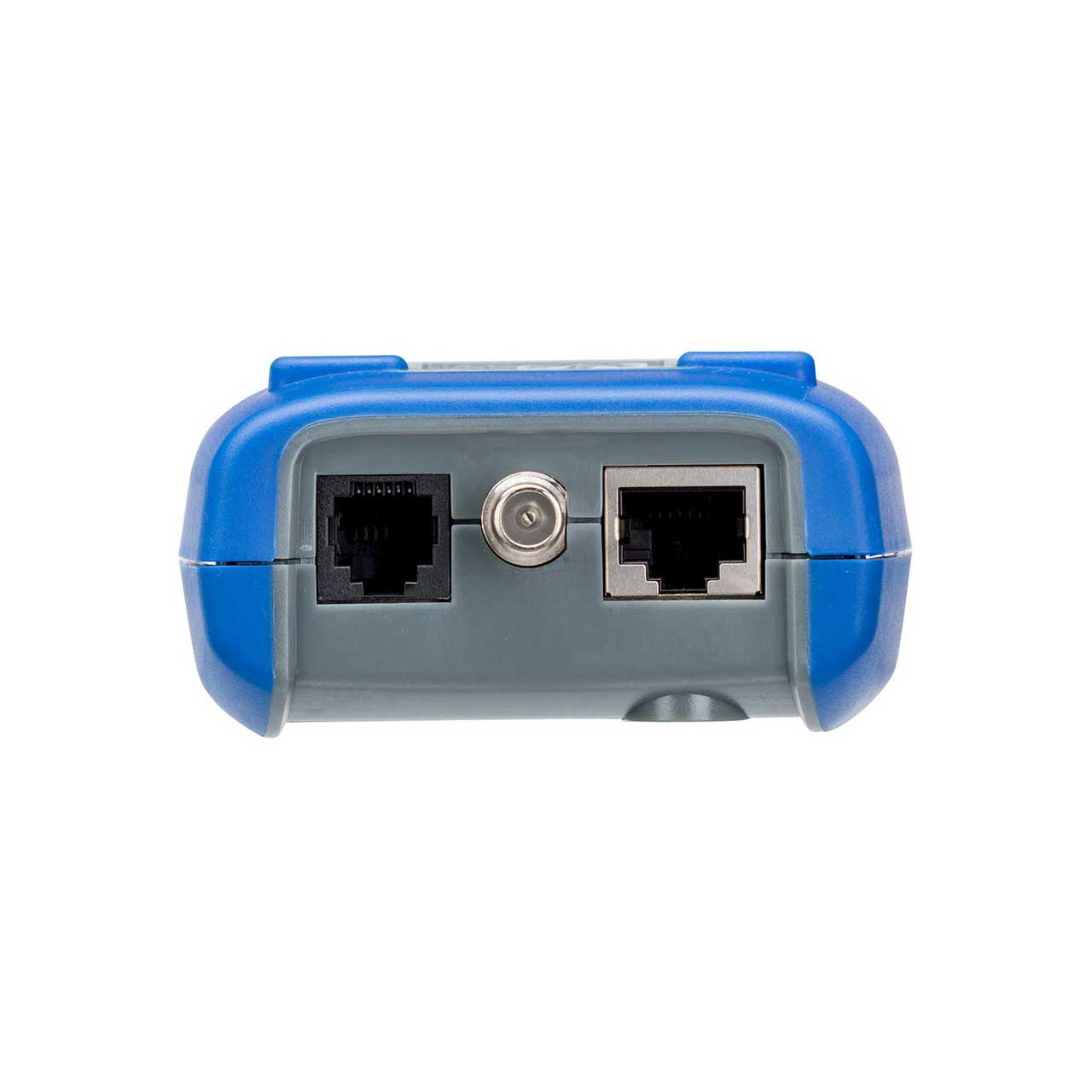

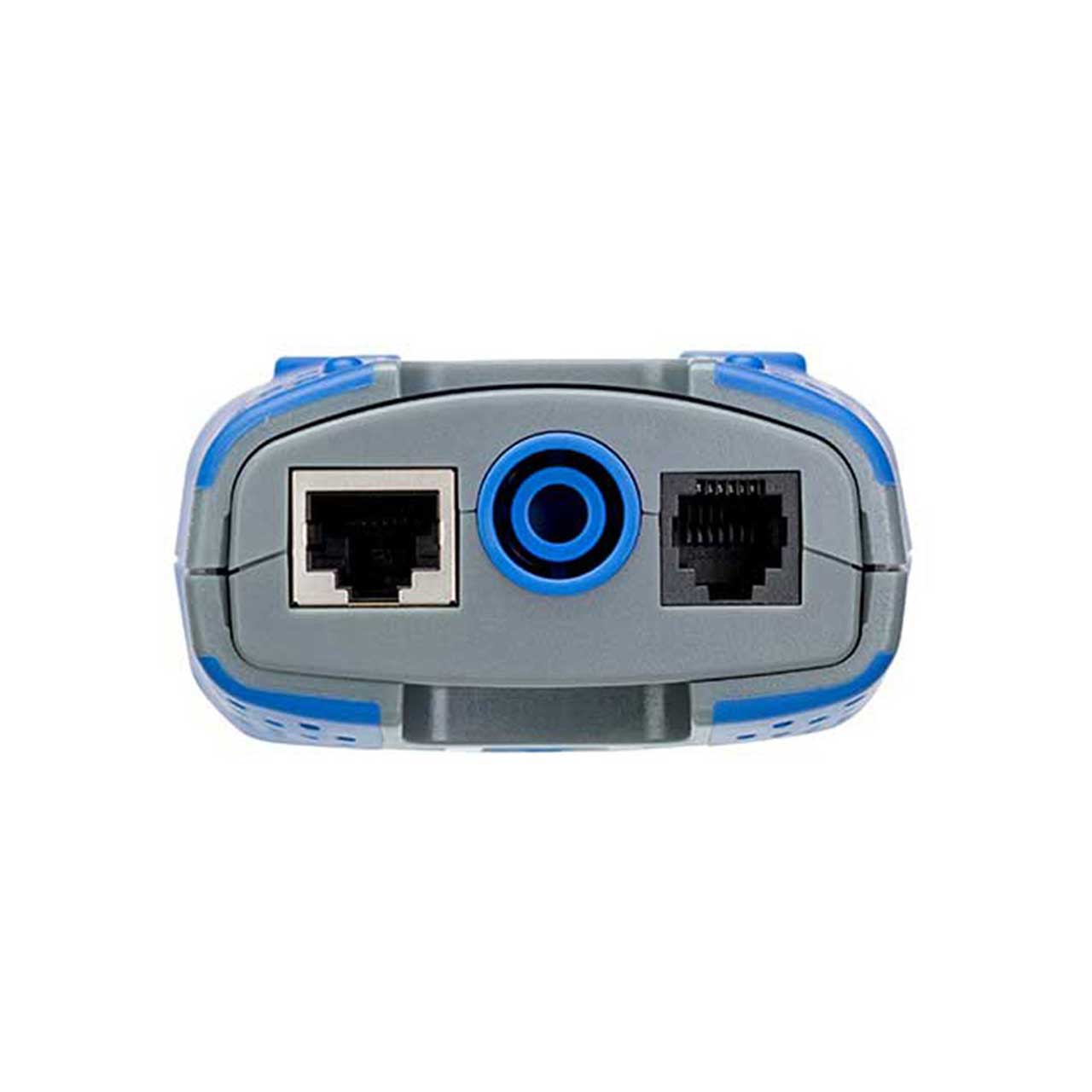

    • Multimedia Support: RJ45, RJ11/RJ12 and coax ports for verification of low voltage copper cables
    • TDR Length Testing and Troubleshooting: Pinpoints cable faults eliminating unnecessary guess work
    • Tone Generator: Ability to identify and trace cables with a compatible inductive tone probe (optional)
    • PoE Detection: PoE service detection with voltage information
    • Storage and Protection of Remote Unit: Reduces the chance of losing or damaging the remote unit. Additional numbered remotes available.
    • Cat 5, Cat 5e, Cat 6, Cat 6A, Cat 7, UTP and STP Testing: Support for all common LAN cables (TIA 568A/B wiring schemes)
    • Large Backlit Screen: Instantaneous, easy to read test results
    • Media Service Detection: Identifies analog (PBX) and digital (ISDN) telephone services
    • Ethernet Detection: Displays network rate and duplex information
    • Voltage Protection: Cable testing disabled if >2V detected

  • Specifications:

    • Dimensions: 6.29 x 2.99 x 1.41"
    • Weight: 0.57lbs
    • Battery Type: 9V alkaline. Typically 20 hours minimum continuous use (backlight off)

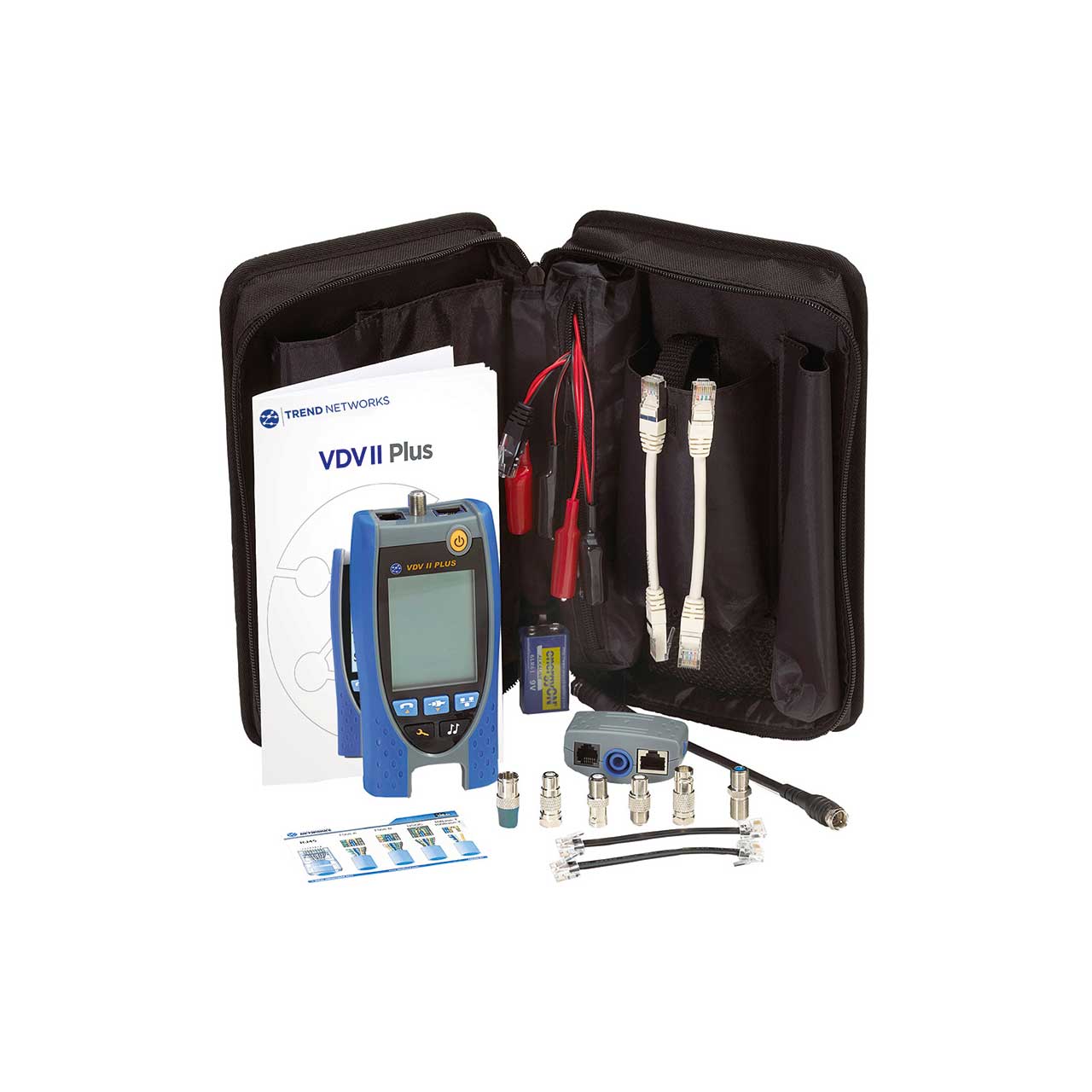

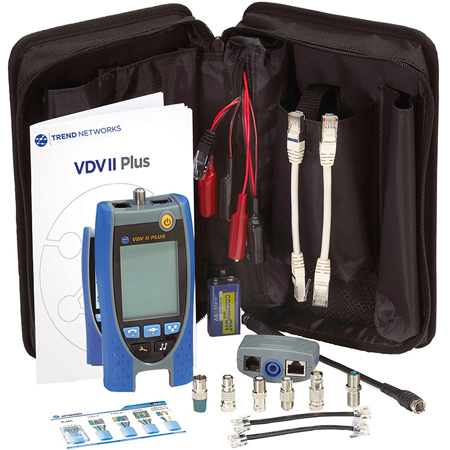

  • Item Includes:

    • 1x VDV II Plus
    • 1x Dual Port Remote Unit
    • 1x Coax Remote Unit
    • 1x Alkaline Battery
    • 1x Multi-Language User Guide
    • 2x RJ45 To Alligator Clip Cable 390mm
    • 2x Screened RJ45 To RJ45 Cable 150mm
    • 2x Rj11/12 To Rj11/12 Cable 100mm
    • 1x F-Type Plug Cable 230mm
    • 1x F-81 Barrel Splice
    • 1x BNC Female To F-Type Male adapter
    • 1x BNC Female To F-Type Female adapter
    • 1x RCA Female To F-Type adapter
    • 1x RCA Female To F-Type Female adapter
    • 1x Wallet Wiring Card
    • 1x Carry Case
    • 1x Dual Port Remote Unit
    • 1x Coax Remote Unit
    • 1x Alkaline Battery
    • 1x Multi-Language User Guide
    • 2x RJ45 To Alligator Clip Cable 390mm
    • 2x Screened RJ45 To RJ45 Cable 150mm
    • 2x Rj11/12 To Rj11/12 Cable 100mm
    • 1x F-Type Plug Cable 230mm
    • 1x F-81 Barrel Splice
    • 1x BNC Female To F-Type Male adapter
    • 1x BNC Female To F-Type Female adapter
    • 1x RCA Female To F-Type adapter
    • 1x RCA Female To F-Type Female adapter
    • 1x Wallet Wiring Card
    • 1x Carry Case

  • GTIN:

    0810093721153
