Simply45 ST-180000 Tone and Probe Kit for Data Cable Tracing

ST-180000 - Overview

• Features:

  • Tone Generator Features
  • Trace longer cables using the industry-leading power output
  • Solve issues faster with power supply for external talk sets
  • Verify cabling with polarity and continuity
  • Easy to use and requires no training

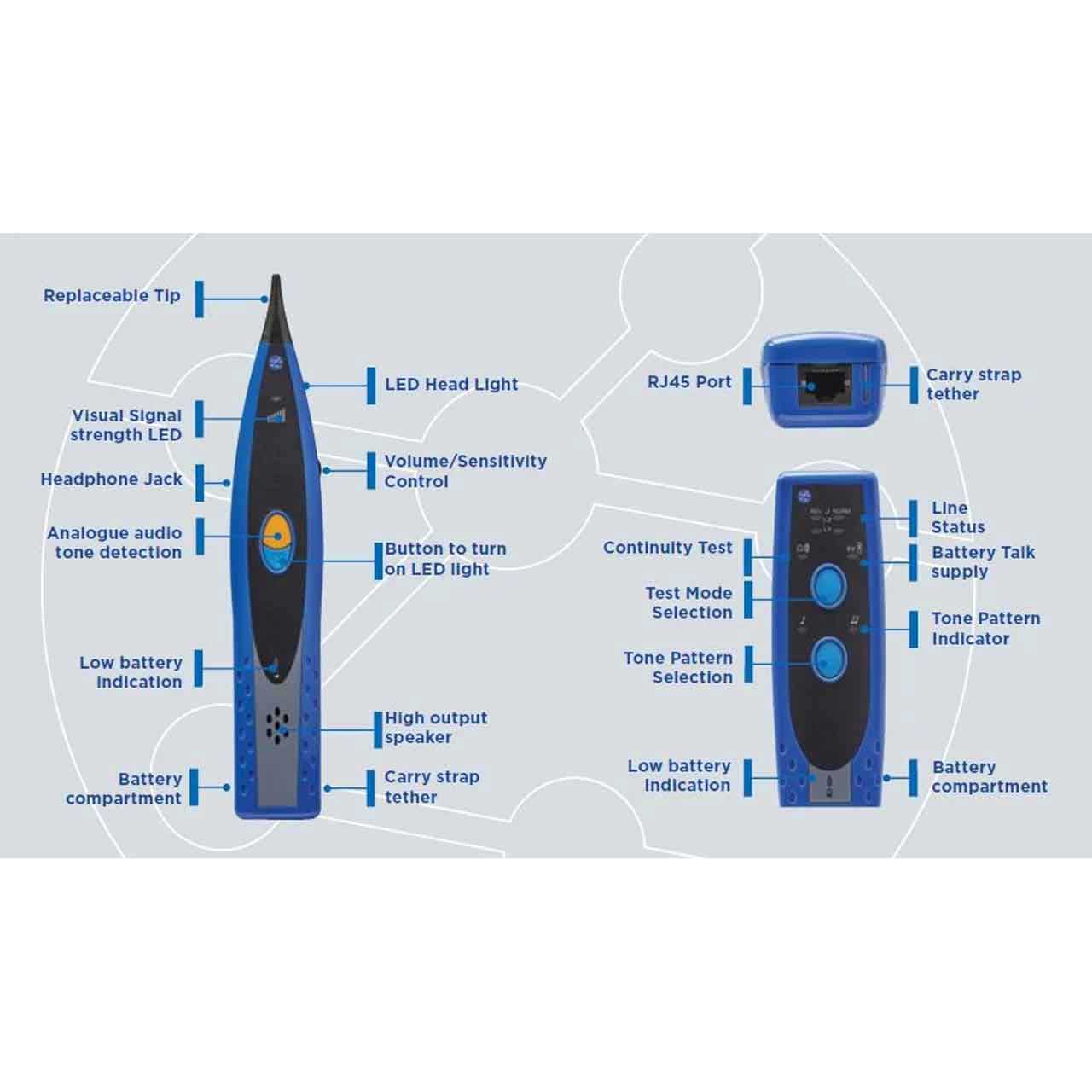

    Probe Features

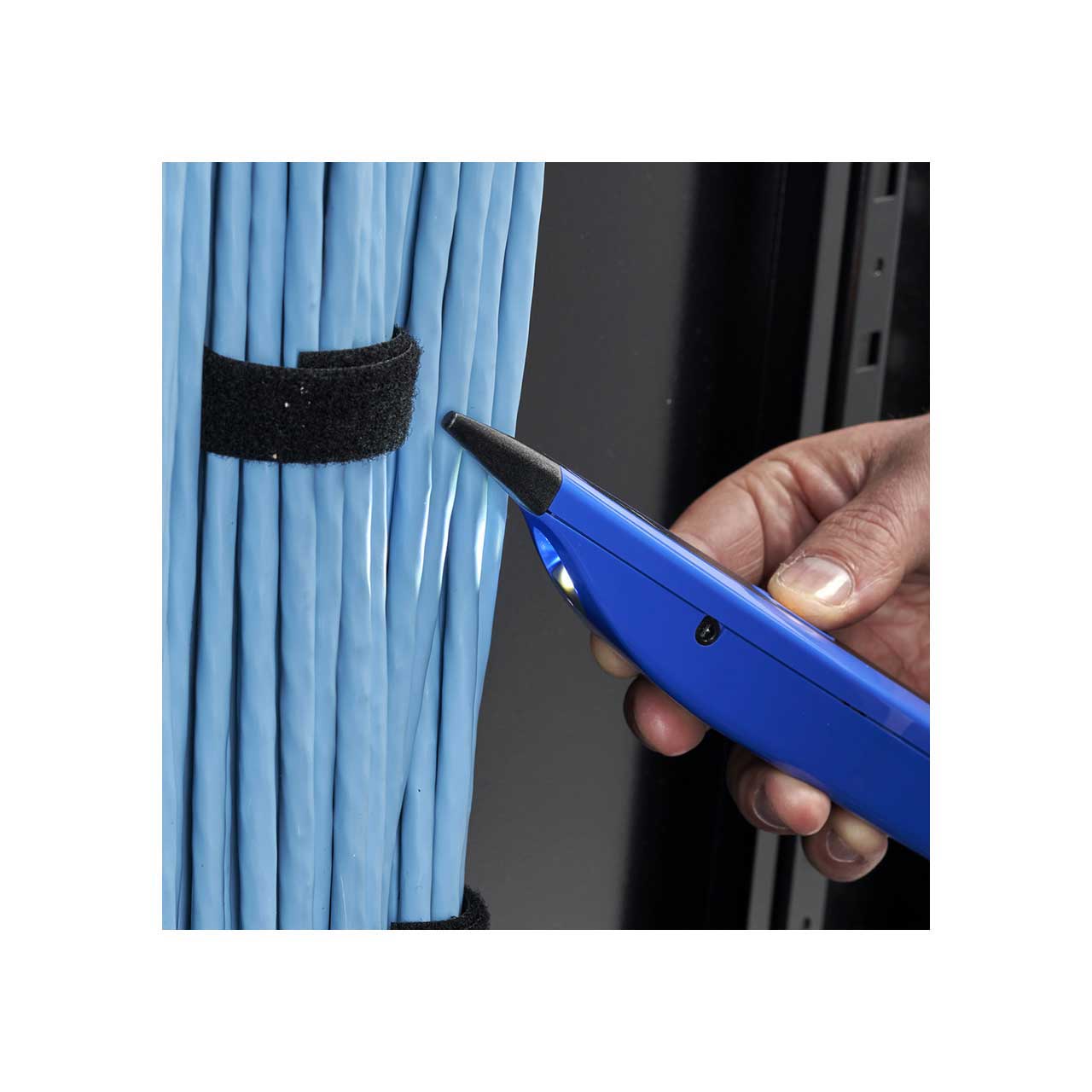

  • Locate weak signals using the highly sensitivity probe
  • Easier cable tracing with both audible and visual indicators
  • Find cables in noisy environments using the earphone jack

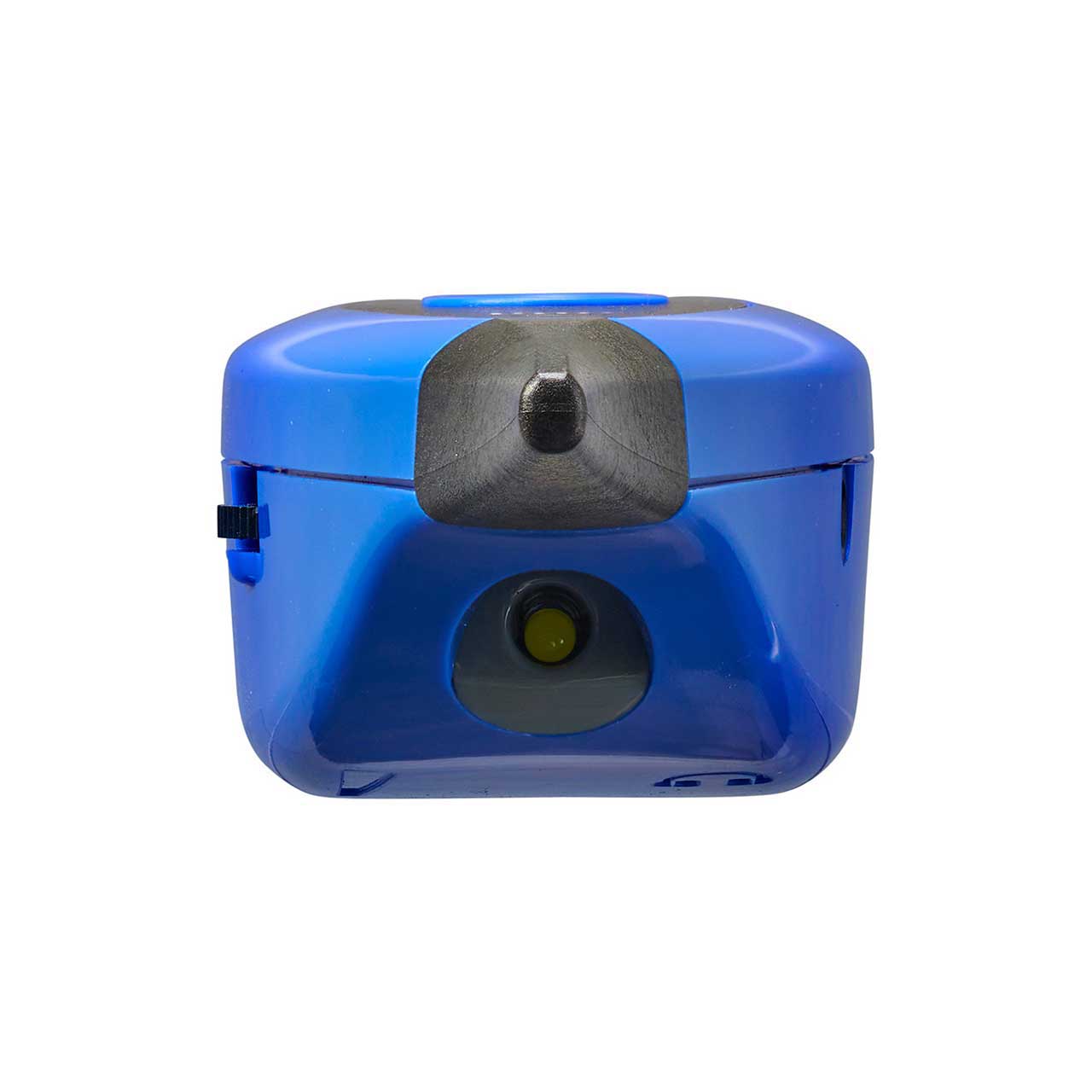

  • Operates in dark areas using the LED torch


• Specifications:

  • Audio I/O: 1 x 1/8" (3.5 mm) Headphone Output- Probe
  • I/O: 1 x RJ45 Input - Tone Generator
  • Wi-Fi: Yes
  • Package Weight: 1.05 lb
  • Box Dimensions: 11.4 x 4.2 x 1.8"

    Probe Specifications
  • Battery: 9V alkaline
  • Operation time: 50 hours typical
  • Operating temperature: -4°F to 140°F
  • Storage Temperature: -40°F to +158°F
  • Humidity: 5% to 85% non-condensing
  • Weight: 4.34oz
  • Dimensions: 5.04 x 1.69 x 1.18"
  • Safety: IEC 61010-1, Category none, 30 V rms max

    Tone Generator Specifications

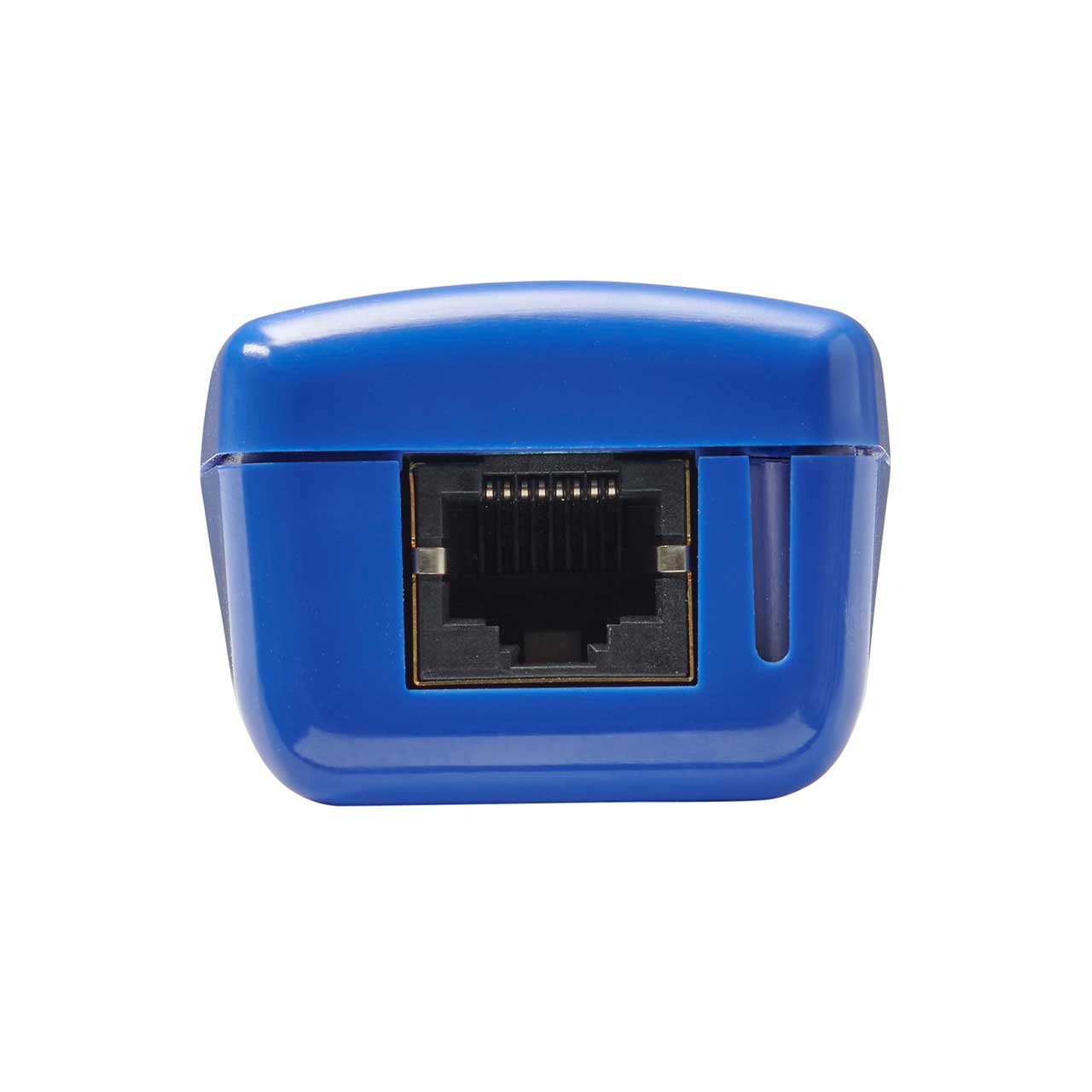

  • Port: RJ45 socket (pin 4&5 Line 1, Pin 3&6 Line 2)
  • Functions: Tone, Continuity, battery supply, line status (polarity, DC & Ringing Voltage)
  • Tone Frequency: Alternating f1= 982.5 Hz, f2 =1312.5 Hz
  • Output Power: ≥ +10dBm @ 600 Ω
  • Output Voltage on Continuity Mode: 6-8 V DC
  • Talk battery power supply: 6.0 V DC
  • Battery: 9V alkaline
  • Auto power off: 3 hours
  • Operation Time: 70 hours typical
  • Operating temperature: -4°F to 140°F
  • Storage Temperature: -40°F to +158°F


• Item Includes:

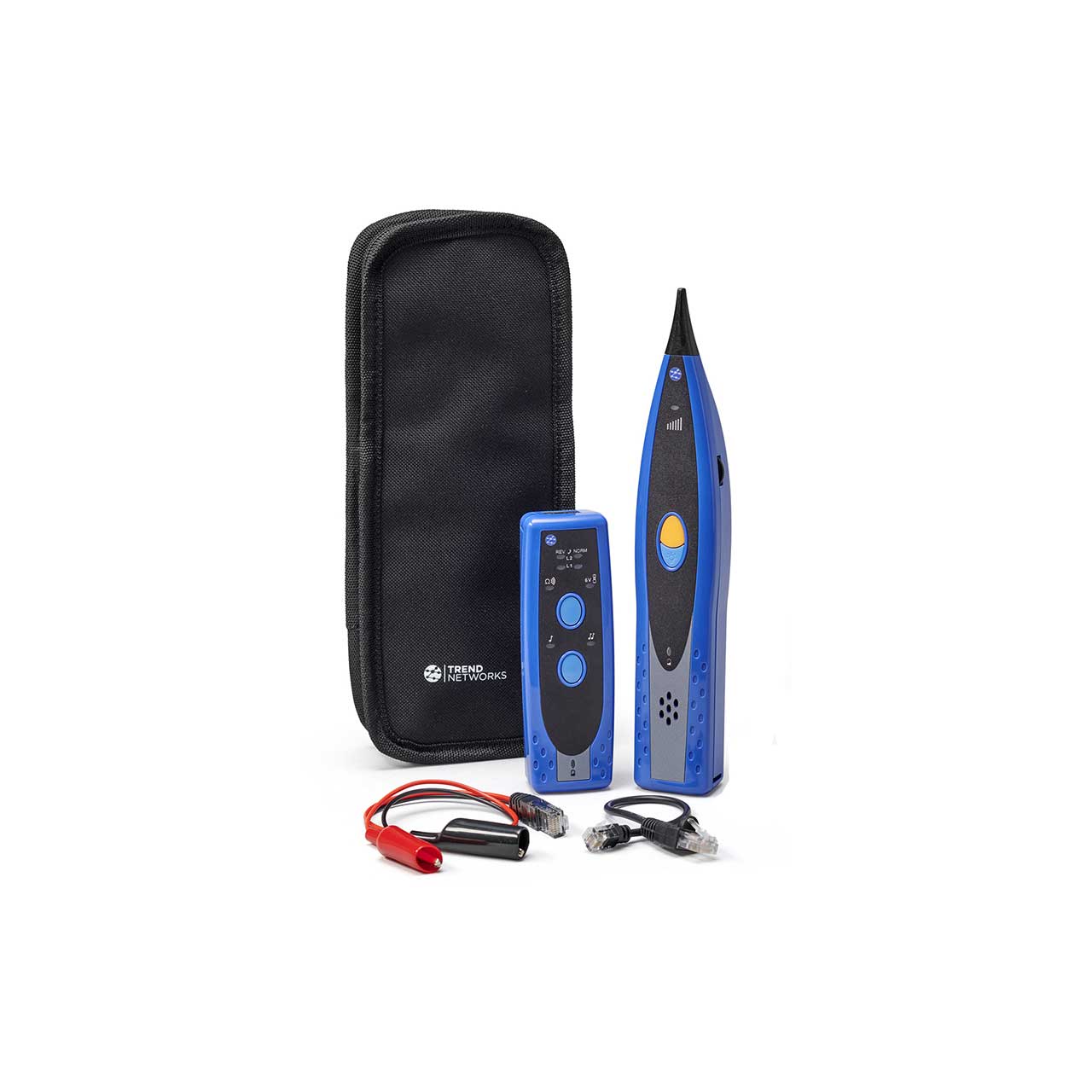

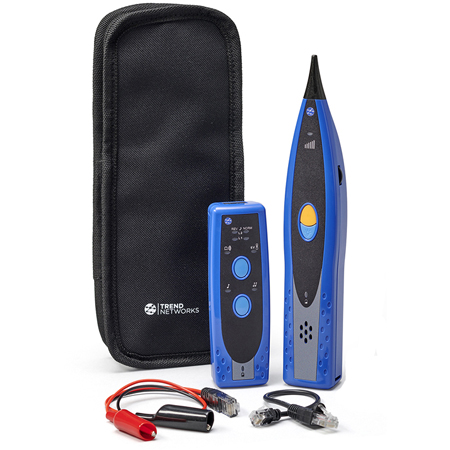

  • 1x Tone and Probe Kit for wire, LAN, WAN, and network cable tracing


• GTIN:

  0810093721207
