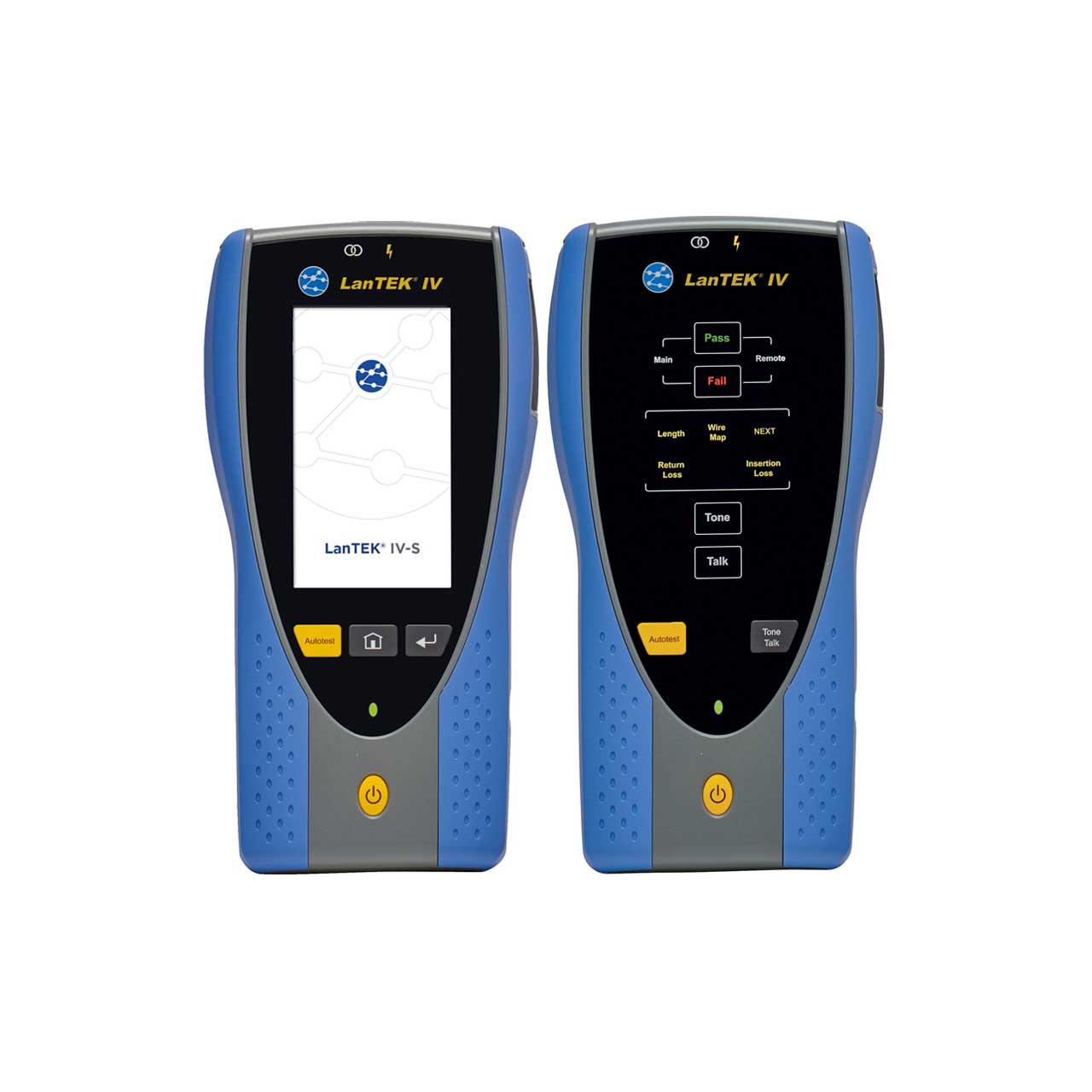

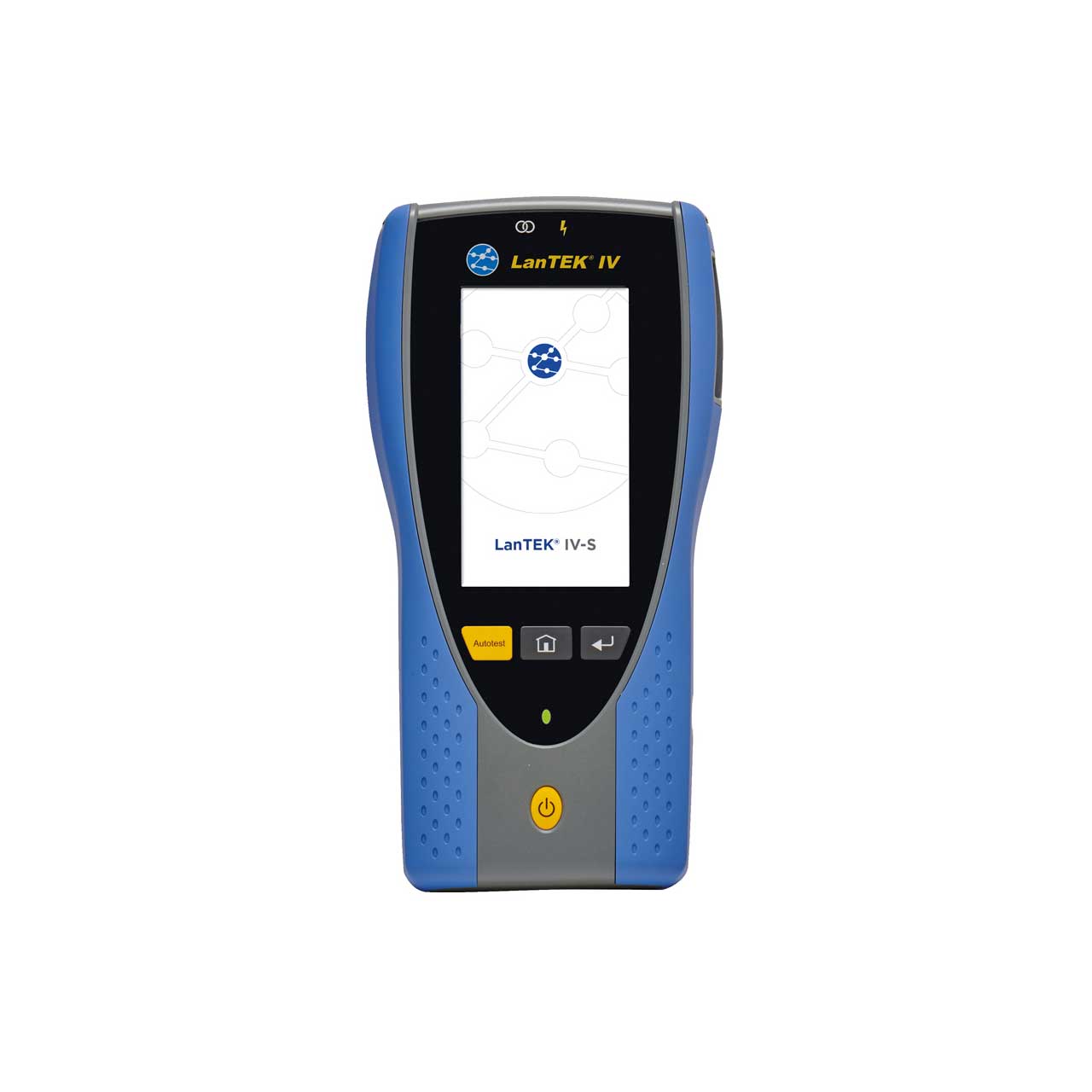

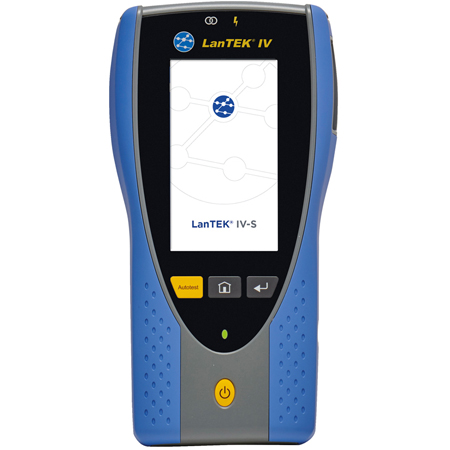

Simply45 ST-LT43000S Bundle - Includes LanTEK IV-S 3000MHz Cable Certifier - Permanent Link Adapters - Channel Adapters

ST-LT43000S - Overview

• Features:

  • Voltage Protection: Provides immediate notification / protection if accidentally connected to PoE
  • Complete Connectivity: WiFi, USB-A, USB-C
  • Live Wiremap: Instant wiremap result before the Autotest begins
  • Label Printer Connectivity: Easily send label IDs to printers for fast and accurate labeling
  • Integrated Kickstand: Integrated Kickstand allows for convenient placement on a desk or shelf for easy viewing
  • Rugged Design: Rubberized housing, protected screen and protected measurement port
  • Performs All Extended Measurements: TCL / ELTCTL Resistance Unbalance Shield Integrity
  • Beyond Cat 8 / Class II: LanTek IV-S 3000MHz exceeds highest current standards by 50% for future applications
  • Touchscreen: High resolution impact resistant touchscreen for ease of use
  • Intuitive User Interface: Simplified user interface for easy setup and operation
  • Partner Finder: Provides audible tone and visible indicator when connected to the remote unit

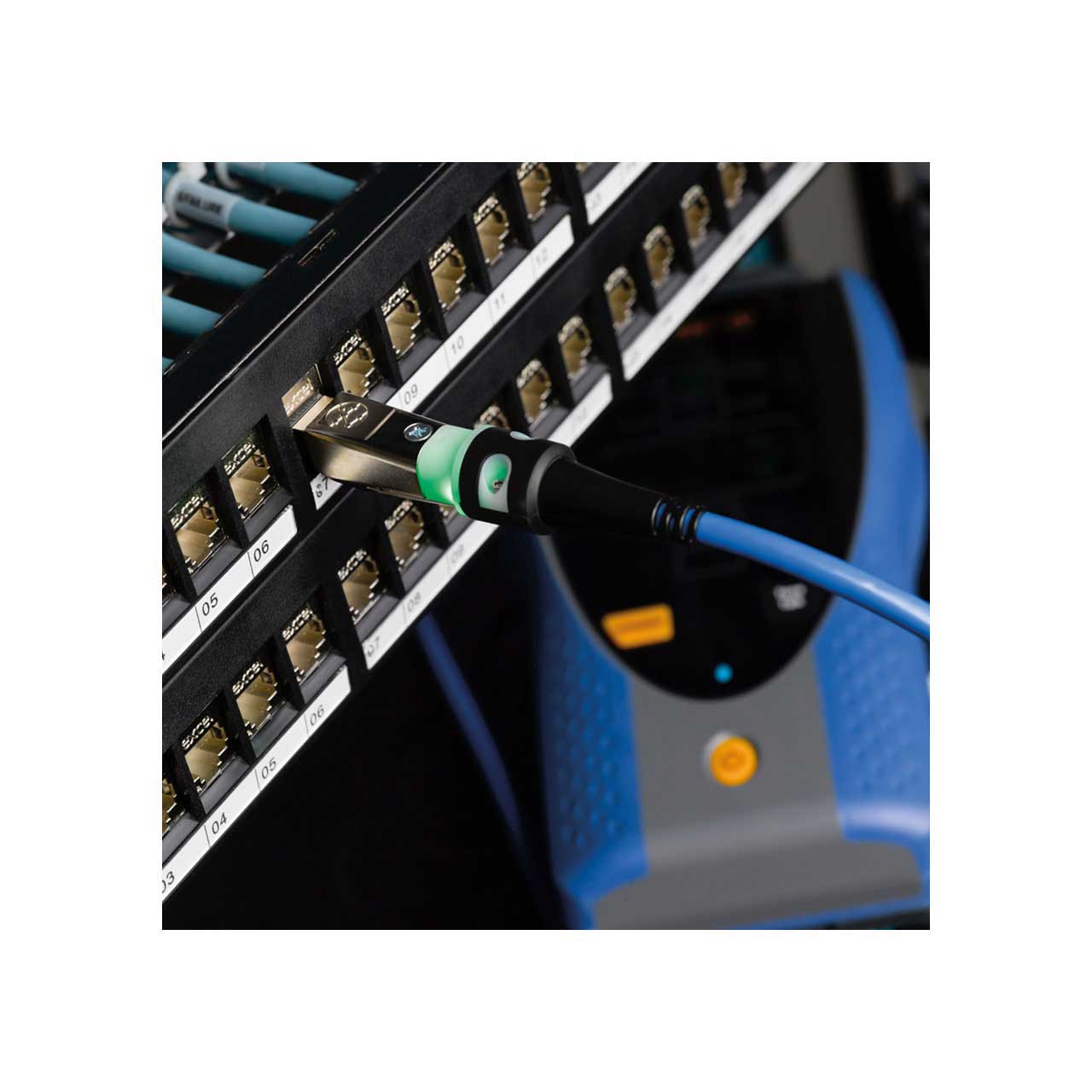

  • Permanent Link Modules (VisiLINQ™): To test and certify UTP/STP Cat5e/6/6A/8.1 cabling from the patch panel to the work area outlet. The RJ45 tip on the Permanent Link Modules are field replaceable to reduce the cost of ownership
  • Channel Modules: Select from a wide range of Channel Testing Modules for various applications including Cat6ARJ45, Cat8.1RJ45, Cat 7A/8.2 GG45, TERA, EC7, COAX and M12
  • Patch Cord Modules: Cat 5e/6/6A testing modules are available for certification of patch cordes to TIA and ISO standards. A patch cord module can be combined with a permanent link adapter to perform a Modular Plug Terminated Link (MPTL)


• Specifications:

  • Product Weight: 2.35 lbs
  • Product Height: 10 in
  • Product Length:2.1 in
  • Product Width: 5 in
  • Shipping Weight: 3lbs
  • Battery Type: Li-ion
  • Power Supply Voltage: 120v 50/60 Hz

    Battery
  • Battery: Type: Lithium ion, 7.4VDC, 6.6AH (48.84 Wh typical)
  • Input: 12V/2A DC
  • Typical Operating Time: 8 hours (new battery running a Cat6 test every 2.5 minutes, full backlight)
  • Charge Time: <4 hours quick charge with battery removed from handset, <8 hours inside handset

    Input Power
  • Handset: DC 12-15V, 2A

    Line/Mains Power Adapters
  • Input: AC 110-240V, 50/60Hz
  • Output: 12 DC, 2500mA 5.5mm x 2.5mm x 12mm Center positive


  • Display - IPS: 480x854 pixel, 5" diagonal
  • Connectivity Test module port: 120 pin ultra-low crosstalk module interface USC C (USB 2.0), USB A (USB 2.0), 3.5mm talk set jack, power/charging jack, integrated Wi-Fi (2.4/5 GHz bands) 802.11a/b/g/n (model available with Wi-Fi disabled)
  • Input Methods: Capacitive touchscreen, USB keyboard, USB mouse
  • Frequency Range: 1-3000 MHz, sweep defined by selected test standard

    CPU Module (Main Handset)
  • CPU: 1.0 GHz, 32 bit Cortex™ A9 processor, ARM 7 core
  • System memory: 512 MB RAM
  • System storage: eMMC Flash 8 G

    CPU Module (Remote Handset)
  • CPU: 900 MHz, 32 bit Cortex A7 processor, ARM 7 core
  • System memory: 128 MB RAM
  • System storage: eMMC Flash 8 GB

    Test Storage
  • Non-volatile flash, storage capacity for 2500 tests with graphs

    Data Transfer
  • Network transfer to cloud via Wi-Fi
  • Export to USB flash drive. Supports drives up to 256 GB (FAT32 format required)


• Item Includes:

  • 1x LanTEK IV-S 3000MHz Cable Certifier
  • 1x Permanent Link Adapters
  • 1x Channel Adapters


• GTIN:

  0810093721139
