Samson SASM4U MediaTrack 4-Channel Rackmount Mixer/USB Interface with Bluetooth

ITEM #: SAM-SASM4U MFG #: SASM4U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$259.99

Our Price:

$199.99

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    SASM4U - Overview

    Samson MediaTrack was made to upgrade and simplify audio capture of your live streams, video conferences and content creation. The compact 4-channel rackmount mixer and USB interface includes all of the features and connectivity you need to make all of your projects sound their best.

    It's a mixer

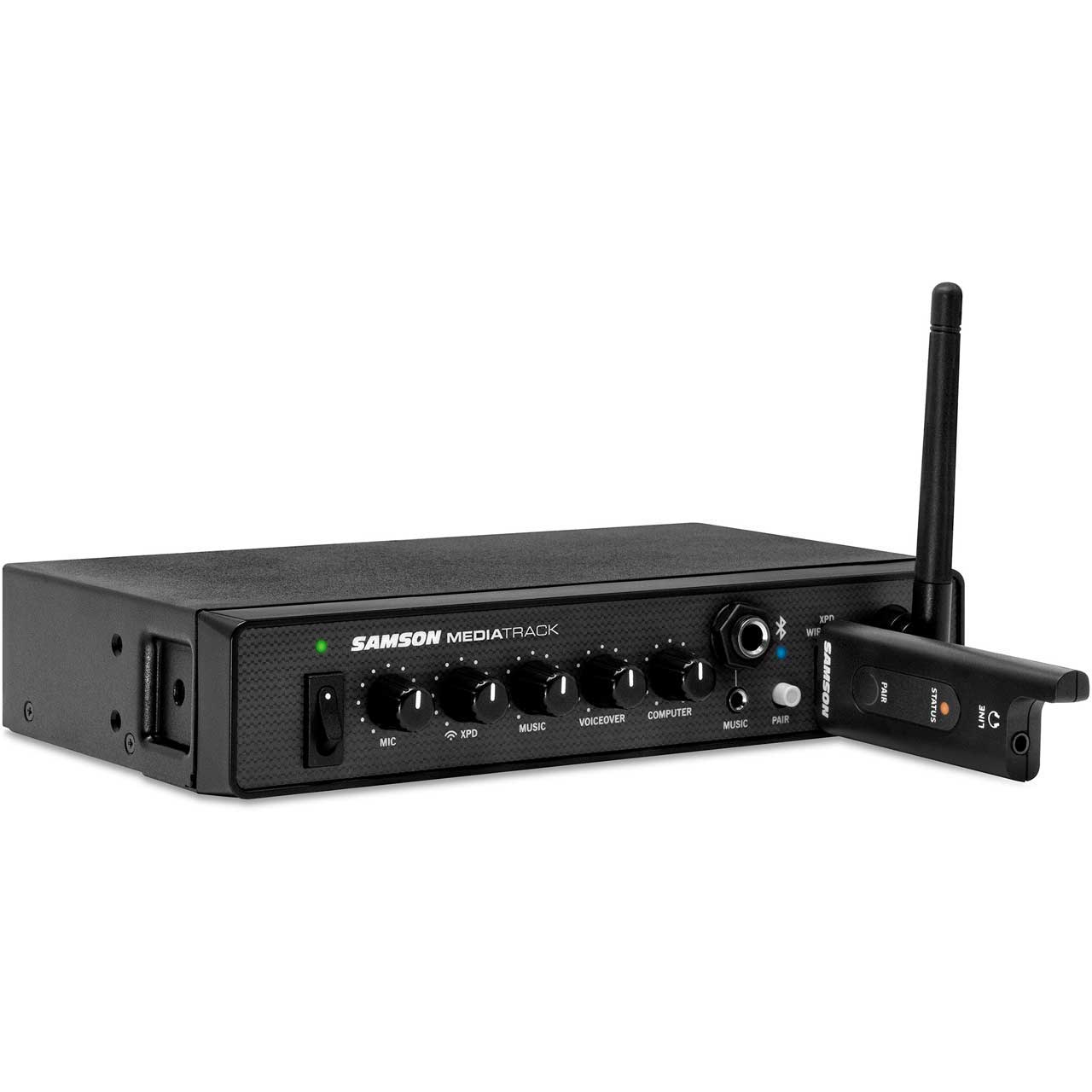

    MediaTrack features an array of connections for both wired and wireless audio sources. Plug a wired microphone into the XLR-1/4" combo jack, or go hands-free by connecting a Samson XPD Digital Wireless (sold separately) system to the front panel USB jack. Now you can confidently move freely around your environment with exceptional audio. The Music channel brings in audio from the stereo RCA inputs on the rear panel, as well as front-mounted stereo 1/4" and 1/8" inputs. Finally, you can add streamed Bluetooth audio sources such as smart phones and tablets to your mix as well.

    Perfect for productivity
    Designed with modern connected workspaces and content creators in mind, every feature from the available inputs to plug-and-play operation makes MediaTrack the audio solution you've been looking for. It's extremely easy to get up and running - plug in the USB cable, connect your microphone, set your levels and you're ready to start streaming.

    The onboard Voiceover priority ducker lowers the level of any background music so your voice stays clear and focused and you don't lose a beat. The Voiceover Hold knob allows you to adjust how long the audio is lowered to fit your presentation style.

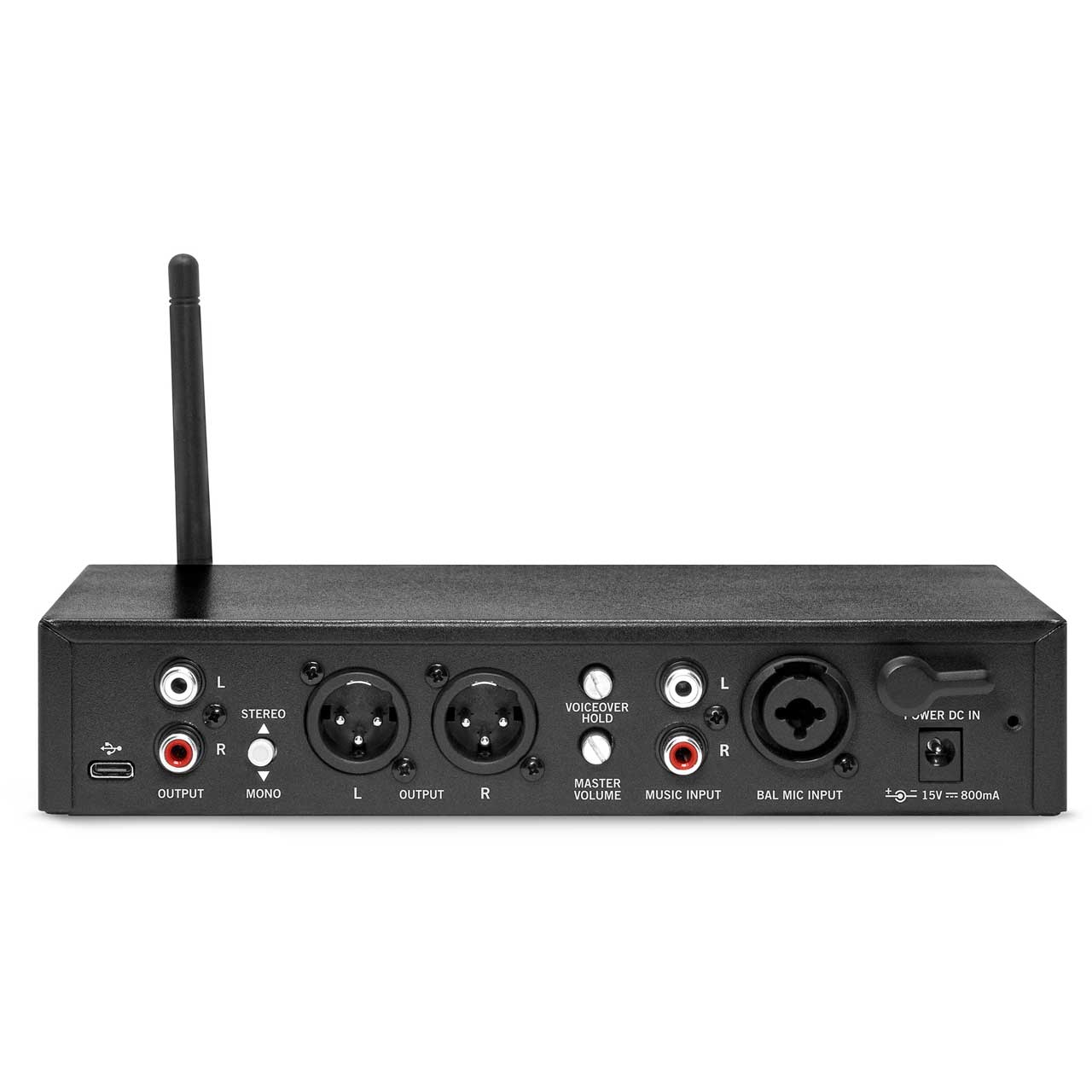

    A rear-mounted Master Volume allows the overall output level of the mixer to be set for the room or application without any worry of accidental changes. You can mix all the inputs along with the USB audio from a computer and send them to the dual XLR and RCA line level outputs. The unit can further be configured for either mono or stereo operation.

    The MediaTrack is ideal for connected sound like hybrid classrooms, streaming fitness classes and houses of worship. It is also a great solution for commercial sound systems in restaurants, bars and conference rooms.

    The compact MediaTrack takes up just half of a 1RU rackspace and can be installed using the included rackmount kit. It can be mounted adjacent to most Samson series wireless half-rack receivers.

    • Features:

      • 4-channel 1U half-rack stereo line mixer
      • USB interface for connecting with computers or tablets
      • XLR-1/4" balanced microphone input
      • Stereo line channel with RCA, 1/4" and 1/8" (3.5mm) inputs
      • Bluetooth connectivity to wirelessly stream from a mobile device
      • Samson XPD Series USB Port (wireless system sold separately)
      • Voiceover control with priority ducking and variable hold time
      • Rear panel master volume control
      • 15V phantom power
      • Selectable Mono or Stereo output setting
      • Rackmount kit and power adapter included

    • Specifications:

      • Frequency Response (to XLR balanced output, re +4 dBu output)
      • Music Inputs (1/4", 1/8", RCA): 20Hz-20kHz, +0/-0.5dB, 20Ω source
      • XLR Mic Input: 73.5Hz-20kHz, +0/-3dB, 150Ω source
      • Bluetooth: 20Hz-20kHz, +0/-3dB
      • USB Playback: 12.4Hz-18.2kHz, +0/-1dB

        THD+N (to XLR balanced output, re +4 dBu output)
      • Music Inputs (1/4", 1/8", RCA): <0.004%, 25Hz-17kHz, 20Ω source
      • XLR Mic Input: <0.006%, 75.5Hz-20kHz, 150Ω source
      • Bluetooth: <0.01%, 20Hz-20kHz
      • USB Playback: <0.005%, 20Hz-20kHz

        Equivalent Input Noise
      • XLR Mic Input: -108dBu, A-weighted, max gain (1%THD+N output),150Ω source

        Maximum Gains (to XLR balanced output, master volume maximum, 1kHz test tone)
      • Music inputs (1/4", 1/8", RCA): 20.5dB, 20Ω source
      • XLR mic input: 51.6dB, 150Ω source
      • Samson XPD System: 43.1dB, 20Ω source
      • Bluetooth: 20.3dB
      • USB playback: 11.9dB

        Residual Noise (A-weighted, all controls minimum)
      • XLR Out: -113.8dBu
      • RCA Out: -113.8dBu
      • USB recording: -96dBFS

        Maximum Input Level (1% THD+N)
      • Music inputs (1/4", 1/8", RCA): +5.46dBu, 9Hz-7kHz, +0/-0.1% THD+N, 20Ω source
      • XLR mic input: -6.58dBu, 80Hz-4.5kHz, +0/-0.1% THD+N, 150Ω source

        Maximum Output Level (1% THD+N)
      • Mic Output: +14.7 dBu (1% THD+N)

        Dynamic Range
      • XLR Out: 95dB, re +15dBu output, 22kHz BW
      • RCA Out: 100dB, re +15dBu output, 22kHz BW

        Input Impedance (1kHz test tone)
      • Music Inputs (1/5",1/8",RCA): 10kΩ
      • XLR Mic Input: 1.6kΩ

        Output Impedance (1kHz test tone)
      • XLR Out: 400Ω
      • RCA Out: 200Ω

        Voiceover
      • Attack Time: 8ms
      • Hold Time: 250ms (shortest setting), 2s (longest setting)
      • Release Time: 485ms
      • Maximum gain reduction: 28.6dB

        USB C I/O
      • Number of input channels: 2
      • Number of output channels: 2
      • Maximum sample rate: 48 kHz
      • Bit depth: 16 bits
      • USB Playback to XLR Output: gain 0dBFS = +12dBu at XLR output
      • USB Output Power: USB3.0 5VDC 200mA
      • Phantom Power: 15VDC
      • Power Adapter: 15VDC 800mA (center positive/sleeve negative)
      • Bluetooth: V4.0, A2DP
      • Working Frequency: 2.402GHz ~ 2.480GHz
      • RF Power: <10mW EIRP
      • Transmission Range: >10m (>32')

        Dimensions and Weight
      • Dimensions: 8.78" x 5.43" x 1.69"
      • Weight: 1.88 lbs

    • Item Includes:

      • 1x Samson MediaTrack 4-Channel Rackmount Mixer/USB Interface with Bluetooth
      • 1x Rackmount kit
      • 1x Power adapter
