Smart-AVI SDVN-4S Secure 4-Port Single-Head DVI-I KVM Switch with Keyboard /Mouse / USB  and Audio
  • Smart-AVI SDVN-4S Secure 4-Port Single-Head DVI-I KVM Switch with Keyboard /Mouse / USB  and Audio
  • Smart-AVI SDVN-4S Secure 4-Port Single-Head DVI-I KVM Switch with Keyboard /Mouse / USB  and Audio
  • Smart-AVI SDVN-4S Secure 4-Port Single-Head DVI-I KVM Switch with Keyboard /Mouse / USB  and Audio

Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart-AVI SDVN-4S Secure 4-Port Single-Head DVI-I KVM Switch with Keyboard /Mouse / USB and Audio

Manufacturer: Smart-AVI

Item #: SAVI-SDVN-4S   •   MFG #: SDVN-4S



List Price:$756.00
Our Price:$663.39

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The SDVN-4S allows users to control KVM (keyboard, video and mouse) operation on up to four computers with DVI, HDMI or VGA displays. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

With the SDVN-4S, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch’s functions. Better yet, the SDVN-4S offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDVN-4S ensures no data is leaked between secure ports and the outside world.

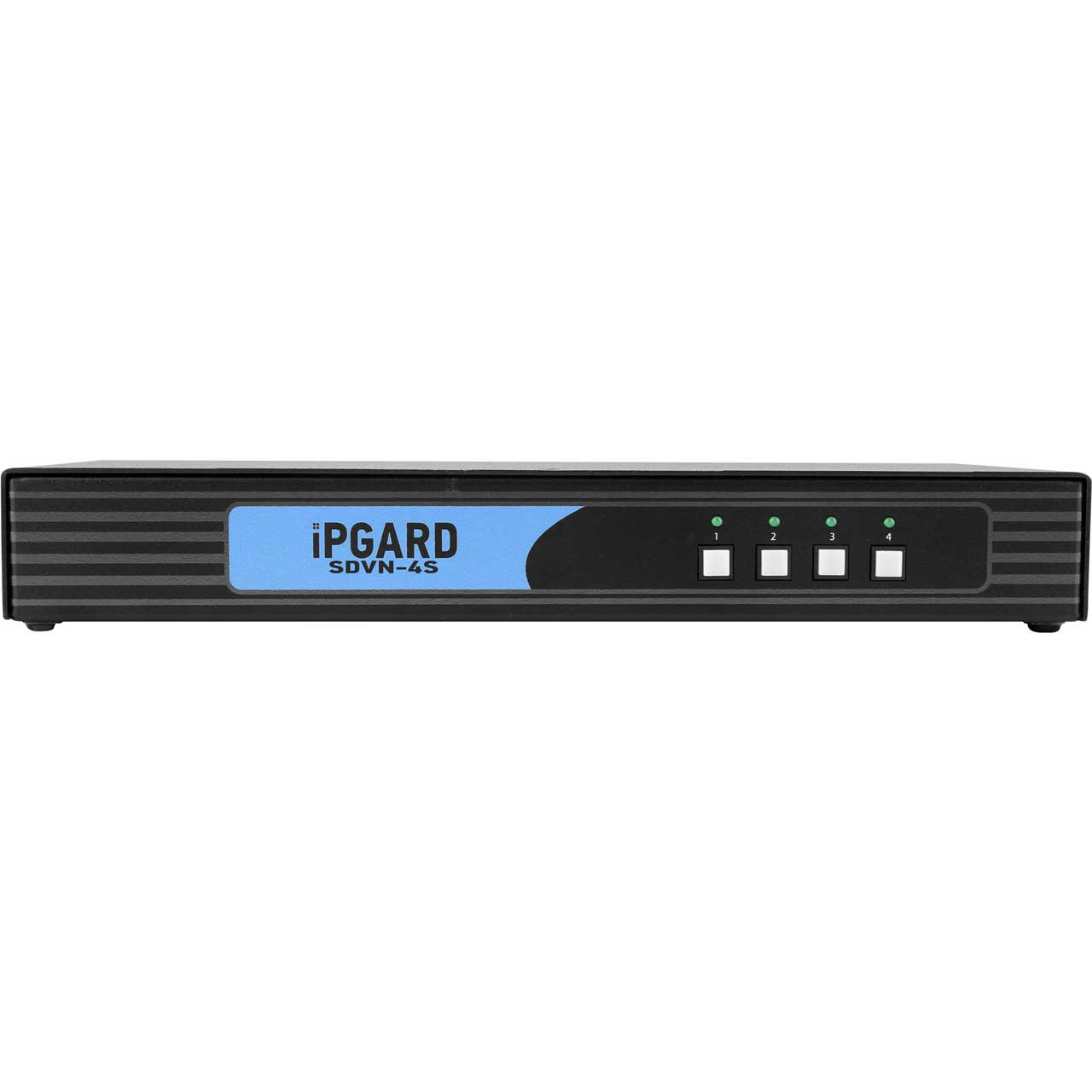

The SDVN-4S has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDVN-4S.


  • Features

    • Key Features
    • Supports Windows, Mac and Linux OS
    • Single-head DVI-I video interface
    • Native DVI-I resolutions support up to 2560×1600 @ 60Hz
    • 4K Ultra-HD resolution - supports up to 3840×2160 @ 30Hz via adaptor
    • Supports Balanced speakers output and switching
    • Front panel tactile buttons with LED indicator
    • External power supply - Level VI efficiency
      Security Features
    • Non-reprogrammable ROM
    • Active Anti-tamper switches
    • Long-life internal Anti-tampering battery
    • External tamper-evident seals
    • Keyboard, Mouse and Video emulation
    • Absolute isolation - No data leakage between ports
    • Certified by NIAP, the latest Common
    • Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)

  • Specifications

    • VIDEO
    • Format: DVI-I Dual Link, DVI 1.0, DVI-D, XVGA
    • Max Interface: 248 Mhz
    • Input Interface: (4) DVI-I 29-pin
    • Output Interface: (1) DVI-I 29-pin
    • Resolution: Up to 4K (3840 x 2160 @ 30Hz)
    • DDC: 5 volts p-p (TTL)
    • Input Equalization: Automatic
    • Input Cable Length: Up to 20 ft.
    • Output Cable Length: Up to 20 ft.
    • Data Rate 1.65 Gbps
      USB
    • Input Interface: (4) USB Type B
    • Output Interface: (2) USB 1.1 Type A for KM devices
    • Emulation: Keyboard and Mouse
      AUDIO
    • Audio Input: (4) 3.5mm stereo audio
    • Audio Output: (1) 3.5mm stereo audio
      CONTROL
    • Front Panel: Front panel SELECT buttons
      OTHER
    • Power: External 100-240 VAC/ 12VDC2A @24W
    • Dimensions: 12.57" W x 1.76" H x 6.69"” D
    • Weight: 4.2 lbs
    • Approvals: NIAP PP 3.0, UL, CE, ROHS Compliant
    • Operating Temp.: +32 to +104°F (0 to +40°C)
    • Storage Temp.: -4 to 140°F (-20 to +60°C)
    • Humidity: Up to 80% (no condensation)
