Smart-AVI SFX-4P-M-S 4DVI-D/USB2.0/Audio/RS232 Multimode Fiber Extender
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

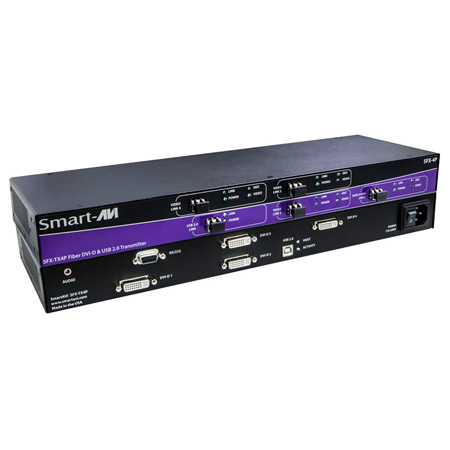

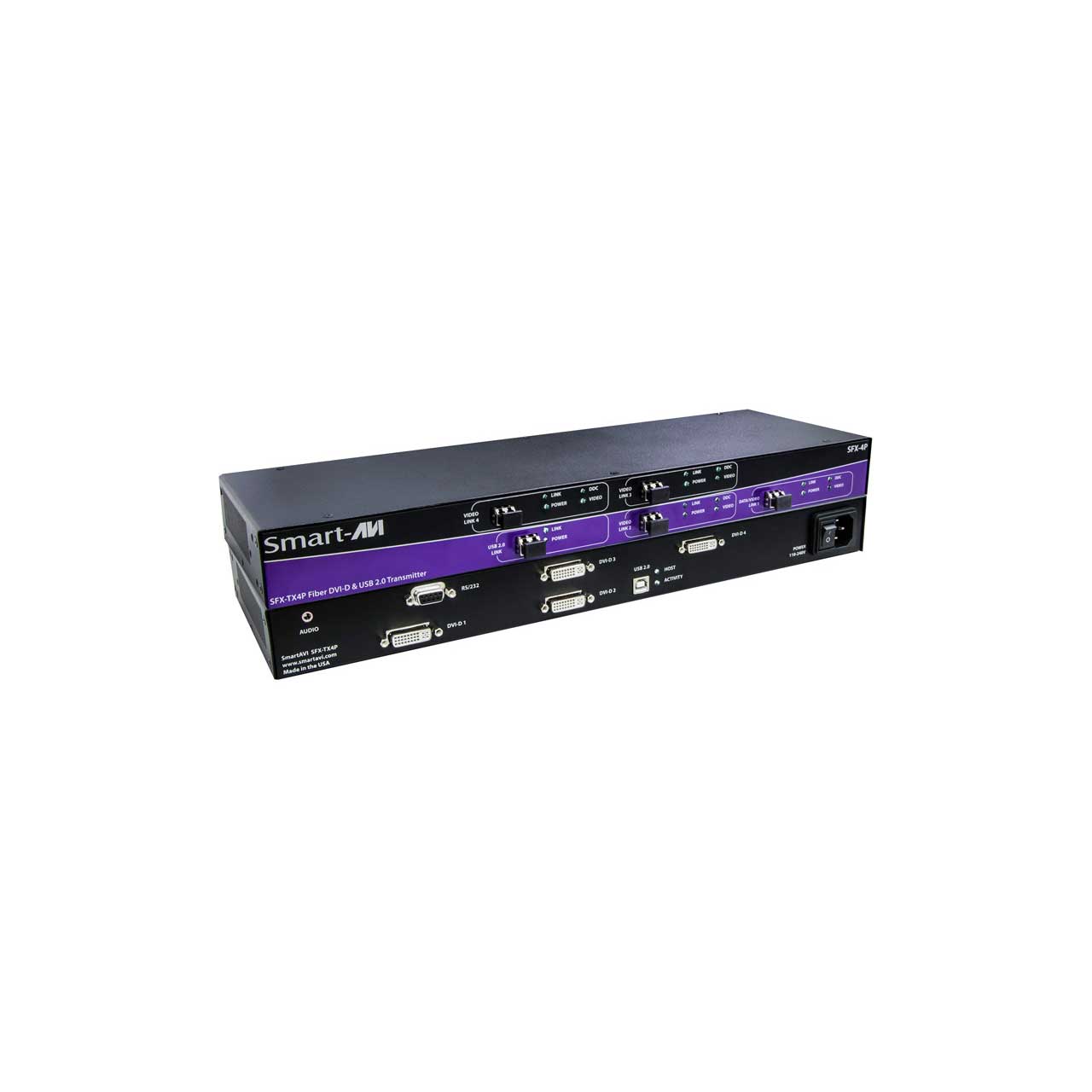

    Smart-AVI SFX-4P-M-S 4DVI-D/USB2.0/Audio/RS232 Multimode Fiber Extender

    Manufacturer: Smart-AVI

    Item #: SAVI-SFX-4P-M-S   •   MFG #: SFX-4P-M-S


    List Price:$8,999.00
    Our Price:$6,699.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    The SFX-4P is a perfect solution for extending 4 DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500 feet away. It supports high-resolution DVI-D video and all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers. The SFX-4P is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference. The SFX-4P is also very secure because it’s fiber optic signals cannot be easily tapped.

    • Features

      • Top Signal Quality at Maximum Extension
      • Over Multimode Fiber (1,500 ft.) Plug Type LC
      • DVI-D Video Resolutions up to 1920 x 1200 WUXGA at 60Hz
      • Automatic Learning DDC for Mac/PC
      • Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
      • Supports all USB device types transparently (no emulation)from high-speed web cams,
      • hard drives, printers, scanners, audio devices, touch screens, game controllers and more
      • Integrated Four-Port Hub in the receiver
      • Compatible with all operating systems
      • Extends Stereo Audio
      • Extends RS-232
      • Plug and play
    • Specifications

      • VIDEO
      • Format DVI-D Single Line
      • Maximum Pixel Clock 165 MHz
      • Input Interface (TX) (4) DVI-D 29-pin female
      • Output Interface (RX) (4) DVI-D 29-pin female
      • Resolution Up to 1920 x 1200 @60Hz
      • DDC 5 volts p-p(TTL)
      • Input Equalization Automatic
      • Input Cable Length Up to 20 ft.
      • Output Cable Length Up to 20 ft.
      • USB
      • Signal Type EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
      • Input Interface (TX) (1) USB Type B (Female)
      • Output Interface (RX) (4) USB Type A (Female)
      • AUDIO
      • Signal Type Stereo Audio
      • Bandwidth 15MHz, 0dB
      • Impedance 10K Ohm
      • Connector 3.5mm Stereo Mini Female
      • RS232
      • Input Interface (TX) DB9 Female
      • Output Interface (RX) DB9 Male
      • Speed Up to 115 Kbps
      • Operating Temp. 0-55 °C (32-131°F)
      • Storage Temp. -20-85 °C (-4-185 °F)
      • Humidity Up to 95%
      • RS232
      • Fiber Type Duplex, multi mode
      • Connector Type Duplex LC
      • Wavelength 1310 nm/1550 nm (Dual wavelength)
      • Data Rate 2x2.5 Gbps (2.5 Gbps per single wavelength)
      • Transmission Power -5 dB Min.
      • Receiver Sensitivity -21 dB Max
      • Distance 500 m Max.
      • OTHER
      • Power Internal 100-240 VAC
      • Dimensions 17 in W x 1.70 in H x 7 in D
      • Weight 8 lb
      • Operating Temp. 0-55 °C (32-131°F)
      • Storage Temp. -20-85 °C (-4-185 °F)
      • Humidity Up to 95%
    • Item Includes

      • [SFX-4P-TX, SFX-4P-RX, 2 X (CCPWR06USA)]
