Thor Fiber F-DVI-TXRX DVI Over Fiber Video Optical Transmitter/Receiver Kit - Singlemode - LC - 6 Mile Range

ITEM #: THR-F-DVI-TXRX MFG #: F-DVI-TXRX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$718.80

Our Price:

$599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-DVI-TXRX - Overview

The Thor Fiber F-DVI-TxRx transmits high-definition video and audio signals over long distances using a single optical fiber. It also supports bi-directional RS232 data transmission. This additional feature allows for the extension of control signals, such as keyboard and mouse input, to the remote location, making the system more versatile.

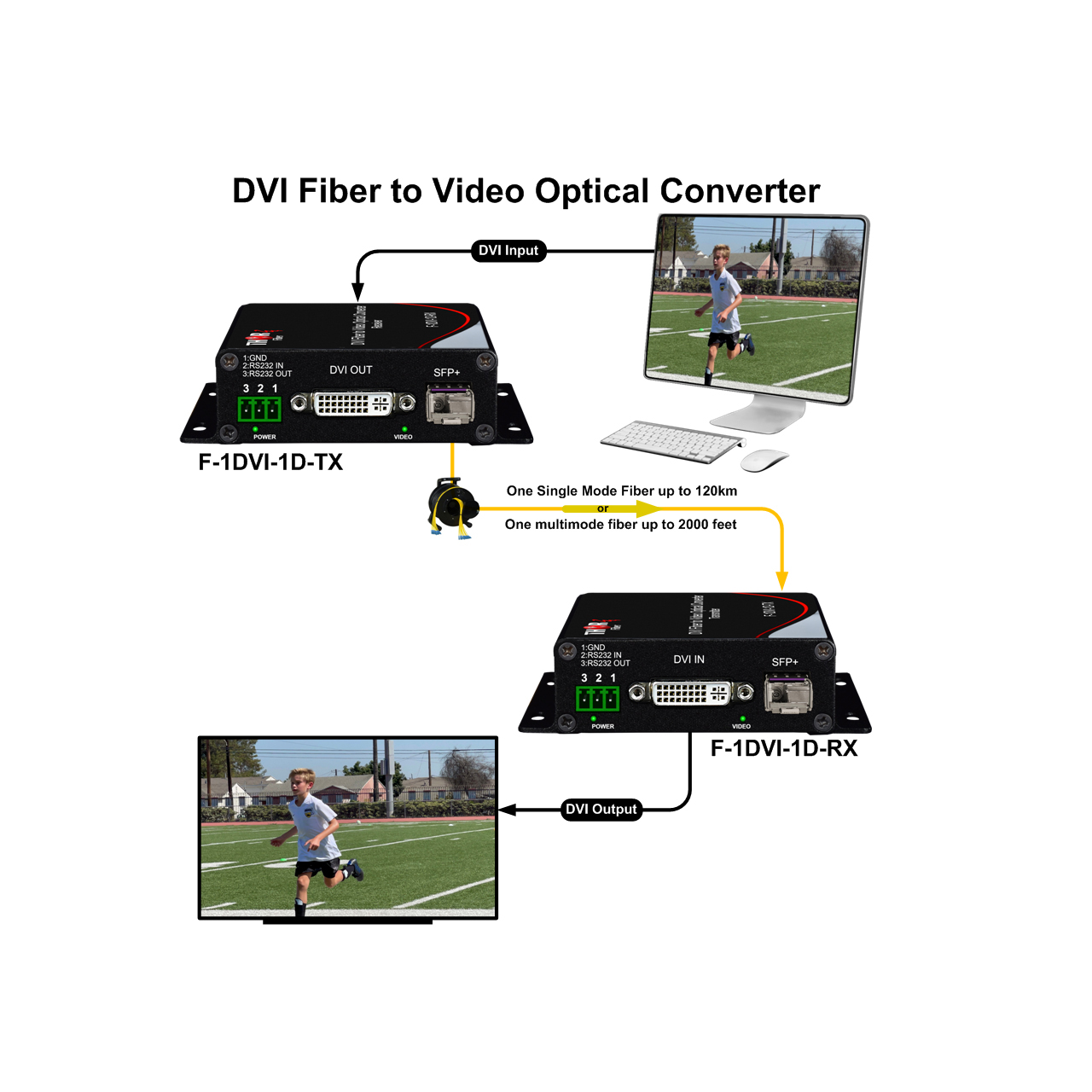

The device takes the DVI output from a source (such as a computer or workstation) and converts it into a signal suitable for fiber optic transmission. Along with the video and audio data, RS232 control signals (such as keyboard and mouse inputs) are sent over the same optical fiber. At the receiving end, the signal is decoded back to DVI, and the RS232 data is used to extend control functions, enabling the remote user to interact with the system as if they were directly at the source.

The combination of video, audio, and RS232 data transmission over a single optical fiber makes these extenders highly efficient, providing both high-quality media transfer and remote control capabilities. The plug-and-play design and power supply make installation simple and hassle-free, making it a reliable solution for various professional and commercial applications.

Applications Include:
- Conference Rooms
- Digital Signage
- Home Theaters
- Broadcast and Control Rooms

  • Features:

    • DVI1.0, maximum support 1920*1200@60Hz
    • Transmission bandwidth: 10G
    • Transmission distance: 10km
    • HDCP compliant
    • RGB4:4:4 YUV4:4:4 YUV4:2:2 YUV4:2:0
    • EDID transparent transmission, downward compatibility with all systems 1920*1200@60Hz
    • Built-in low jitter PLL, RMS jitter 0.03UI, high-speed transmission stability and reliability
    • Reverse transmission bandwidth 250M (EDID, HPD)
    • HD non-compression transmission
    • Video delay <2ms
    • RS232
    • Simplex, full duplex (RS232), half duplex
    • Plug and play, setup in minutes

  • Specifications:

      Optical Module
    • Fiber Optic Channel: 1 channel
    • Fiber Connector: LC
    • Type of Fiber: Singlemode single fiber
    • Band Bandwidth: 10Gbps
    • Signal Standard: Serial Digital Optical Signal
    • Transmitting Optical Power: -6dBm
    • Receiving Sensitivity: >-13dBm
    • Wavelength: 1270/1330nm

      DVI
    • Physical Interface: DVI
    • DVI Channel: 1 channel
    • Standard: DVI 1.0/HDCP 1.4
    • Maximum Pixel Clock: 340M
    • Output Input Rate: FULLHD 10GbpS
    • Support for Resolution: 1920*1200 60Hz downward compatibility
    • AC Impedance: 100Ω
    • Signal Amplitude: 0.8V vpp
    • Signal Coupling Mode: AC Coupling
    • DVI Maximum Cable Length: 10m

      Data
    • Data Channel: One channel bidirectional

  • Item Includes:

    • 1x Thor Fiber F-DVI-TX
    • 1x Thor Fiber F-DVI-RX
    • 2x US Power Cord

  • Warranty:

    • 5 Year Limited Warranty
