Smart AVI XTREEM-WALL 4K Input Multi-Format Video Wall Controller

ITEM #: SAVI-XTREEM-WALL MFG #: XTRW-S

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SAVI-XTREEM-WALL

XTRW-S - Overview

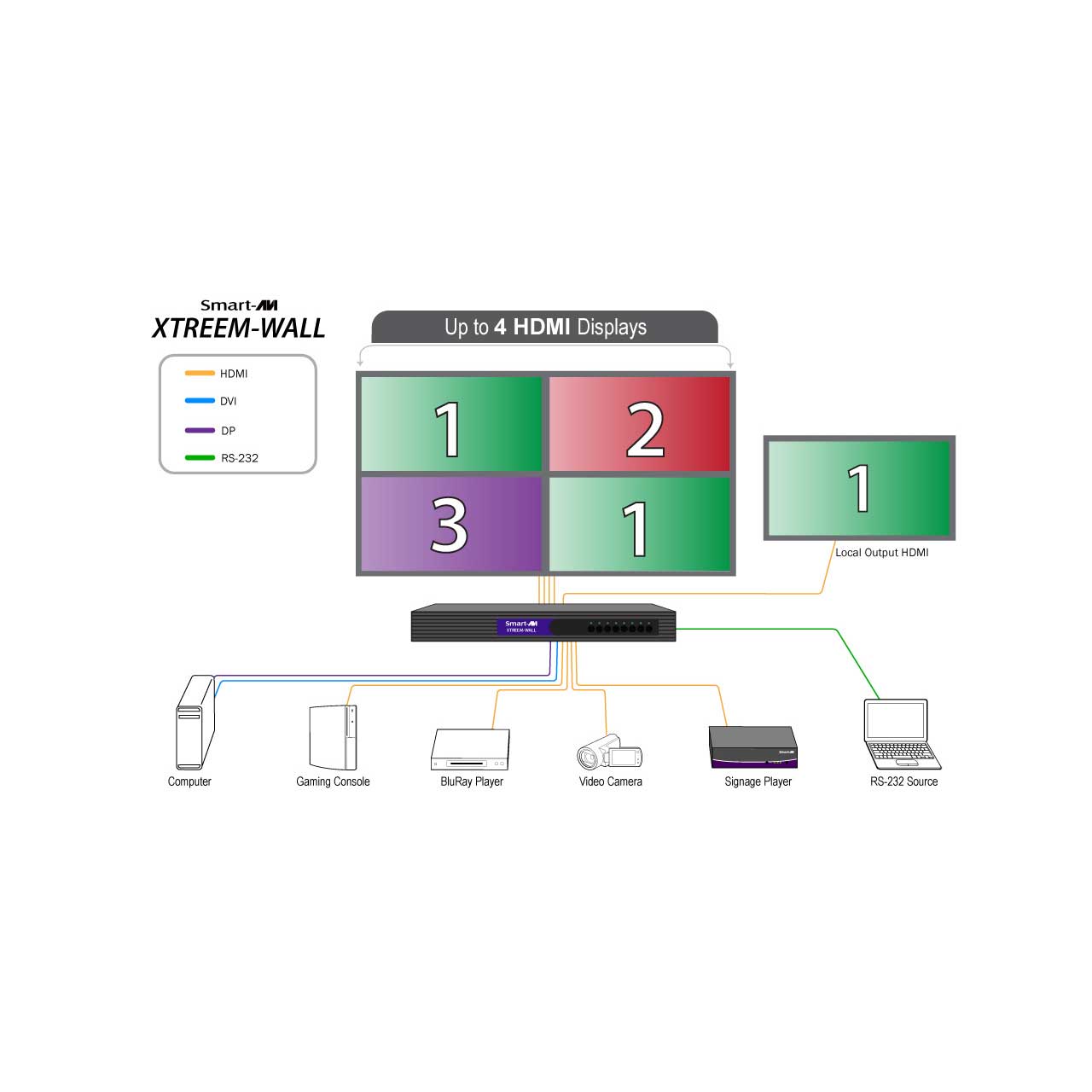

The XTREEM-WALL is SmartAVI's easiest and most effective solution for building creatively configured video walls.With multi-format inputs for video resolutions up to 4K (3840x2160 @ 30Hz), The XTREEM-WALL sends stunning multiscreen imagery to four connected HDMI displays in 1080p Full HD (1920x1080 @ 60Hz) output.

Best of all, the XTREEM-WALL is highly compatible with the most popular displays on the market, and features a variety of stunning video wall modes bound to attract patrons and onlookers to your business or exhibition.

The XTREEM-WALL excels in a wide array of real-world applications. Perfect for the majority of displays on the market, it is highly compatible with popular HDMI-outfitted HDTVs and monitors. The XTREEM-WALL works extremely well in retail spaces like stores and malls, entertainment venues such as movie theaters and concert halls, airports, hospitals, schools, office buildings, and hotel lobbies.

  • Features:

    • Input: (1) DP, (1) DVI-I, (1) HDMI 4K Input
    • Output: (4) 1080p HDMI, (1) Local Loop
    • Input up to 4K (3840x2160 @ 30Hz)
    • Output up to 1080p (1920x1080 @ 60Hz)
    • Creative configuration modes, including:
    • Full Video Wall | PIP | POP | Flip
    • Supports VGA & Y/Pb/Pr when paired with a DVI-I adaptor
    • Supports IR & TCP/IP Ethernet control.
    • Includes IR remote control & receiver.
    • Control over web console or Android apps
    • Plug-and-play ready for immediate use.


  • Specifications:

    • Video & Audio
    • Format: DP, DVI-I, HDMI
    • Video Input: (1) DP; (1) DVI-I; (1) HDMI (*VGA & Y/Pb/Pr support w/ DVI-I adaptor)
    • Video Output: (4) HDMI
    • Input Resolution: Up to 4K (3840x2160 @ 30Hz)
    • Output Resolution: Up to 1080p (1920x1080 @ 60Hz)
    • Audio Input/Output: HDMI Digital Audio
    • Compliance: HDCP Compliant

      Control
    • Front: Front-panel tactile switch buttons
    • IR: RC-100 infrared remote control with IR-EYE receiver
    • Network: Web control interface

      Other
    • Power: 100-240 VAC, PS5VDC4A
    • Max. Consumption: 20 W.
    • Dimensions: 17.0" W x 1.76" H x 10.58" D
    • Weight: 7.7 lbs
    • Storage Temp.: +32°to +131°F
    • Operating Temp.: -4°F to 185°F
    • Humidity: Up to 95% (no condensation)


  • Item Includes:

    • IR-EYE: IR signal receiver
    • RC-100: IR remote control
    • Power Supply (5 volt, 4 amp)
