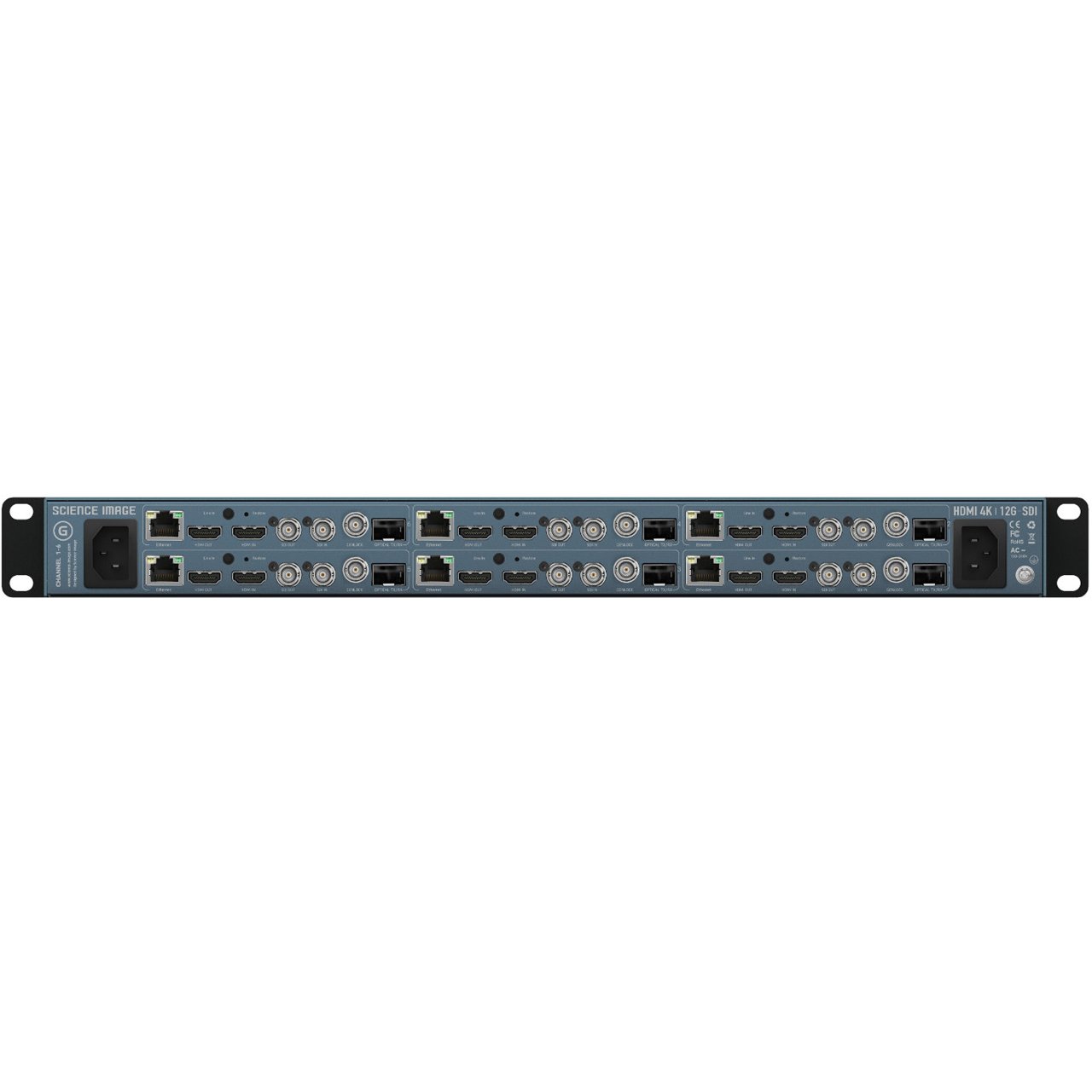

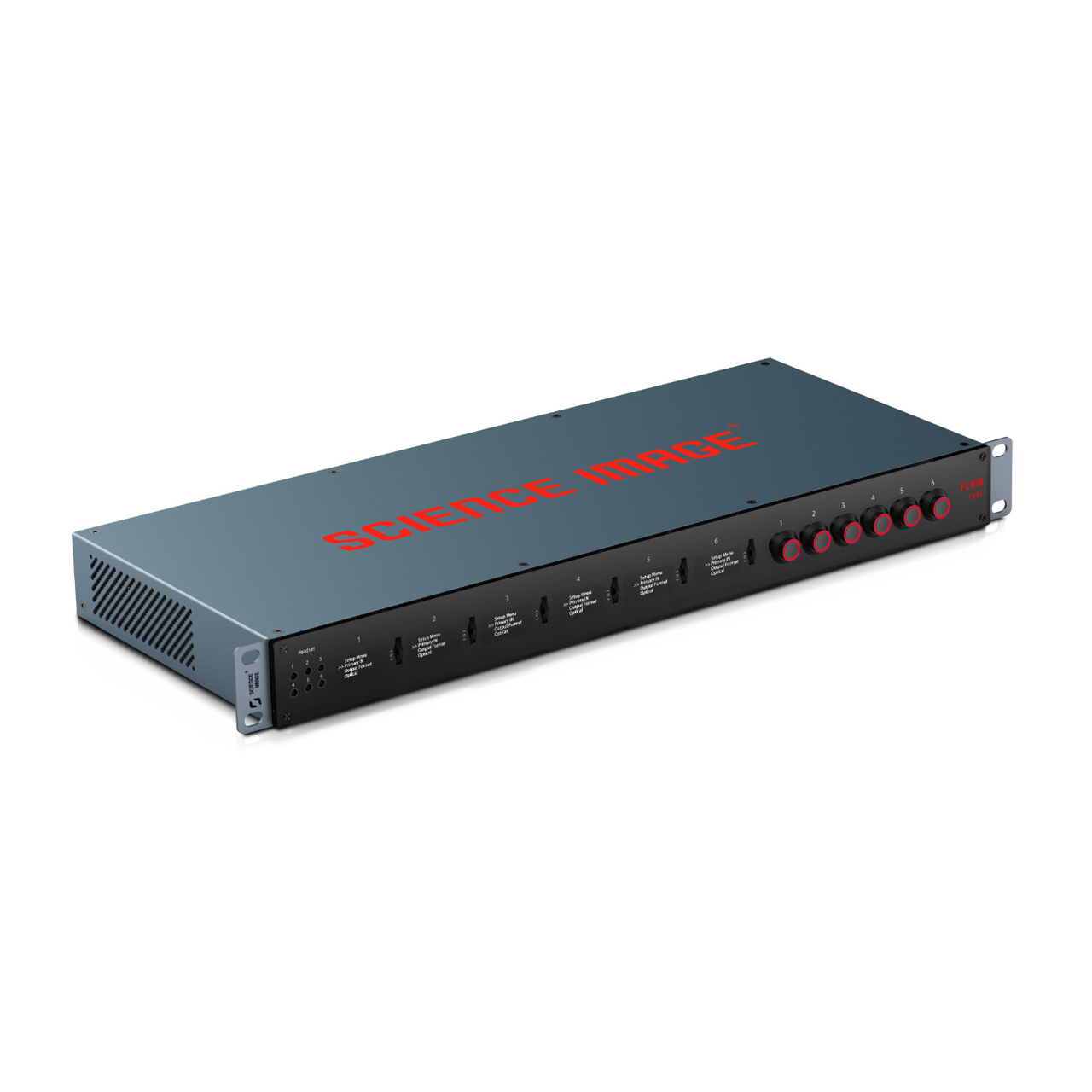

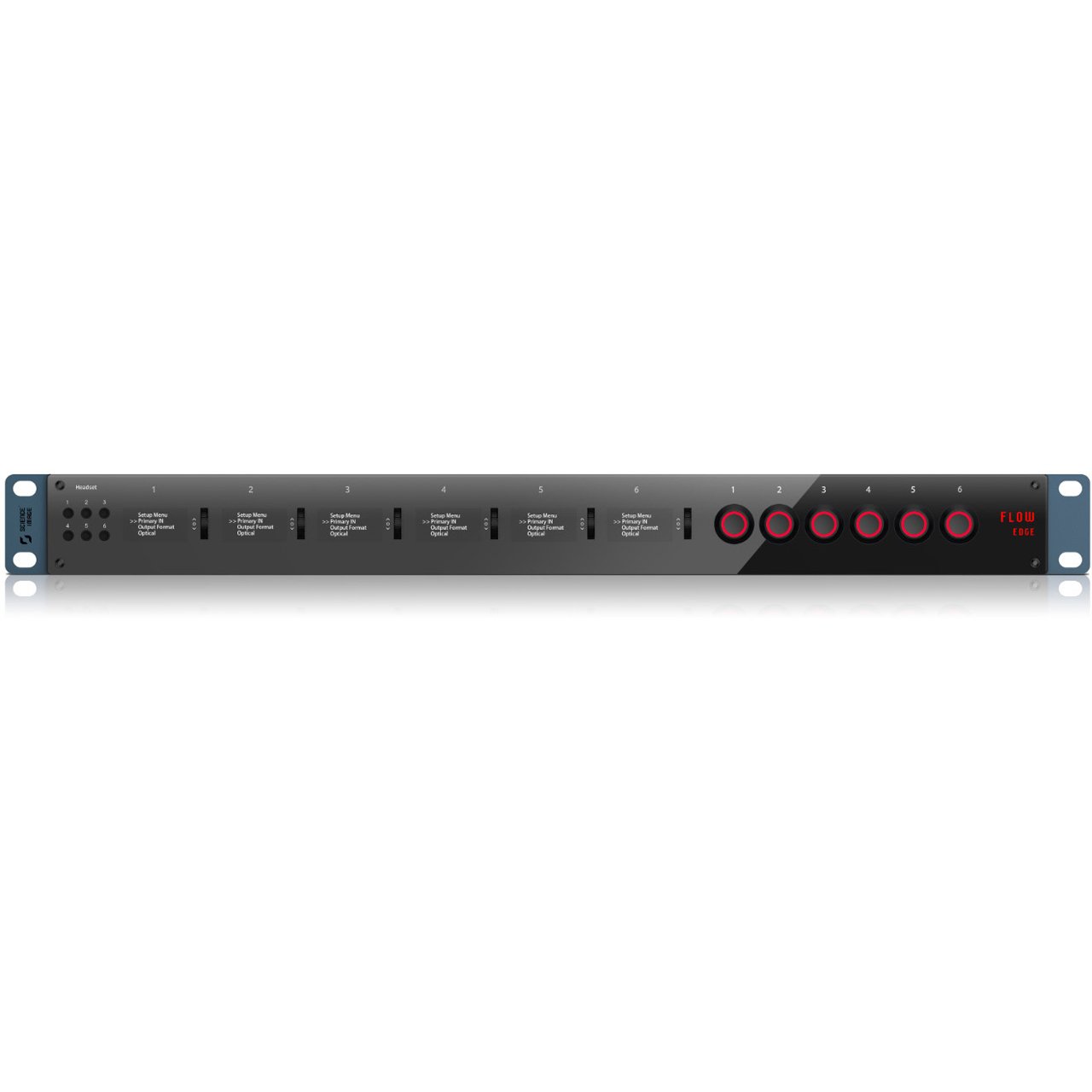

Science Image SI-FLOWEDGE6-G 6-Channel 1U Rack-mount 4K60 Up/Down/Cross Converter with 12G-SDI HDMI IO and Genlock

ITEM #: SCI-FLOWEDGE6-G MFG #: SI-FLOWEDGE6-G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$7,950.00

Availability: Preorder
iAvailability Description Popup


SI-FLOWEDGE6-G - Overview

The Science Image SI-FLOWEDGE6-G is a 6 channel, 1U rack-mount video format converter that supports up to 35 formats. It features a powerful combination of connectivity and flexibility, making it ideal for a wide range of studio broadcast and event production purposes.

Capture, convert, and transmit virtually any SMPTE-compatible format up to 3840x2160 at 60fps over 12G-SDI, HDMI 2.0, and fiber. It can be controlled remotely over a network using the built-in Gigabit Ethernet connection or the front-panel scroll wheel and LED display.

  • Features:

    • 6-Channel Rack-mount
    • Up/Down/Cross Conversion of 35 formats
    • Fiber TX/RX and Analog Audio In/Out
    • Up/Down/Cross Conversion of 35 formats
    • Scroll wheel buttons for direct menu operation, Web UI control
    • Audio Embed/De-Embed from stream, 2-way Intercom per channel

  • Specifications:

      General
    • Dimensions: 20" x 12" x 6" (50.8cm x 30.5cm x 15.2cm)
    • Weight: 8lbs (3.6kg)
    • Rack Form Factor: 1U

      Video I/O
    • 6x 12G-SDI Input & Outputs
    • 6x HDMI 2.0 Input & Outputs (Up to 2160p60)
    • 6x Genlock inputs

      Audio I/O
    • 6x 3.5mm stereo headphone outputs
    • 6x 3.5mm stereo line-in inputs

      Network
    • 6x RJ-45 Gigabit Ethernet
    • 6x optical fiber SFP+ interfaces (for optional 12G-SDI transceiver)

    • Display: 6x 1.3-inch OLED screens with status, video format, IP address, etc.
    • Power: AC power input, 6x LED illuminated power button

  • Item Includes:

    • 1x SI-FLOWEDGE6-G 6-Channel 1U Rack-mount 4K60 Up/Down/Cross Converter

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0601961419995
