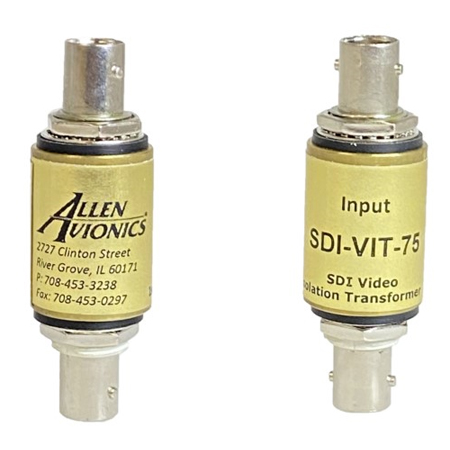

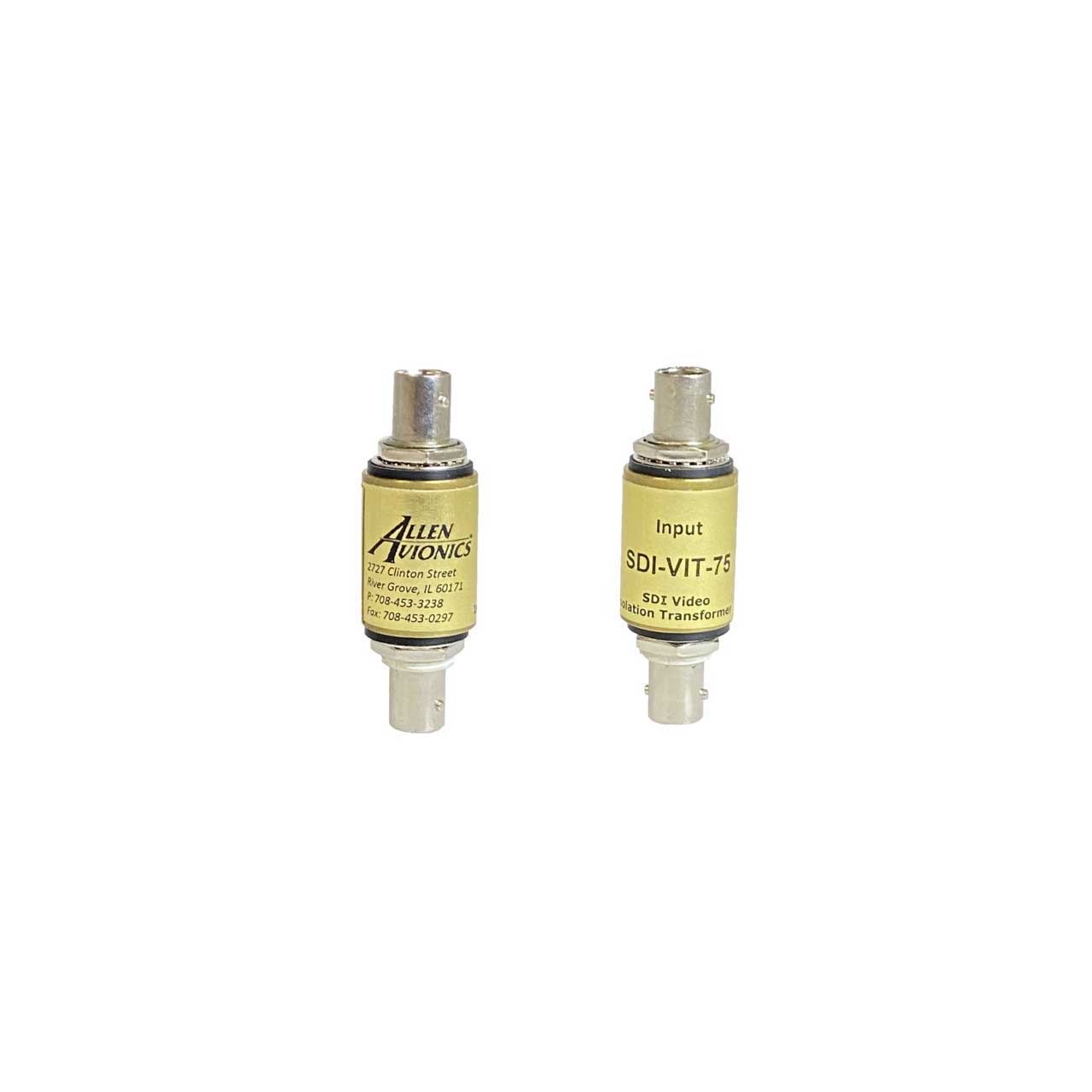

Allen Avionics SDI-VIT-75 SDI Video Isolation Transformer

ITEM #: SDI-VIT-75 MFG #: SDI-VIT-75

free ship

List Price:

$144.00

Our Price:

$132.15

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    SDI-VIT-75 - Overview

    SDI-VIT-75 is a Video Isolation Transformer for eliminating hum in Serial Digital Transmission Lines.This can be used for Broadcast Systems where hum is present due to ground loops or where there is a large differences in ground potential. The SDI-VIT-75 provides electrical isolation between the Input and Output and will also eliminate induced currents in long cable runs.

    • Features:

      • Supports all transmission rates of SMPTE 259M and ITU-R BT 656. Supports 143Mbps to 540 Mbps including 270Mbps transmission rate
      • Small Cylindrical Shielded Package with BNC Connectors
      • Isolated Output Signal Path
      • Greater than 60 dB of Ground Loop Isolation
      • Passive Device - No power required
      • 75 Ohms Balanced with 1.0 GHz Bandwidth
      • Greater than 15 dB Return Loss till 500 MHz


    SDI-VIT-75 - Required Accessories

      SDI-VIT-75 - Recommended Accessories
