Allen Avionics ISO-6G-SDI SDI Video Isolator Transformer

ITEM #: AAV-ISO-6G-SDI MFG #: ISO-6G-SDI

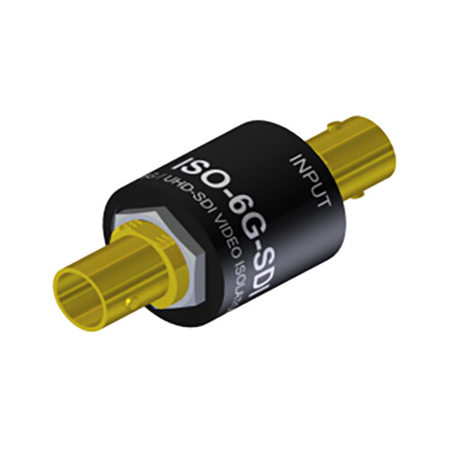

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$203.95

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ISO-6G-SDI - Overview

    The Allen Avionics ISO-6G-SDI is a Video Isolator for eliminating hum in 6G / Ultra High Definition Serial Digital Transmission Lines. This can be used for Broadcast Systems where hum is present due to ground loops or where there are large differences in ground potential. This device provides electrical isolation between the Input and Output and will also eliminate induced currents in long cable runs.

    • Features:

      • Supports all transmission rates of SMPTE259m and SMPTE292m up to 1.50Gbps HD-SDI Video Input
      • Equivalent to less than 20 feet of cable
      • Isolated Signal Path
      • Greater than 60 dB of Ground Loop Isolation
      • Passive Device - No power required
      • Small Cylindrical Package with Gold BNC Connectors for better response
      • 75 Ohms Balanced with 3.0 GHz Bandwidth
      • Greater than 15 dB Return Loss till 1.50 GHz
      • 2 kV flash tested

    • Specifications:

      • Material of Construction: BNC Connectors: Gold
      • Connectors: 2 x BNC, 6G-SDI
      • Ground Loop Isolation: > 60 dB
      • Format Support: Up to UHD 4K
      • Standard Compliance: SMPTE259M and SMPTE292M
      • Bandwidth: 75-Ohm Balanced with 3 GHz Bandwidth
      • Return Loss: >15 dB up to 1.5 GHz
      • Power: No Power Source Required

    • GTIN:

      0652069734275
