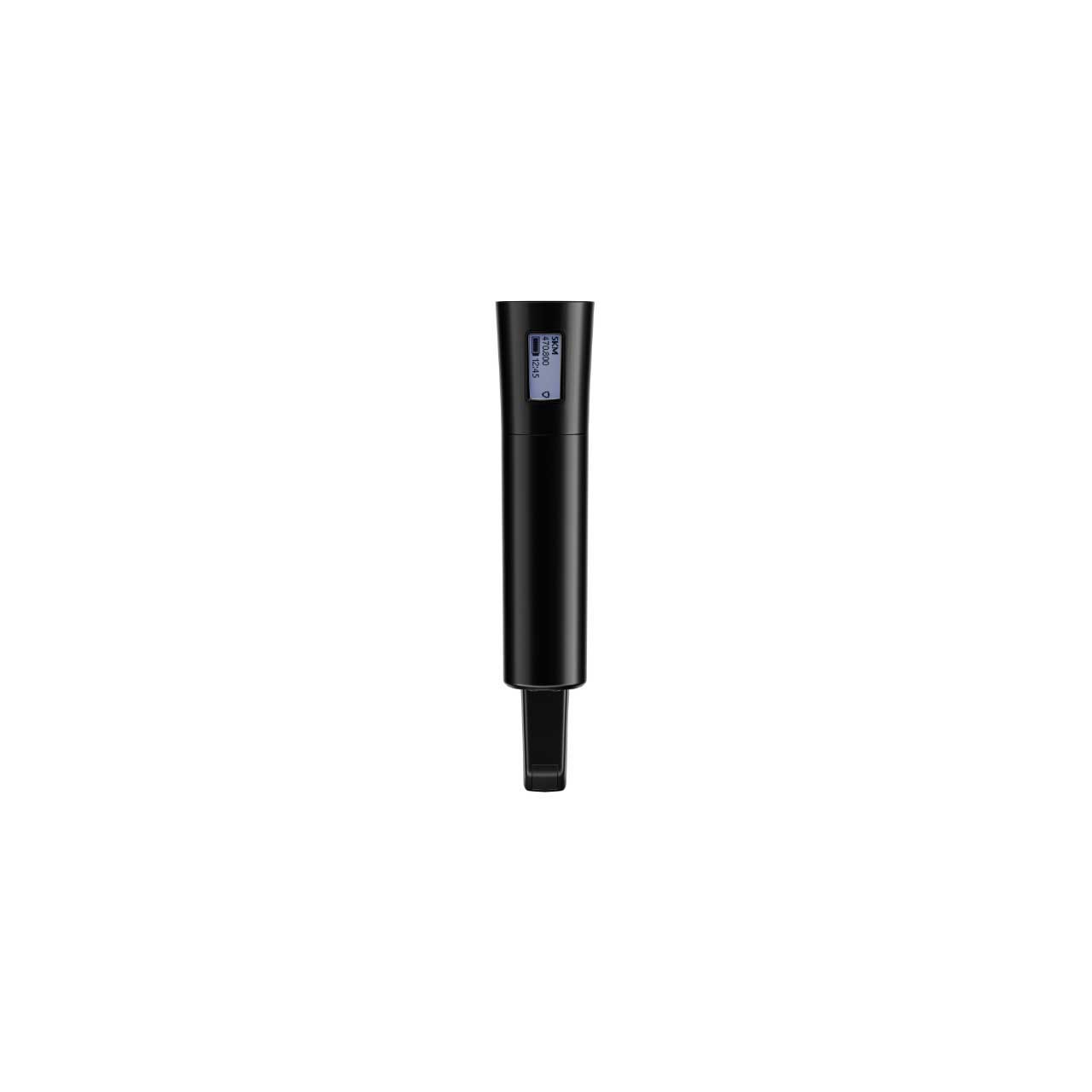

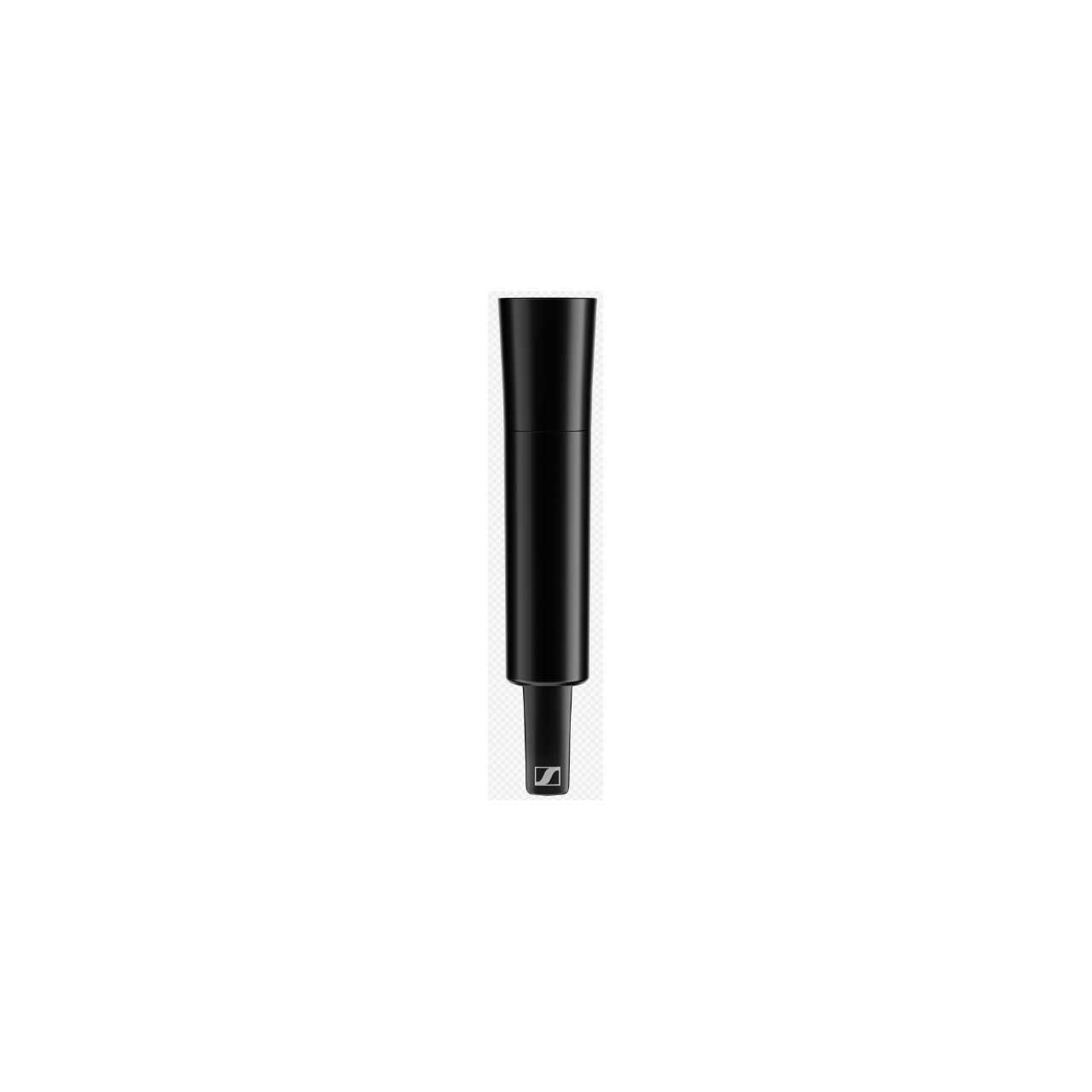

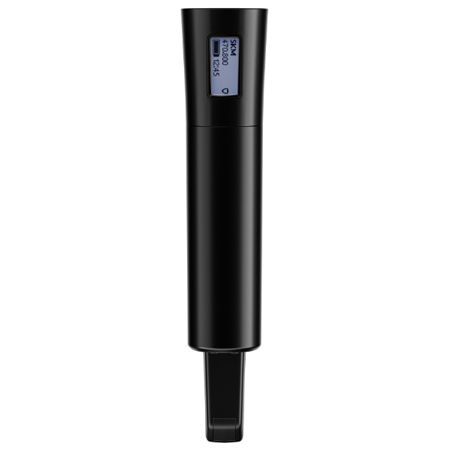

Sennheiser EW-DX SKM Q1-9 Handheld Transmitter - Frequency 470.2 - 550 MHz

ITEM #: SENN-EWDXSKM-Q19 MFG #: 509426

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Sennheiser
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$549.00

Our Price:

$469.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    509426 - Overview

    Sennheiser EW-DX SKM (Q1-9) rugged and versatile handheld transmitter without switch. The Q1-9 has a frequency of 470.2 - 550 MHz.

    Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of expertise to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage or campus, while equidistant channel spacing, auto scan, and Bluetooth® Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance-even from your pocket-with tools like Sennheiser Control Cockpit, Wireless Systems Manager, and the Smart Assist app. The future of wireless is here.

    Applications
    Education
    Corporate
    Performers
    Houses of Worship
    Rental Houses
    Theaters
    Broadcast Studios
    Presentations/Lectures
    Meetings
    Live Sound

    Please note! Capsule sold seperately.

    • Features:

      • EW-DX SKM
      • 10mW RF power with up to 100m/328ft working range
      • Charging contacts for in-device charging with CHG 70N
      • Persistent eInk display - parameters visible on screen even when device is not powered on
      • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
      • Function buttons - control all the transmitter settings directly from handheld microphone
      • Extended runtime with lithium-ion batteries - up to 12 hours operation time
      • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
      • Mic input trim control
      • Metal housing


    • Specifications:

      • System
      • Audio Link Frequency Ranges
        Q1-9: 470.2 - 550 MHz
        R1-9: 520 - 576 MHz
        V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65MHz
      • Bluetooth® Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
      • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
      • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
      • Dynamic Range: 134 dB
      • System Latency: 1.9 ms
      • Operating Temperature: -10°C - +55°C (14°F - 131°F)
      • Relative Humidity: 5 - 95 % (non-condensing)

        EW-DX SKM (Handheld Transmitter)
      • Input Voltage: 2.0 - 4.35 V
      • Input Current: < 300 mA
      • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
      • Occupied Bandwidth: 200 kHz
      • Transmit Power (Radiated):
        Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
        LD mode: 10 mW ERP
        BLE: max. 10 mW EIRP
      • Dimensions (ø x l):
      • (Incl. MMD 835 Microphone Module): 50 x 268mm (1.97" x 10.55")
        (Without Microphone Module): 40 x 200mm (1.57" x 7.87")
      • Weight (Without Batteries):
        (incl. MMD 835 microphone module): approx. 304g (0.67Lbs)
        (without microphone module): approx. 195g (7.14Lbs)


    • Item Includes:

      • 1x EW-DX SKM handheld transmitter
      • 1x MZQ 1 microphone clamp
      • 2x Batteries (AA)
      • 1x Quick guide
      • 1x Safety guide
      • 1x Manufacturer declaration sheet


    • GTIN:

      0615104362796
