Sescom SES-XLR-RGAB-FS Passive Balanced Audio XLR A/B Reverse Gender Footswitch with Toggle Switch for Disconnect

ITEM #: SES-XLR-RGAB-FS MFG #: SES-XLR-RGAB-FS

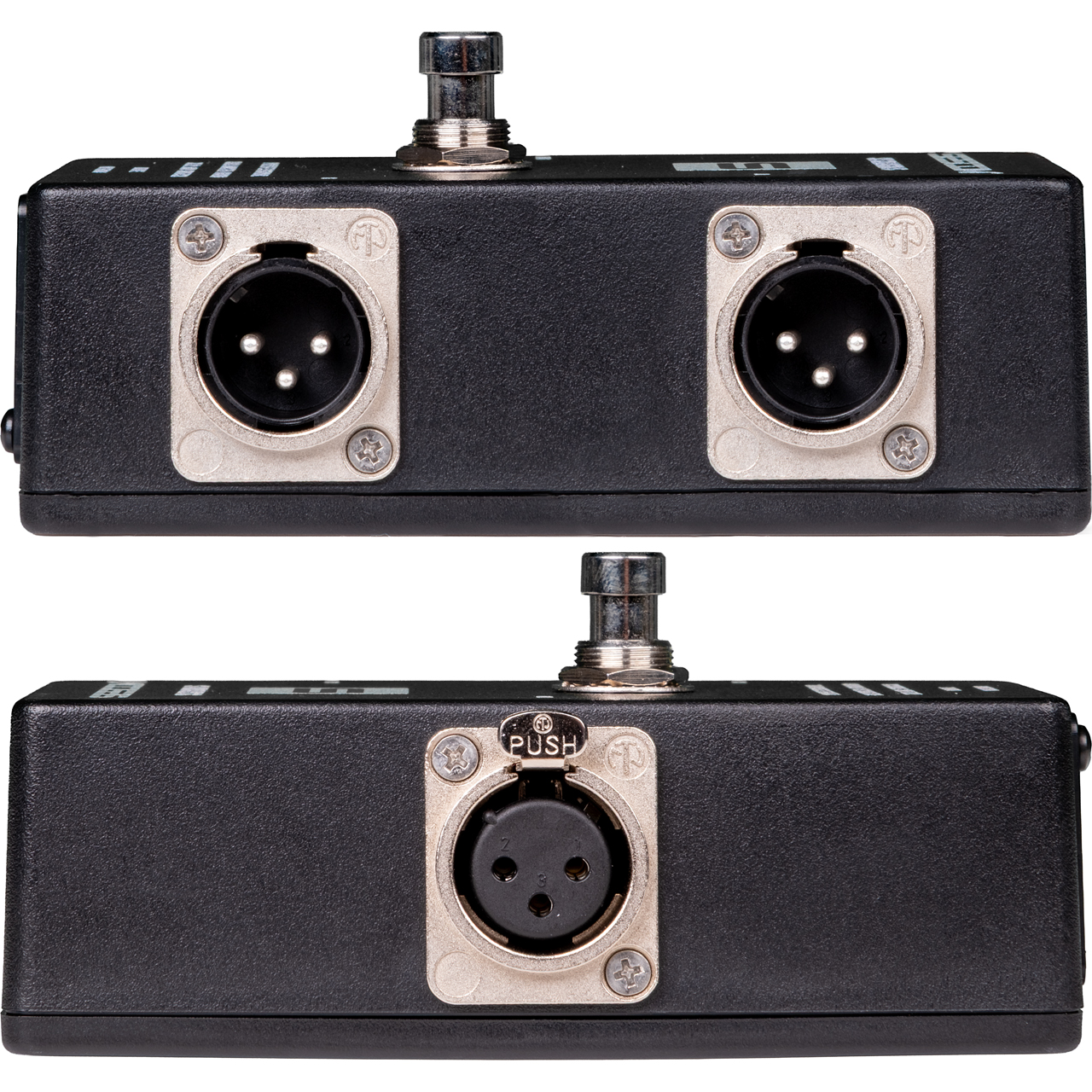

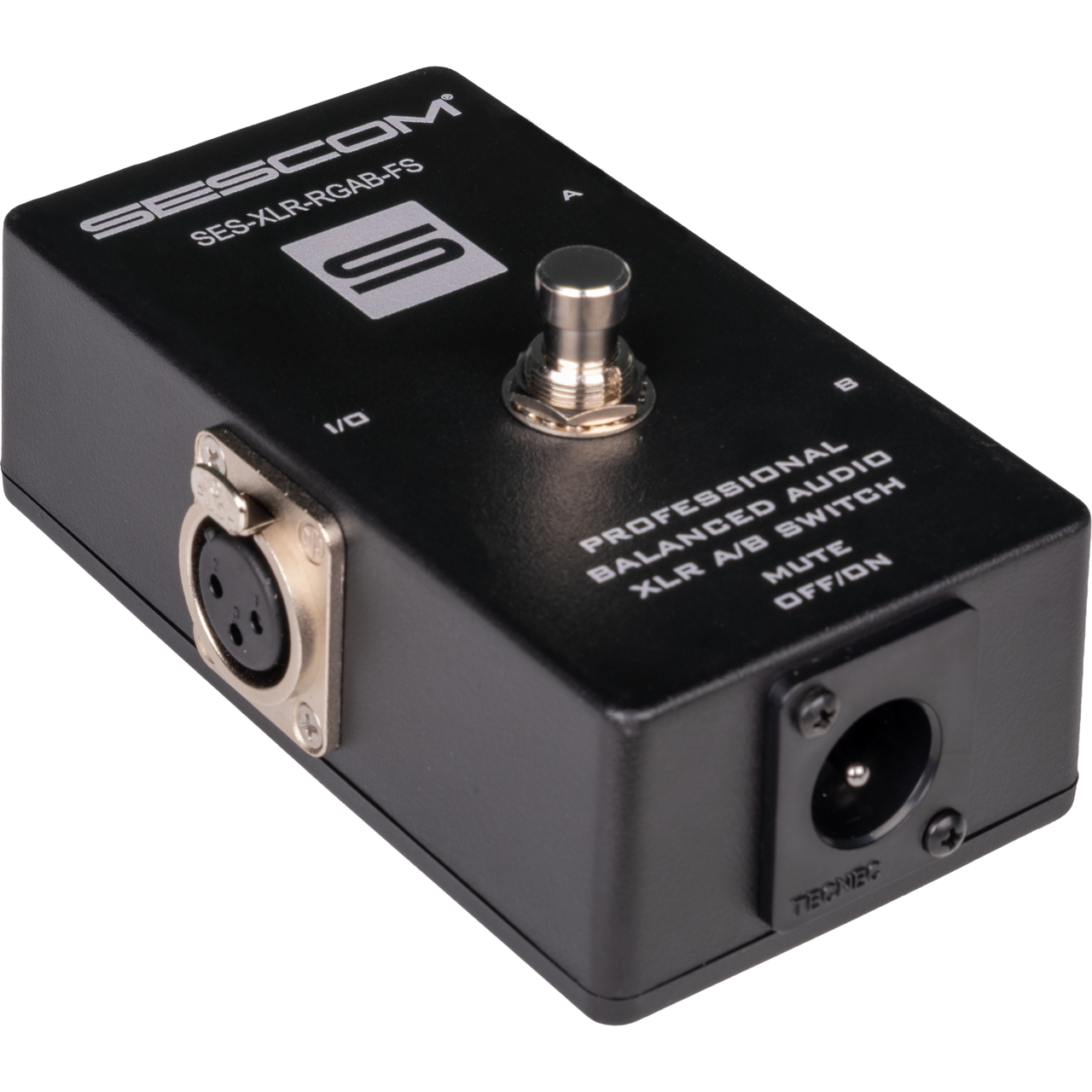

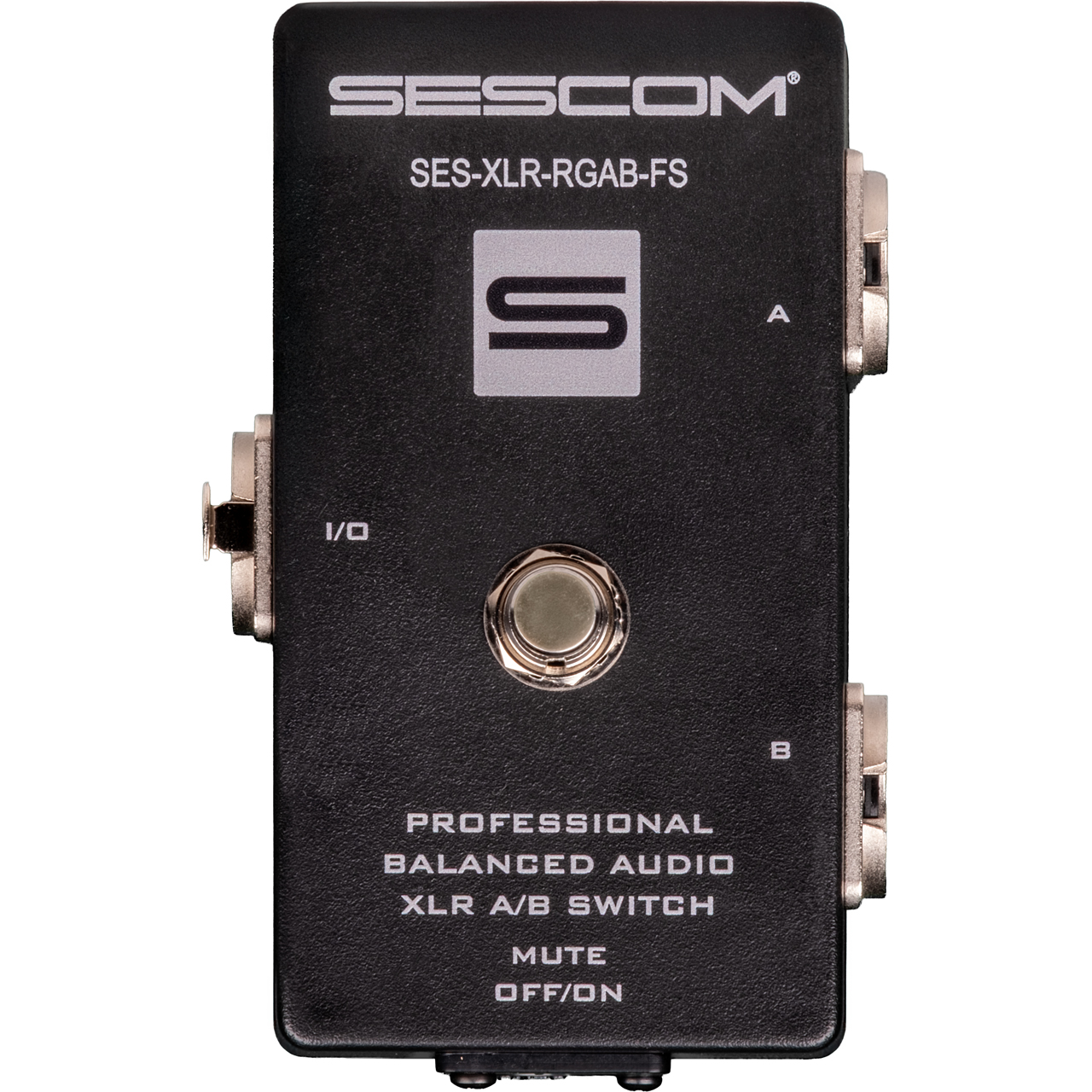

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$74.95

Our Price:

$69.95

Availability: In Stock
iAvailability Description Popup


SES-XLR-RGAB-FS - Overview

This is part of Sescom's series of new economical AB-Switches that are designed to last! The SES-XLR-RGAB-FS allows convenient foot-switching of one common XLR input to two outputs. Excellent for use in Studios for PA or talkback switching, as it features hands-free switching. In addition, the unit features a disconnect toggle to keep unwanted audio from entering the live signal path while maintaining a ground bus connection and only disconnecting the signal. These helpful AB switches can also function as input and output expansion for any of your equipment. Designed to save you time and protect your expensive equipment from the wear and tear of plugging and unplugging connectors. Perfect for your recording studio, live events, or anywhere you would normally have to plug and unplug devices.

  • Features:

    • Designed to switch between one common input and two outputs with
    • High-quality Neutrik locking XLR connectors
    • Switch requires no power and is full duplex/bidirectional
    • Footswitch-operated allows for hands-free switching

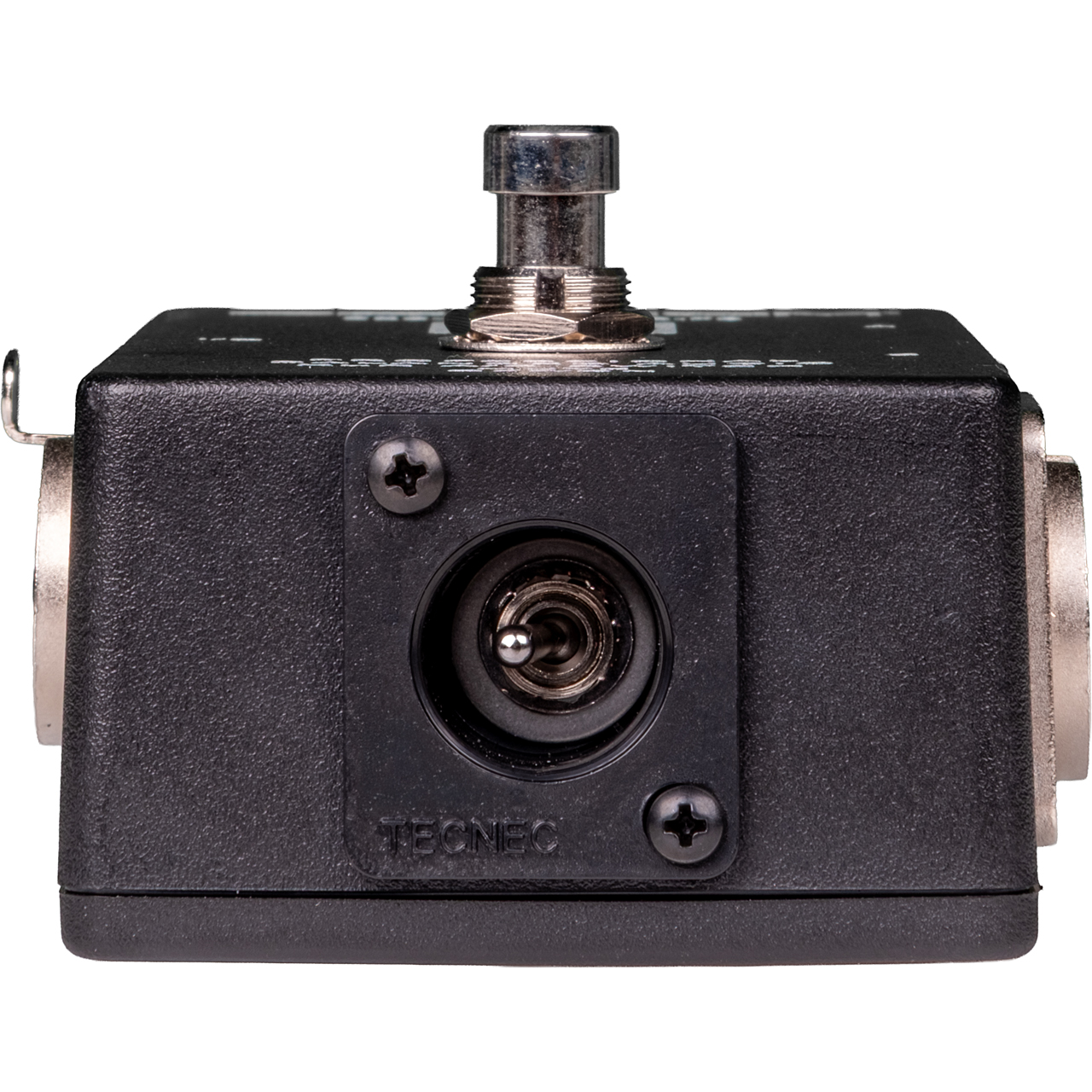

    • Built-in toggle "Mute" switch for disconnecting both the A and B signals from the common input/output
    • Excellent for use in Studios, PA, talkback switching, and other applications that require hands-free switching

  • Specifications:

    • Input (I/O): 1
    • Output (A/B): 2
    • Dimensions:
      • Enclosure: 2.5" x 4.625" x 1.625"
      • Overall: 3" x 5.25" x 2.5"

      Neutrik Connectors
    • Capacitance Between Contacts: ≤4pF
    • Contact Resistance: ≤5mΩ
    • Dielectric Strength: 1.5kV DC
    • Lifetime: >1000 mating cycles
    • Locking Device: Latch lock

  • Warranty:

    • Limited Lifetime
