Shure ADX5BP-DB15 is an optional backplate and spacer plate for the ADX5D portable, dual-channel, digital wireless receiver. DB15 backplates are available for devices with 15-pin connectors, such as Sony video cameras. If only one audio channel is available, the 3.5mm connector on the bottom of the front plate can be used to output audio from channel 1, channel 2, channel 1+2 stereo, or channel 1+2 summed mono.
Note: See Country-Specific Functionality Restrictions.

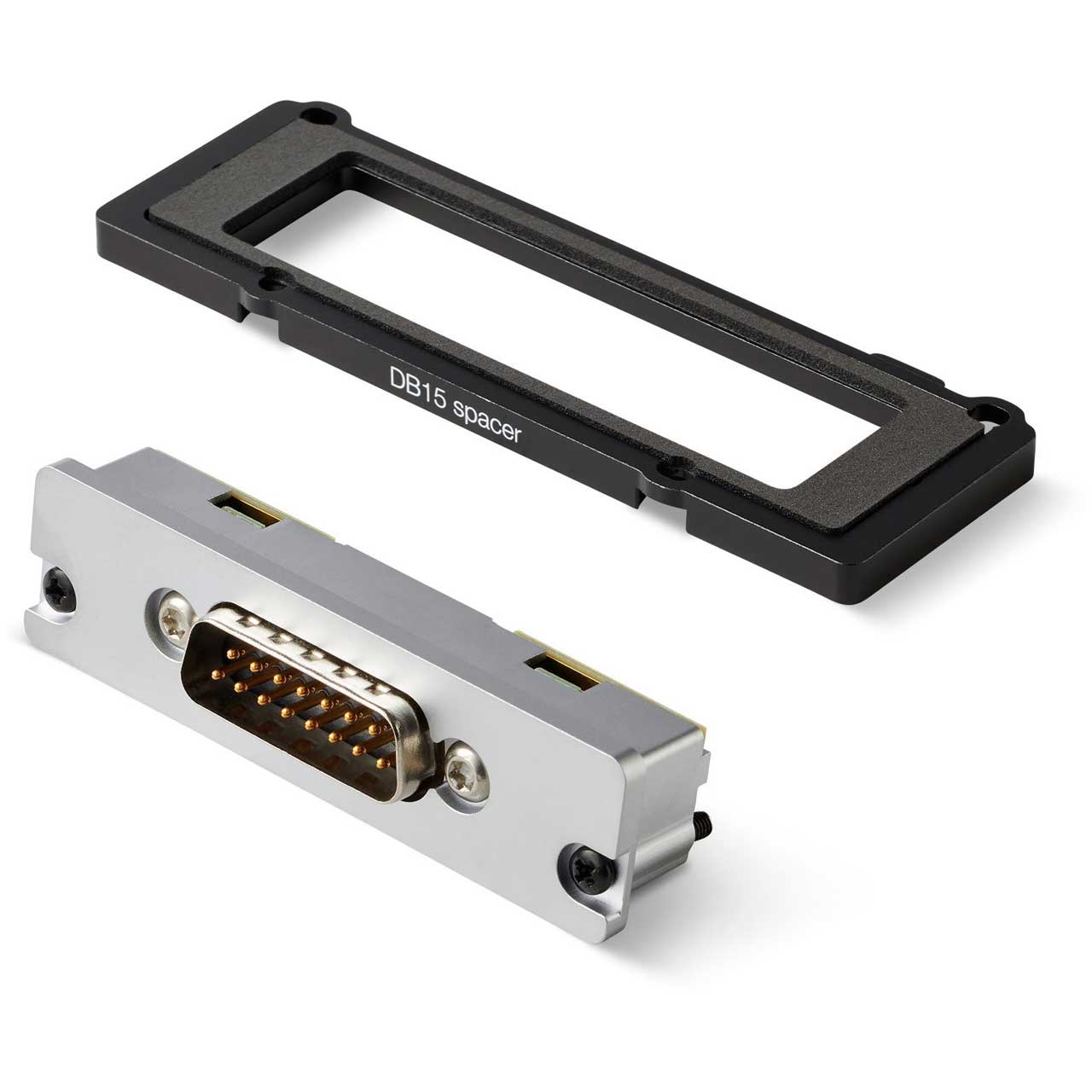

The DB15 rear panel kit for ADX5D includes: A DB15 rear panel, with captive Phillips-head screws that make it easy to mount/unmount the rear panel without losing screws. A DB15 spacer plate Connecting to External Hardware. Attach the backplate and slot the ADX5D receiver into a compatible DB15 video camera. If needed, attach the included spacer plate to provide a proper fit.
One of the major advantages of the slot-in wireless receiver form factor is that they can be configured for multiple applications, including insertion into a camera or multi-coupler device, or for standalone use where power is provided by a battery distribution system (BDS) or battery sled. The ADX5BP-DB15 Backplate connects the Axient Digital ADX5D portable wireless receiver to slot-in devices with 15-pin connectors, such as professional broadcast video cameras and multi-coupler devices. If only one audio channel is available, the 3.5mm connector on the ADX5D can be used to output audio from Channel 1, Channel 2, Channel 1+2 stereo, or Channel 1+2 summed mono. Captive Phillips-head screws provide simple installation to the ADX5D.
