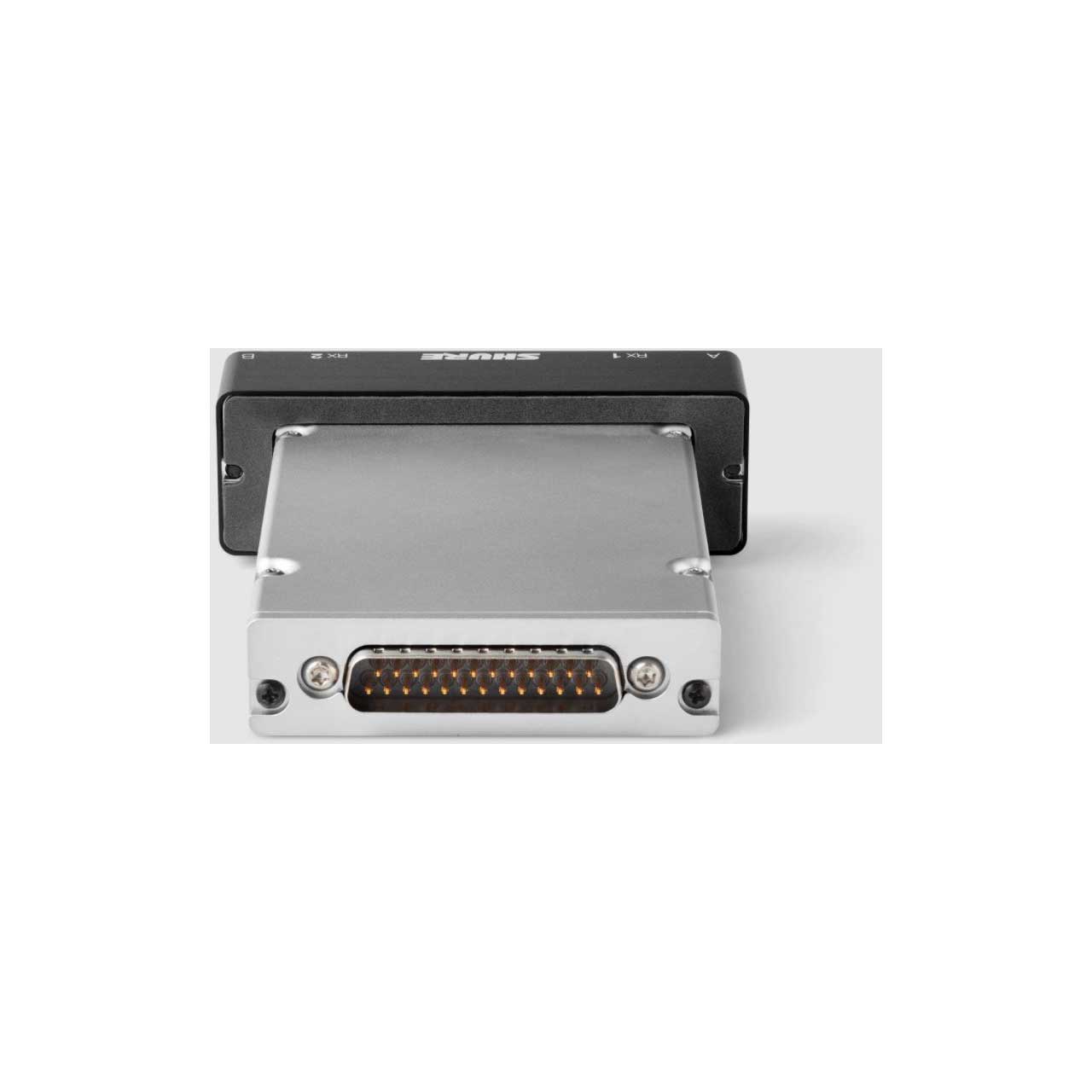

Shure ADX5BP-DB25 is an optional backplate and spacer plate for the ADX5D portable, dual-channel, digital wireless receiver. DB25 rear panels utilize a 25-pin D-Sub connector to transmit audio, video, data, and power. This connector type is commonly used on devices that require multiple interfacing paths in a small form factor, including SuperSlot™/UniSlot® devices.
Note: See Country-Specific Functionality Restrictions.

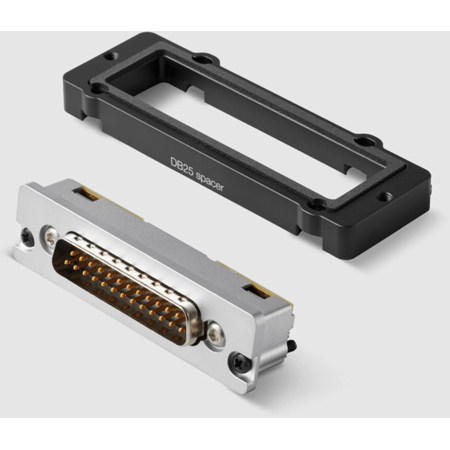

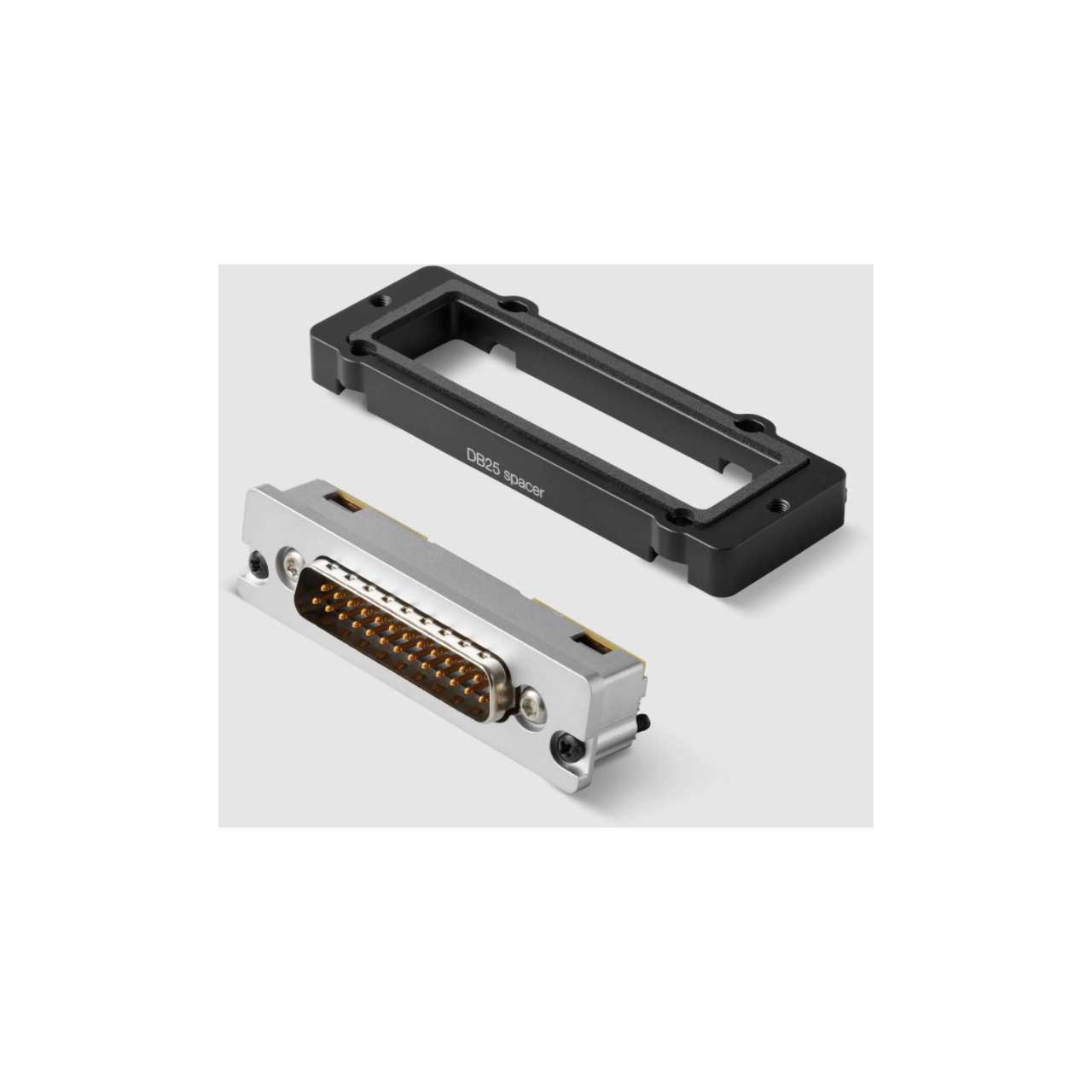

The DB25 rear panel kit for ADX5D includes: A DB25 rear panel, with captive Phillips-head screws that make it easy to mount/unmount the rear panel without losing screws. A DB25 spacer plate Connecting to External Hardware. Attach the backplate and slot the ADX5D receiver into compatible DB25 equipment, such as a video camera or multi-coupler. If needed, attach the included spacer plate to provide a proper fit.
One of the major advantages of the slot-in wireless receiver form factor is that they can be configured for multiple applications, including insertion into a camera or multi-coupler device, or for standalone use where power is provided by a battery distribution system (BDS) or battery sled. The ADX5BP-DB25 connects the Axient Digital ADX5D portable wireless receiver to slot-in devices with 25-pin connectors. This connector type is commonly used on devices that require multiple interfacing paths in a small form factor, including SuperSlotT and UniSlotr devices. Captive Phillips-head screws provide simple installation to the ADX5
