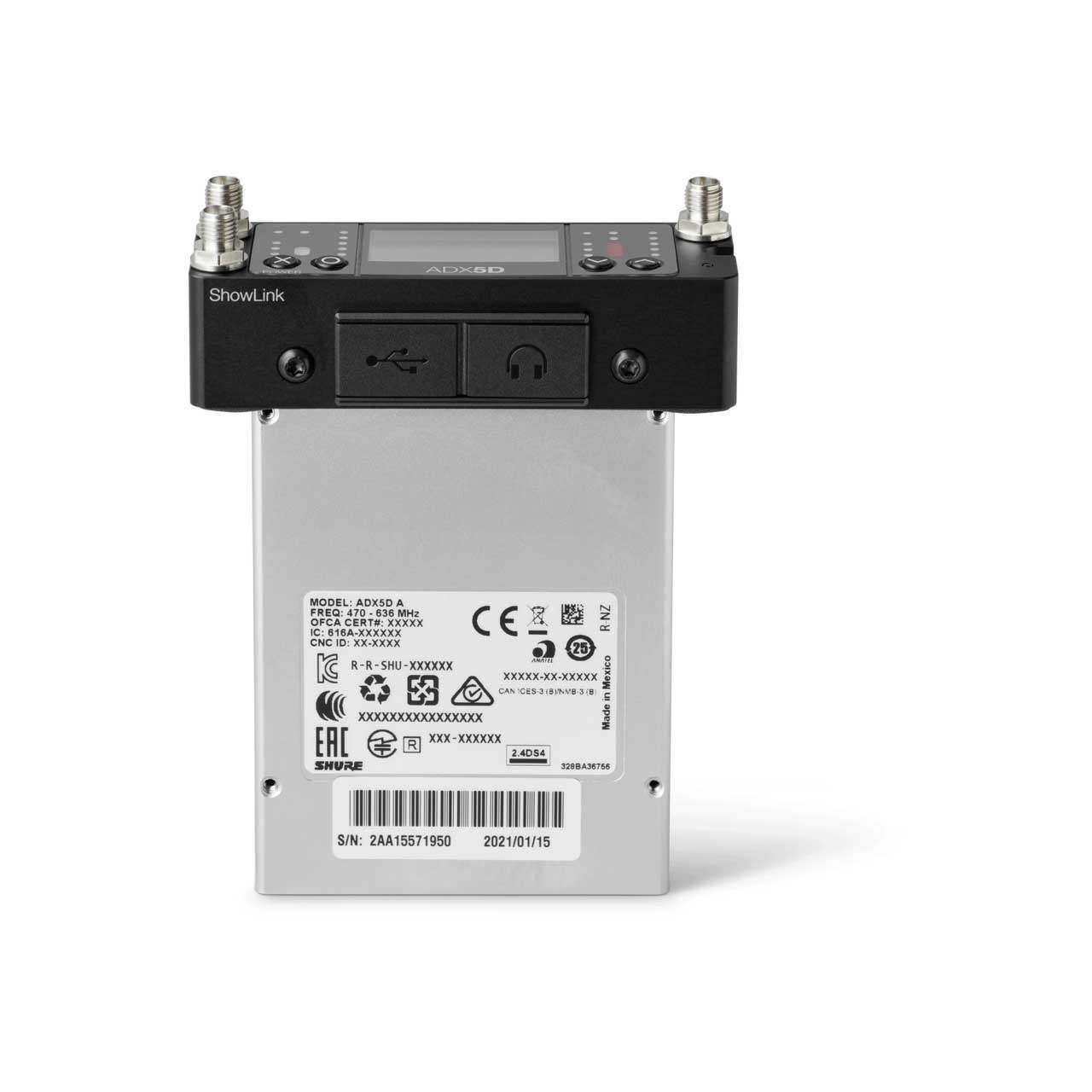

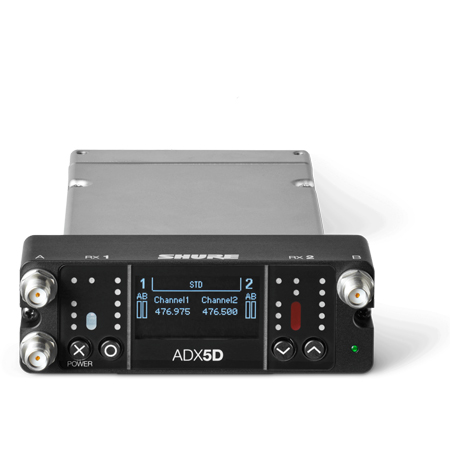

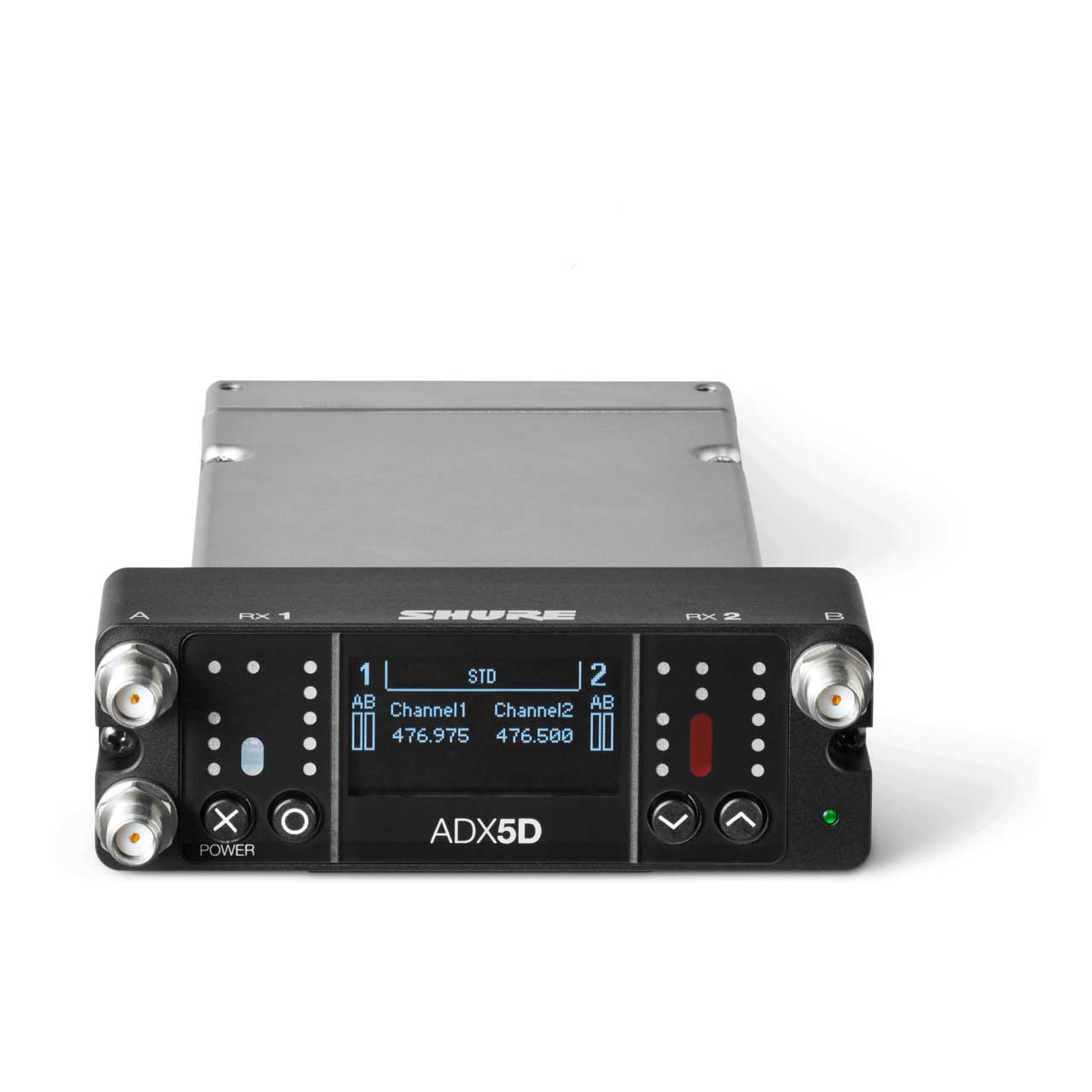

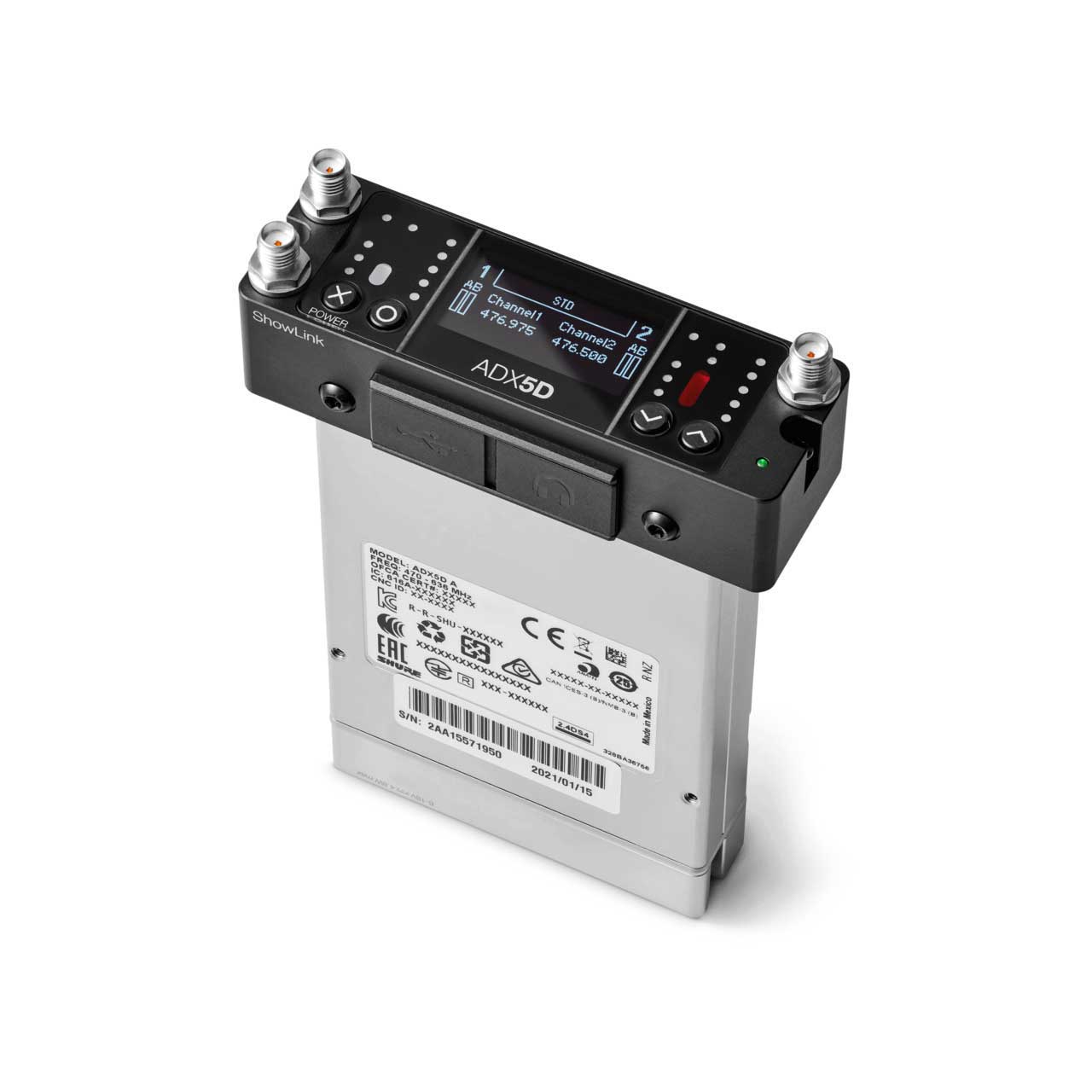

Shure ADX5D-A Dual-Channel Wireless Microphone Receiver - Frequency (470-636 MHz)

ADX5D=-A - Overview

• Features:

  • Dual-channel slot-in form wireless receiver
  • Impeccable audio quality
  • Wide tuning range up to 184 MHz (region dependent)
  • High spectral efficiency due to advanced digital modulation scheme offers more wireless channels in available RF space
  • High Density (HD) mode provides even higher spectral efficiency (application dependent)
  • True digital diversity reception per channel for drop-out resistance and excellent range
  • Networked control with Wireless Workbench® software and ShurePlus™ Channels app
  • 5-segment Channel Quality meters display per-channel RF link quality
  • ADX series receiver with ShowLink Direct Mode allows remote control of Axient Digital transmitters without the need of external equipment
  • Party Dial feature enables users to quickly switch between RF channels from a pre-selected group of frequencies
  • Optimized Menu Structure places the most commonly used features within a few clicks of each other
  • Enhanced Shortcut Menu provides rapid access to only a few critical features and menus
  • Aux 3.5mm audio output provide connection to headphones or to a balanced line-level input
  • Accessory Mount with cold shoe adapter (sold separately)
  • Removable antennas with standard SMA connectors
  • High-resolution OLED display
  • USB-C port for firmware upgrades
  • Streamline user interface
  • Low latency, down to 2 milliseconds


• Specifications:

  • UHF Specifications
  • RF Carrier Frequency Range: 470-636 MHz

    Working Range (line of sight):
  • Standard Density Mode: 75m (246 ft)
  • High Density Mode: 40 m (131 ft)
  • RF Sensitivity: -90 dBm at 10-5 BER
  • RF Tuning Step Size: 25 kHz, varies by region
  • Image Rejection: >70 dB, typical
  • Spurious Rejection: >80 dB, typical
  • Connector Type: SMA (Shell=Ground, Center=Signal)
  • Impedance: 50 Ω

    ShowLink® Specifications
  • Frequency Range: 2.40 to 2.4835 GHz (16 Channels)
  • Working Range: 30m Note: Actual range depends on RF signal absorption, reflection, and interference
  • Connector Type: SMA (Shell=Ground, Center=Signal)
  • Impedance: 50 Ω
  • ShowLink® Antenna Power: 2.5 dBm EIRP
  • Antenna Type: 1 Omni 2.4 GHz
  • Network Type: IEEE 802.15.4

    Audio Output
  • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
  • Impedance: 66 Ω, Typical, TA3 Out
  • Full Scale Output ( 200K Ωload): +9 dBV
  • Phantom Power Protection: Yes Note: 3.5mm output does not have phantom power protection
  • Audio Frequency Response: 20 Hz - 20 kHz Note: Dependent on microphone type
  • Dynamic Range: 129 dB
  • Total Harmonic Distortion: 0.0006% at -6 dBFS, 1 kHz,
  • System Audio Polarity: Positive pressure on diaphragm produces positive voltage on audio+ with respect to audio-
  • Analog Output Latency
    Standard Density Mode: 2.08ms
    High Density Mode: 2.96ms

    USB Input (used for firmware updates)
  • Connector Type: USB-C
  • USB Protocol: USB 2.0
  • USB Role: Peripheral (upstream-facing port)
  • USB Power Delivery: None

    Power
  • DC Power Requirements: 6V DC to 18V DC
  • Thermal Power Dissipation:
    Maximum: 4.8 W (18 V in, full brightness, all audio full scale out, and RF channels active)
    Nominal: 4W (12 V in, no outputs, no linked transmitters)
    Minimum: 2.3 W (6.5V in, both channels in standby)

    Mechanical Specifications
  • Operating Temperature Range: 0.4° to 122°F (-18° to 50°C)
  • Storage Temperature Range: -20° to 149°F (-29° to 65°C)
  • Dimensions (HxWxD): 1.14 x 3.46 x 4.25" (29 x 88 x 108mm) (No backplate)
  • Weight: 0.53Lbs (0.24kg), without antennas or backplate
  • Housing: Machined aluminum


• Item Includes:

  • 1x ADX5D
  • 1x USB-A to USB-C cable
  • 2x UHF Antenna
  • 1x ShowLink (2.4GHz) antenna


• GTIN:

  0042406639224
