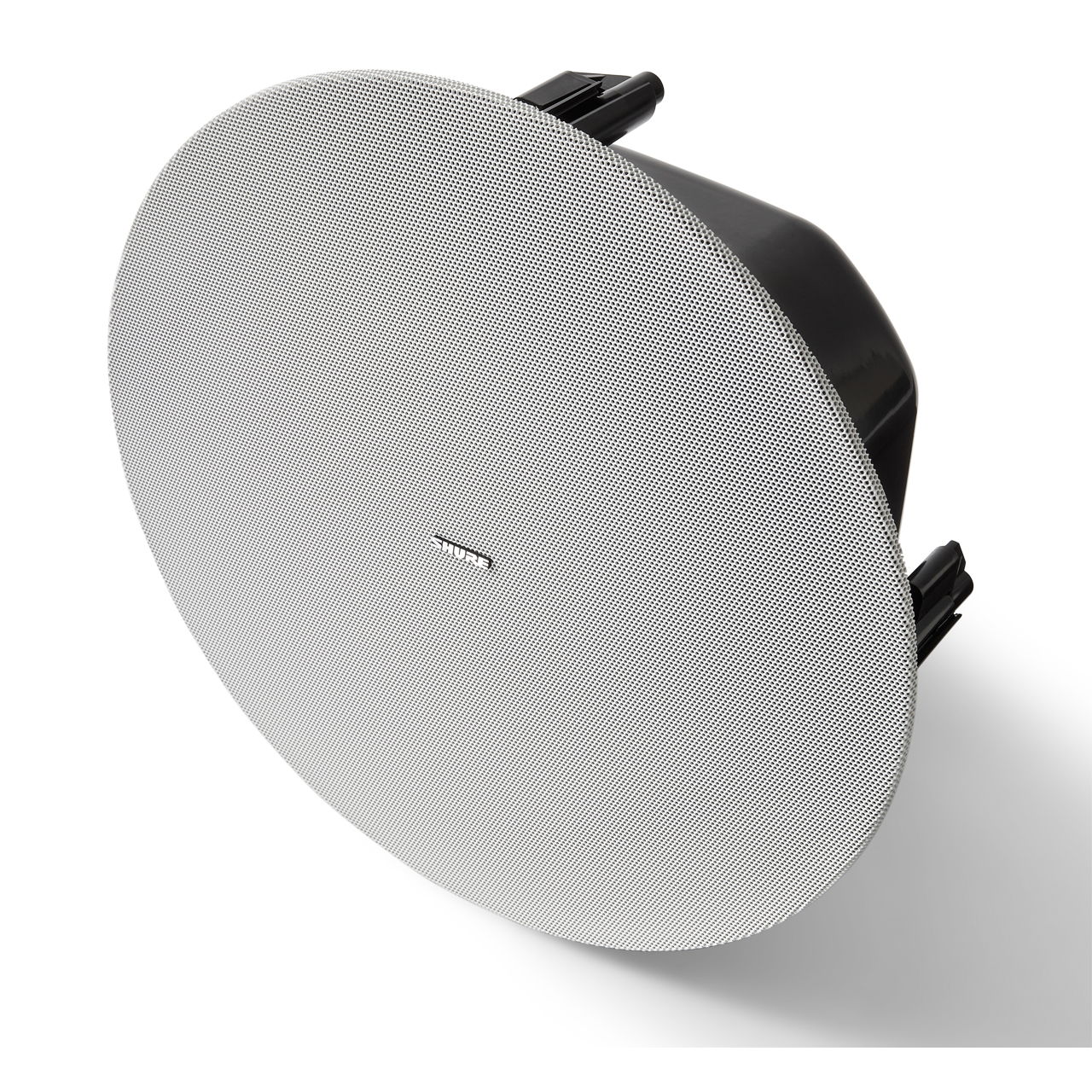

Shure MXP-5W Microflex Ceiling Mount Conferencing Loudspeaker - White

MXP-5W - Overview

• Features:

  • Dual-driver architecture delivers full-fidelity, premium audio reproduction and optimum speech intelligibility

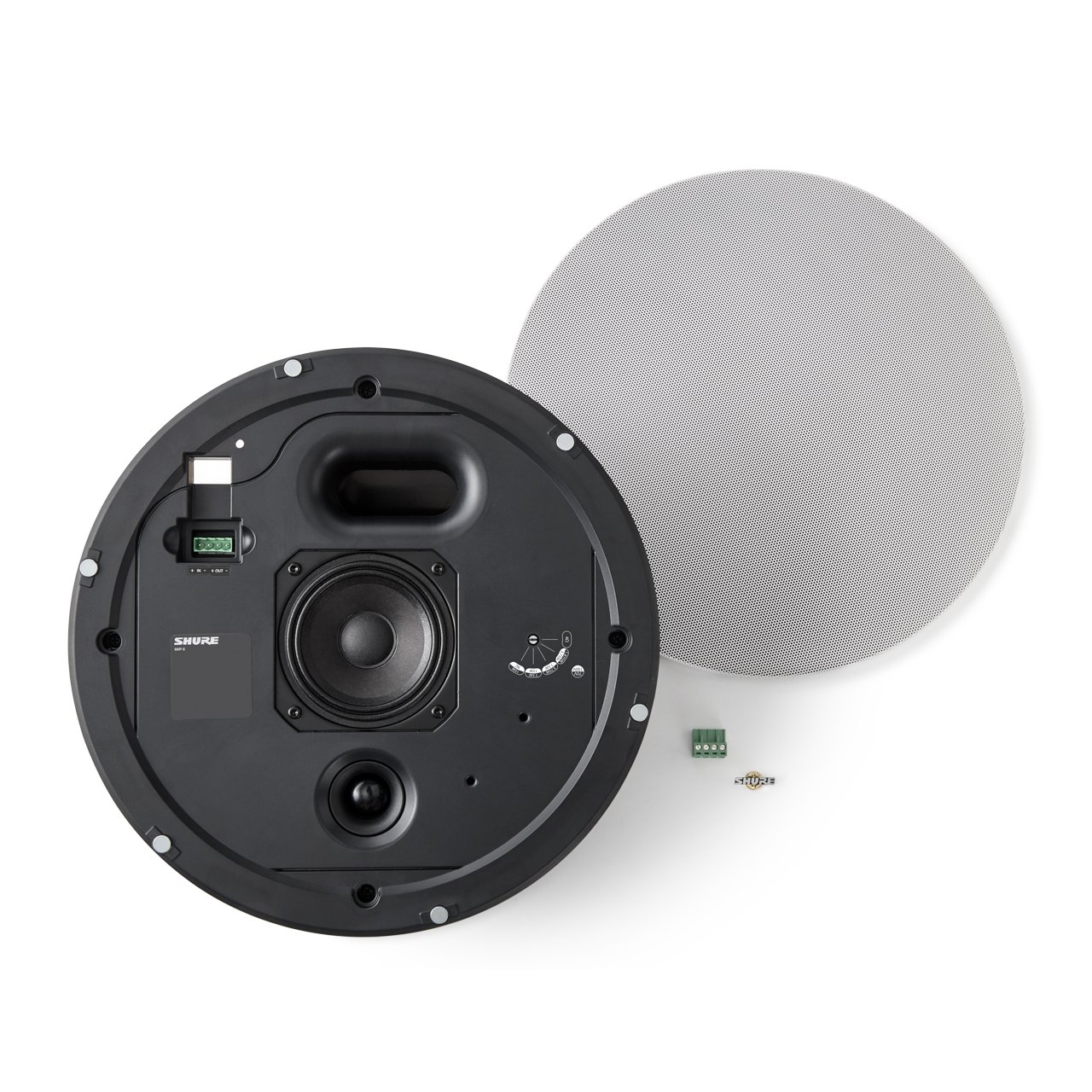

  • 4-inch main driver features large, well-vented motor for increased power handling; 1-inch tweeter features neodymium magnet and heatsink fins for high efficiency
  • Identical voicing to MXP-6 Pendant Loudspeaker for consistent tonality in blended installations
  • Up to 8 MXP-5 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier in 70/100V mode
  • Compact design with only 2.5-inch depth can be wall mounted horizontally or vertically, or on-ceiling with included mounting hardware. (Note: Shure recommends the use of an additional safety tether for overhead components.)
  • Shallow depth is ideal for retrofit applications or ceilings with limited mounting space
  • Switch on front faceplate allows for quick adjustment between 70/100v or 8 ohm operation
  • Available in black or white finish, paintable to match room d‚cor
  • Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom


• Specifications:

  • Frequency Response (-3dB): 90Hz - 20kHz
  • Nominal Impedance: 4Ω
  • Coverage Angle: 95°
  • Maximum SPL: AES75 Max Linear Sound Levels: 101dBZ, 115dBZpk, 100dBA
  • Sensitivity: 92dB SPL 1W/m
  • Connector Type: 4-pin connector, 0.2" (5.08mm) pitch
  • Maximum Input Power: 28W
  • Weight: 6.88lbs (3.12kg)
  • Plenum Rating: UL2043
  • Product Dimensions: 13.5" x 13.5" x 4.3" (343mm x 343mm x 110mm)
  • Operating Temperature Range: 19.4°F - 104°F (-7°C - 40°C)


• GTIN:

  0042406808422
