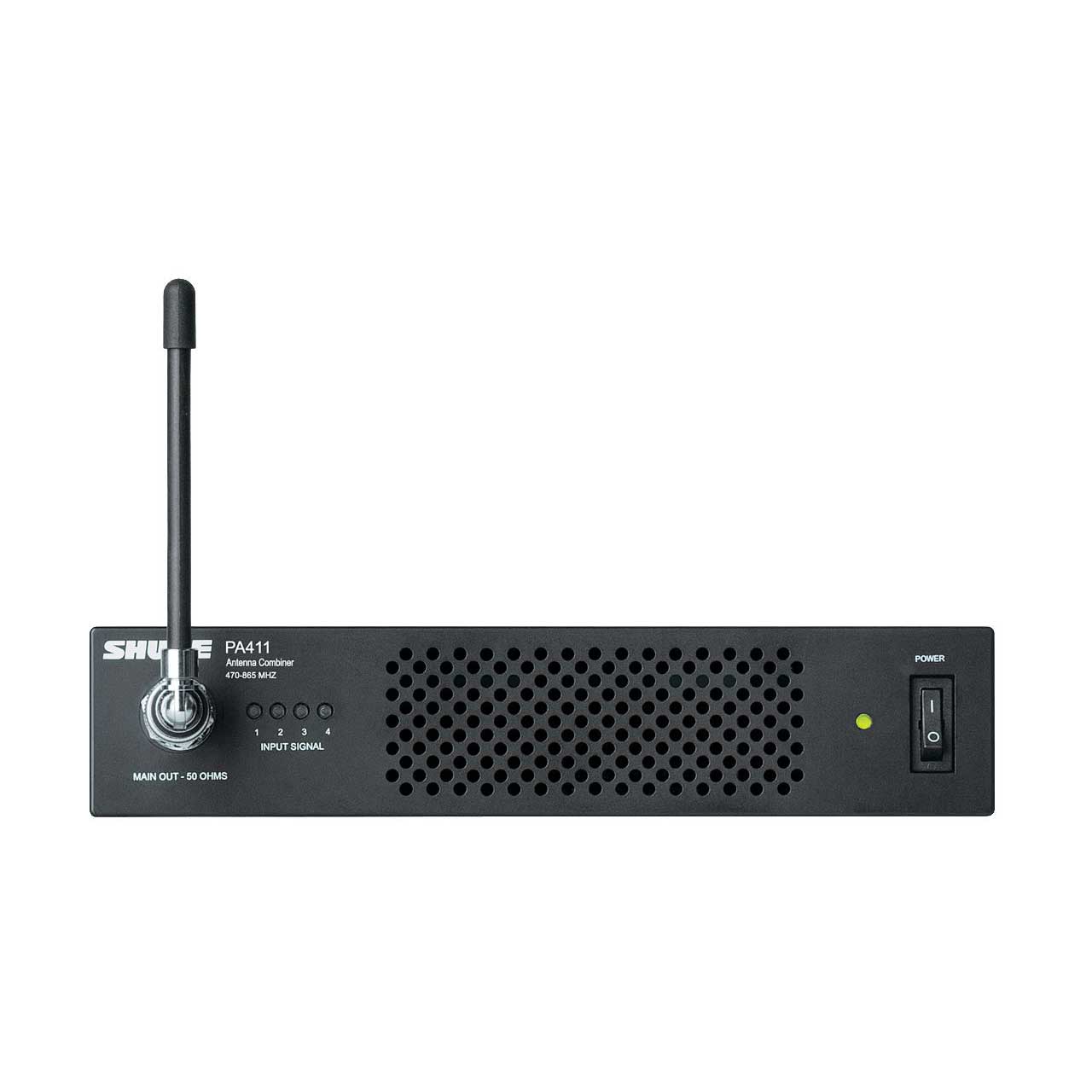

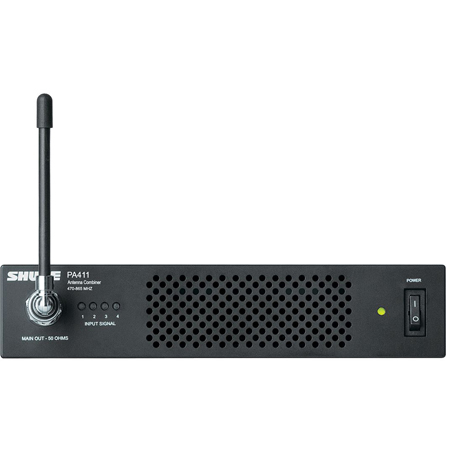

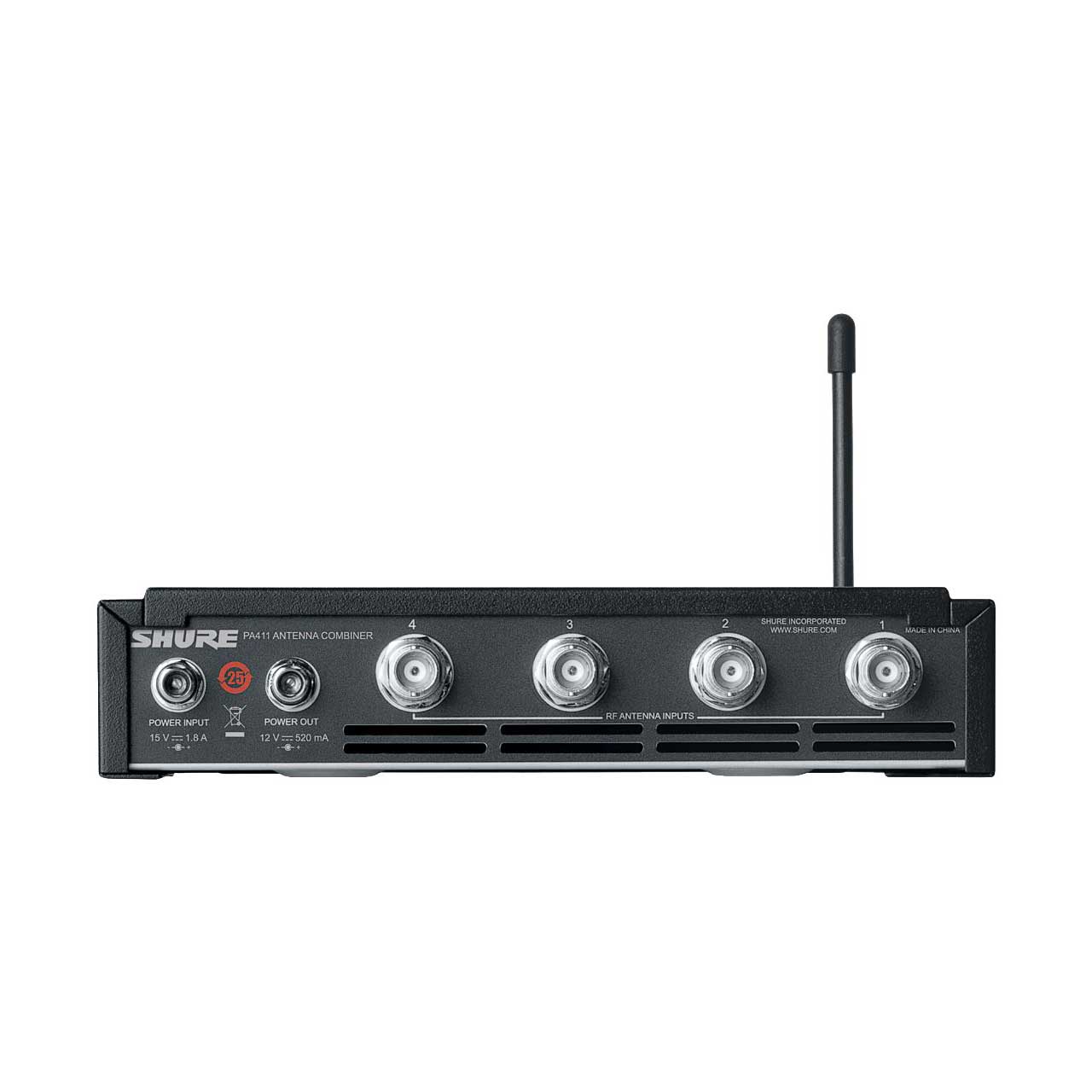

Shure PA411 Four Port Antenna Combiner

PA411 - Overview

• Features:

  • Wideband 470 to 865 MHz frequency range
  • RF LED Indicators display signal present and signal overload per input
  • Power output distributes DC power for up to 4 P3T transmitters (accessory power cable included)
  • Front panel power switch


• Specifications:

  • Power Requirements 15 VDC.
  • DC Output 12 VDC (x4).
  • Output Current - Combined total from all DC outputs: 1.4 A, maximum.
  • Operating Temperature Range -18 °C to 63 °C'
  • Dimensions 42 x 177 x 198 mm H x W x D.
  • Net Weight 1.62 kg (3.6 lbs).
  • RF Input Connector Type BNC.
  • RF Frequency Range 470 to 865 MHz.
  • Maximum Input Level 20 dBm Per Channel.
  • Input Port Isolation 50 dB, typical.
  • RF Input Power Operating Range Per Channel: 4.5 to 15 dBm.
  • LED Indicator Minimum Detection Threshold 3 dBm ± 1 dB.
  • RF Overload LED Threshold 17.5 dBm ± 1 dB.
  • Impedance 50 Ohm.
  • RF Output RF Frequency Range 470 to 865 MHz.
  • Output Intercept Point (OIP3) 48 dBm, typical.
  • Connector Type BNC.
  • Impedance 50 Ohm.
  • Reverse Isolation Output to Input; 40 dB, typical
  • Gain Input to any Output Port: -5 to 0 dB.


• GTIN:

  0042406398480
