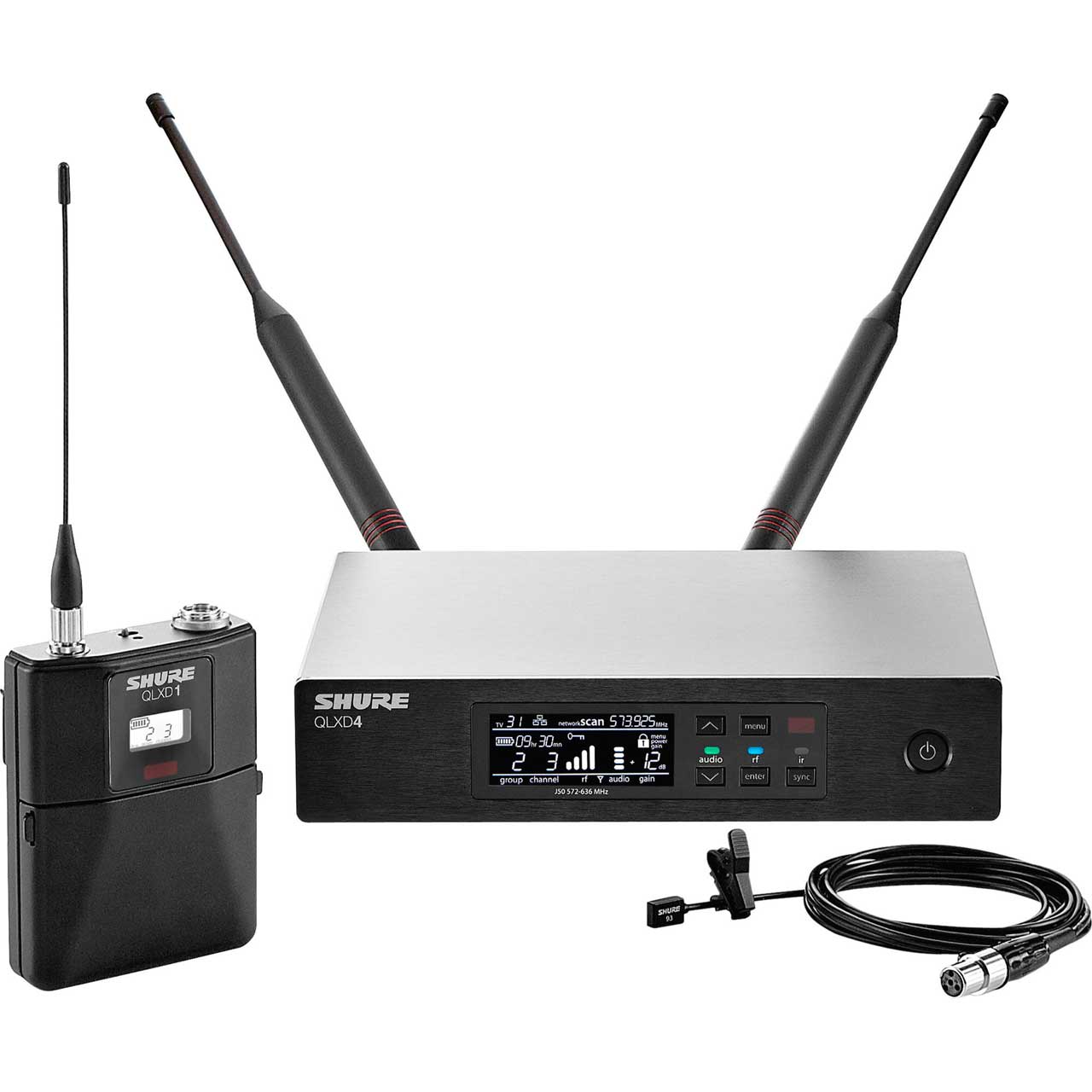

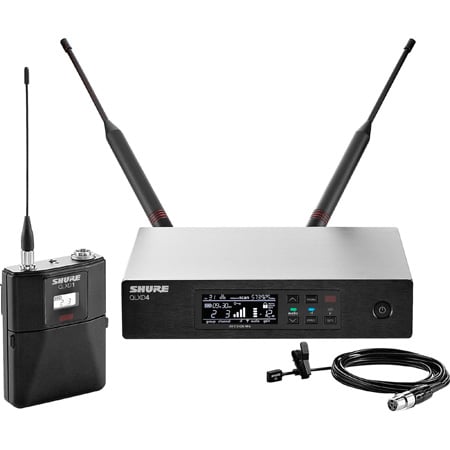

Shure QLXD14/93-G50 WL93 Lavalier Microphone System - (470 - 534 MHz)

ITEM #: SH-QLXD14-93-G50 MFG #: QLXD14/93-G50

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,325.00

Our Price:

$1,299.00

Special Price:

$989.00

Availability: In Stock
iAvailability Description Popup


QLXD14/93-G50 - Overview

The original, all-in-one comprehensive QLXD kit from Shure as part of its professional-grade digital wireless lineup. Known for reliability, audio clarity, and ease of use, these systems operate with 24-bit/48 kHz digital audio for crystal-clear sound while delivering a flat frequency response, capturing audio with precision and minimal coloration.

Featuring the WL93 lavalier microphone, QLXD14/93 combines professional features with simplified setup and operation.

The QLXD14/93 Lavalier Wireless Microphone System is part of the QLX-D wireless systems family.

QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

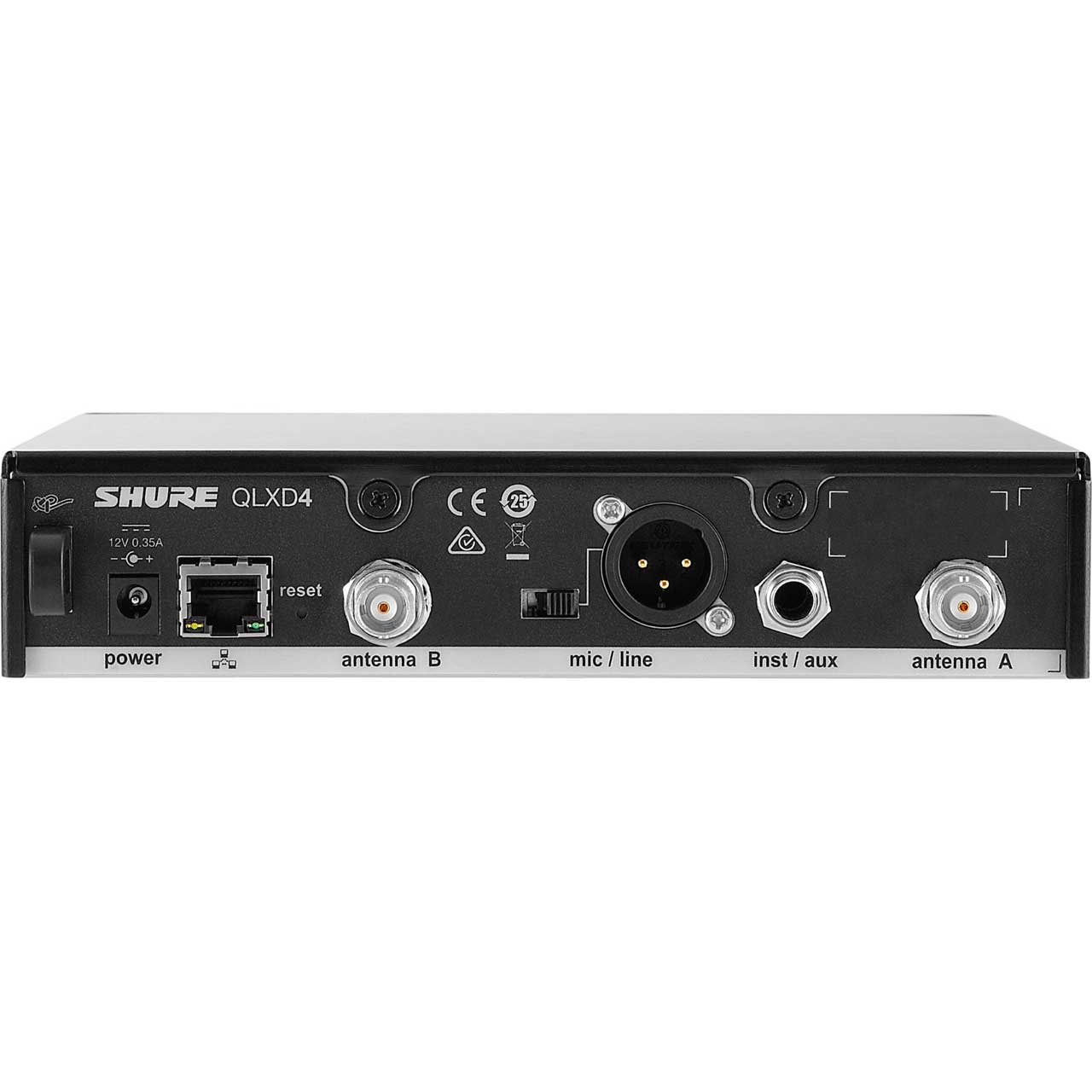

QLXD4 Digital Wireless Receiver
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. Works with QLX-DT Digital Wireless Systems and features Ethernet networking and mobile monitoring and control capabilities. Includes QLXD4, hardware for rack-mounting, power supply, two 1/2 wave antennas, 2 BNC cables, 2 BNC bulkhead Adapters, and user guide

QLXD1 Bodypack Transmitter
QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range. Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues, and houses of worship. Works with QLX-D Digital Wireless Systems and offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries. Includes QLXD1, 2 AA batteries, black zippered pouch, and user guide.

  • Features:

    • WL93
    • Series Subminiature Lavalier Microphones
    • Wireless micro-miniature lavalier mic provides full, clear sound.

    • QLXD4
    • Digital Wireless Receiver
    • Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function.

    • QLXD1
    • Wireless Bodypack Transmitter
    • QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range.

  • Specifications:

    • RF Carrier Range: 470–937.5MHz, varies by region
    • Working Range: 100 m (328 ft)
    • Note: Actual range depends on RF signal absorption, reflection and interference.
    • RF Tuning Step Size: 25 kHz, varies by region
    • Image Rejection: >70 dB, typical
    • RF Sensitivity: ?97 dBm at 10?5 BER
    • Latency: <2.9 ms
    • Audio Frequency Response: QLXD1: 20 Hz – 20 kHz (±1 dB)
    • QLXD2: Note: Dependent on microphone type
    • Audio Dynamic Range System Gain @ +10: >120 dB, A-weighted, typical
    • Total Harmonic Distortion ?12 dBFS input, System Gain @ +10: <0.1%
    • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
    • Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
    • Note: Battery characteristics may limit this range.
    • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
    • Note: Battery characteristics may limit this range.

  • Item Includes:

    • Includes WL93, QLXD1, QLXD4, power supply, 2 AA batteries, two 1/2 wave antennas, 2 BNC cables, zipper bag, 2 BNC bulkhead adapters, rackmount kit, and user guide

  • GTIN:

    0042406350273
