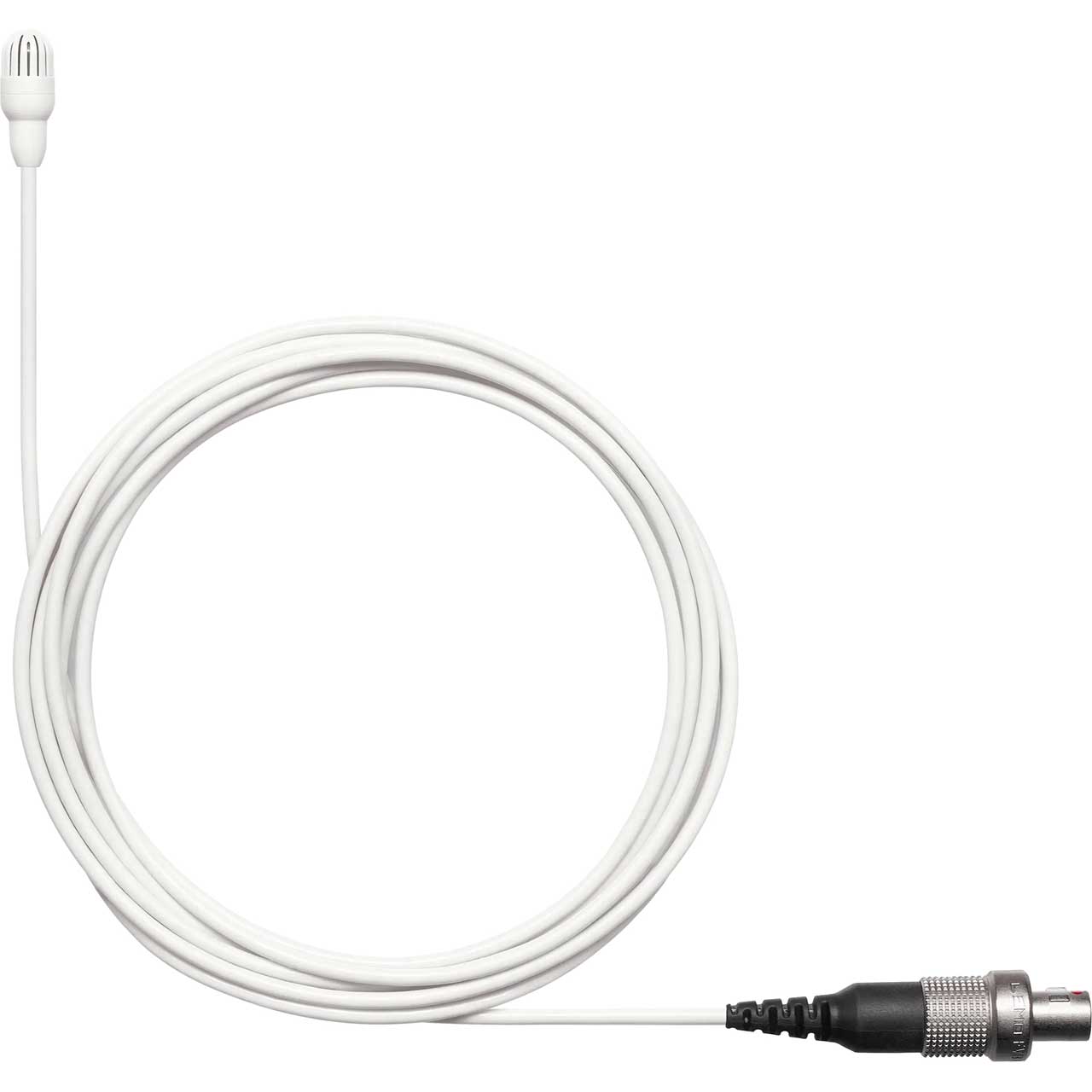

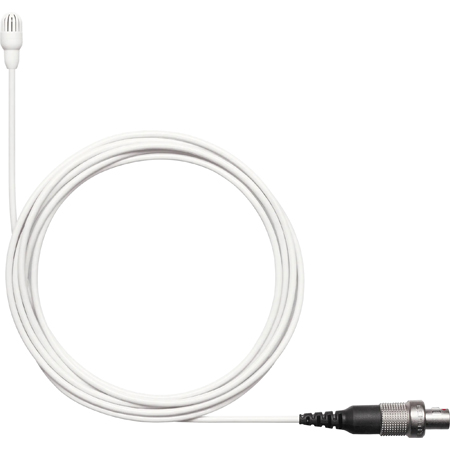

Shure TL46W/O-LEMO TwinPlex Subminiature Lavalier Mic - Lemo - Hi Sens - White

TL46W/O-LEMO - Overview

• Features:

  • The TL46 is ideal for a variety of theater, film, broadcast, and live TV applications when additional output (8-10dB) is required
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible superhydrophobic nanoscopic coating
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Natural
  • Sensitivity: High
  • Colors: Black, Cocoa, Tan, White
  • Connectors: LEMO, MTQG/TA4F
  • Accessories: Available separately


• Specifications:

  • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity: -37.0 dBV(14.1 mV) at 1 kHz
  • Self-Noise A-Weighted, Equivalent Acoustical: 24.0 dB SPL-A
  • Signal-To-Noise Ratio: 70.0 dB
  • Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
  • Maximum SPL: 134.0 dB SPL 1 kHz at 1% THD, typical
  • Dynamic Range: 110.0 dB typical
  • Microphone Current Draw: 120 to 240 æA, typical
  • Bias Voltage Recommended Operating Voltage: 5 VDC
  • Housing: Molded ABS
  • Polarity LEMO: Positive pressure at diaphragm leads to negative voltage with respect to ground
  • Cable Diameter: 1.6 mm
  • Cable Length: 66 in. (1.67 m)
  • Microphone Length: 13.5 mm
  • Microphone Diameter: 5.6 mm
  • Net Weight with Cable: 12.0 g (0.42 oz.)


• Item Includes:

  • 1x Shure TL46W/O-LEMO TwinPlex Subminiature Lavalier Mic - Lemo - Hi Sens - White


• GTIN:

  0042406516532
