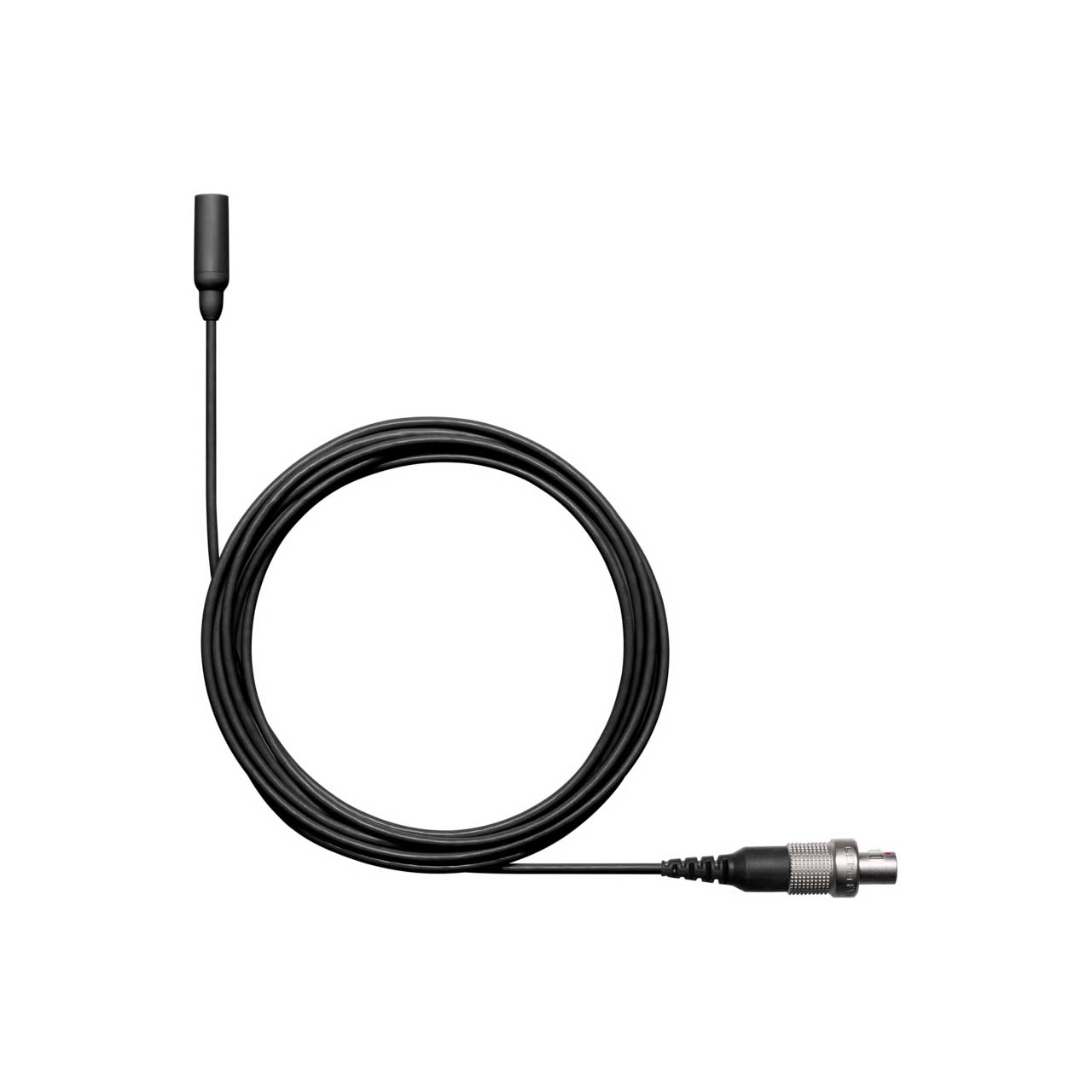

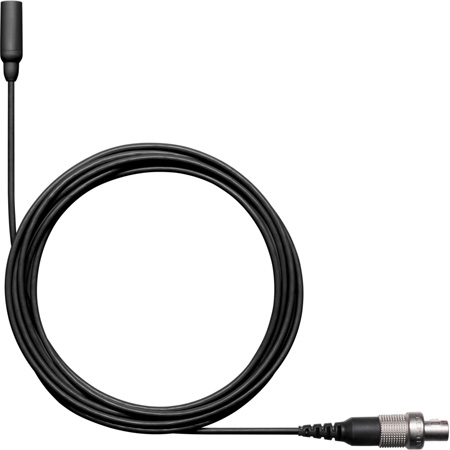

Shure TL48B/O-LEMO-A TwinPlex Omnidirectional Lavalier Mic w/ Tailored Sound Signiature - Lemo 3 Connector - Black

ITEM #: SH-TL48B-OLEMO-A MFG #: TL48B/O-LEMO-A

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$561.00

Our Price:

$449.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    TL48B/O-LEMO-A - Overview

    In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TL48B-OLEMO-A TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

    Indoor or outdoor. Inclement conditions won't hold production back. The fixed frequency cap features an internal hydrophobic woven lining that resists sweat and moisture. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.

    The TwinPlexT TL48 offers a tailored response with a mid-range rise that's ideal for speech and dialogue applications, such as film and TV. Designed with leading audio professionals' input, the TL48 is easily concealed in a costume or directly against the skin under wardrobe, and offers extensive accessories to ensure quick, easy, and secure mounting-all with no impact on sound quality.

    • Features:

      • With a paintable, fixed frequency cap and mid-band boost that accentuates dialogue, the TL48 is ideal for film and TV applications
      • Improved off-axis consistency, due to the patent pending dual-diaphragm design, yields accurate reproduction regardless of vocal
        source position or movement
      • Best-in-class low self-noise and dynamic range for cleaner audio production
      • Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
      • Paintable 1.6 mm cable that is immune to memory effect and kinks
      • Dual redundant ground in cable serves as secondary shield for longevity
      • Sound signature: Tailored for dialogue (6dB mid-band boost at about 7kHz)
      • Sensitivity: Low
      • Colors: White, Tan, Black
      • Connectors: LEMO, MTQG/TA4F, MicroDot, XLR/Preamp, NC (bare wire)

    • Specifications:

      • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
      • Polar Pattern: Omnidirectional
      • Frequency Response: 20 Hz to 20 kHz
      • Sensitivity at 1 kHz: -45.0 dBV (5.62 mV)
      • Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
      • Signal-To-Noise Ratio: 69.5 dB
      • Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
      • Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
      • Dynamic Range: 117.5 dB typical
      • Microphone Current Draw: 120 to 240 æA, typical
      • Bias Voltage: Recommended Operating Voltage 5 VDC
      • Housing: Molded ABS
      • Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
      • Cable Diameter: 1.1 mm
      • Cable Length: 66 in. (1.67 m)
      • Microphone Length: 13.5 mm
      • Microphone Diameter: 5.6 mm
      • Net Weight with Cable: 12.0 g (0.42 oz.)

    • GTIN:

      0042406516815
