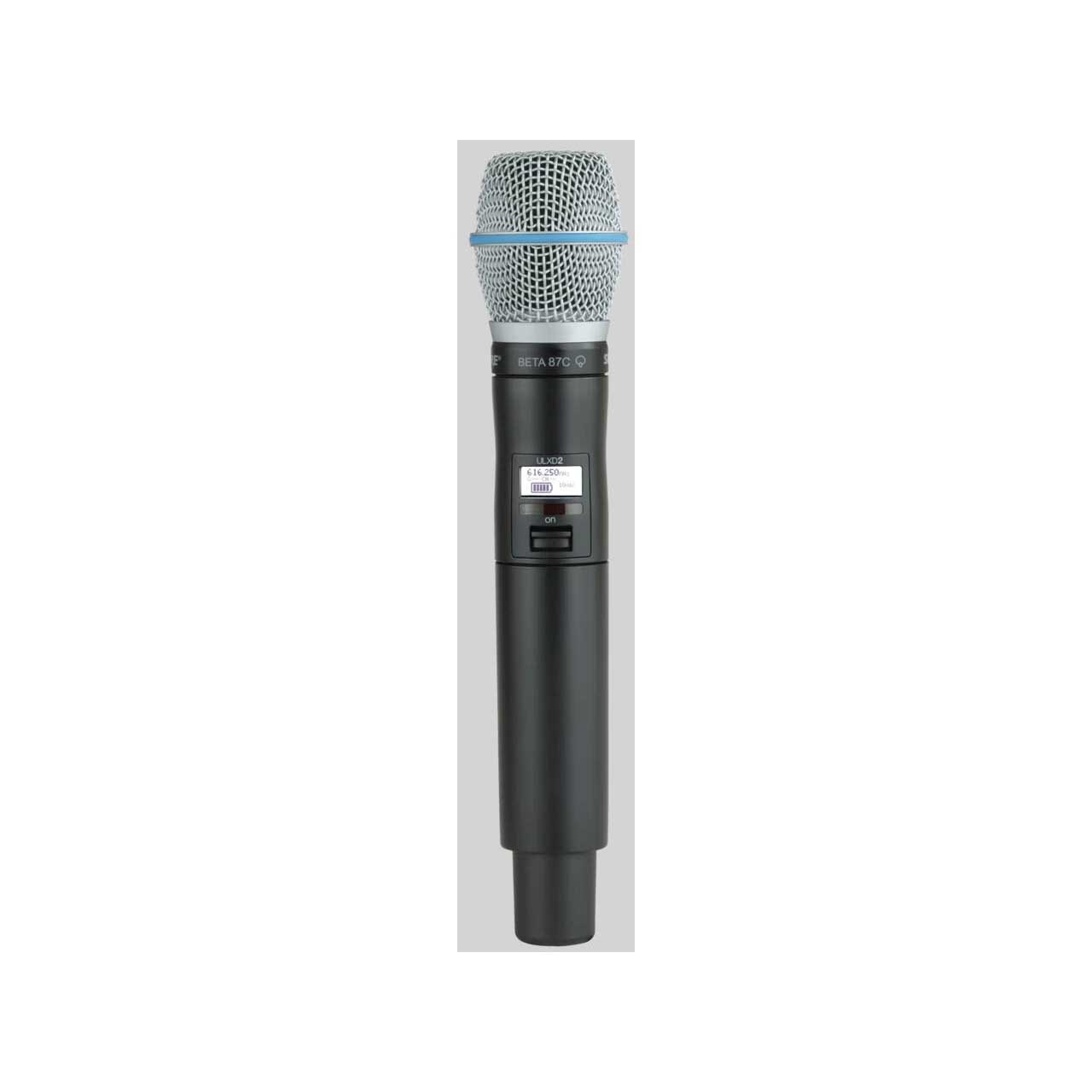

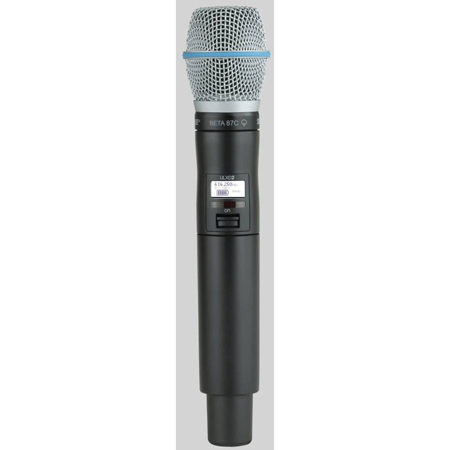

Shure ULXD2/B87C=J50A Handheld Mic Transmitter with BETA 87C - J50A 572 to 608 + 614 to 616 MHz

ULXD2/B87C=-J50A - Overview

• Features:

  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout


• Specifications:

  • Gain Offset Range: 0 to 21 dB (in 3 dB steps)
  • Battery Type: Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
  • Battery Runtime @ 10 mW: Shure SB900A: up to 9 hours Alkaline: 8 hours
  • Configuration: Unbalanced
  • Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
  • Preamplifier Equivalent Input Noise (EIN) System Gain Setting = +20: 120 dBV, A-weighted, typical
  • Antenna Type: Integrated Single Band Helical
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Proprietary Digital
  • Power: 1 mW, 10 mW, 20 mW


• Item Includes:

  • 1x ULXD2/B87C Digital Handheld Transmitter with Beta 87C Capsule


• Warranty:

  • 1-Year Limited Warranty
