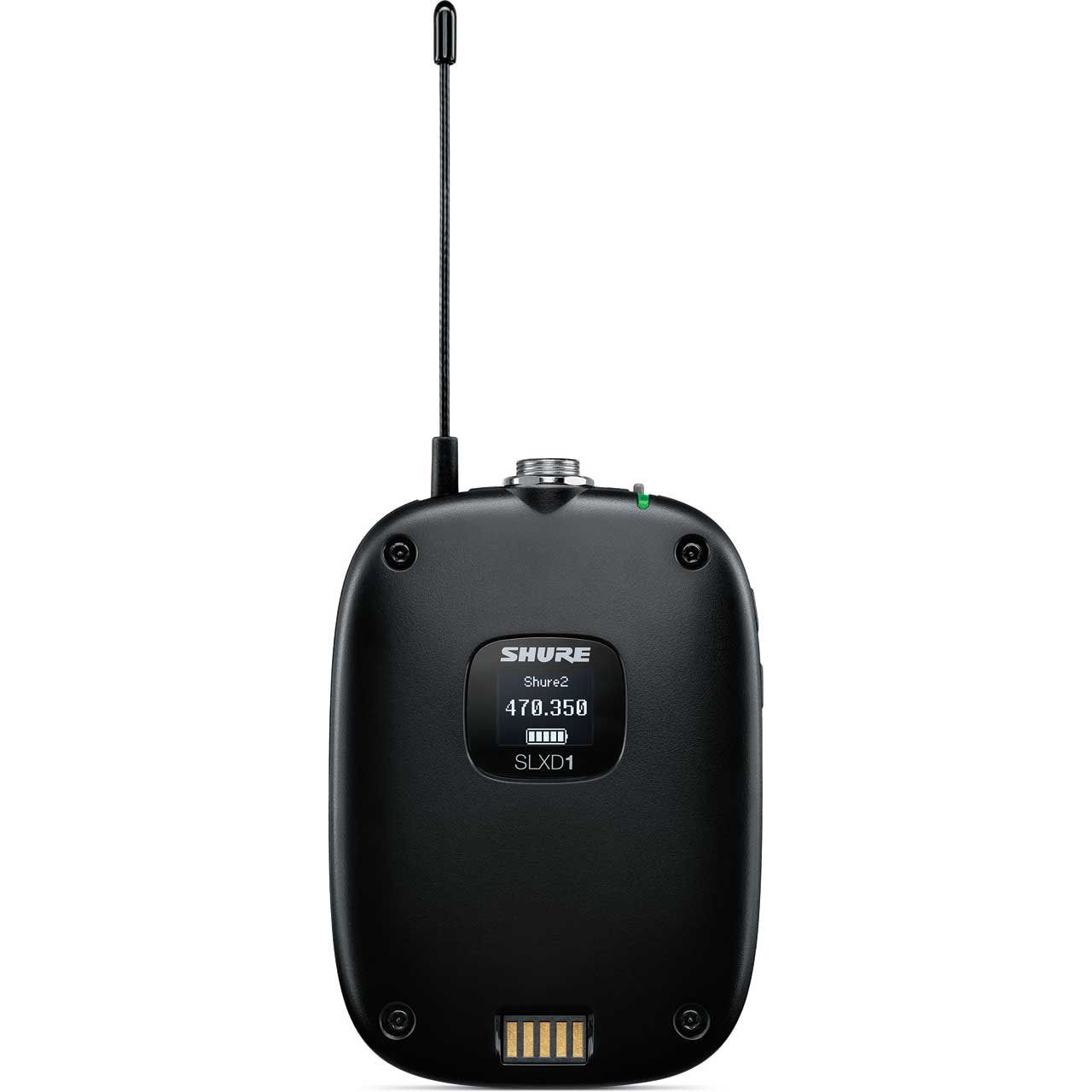

Shure SLXD1-H55 Bodypack Transmitter - 514-558Mhz

ITEM #: SLXD1-H55 MFG #: SLXD1=-H55

close - X

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Temporarily Out of Stock
iAvailability Description Popup

    SLXD1=-H55 - Overview

    Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With the Shure SLXD1-H55 Bodypack Transmitter you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances. Shure SLX D Wireless Systems are the digital wireless solutions for small and medium-sized facilities that provide affordable, worry-free UHF-band RF performance, transparent audio quality and streamlined maintenance because of spectrum efficiency, digital audio and ease of setup and rechargeability.

    The Shure SLXD includes predictive diversity for extended antenna coverage and improved RF signal-to-noise ratio. It operates within an extended spectrum of UHF (470-938 MHz, region dependent). The tuning bandwidth goes up to 44MHz (selectable RF band) with up to 32 preset compatible channels and is capable of operating up to 10 compatible channels in a 6 MHz TV band or 12 compatible channels in an 8 MHz TV band. The entire system shall deliver high-quality transparent audio, with a flat frequency response over a wide range from 20Hz to 20kHz, providing accurate audio reproduction and a low-latency of 3.2ms. The dynamic range shall be up to 120 dB.

    Receivers provide single and dual channel options and have a menu option to guide the user step-by-step in setting up the RF frequency to either initiate new systems or add a new system to existing systems. The receiver shall sync the frequency to the transmitter via infrared lens. Once the system is setup, the receiver can store the configuration and restore it back if the configuration is changed accidentally. Receivers have both XLR and 1/4” audio outputs. The receiver can select the microphone level and line level output via menu operation.

    Shure SLXD transmitters have a high-contrast OLED display indicating channel name, battery status, and frequency. Both the receiver and bodypack/handheld transmitter shall be able to be locked with the options of either locking the menu only, or locking both the menu and power. The transmitter is also be able to be temporarily unlocked and automatically locked back after a certain idle time. Transmitter bodypacks use a TA4M connector as the mic connection. The bodypack and handheld are powered by two AA batteries or the SH-SB903 lithium ion rechargeable battery. The bodypack and handheld shall be able to be docked and charged on a SBC203 dual docking charger.

    SLXD1=-H55 - Required Accessories

      SLXD1=-H55 - Recommended Accessories
