Tripp Lite SMART1500RM2UL 1500VA 1440W UPS Smart Lithium Ion LiFePO4 LCD USB DB9 2URM

ITEM #: SMART1500RM2UL MFG #: SMART1500RM2UL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,401.00

Our Price:

$1,506.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


SMART1500RM2UL - Overview

The Tripp Lite SMART1500RM2UL UPS provides fully regulated sine wave AC output for servers, telecom hardware and other applications where long battery lifespan is critical. Plug your equipment into the eight NEMA 5-15R outlets. Two outlets are switchable, allowing you to power connected equipment on and off remotely to reset or reboot connected equipment or to shed less significant loads to extend battery runtime for more critical equipment. All outlets are protected by 570-joule network-grade surge protection to fight off damaging power surges and spikes. With more than double the service life, three times more charge/discharge cycles and 60% the weight of comparable lead-acid batteries, the LiFePO4 battery features 120 volt battery backup and recharges to 100% capacity in less than two hours. AVR maintains 120V nominal output over input range of 83V-145V without using battery power. Noise filtering removes electromagnetic and radio frequency interference that can disrupt equipment performance. The front-panel LCD information and configuration screen displays detailed UPS and site power status and operating data, as well as input and output voltage, operating mode, alarm function and additional options. An alarm sounds to warn you of power failure, low battery, overload, UPS fault and remote shutdown conditions. The LCD screen rotates for easy viewing in rack-mount or tower configurations.PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • LiFePO4 battery offers longer life, more cycles and faster recharge
    • ENERGY STAR qualified; 97% line-mode efficiency saves energy

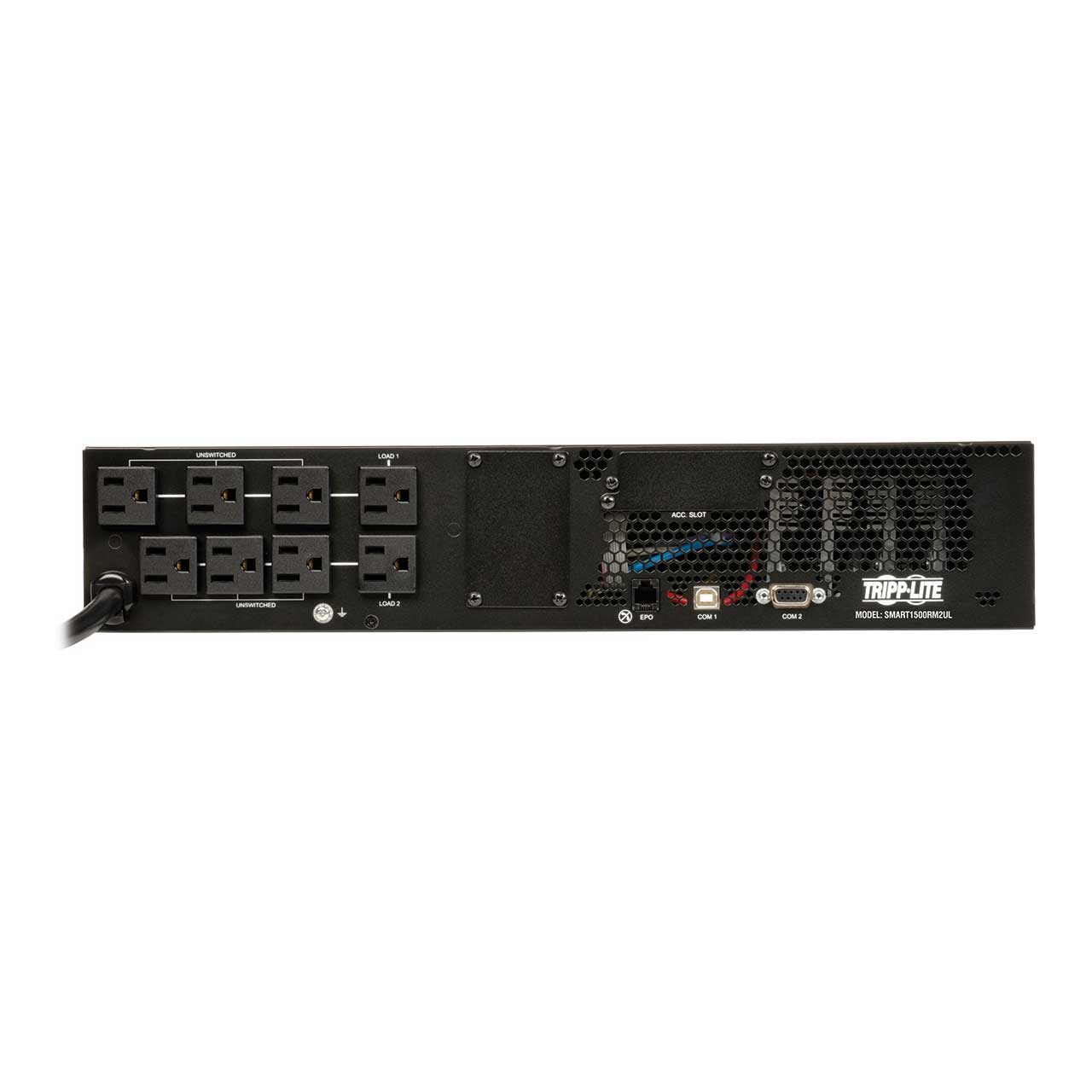

    • 8 NEMA 5-15R outlets-2 switchable via network interface
    • 120V NEMA 5-15P input with 10 ft. power cord to connect to distant outlets

  • Specifications:

    • Output
    • Output Volt Amp Capacity (VA): 1500
    • Output kVA Capacity (kVA): 1.5
    • Output Watt Capacity (Watts): 1440
    • Output kW Capacity (kW): 1.44
    • Power Factor: 0.96
    • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
    • Nominal Voltage Details: 120v nominal output in battery mode
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): -14%, +6%
    • Output Voltage Regulation (Battery Mode): +/- 5%
    • Output Receptacles: (8) 5-15R
    • Load Management Receptacles: Two switchable single-outlet load banks
    • Output AC Waveform (AC Mode): Pure Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave
    • Individually Controllable Load Banks: Yes

      Input
    • Rated input current (Maximum Load): 12A (120V)
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS Input Connection Type: 5-15P
    • UPS Input Cord Length (ft.): 10
    • Recommended Electrical Service: 15A 120V
    • Input Phase: Single-Phase

      Battery
    • Full Load Runtime (min.): 7.1 min. (1440w)
    • Half Load Runtime (min.): 15.4 min. (720w)
    • DC System Voltage (VDC): 48
    • Battery Recharge Rate (Included Batteries): 1.4 hours from 10% to 90% (typical, full load discharge)
    • Expandable Runtime: No

      Voltage Regulation
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
    • Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
    • Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%
    • Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24%

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 570
    • UPS AC Suppression Response Time: Instantaneous
    • EMI / RFI AC Noise Suppression: Yes

      Physical
    • Primary Form Factor: Rackmount
    • UPS Power Module Dimensions (hwd, in.): 3.43 x 17.32 x 19.46
    • Rack Height: 2U
    • Minimum Required Rack Depth (inches): 24.5
    • UPS Power Module Weight (lbs.): 41.78
    • UPS Power Module Weight (kg): 18.95
    • Shipping Dimensions (hwd / in.): 10.24 x 25.59 x 27.76
    • Shipping Weight (lbs.): 55.00
    • Cooling Method: Fan
    • UPS Housing Material: Steel
    • Primary UPS Height (mm): 87
    • Primary UPS Width (mm): 440
    • Primary UPS Depth (mm): 494

      Environmental
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity: 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 130
    • AC Mode Efficiency Rating (100% Load): 97%
    • Audible Noise: 45 dBA Max @ 1m front side

      Communications
    • Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
    • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX; RELAYIOCARD
    • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
    • Communications Cable: USB, DB9 and EPO cabling included
    • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Network UPS Tools Compatibility: NUT compatible.

      Line / Battery Transfer
    • Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
    • Low Voltage Transfer to Battery Power (Setpoint): 83
    • High Voltage Transfer to Battery Power (Setpoint): 145

      Certifications
    • UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
    • UPS Certification Details: UL 1778 5th Edition; CSA C22.2 No 107.3-14; FCC 15B CLASS A

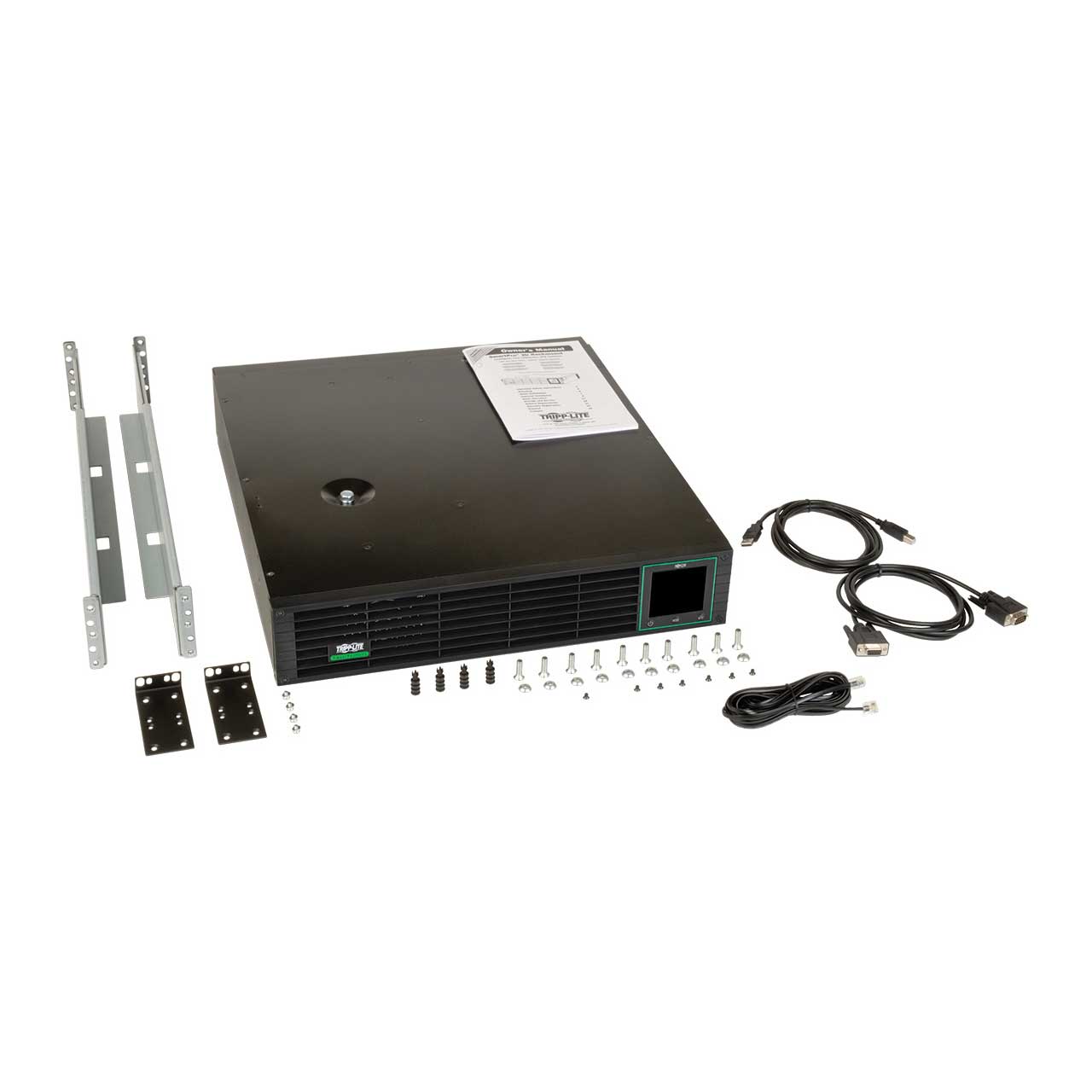

  • Item Includes:

    • SMART1500RM2UL SmartPro 120V 1.5kVA 1.44kW Line-Interactive Sine Wave UPS
    • USB cable
    • DB9 cable
    • EPO cable
    • Rack-mounting hardware
    • Owner’s manual

  • Warranty:

    • 5-year

  • GTIN:

    0037332213587
