Tripp Lite SMART2200RM2UL 2200VA 1920W UPS Smart Lithium Ion LiFePO4 LCD USB DB9 2URM

ITEM #: SMART2200RM2UL MFG #: SMART2200RM2UL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,154.00

Our Price:

$1,980.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


SMART2200RM2UL - Overview

The Tripp Lite SMART2200RM2UL SmartPro® 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART2200RM2UL switches to 2.2kVA/1.92kW battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. The innovative lithium iron phosphate (LiFePO4) internal battery more than doubles the service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles. It recharges to 100-percent capacity in less than two hours, making the SMART2200RM2UL an ideal backup in case of power outage. It provides 11.7 minutes of support at half load and 5.1 minutes at full load. Featuring eight outlets and a 10-foot power cord with NEMA 5-20P input, the SMART2200RM2UL maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite’s PowerAlert® software (available via free download), the SMART2200RM2UL enables safe unattended system shutdown and file saves in case of a prolonged power failure.PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • LiFePO4 battery offers longer life, more cycles and faster recharge
    • Energy Star qualified; 97% line-mode efficiency saves energy costs
    • 4 NEMA 5-15R & 4 5-15/20R outlets-2 switchable via network interface
    • Compatible with Tripp Lite network management cards
    • 11.7 min. runtime at half load; 5.1 min. at full load

  • Specifications:

    • Output
    • Output Volt Amp Capacity (VA): 2200
    • Output kVA Capacity (kVA): 2.2
    • Output Watt Capacity (Watts): 1920
    • Output kW Capacity (kW): 1.92
    • Power Factor: .87
    • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
    • Nominal Voltage Details: 120v nominal output in battery mode
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): -14%, +6%
    • Output Voltage Regulation (Battery Mode): +/- 5%
    • Output Receptacles: (4) 5-15R; (4) 5-15/20R
    • Load Management Receptacles: Two switchable single-outlet load banks
    • Output AC Waveform (AC Mode): Pure Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave
    • Individually Controllable Load Banks: Yes

      Input
    • Rated input current (Maximum Load): 16A (120V)
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS Input Connection Type: 5-20P
    • UPS Input Cord Length (ft.): 10
    • Recommended Electrical Service: 20A 120V
    • Input Phase: Single-Phase

      Battery
    • Full Load Runtime (min.): 5.1 min. (1920w)
    • Half Load Runtime (min.): 11.7 min. (960w)
    • DC System Voltage (VDC): 48
    • Battery Recharge Rate (Included Batteries): 1.4 hours from 10% to 90% (typical, full load discharge)
    • Expandable Runtime: No

      Voltage Regulation
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
    • Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
    • Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%
    • Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24%

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 570
    • UPS AC Suppression Response Time: Instantaneous
    • EMI / RFI AC Noise Suppression: Yes

      Physical
    • Primary Form Factor: Rackmount
    • UPS Power Module Dimensions (hwd, in.): 3.43 x 17.32 x 19.27
    • Rack Height: 2U
    • Minimum Required Rack Depth (inches): 24.27
    • UPS Power Module Weight (lbs.): 41.78
    • UPS Power Module Weight (kg): 18.95
    • Shipping Dimensions (hwd / in.): 10.24 x 25.59 x 27.76
    • Shipping Weight (lbs.): 55.00
    • Cooling Method: Fan
    • UPS Housing Material: Steel
    • Primary UPS Height (mm): 87
    • Primary UPS Width (mm): 440
    • Primary UPS Depth (mm): 489

      Environmental
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity: 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 221
    • Battery Mode BTU / Hr. (Full Load): 1343
    • AC Mode Efficiency Rating (100% Load): 97%
    • Audible Noise: 45 dBA Max @ 1m front side

      Communications
    • Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
    • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX; RELAYIOCARD
    • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
    • Communications Cable: USB, DB9 and EPO cabling included
    • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Network UPS Tools Compatibility: NUT compatible.

      Line / Battery Transfer
    • Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
    • Low Voltage Transfer to Battery Power (Setpoint): 83
    • High Voltage Transfer to Battery Power (Setpoint): 145

      Certifications
    • UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

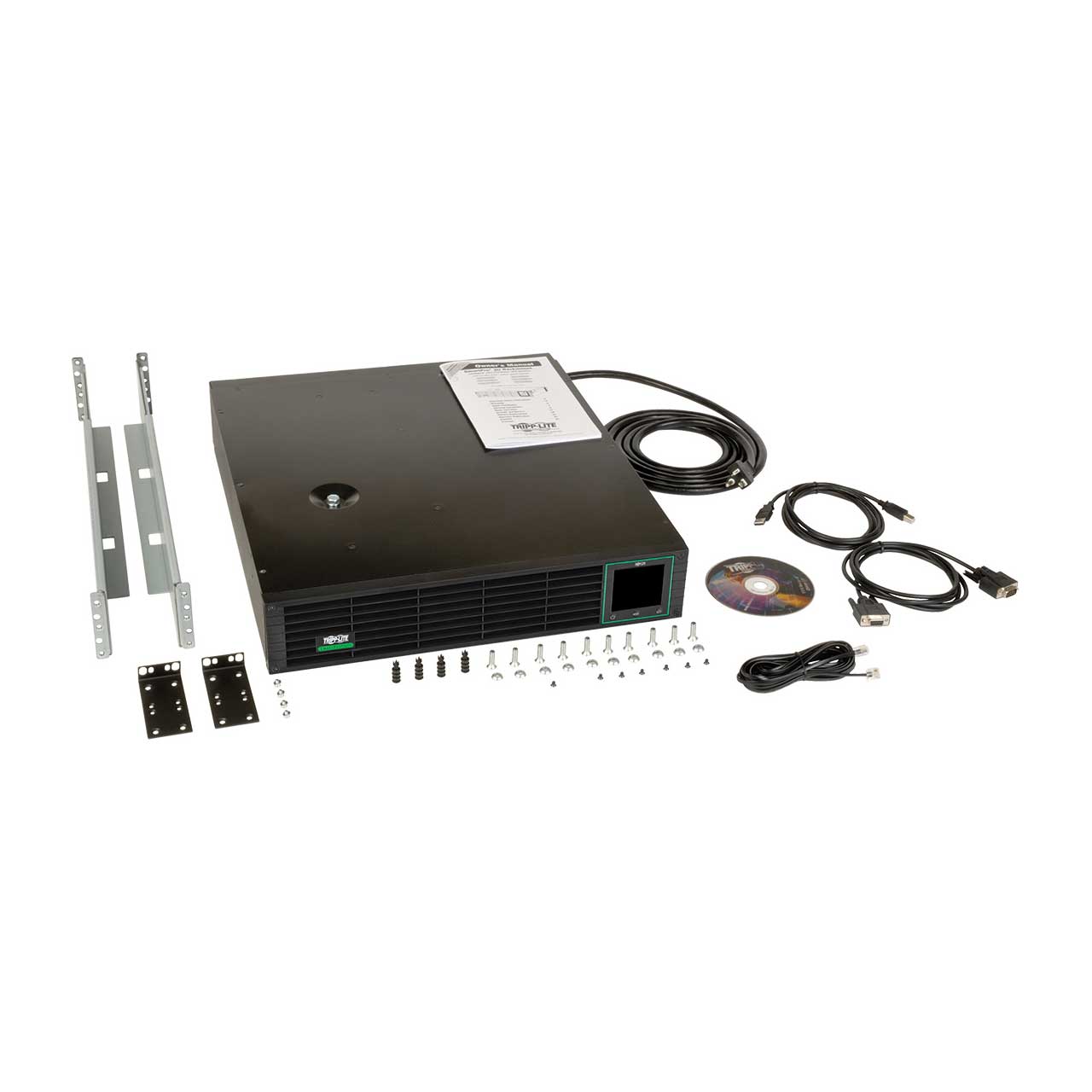

  • Item Includes:

    • SMART2200RM2UL SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS
    • USB cable
    • DB9 cable
    • EPO cable
    • Rack-mounting hardware
    • Owner’s manual

  • Warranty:

    • 5-year

  • GTIN:

    0037332192646
