Tripp Lite SmartPro SMART750RM1U 750VA 6 outlets with 2 switchable load bank 1RU

ITEM #: SMART750RM1U MFG #: SMART750RM1U

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$954.72

Our Price:

$619.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SMART750RM1U - Overview

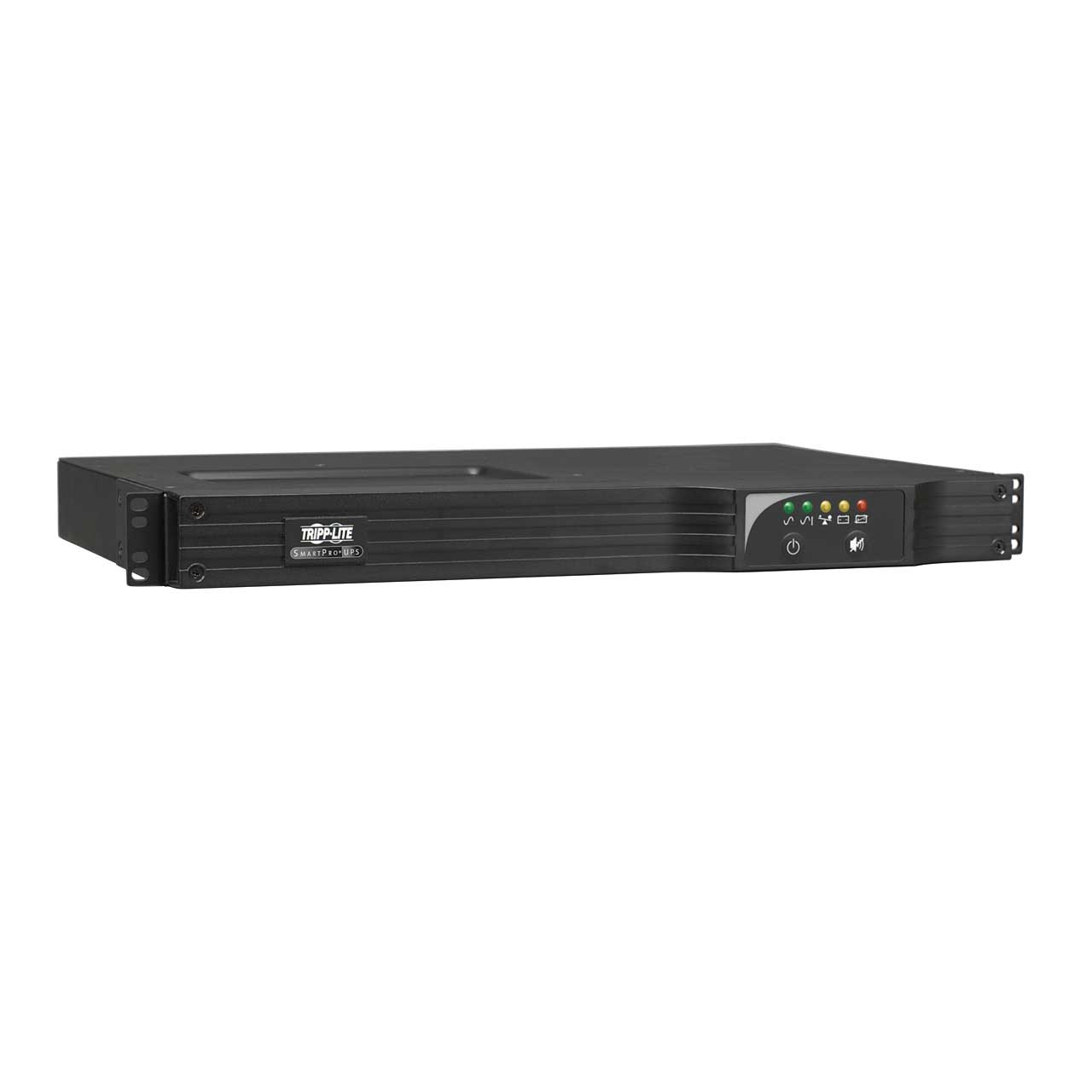

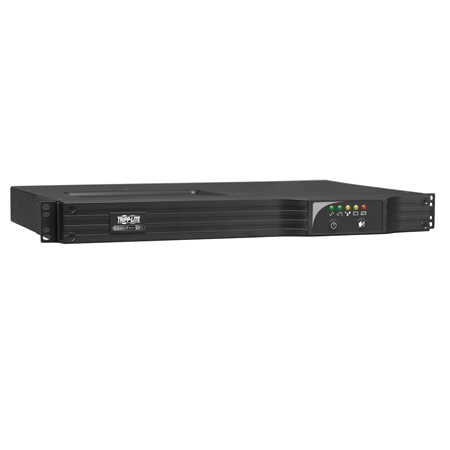

    Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and slot for optional Network Management Card options. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.

    • Features:

      • Tripp Lite SMART750RM1U.75kVA / 750VA / 600 watt line interactive UPS.
      • 1U rack/tower compatible form factor.
      • Included mounting brackets support 2 and 4 post rackmount installation, Optional 4POSTRAILKIT1U is available for additional support.
      • NEMA 5-15P input; 6 5-15R output receptacles.
      • Installed depth of only 16.75 in. / 42.5cm.
      • Sine wave output in both AC and battery backup modes.
      • Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power.
      • Full load efficiency rating of 98% saves energy and ensures cool operating temperatures.
      • Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices.
      • PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted.
      • Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA(Network Shutdown Agent) for larger networks and PowerAlert NMS(Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices.
      • Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces.
      • HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.
      • Slot for optional Network Management Card options, such as Tripp Lite's SNMPWEBCARD network interface.
      • 3 stage metered LEDs offer current monitoring and battery charge level.
      • Mains power and voltage regulation LEDs offer at-a-glance power status information.
      • Front panel switches support self-test and alarm cancel functions.
      • Field replaceable, hot-swappable internal UPS batteries.

    • Specifications:

      • OUTPUT:
      • Output Volt Amp Capacity (VA) 750
      • Output Watt Capacity (Watts) 600
      • Power Factor 0.8
      • Nominal Output Voltage(s) Supported 120V
      • Frequency Compatibility 60 Hz
      • Output Voltage Regulation (Line Mode) -21%, +8%
      • Output Voltage Regulation (Battery Mode) +/- 5%
      • Output Receptacles (6) 5-15R
      • Load Management Receptacles Two switchable single-outlet 5-15R load banks
      • Output AC Waveform (AC Mode) Sine wave
      • Output AC Waveform (Battery Mode) Pure Sine wave
      • INPUT:
      • Rated input current (Maximum Load) 7A
      • Nominal Input Voltage(s) Supported 120V AC
      • UPS Input Connection Type 5-15P
      • Input Circuit Breakers 15A
      • Recommended Electrical Service 15A 120V
      • Input Cord Length (ft.) 10
      • Input Phase Single-Phase.
      • BATTERY:
      • Full Load Runtime (min.) 4.9 min. (600w)
      • Half Load Runtime (min.) 13.2 min. (300w)
      • DC System Voltage (VDC) 24
      • Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge RBC64-1U
      • Battery Access Front panel battery access door
      • Battery Replacement Description Hot-swappable, user replaceable batteries
      • Expandable Runtime No

        PHYSICAL:
      • Included Mounting Accessory Description Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support in 4 post rackmount applications
      • Primary Form Factor Rackmount
      • UPS Power Module Dimensions (hwd, in.) 1.75 x 17.5 x 16.75
      • Rack Height (U Spaces) 1
      • Minimum Required Rack Depth (inches) 19.8
      • UPS Power Module Weight (lbs.) 30
      • UPS Shipping Dimensions (hwd / in.) 6.2 x 23.5 x 22.5
      • Shipping Weight (lbs.) 34
      • Cooling Method Fan
      • UPS Housing Material Steel

    • GTIN:

      0037332118813
