Studiomaster DigiLive 16P-600 Rack Mount 600 Powered 4 Channel 4x 150 Watt

ITEM #: SMDIGILIVE16P600 MFG #: DIGILIVE16P-600

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SMDIGILIVE16P600

DIGILIVE16P-600 - Overview

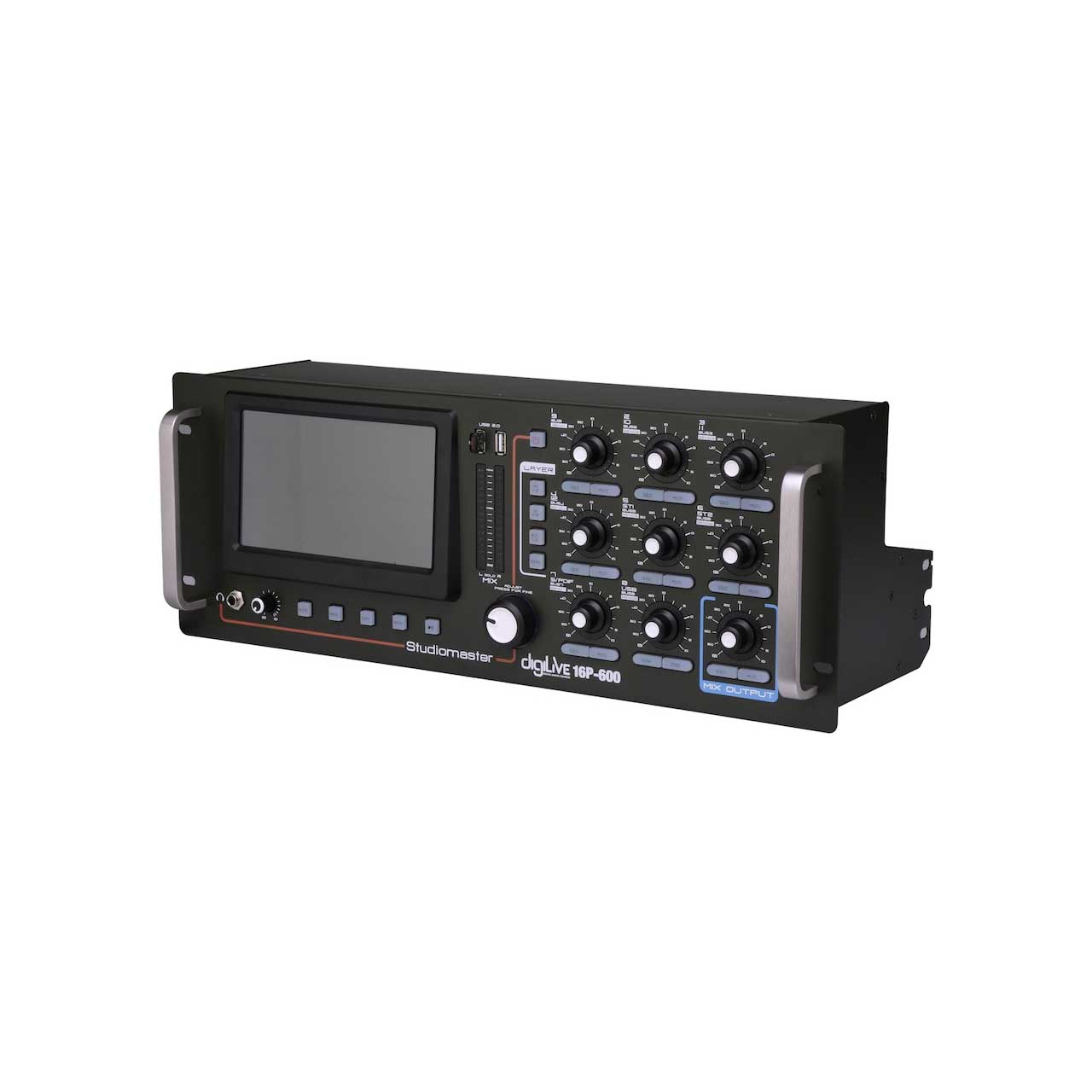

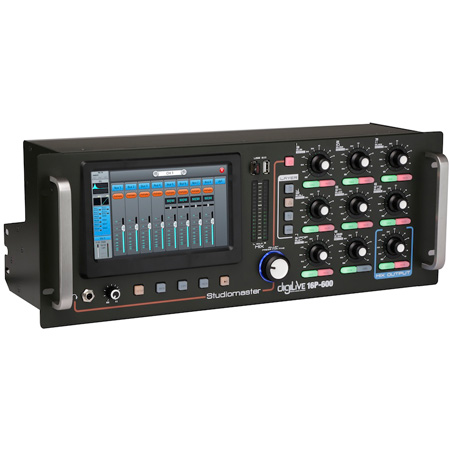

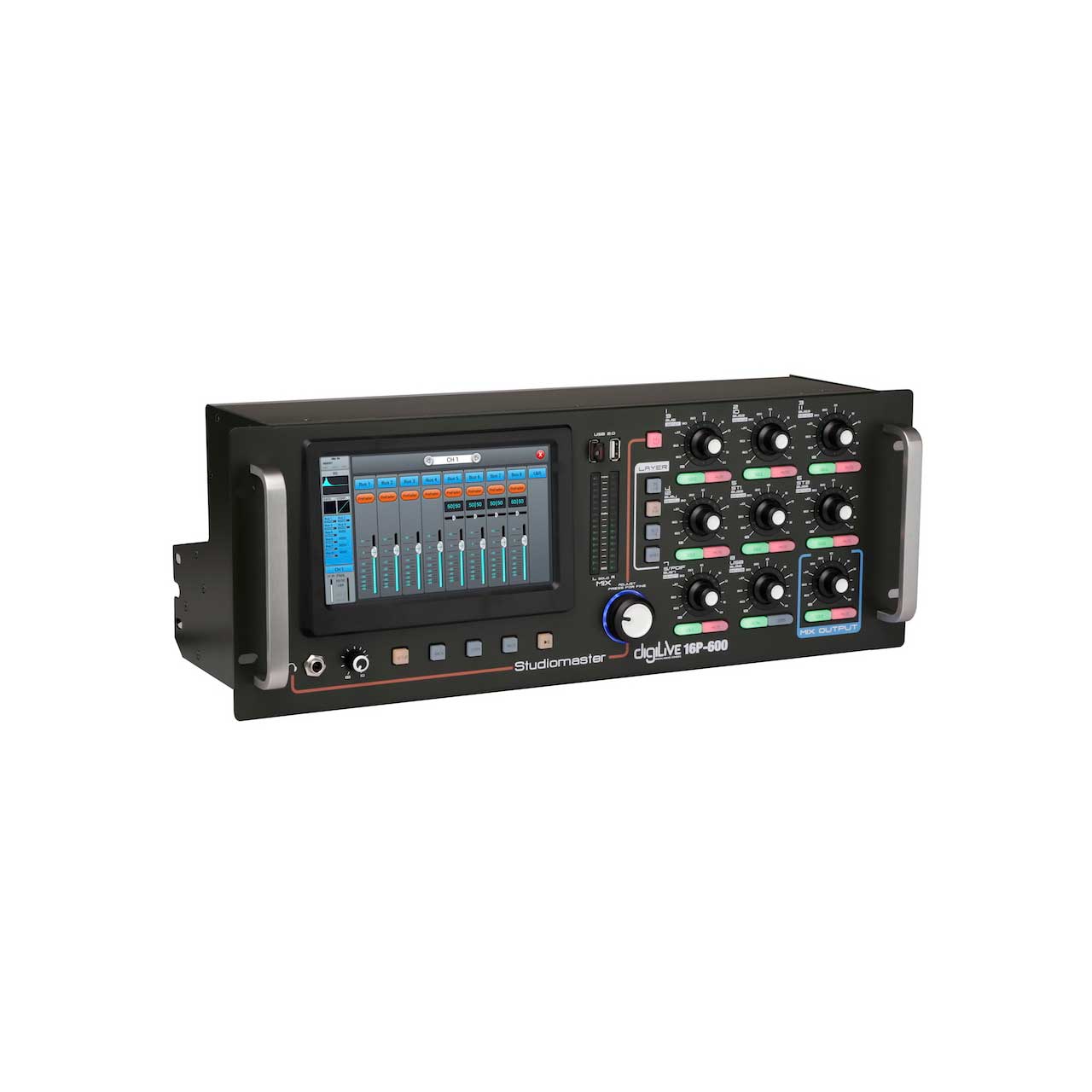

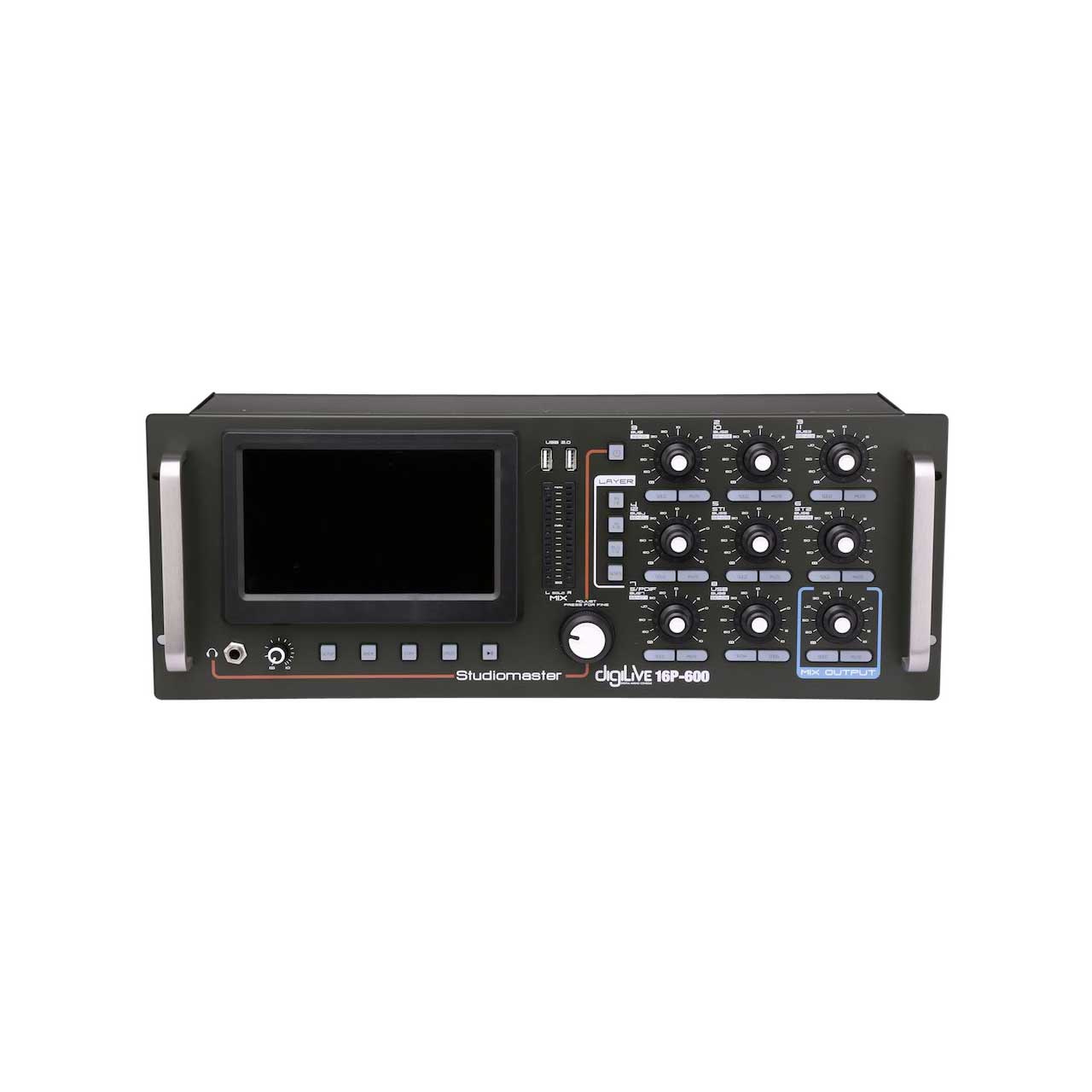

The Studiomaster digiLivE 16P-600 are both compact rack mountable black box versions of the 16 console, even more compact, these models still utilise the full potential of our digital mixer expertise, including digital input gain with full led rotary controls. Retaining the unique and intuitive 7" touchscreen interface, 16 inputs, 16 internal busses and the 16P-600 adds a 600 watt multi configuration internal digital power amplifier with 4 x 150W smart balanced outputs.

  • Features:

    • 600 watt digital power amplifier
    • 16 input with 16 internal busses
    • 12 digital gain mic input channels
    • 2 stereo inputs
    • 4 configurable smart outputs
    • Ultra compact unit size
    • high resolution touch screen
    • Advanced hybrid user interface

  • Specifications:

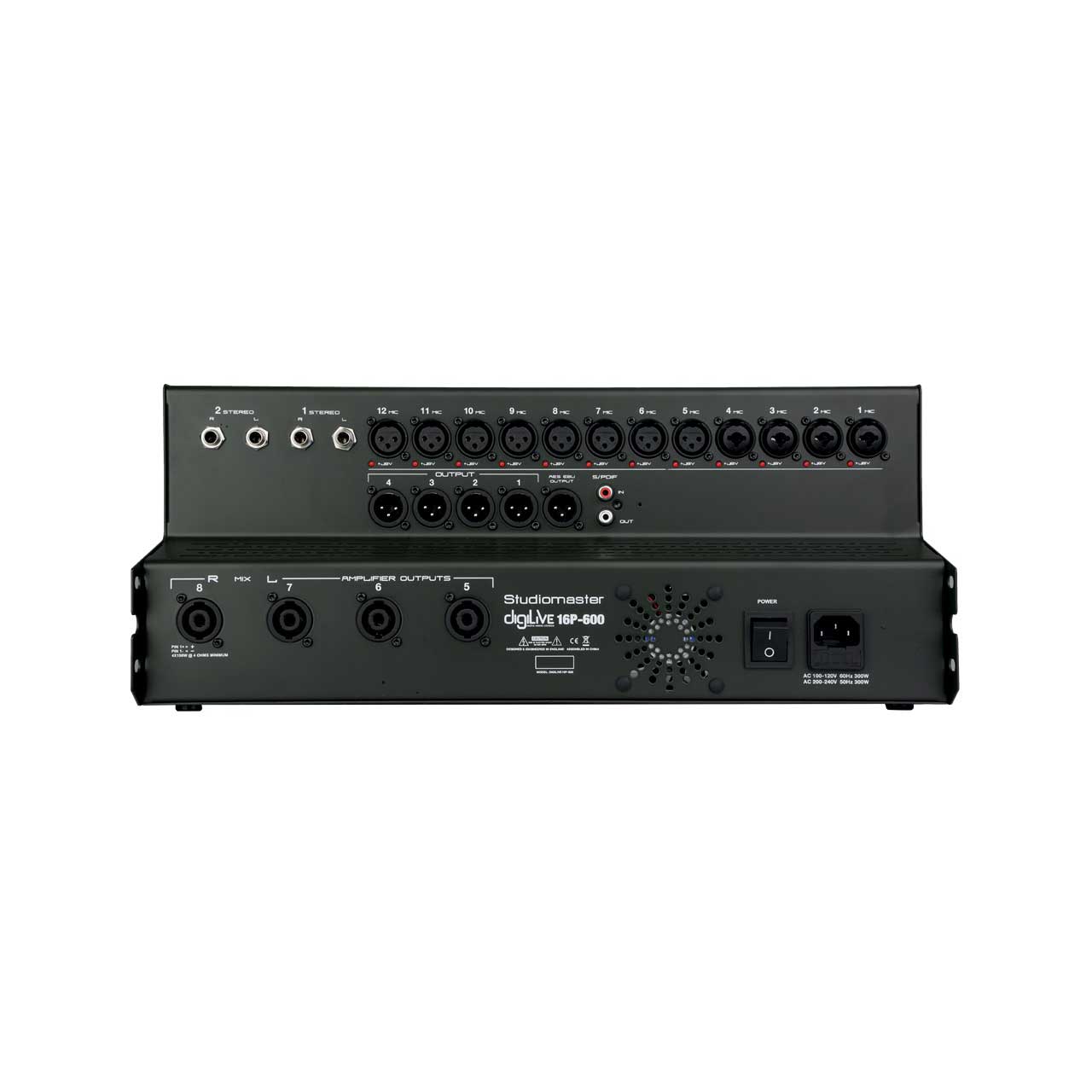

    • Mic Inputs: 12 (8x XLR / 4x Combo XLR)
    • Stereo Inputs: 2
    • Master Output: 2 (Left/Right balanced XLR)
    • Smart Outputs: 4 (assignable balanced XLR)
    • Speaker Outputs: 4x 4-pole speaker connectors
    • Internal busses: 16
    • Stage monitor: 1 TRS Jack output
    • Headphone: 1 TRS Jack output
    • Screen: high definition touch screen
    • Operation system: Android system
    • Remote system: IOS app for Ipad
    • Network: Yes, via WiFi module
    • Sample Frequency: 48 KHz
    • AD/DA: 192 KHz, 24-bit
    • DSP: 40 bit float point, SHARC processor
    • Effects: up to 8 assignable effect modules
    • Amplifier Power: 4x 150 watts (RMS)
    • AES/EBU: Output XLR
    • S/PDIF: Input / Output (RCA Phono)
    • USB Interface: 2 for playback/recording, scene/setting storage and system updates
    • Power Supply: 100-120V/ 200-240V ~ 50/60Hz IEC power supply
