SmallHD 16-0710-R2 Cine 7 RED RCP2 7 Inch HD Ultra Bright 1800nit Touchscreen Monitor Kit for KOMODO/DSMC3

ITEM #: SMHD-16-0710-R2 MFG #: 16-0710-R2

free ship

Our Price:

$2,599.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    16-0710-R2 - Overview

    Full HD touchscreen monitor with DCI-P3 Color and 1800nits brightness

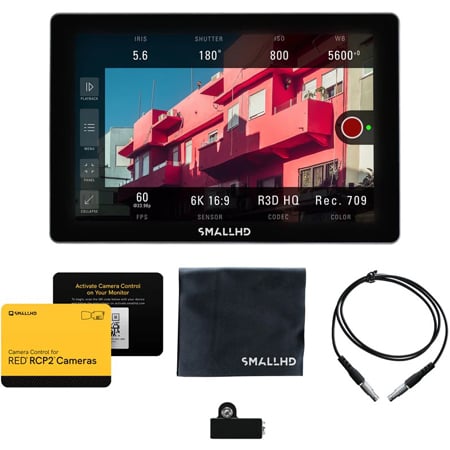

    The SmallHD 16-0710-R2 Cine 7 RED® RCP2™ Kit bundles everything you need to control your RED® KOMODO® or DSMC3™ camera from SmallHD's Cine 7 monitor. The Cine 7 RED® RCP2™ Kit includes the Cine 7 monitor, RED® EXT Camera Control Cable, SmallHD Cleaning Cloth, Micro Lemo Adaptor, and Camera Control software for RED® KOMODO® and DSMC3™ cameras.

    Cine 7 Monitor
    Cine 7 is the ultimate 7" on-camera HD monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS 4.

    The Full HD 7-inch IPS LCD display with 1920x1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what's being captured by the camera. No matter the time of day, environment, or sunlight, you'll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

    The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

    With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

    Camera Control for RED® RCP2™ Cameras (Software Only, KOMODO®, DSMC3™)
    This Software License is a digital download that allows you to unlock access to camera control for RED® KOMODO® and RED® V-RAPTOR™ (DSMC3™) cameras via a software activation code. Tap into the internal camera settings with intuitive touchscreen configuration tools.

    RED® EXT 9-pin to SmallHD 5-pin USB Camera-Control Cable
    5-pin to 9-pin camera control cable. Compatible with Focus Pro monitors, for access to RED® KOMODO™.

    SmallHD Cleaning Cloth
    SmallHD Cleaning Cloth, made from a non-abrasive material, is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.

    Micro USB to 5-pin Lemo Adapter
    Micro USB to 5-pin Lemo Adapter used for installing Camera Control for RED® & KOMODO™ to SmallHD Smart 7 monitors.

    • Features:

      • Full HD touchscreen monitor
      • DCI-P3 Color
      • 1800nits brightness
      • 1920x1200 resolution
      • 4K and HDR compatibility

    • Specifications:

      • Item Weight: 1.25 lbs/ 20(oz)
      • Height (in): 4.67
      • Width (in): 1.32
      • Length/Depth (in): 7.09
      • Compliance: FCC, IC, CE, RoHS
      • Operating Temperature: 30°F to 100°F
      • Storage Temperature: 0°F to 120°F
      • Mount Points: Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)
      • Chassis: Anodized Aluminum
      • Display Panel Type: IPS LCD
      • Diagonal Size: 7.02
      • Resolution: 1920x1200
      • Pixel Density: 322 ppi
      • Aspect Ratio: 16:9
      • Active Area: 5.95 x 3.72
      • Brightness: 1800 NITs
      • Contrast: 1000:1
      • Gamut: 100% DCI-P3 Coverage
      • Color Depth: 10-bit Processing (8-bit panel)
      • Viewing Angle: 160
      • Backlight Type: LED
      • Adjustable Backlight: Yes
      • Input Signal: 3G-SDI
      • Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
      • HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
      • SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
      • HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
      • Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
      • 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
      • HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
      • SD-SDI Output Types:YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
      • HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
      • Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
      • SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
      • HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
      • Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
      • Power In: 2-pin Locking
      • USB: 1x USB 2.0 Micro-B receptacle
      • Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
      • Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
      • Battery Types: L-Series (included), V Mount, Gold Mount (batteries sold separately)
      • DC input: Reverse polarity

    • Item Includes:

      • 1x CINE7 Monitor
      • 1x RED® EXT 9 Pin to SmallHD 5 pin USB Camera Control Cable
      • 1x SmallHD Cleaning Cloth
      • 1x Micro USB to 5-Pin Adapter
      • 1x Camera Control for RED® RCP2™ Cameras (Software Only, KOMODO®, DSMC3™)

    • Warranty:

      • Limited 1-Year Warranty
