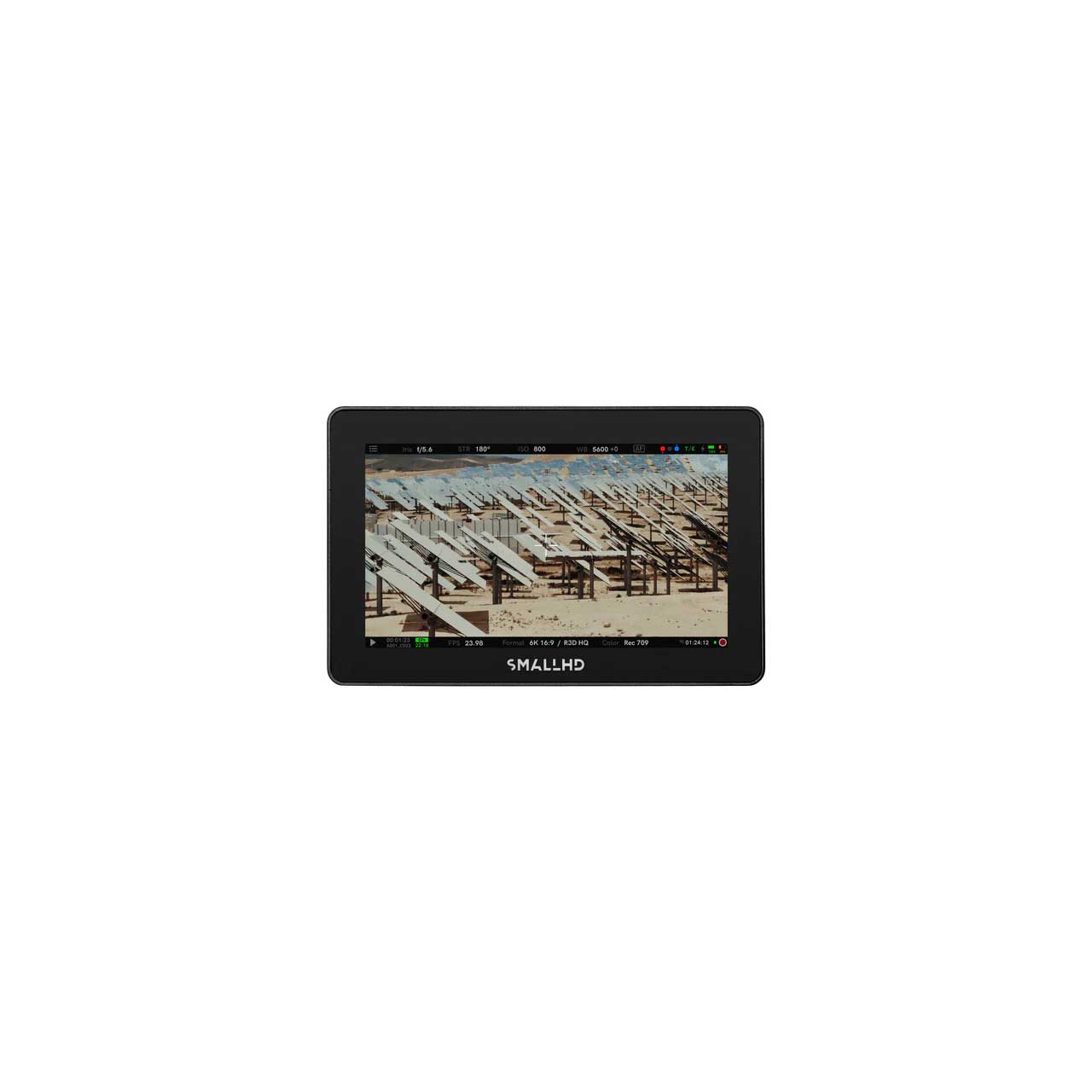

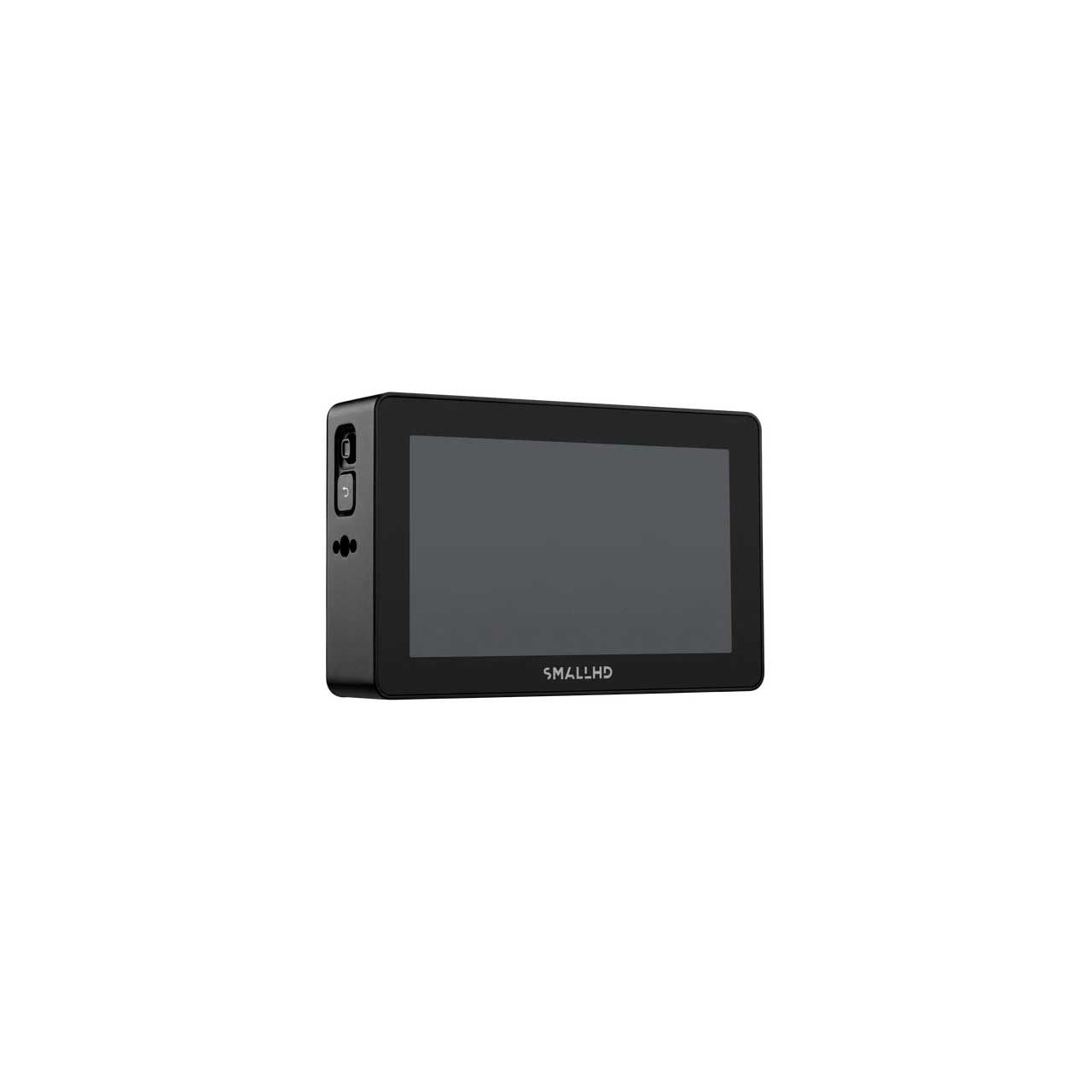

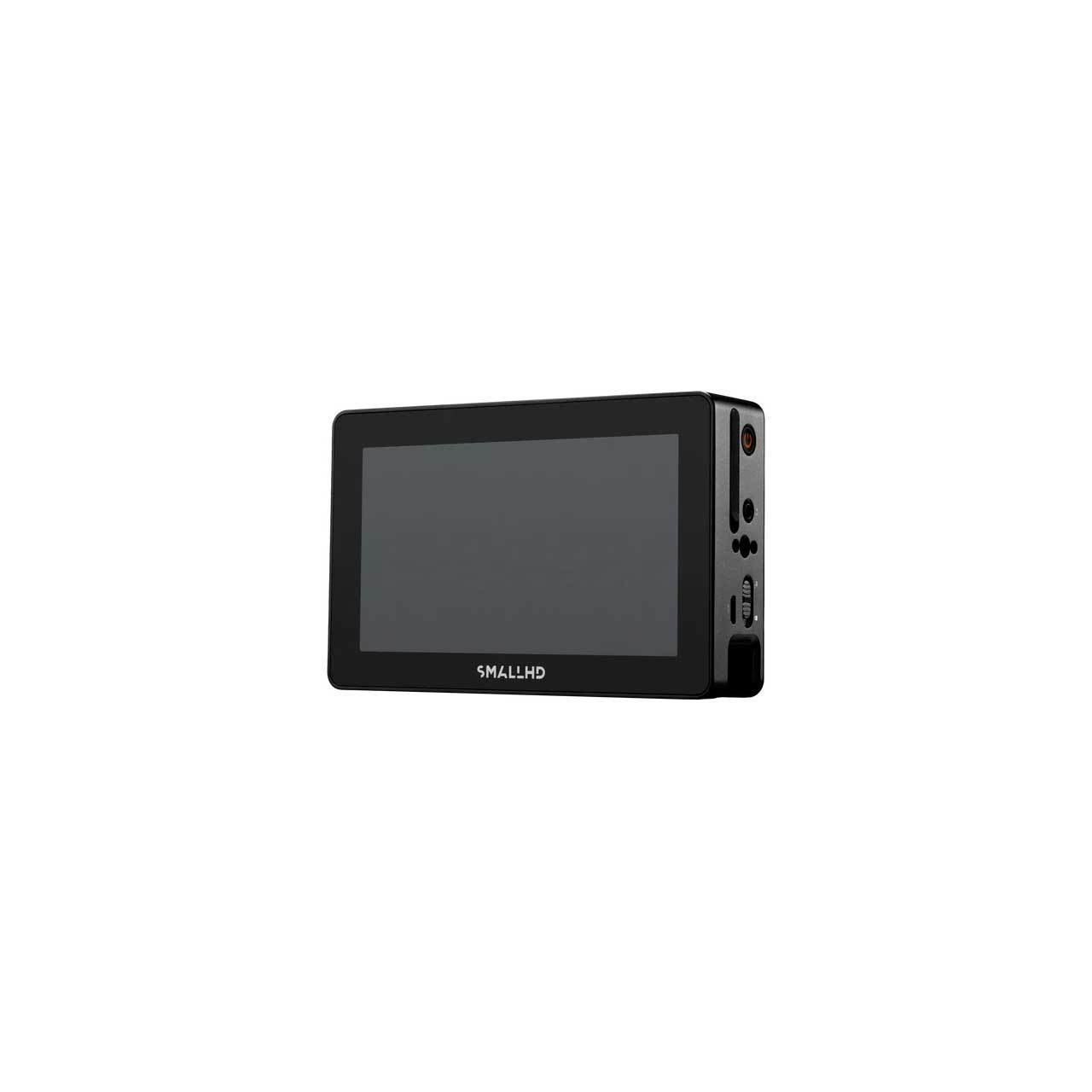

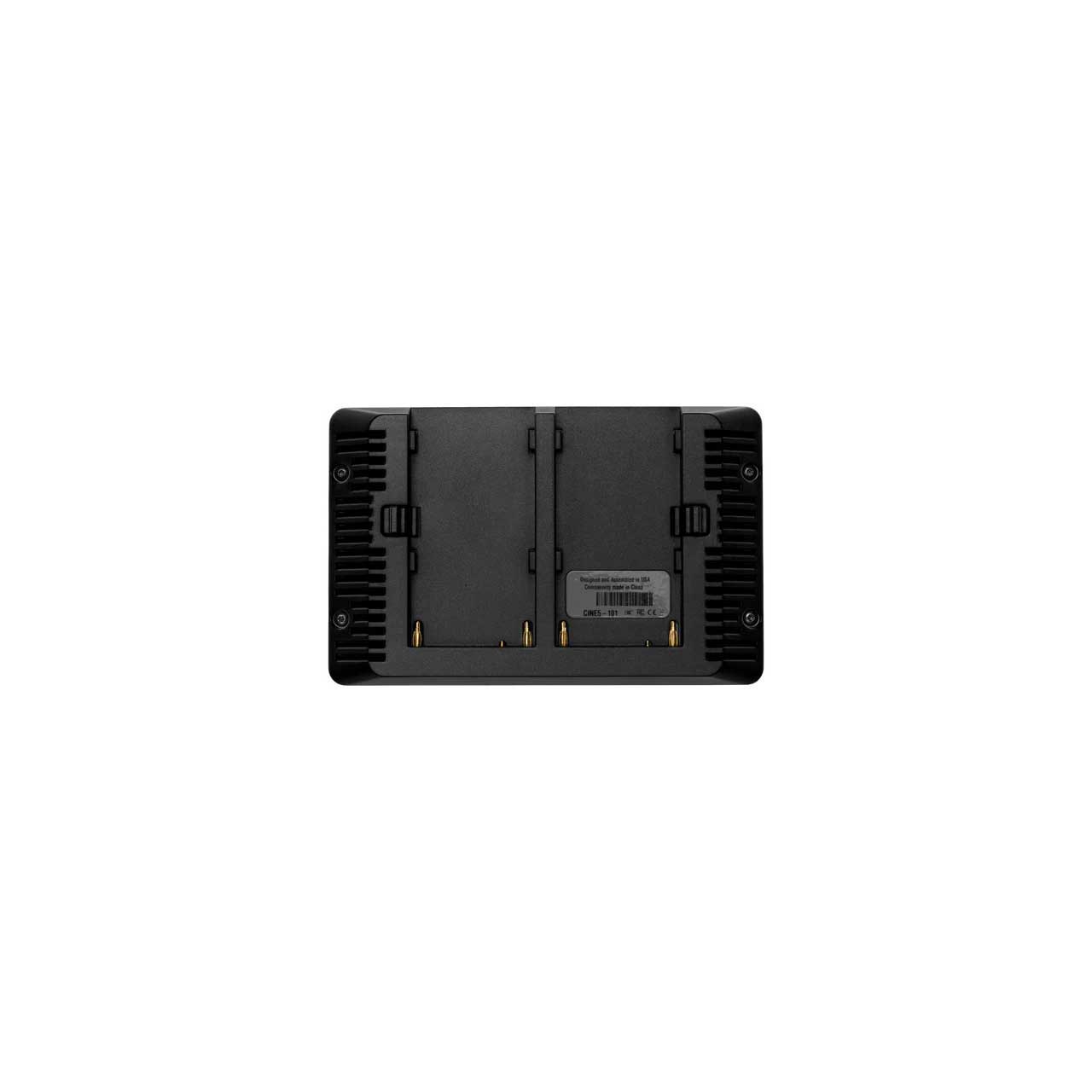

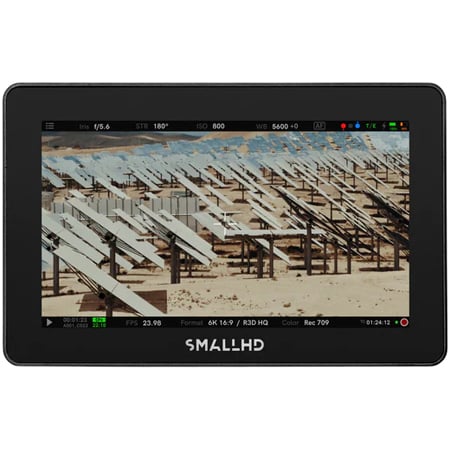

SmallHD CINE 5 Inch Smart Touchscreen Monitor with 2000nits & Joystick Control - 1920x1080

ITEM #: SMHD-CINE-5 MFG #: 16-0526

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Preorder
iAvailability Description Popup

    16-0526 - Overview

    Cine 5 is lightweight, compact, and offers 2000nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this field-ready 5-inch monitor.

    1080p resolution ensures a clear look at your production, while 10-bit color processing offers excellent color accuracy. The added joystick and back button allow you to use this smart monitor in nearly all conditions, even on cold days when taking off your gloves is not an option.

    Cine 5 is designed for high-end camera use - with bright imagery, optional Camera Control, and 2-pin locking power input - making it ideal for First ACs, Camera Operators, and DPs.

    Camera Control for RED® DSMC2® & RCP2™

    Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO® and V-RAPTOR™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

    • Features:

      • Display: 5-inch Touchscreen, 1920x1080, 440 PPI
      • Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN],
      • Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack
      • Power Input: 2-pin Locking Power Input (10-34V DC, 1.6A)
      • Data I/O: 1x SD Card Slot, 1x Micro USB, 1x Locking USB
    • Specifications:

      • Environmental
      • Mount Points: 6x 1/4-20 Mounting Points

      • Panel Type: Touch-Screen
      • Resolution: 1920 x 1080
      • Aspect Ratio: 16:9
      • Brightness: 2000nits
      • Backlight Type: Edgelit

        Input Signal
      • 3G-SDI Input Types: 1x 3G-SDI

        Output Signal
      • HDMI Output Types: 1x HDMI 2.0 (4Kp30)

        Connector Type
      • SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
      • HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
      • Audio: 1x 3.5mm Stereo Headphone Jack

        Data I/O
      • Storage Media: 1x SD Card Slot
      • USB: 1x Micro USB 1x Locking USB

      • Input: 2-pin Locking Power Input (10-34V DC, 1.6A)

      • Pixel Zoom: Yes
      • Focus Assist: Yes
      • Peaking: Yes
      • False Color: Customizable False Color Overlays
      • Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
      • Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
    • GTIN:
