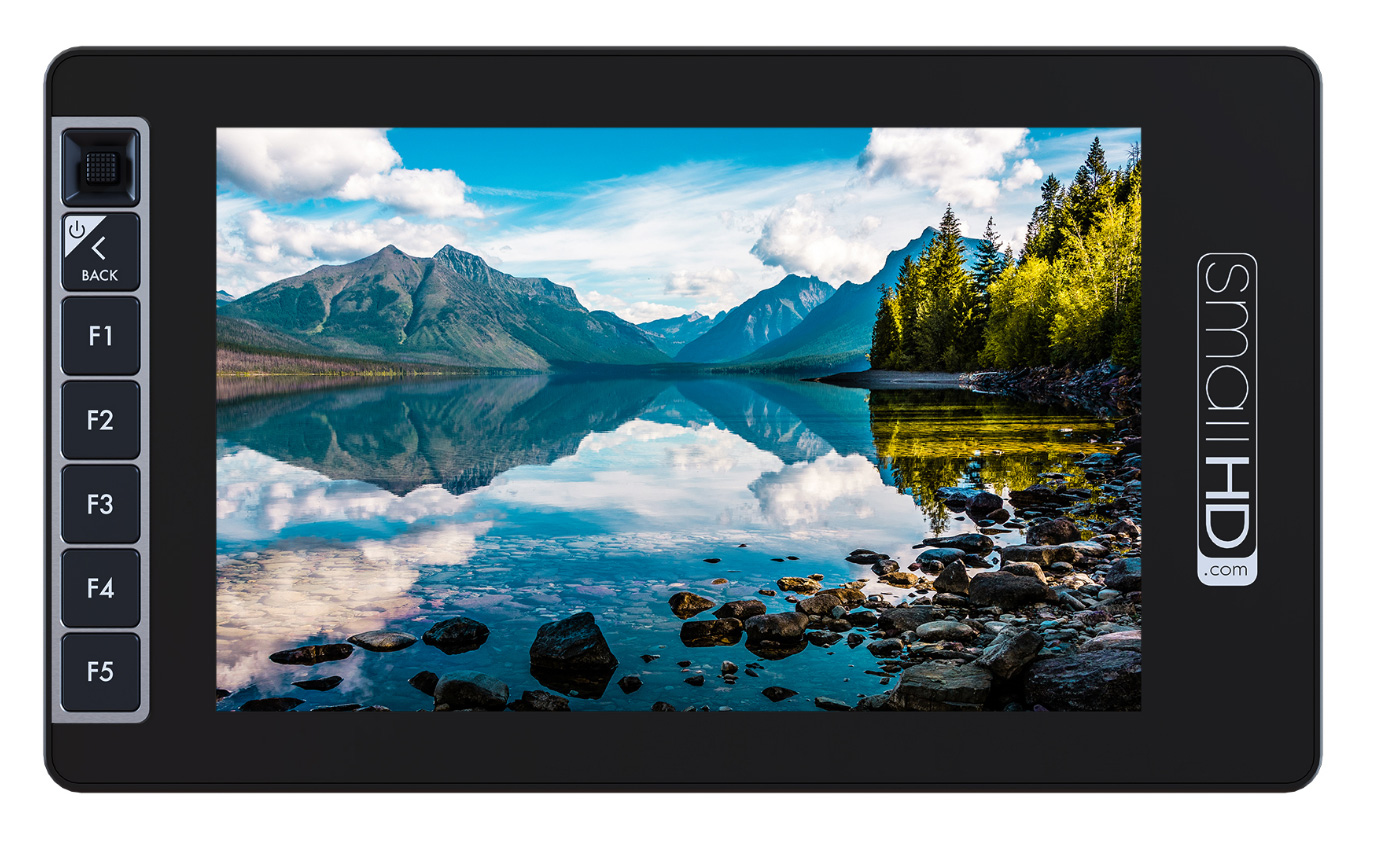

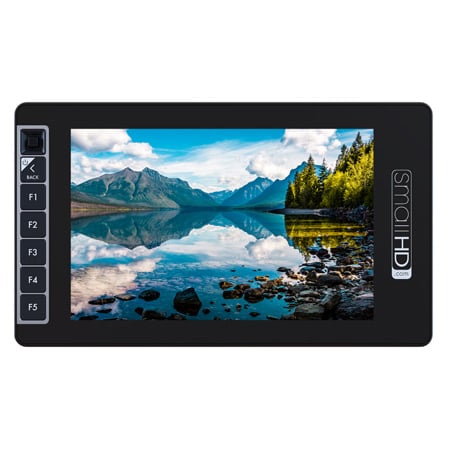

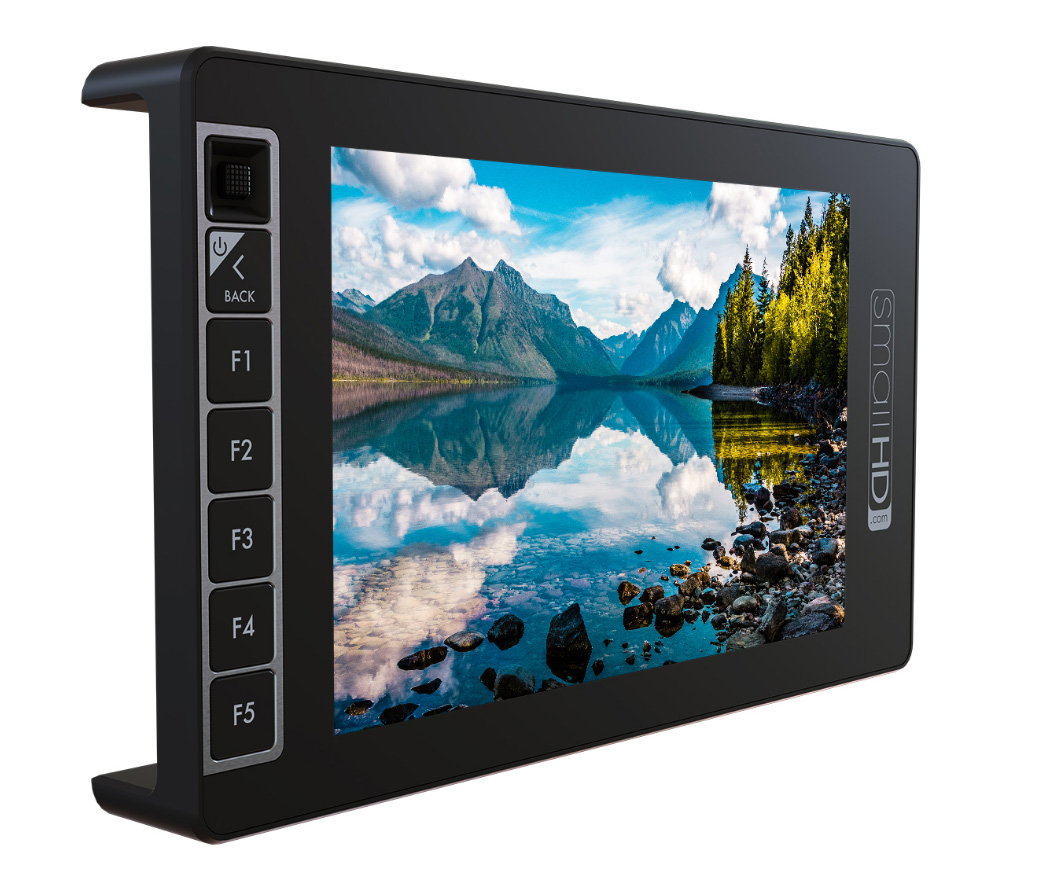

SmallHD MON-703U 703 Ultra Bright - Professional Grade 7 Inch Monitor with 1080P Screen and 3000 Nits of Brightness

ITEM #: SMHD-MON-703U MFG #: MON-703U

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$2,999.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    MON-703U - Overview

    The SmallHD 703U UltraBright On-Camera Monitor is the Brightest 7-inch monitor available with HDR Preview, Waveform, 3D LUT support and 12v Lemo power. Standard features include...
    2200+ Nits of Brightness "Ultrabright"
    12v 2pin LEMO power in & LEMO auxilary power out
    1920 x 1080p IPS LCD optically Bonded Gorilla Glass Screen
    Pixel Density: 441 PPI
    HDR Preview
    SDI & HDMI Input & Output w/ cross conversion
    SDI out doubles as 2nd SDI input
    Dual View (via two inputs) for A/B Camera
    PageBuilder OS user interface

    • Specifications:

      • Display
      • Panel Type: LTPS LCD
      • Size Diagonal: 7.02
      • Resolution: 1920 x 1080
      • Pixel Density (PPI): 323 ppi
      • Aspect Ratio: 16:9
      • Active Area: 7.02
      • Brightness: 2500 nits
      • Contrast: 1200:1
      • Color Gamut: 70% NTSC
      • Color Depth: 10-bit
      • Viewing Angle: 178 Degrees (CR<10)
      • Backlight Type: White LED
      • Adjustable Backlight: Yes
      • Variable Field of View: range
      • Primary Control Interface: Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons

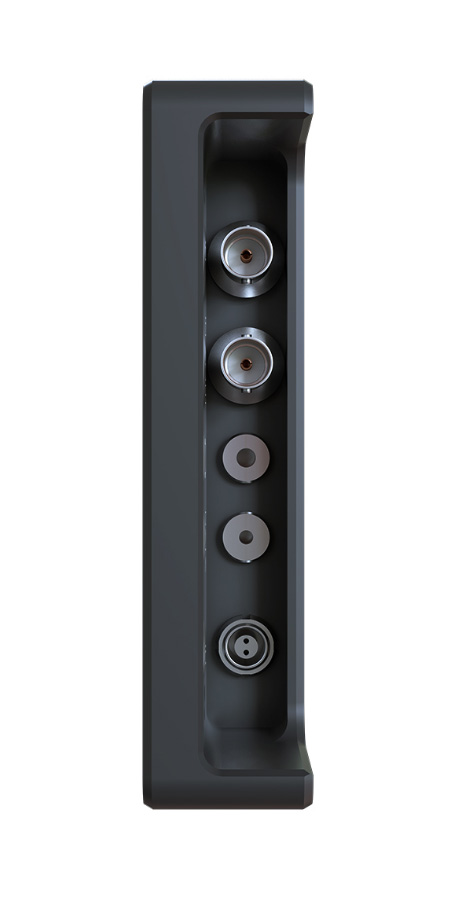

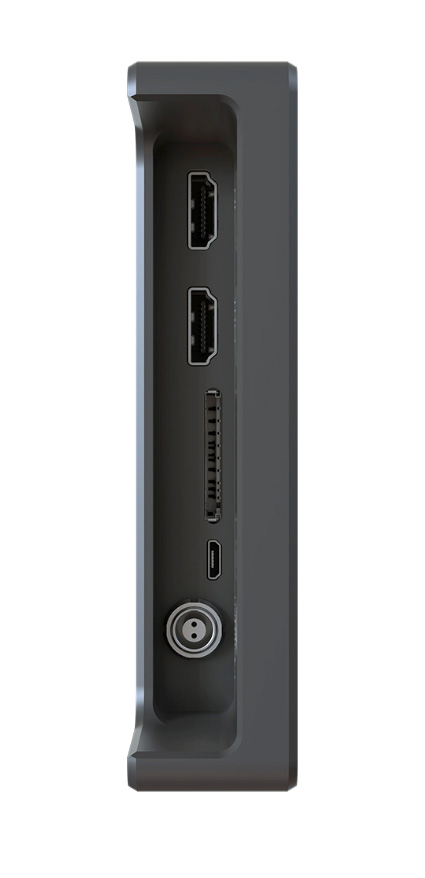

        Connector Type
      • SDI: 1x 3g Input, 1x 3g Output
      • HDMI: 1x Input, 1x Output
      • Audio: 1x 1/8" Headphone Jack
      • Power In: 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
      • USB: 1x Micro USB

        Physical
      • Connector Type: 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
      • Voltage: With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
      • Recommended Power Supply: Included
      • Overload Protection: Yes
      • Storage: SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
      • USB: USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.
      • Compliance: FCC, IC, CE, RoHS
      • Operating Temperature: 0 - 100° F
      • Storage Temperature: -4 - 120° F
      • Screen Protection: AR Coated Gorilla Glass Optical Bonding on Panel
      • Height: 4.88"
      • Width: 8.38"
      • Depth/Length: 1.13"
      • Weight (Item Only without battery): 26.4oz
      • Weight (Packaged): 37oz

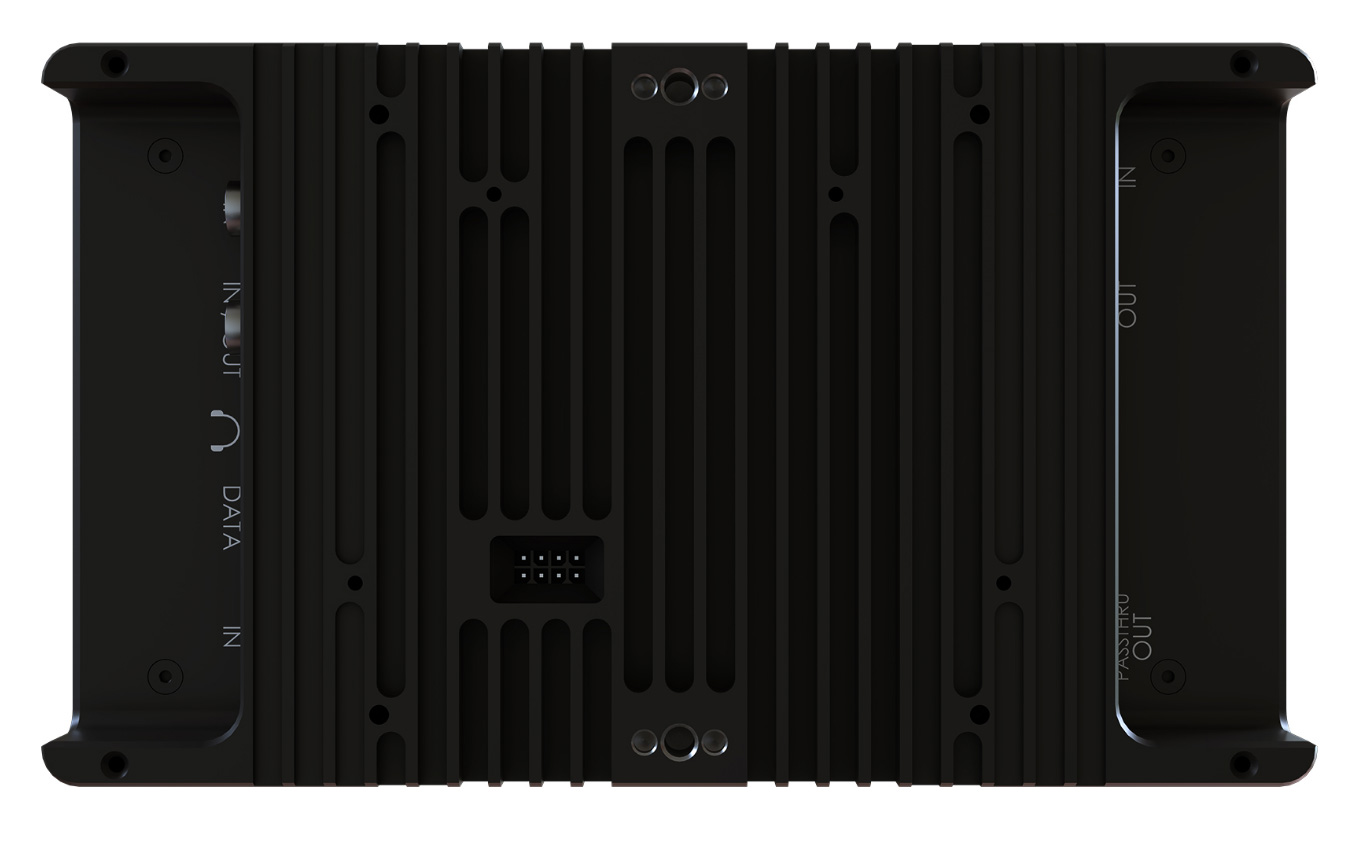

      • Mount Points: 1 ¼"-20 Thread on Top of Monitor, 1x ¼"-20 Thread on Bottom of Monitor


    MON-703U - Required Accessories

      MON-703U - Recommended Accessories
