    MON-702-TOUCH - Overview

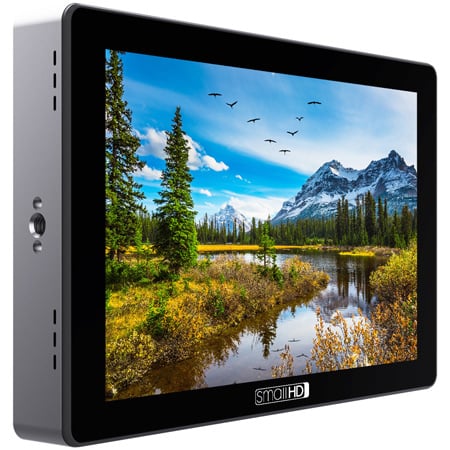

    Professional Grade On-Camera Monitor With Cinema Quality Color And Daylight Visibility!

    The SmallHD 702 Touch is an absolute workhorse monitor for full-time creative professionals. It's extremely durable without adding bulk, it's daylight viewable without consuming enormous amounts of power, and it's 100% DCI-P3 color accurate. With flexible signal options and world-class software tools, the 702 Touch offers ultimate versatility.

    The 702 Touch offers flexible signal and power options. With two 3G SDI inputs, HDMI/SDI cross-conversion, DC power input, and Sony L Series battery bracket (Gold and V-Mount available), the 702 Touch is adaptable to any workflow, large and small.

    The 702 Touch combines reliability with useability thanks to the OS3 software tools and page builder interface. Besides having high resolution, completely customizable tools like Waveform, Image Capture & Overlay, Vectorscope and real-time 3D LUT, OS3 gives you the power to access and customize these tools quickly and at a moment's notice.

    • Specifications:

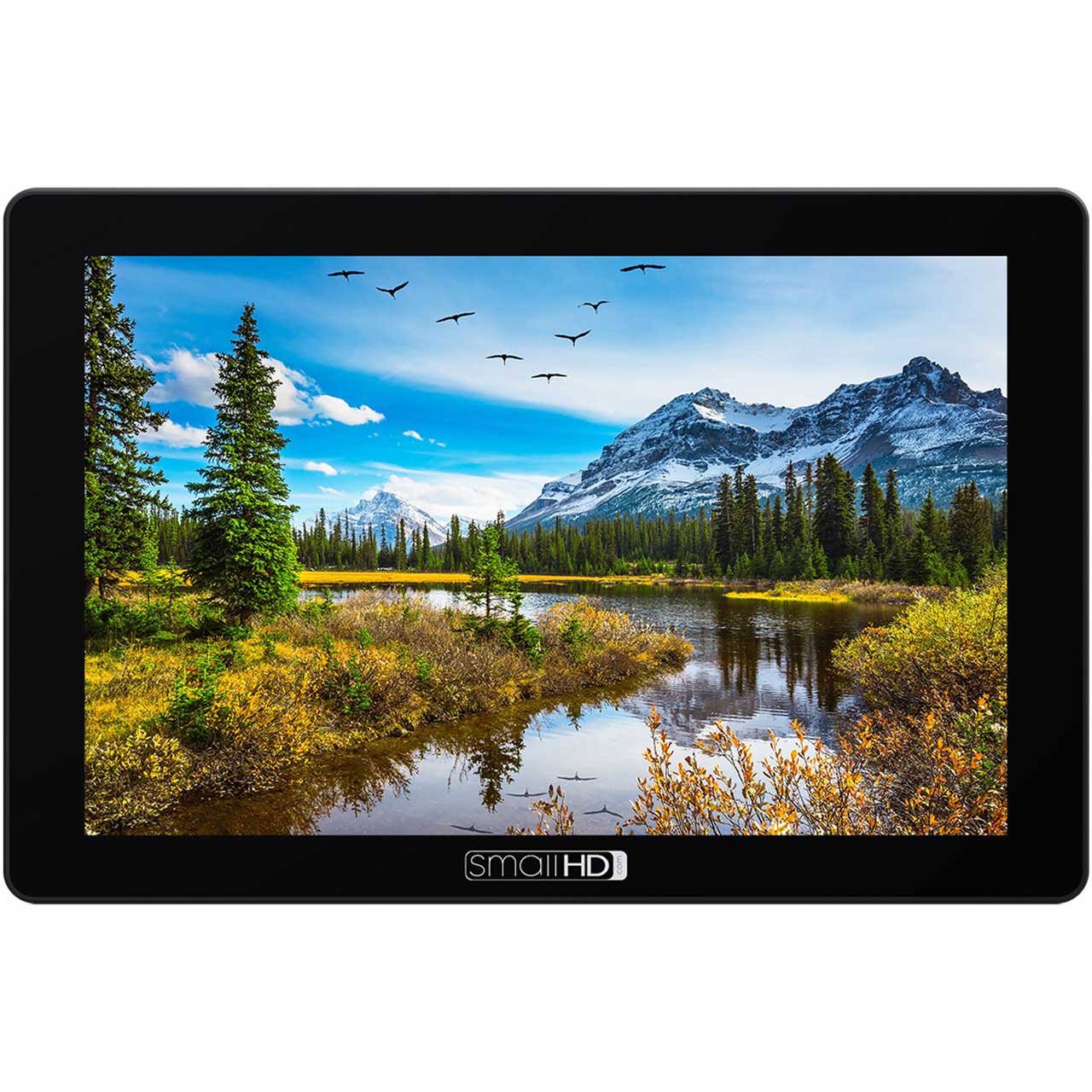

      • Display
      • Panel Type: IPS LCD
      • Size Diagonal: 7.02
      • Resolution: 1920x1200
      • Pixel Density (PPI): 322
      • Aspect Ratio: 16:10
      • Active Area: 5.95 x 3.72
      • Brightness: 1500 Nits
      • Contrast: 1000:1
      • Color Gamut: 100% DCI-P3 Coverage
      • Color Depth: 8-b Panel with 8-b Scopes
      • Viewing Angle: 8-b Panel with 10-b Scopes
      • Backlight Type: LED
      • Adjustable Backlight: Yes

        Input Signal Type/Formats
      • 3G-SDI: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
      • HD-SDI: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
      • SD-SDI: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
      • HDMI: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
      • Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

        Output Signal Types/Formats
      • 3G-SDI: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
      • HD-SDI: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
      • SD-SDI: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
      • HDMI: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
      • Audio: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

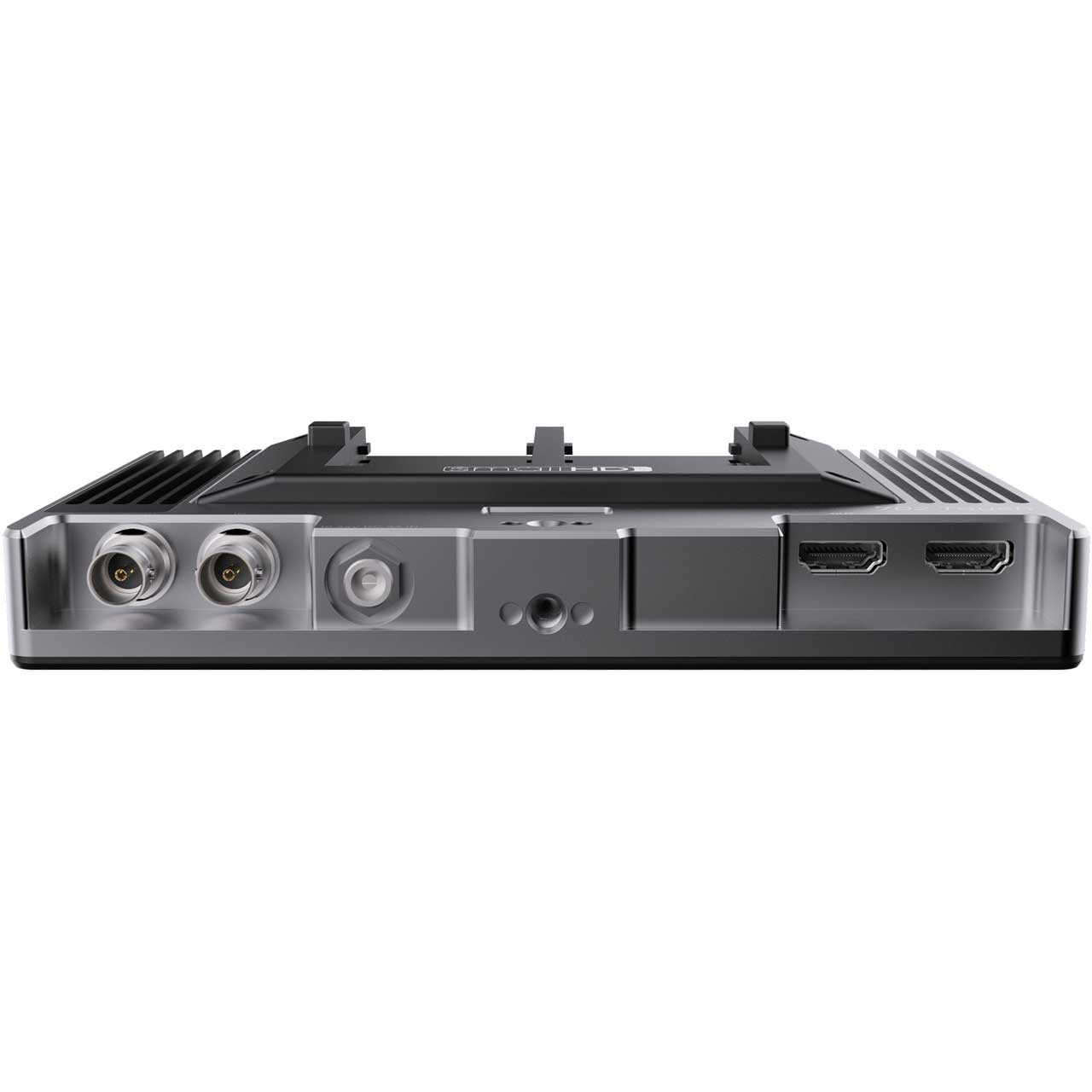

        Connector Type
      • SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
      • HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
      • Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
      • Power In Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
      • USB: 1x USB 2.0 Micro-B receptacle

        Controls
      • Primary Control Interface: Touch Screen
      • Record/Capture: Capture Tool

        Power
      • Connector Type: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
      • Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
      • Power Consumption: 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
      • Battery Plate Included: L-Series standard (V Mount or Gold Mount optional accessories)
      • Recommended Power Supply Recommend DC 12~15V at ~2.5 amp or greater
      • Overload Protection DC input: Reverse polarity
      • Battery Types: L-Series, V Mount, Gold Mount
      • Battery Chemistry: Li-ion
      • Battery Charging Time (hours): Monitor does not support the charging of batteries

        Environmental
      • Compliance: FCC, IC, CE, RoHS
      • Operating Temperature: 30F to 100F
      • Storage Temperature: 0F to 120F
      • Height: 4.67" (11.86cm)
      • Width: 1.32" (3.35cm)
      • Depth/Length: 7.09" (18.01cm)
      • Weight (Item Only without battery): 18.9oz (535.81g)
      • Weight (Packaged): 26oz (737.09g)

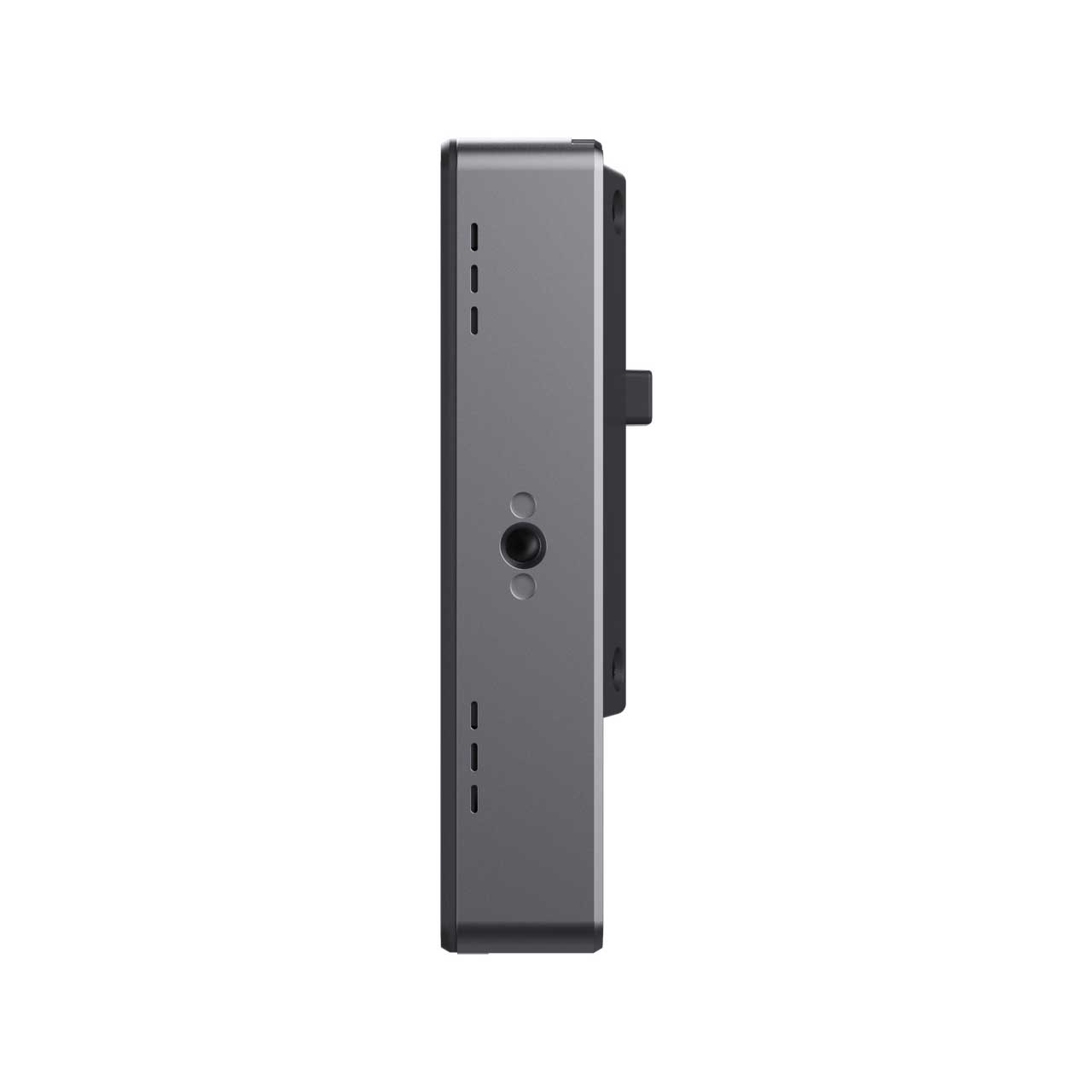

      • Mount Points: Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)

    • Item Includes:

      • 1x 702 Touch Monitor
      • 1x Sony L-Series Battery Bracket for 702 Touch and Cine 7 Series
      • 1x 702 Touch/Cine 7 UltraClear Screen Protector
      • 1x 8GB SD Card
      • 1x SmallHD Cleaning Cloth

    • GTIN:

      0811786030828
