Small HD MON-703U-GM-DK 703 UltraBright Video Monitor with Directors Kit - Gold Mount

ITEM #: SMHD-MON703UGMDK MFG #: MON-703U-GM-DK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SMHD-MON703UGMDK

MON-703U-GM-DK - Overview

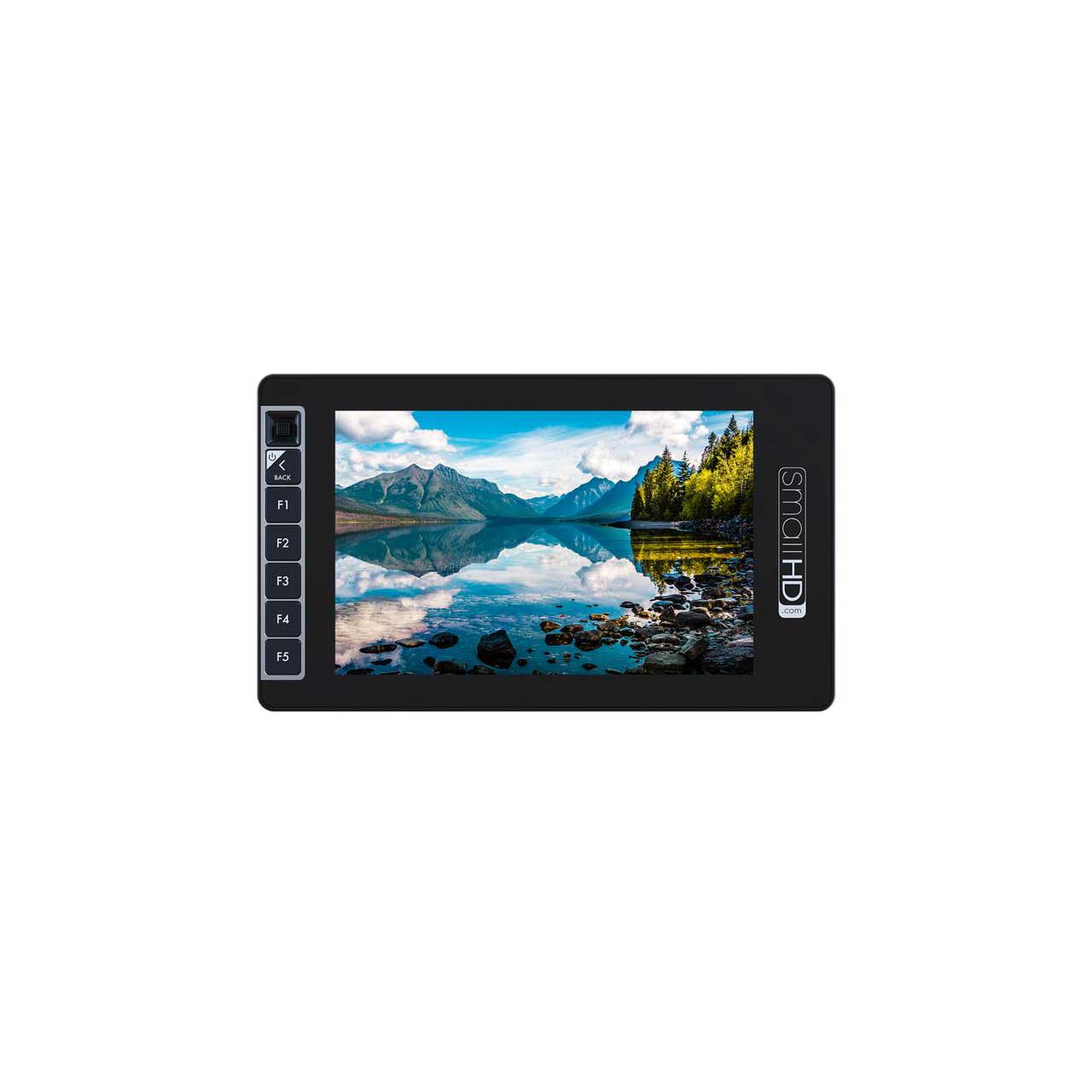

Small HD MON-703U-GM-DK is the brightest 7-inch monitor available with Gold Mount battery plate and lightwieght monitor handles.

PageBuilder OS
PageBuilder OS: Quick and easy way to access professional software tools like Focus Peaking, HD Waveform, and 3D LUTs.

HDR Preview and 3D LUT Support
UltraBright monitors feature HDR Preview with 10-Bit ColorEngine and up to 2500 nits. Fine tune your HDR Preview with white point and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD's ColorFlow 3D LUT engine.

Efficiently UltraBright
The 703 UltraBright is the Brightest 7" monitors in the world while maintaining low power consumption. In addition to LEMO power, Gold Mount, V-Mount and Sony L-Series battery plates are available.

Software That Eliminates Hardware
Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion.

HD Scopes with Pixel Accurate Data Analysis
Display up to three, fully customizable Scopes on screen at a time. Utilize Color Picker to show raw pixel values from the displayed video.

Expose with Confidence
Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Dual View
Monitor two input sources simultaneously. You can apply LUT's and tools to each source individually. Great for monitoring A/B cameras or pre and post LUT footage. You can also apply tools to each page individually.

  • Features:

    • Durability
    • Rugged milled aluminum housing
    • 1/8-inch headphone jack
    • Function buttons
    • 12v 2-pin LEMO in/out
    • SD Card Slot
    • Cross Conversion
    • HDR Preview


  • Specifications:

    • Environmental
    • Item Weight (oz): 26.4
    • Package Weight (oz): 37
    • Height (in): 4.88
    • Width (in): 8.38
    • Length/Depth (in): 1.13
    • Compliance: FCC, IC, CE, RoHS
    • Operating Temperature: 0-100deg F
    • Storage Temperature: -4-120 deg F
    • Screen Protection: AR Coated Gorilla Glass Optical Bonding on Panel
    • Mount Points: 1 1/4"-20 Thread top and bottom
    • Construction: Anodized Aluminum

      Display
    • Panel Type: LTPS LCD
    • Diagonal Size: 7.02
    • Resolution: 1920 x 1080
    • Pixel Density: 323 ppi
    • Aspect Ratio: 16:9
    • Active Area: 7.02
    • Brightness: 2200 nits
    • Contrast: 1200:1
    • Gamut: 100% Rec 709
    • Color Depth: 10-Bit Color Intelligence Engine
    • Viewing Angle: 178 Degrees (CR<10)
    • Backlight Type: White LED
    • Brightness: 2200 nits
    • DCI-P3 Color: 100% Rec 709

      Input Signal
    • 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
    • HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    • SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
    • HDMI Input Types: YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
    • Audio Input Types: HDMI & SDI

      Output Signal
    • 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
    • HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    • SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
    • HDMI Output Types: YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
    • Audio Output Types: HDMI & SDI

      Connector Type
    • SDI: 1x 3g Input, 1x 3g Output
    • HDMI: 1x Input, 1x Output
    • Audio: 1x 1/8" Headphone Jack
    • USB: 1x Micro USB

      Controls
    • Primary: Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons

      Data I/O
    • Storage Media: SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
    • USB: USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.

      Power
    • Connector: 2x Locking LEMO 2-pin 1 for Power Input, 1 for Power distribution to an external device
    • Voltage: With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
    • Power Supply: Included
    • Overload Protection: Yes
    • Output Voltage: Mirrors Input Voltage
    • Power Plug-in: 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)

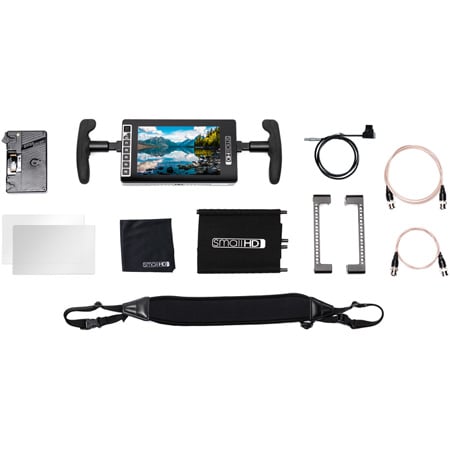

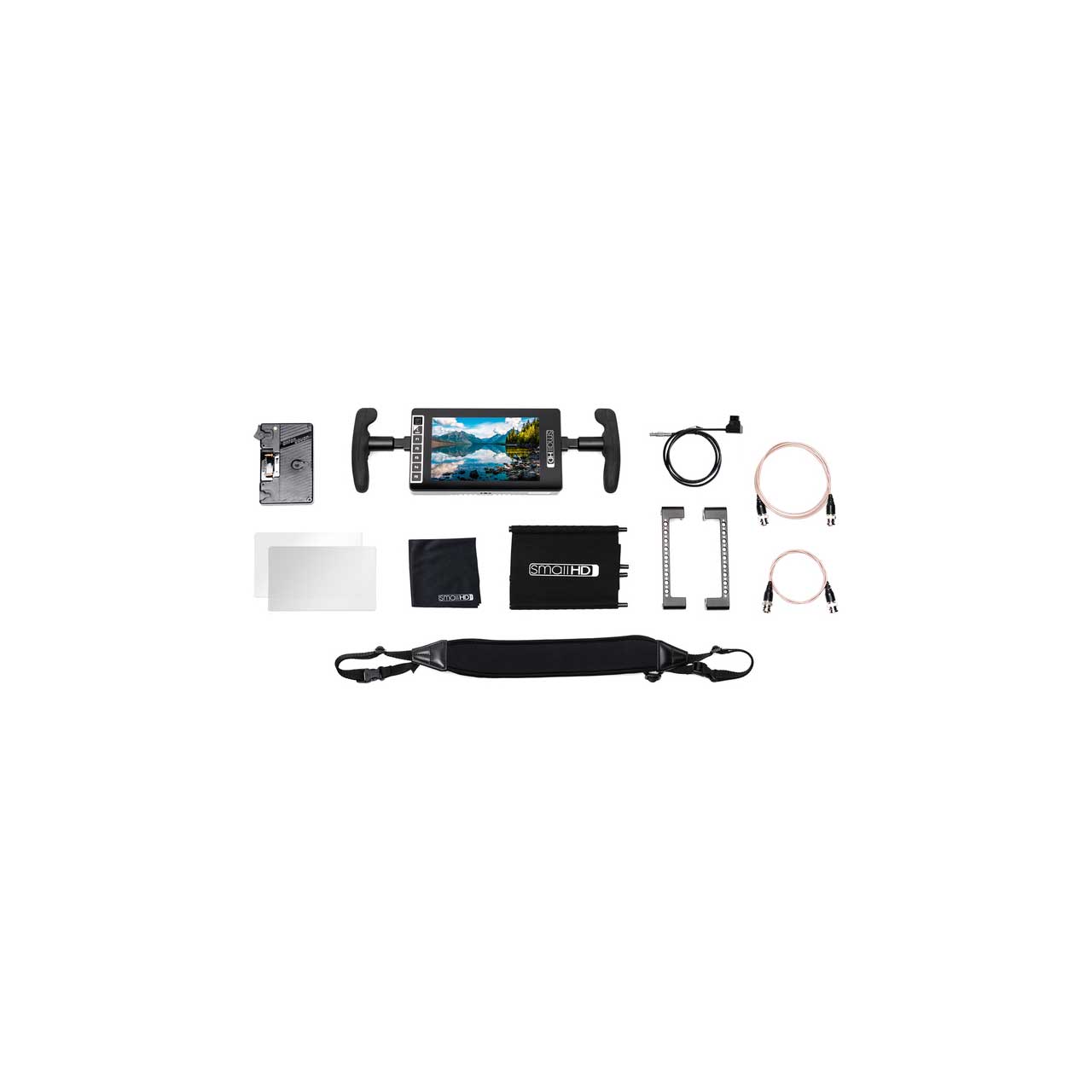

  • Item Includes:

    • 1x 703 UltraBright On-Camera Monitor
    • 1x Monitor Handles + Neck Strap
    • 1x Gold Mount Battery Bracket for 703 Bolt and UltraBright Series
    • 1x Sunhood Cage combo for 703 Ultrabright
    • 1x Clear screen protector for 703 Bolt and 703 Ultra Bright
    • 1x Ultra Matte screen protector for 703 Bolt and 703 Ultra Bright
    • 1x LEMO to D-Tap, P-Tap Power Cable - 36in
    • 1x 12-inch Thin SDI Cable
    • 1x -inch Thin SDI Cable
    • 1x SmallHD Cleaning Cloth
