Clear-Com SMQ -1 Que-Com Single Ear Intercom Headset and Belt Pack Combination

ITEM #: SMQ-1 MFG #: SMQ-1

free ship

Our Price:

$410.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    SMQ-1 - Overview

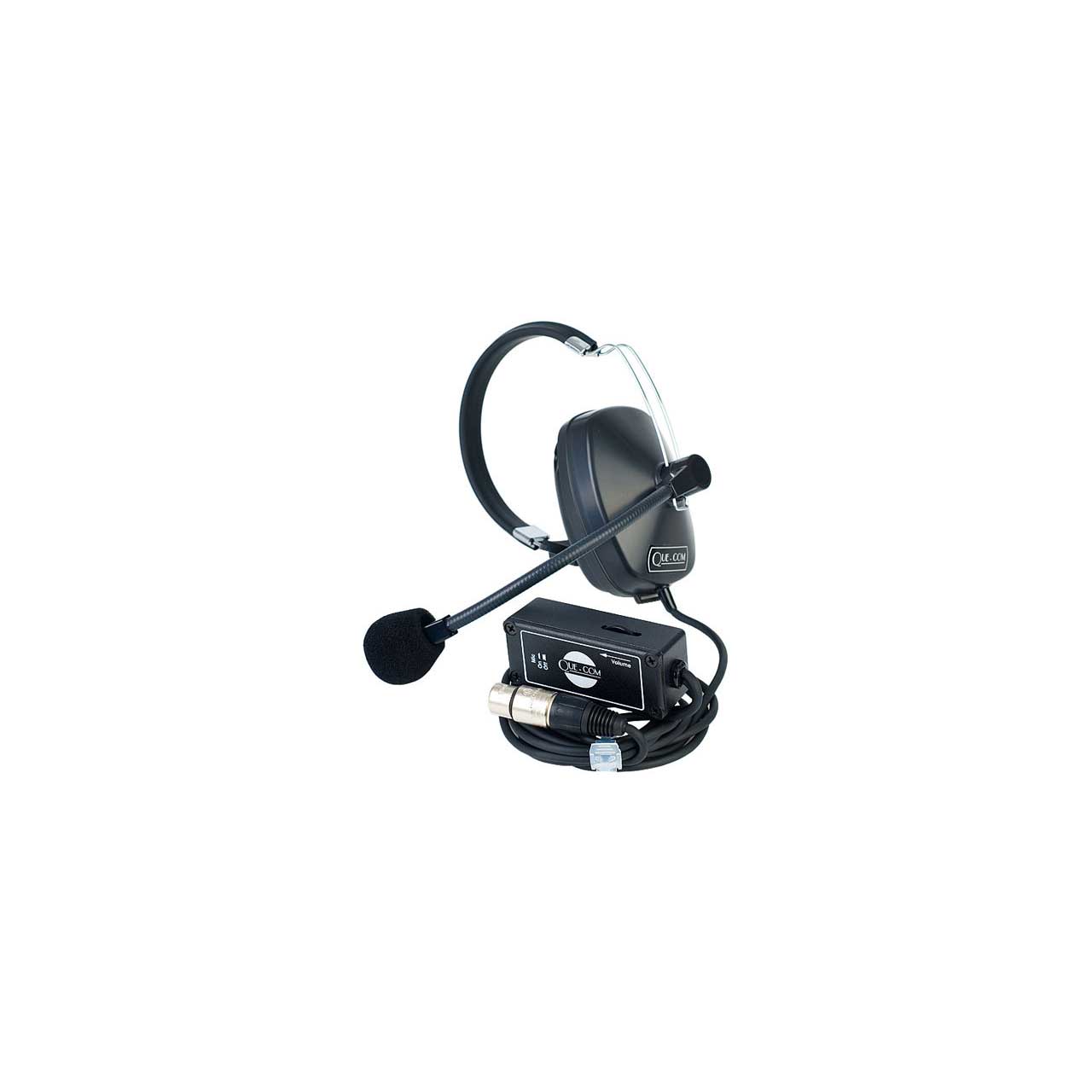

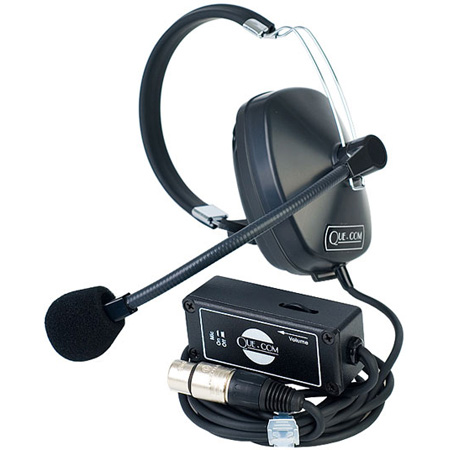

    The ClearCom SMQ-1 Single-ear Intercom Headset with Beltpack is part of the Que-Com Intercom System. When combined with the required PK-7 Power Supply (sold separately) you get an economical, high-performance, party-line communications system that's ideal for audio/visual, educational, theatrical, video production, and sports applications. Que-Com also performs exceptionally well in noisy industrial and concert performance environments. This system features a wide frequency response and high audio output. Rugged, all-metal diecast beltpack with belt clip. The intercom provides an individual volume control and mic on/off switch for each station with a permanently attached, rugged, noise-isolating headset. Interconnects with standard mic cable. Que-Com is compatible with all Clear-Com systems.

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system

    • Features:

      • Que-Com Single-ear Headset/Beltpack
      • Full-duplex two-way communication
      • Wide frequency response and high volume
      • All metal beltpack with clip
      • Noise-cancelling mic
      • Mic switch and volume control
      • Connects to intercom with standard mic cable

    • Specifications:

      • SMQ-1
      • Single-ear Intercom

        Amplifier Type
      • Solid state, IC amplifiers, current-limited with reverse-polarity and short-circuit protection

        Signal-to-Noise Ratio
      • 65dB

        Distortion
      • <0.5% THD @ 1kHz

        MIC Pre-amp Frequency Response
      • 200Hz - 10kHz, contoured for enhanced vocal intelligibility

        Microphone Type
      • Dynamic, noise-rejecting

        Headphone Frequency Response
      • 200Hz - 12kHz

        Sound Pressure Level
      • 110dB SPL max

        Power Requirements
      • Talk: 10 mA average
      • Voltage Range: 12-32V DC

        Environmental
      • 32 - 122° F (0 - 50° C)

        Dimensions
      • Beltpack Dimensions:
      • 1 x 3.5 x 1.5in (HxWxD)
      • (25 x 89 x 38mm)

        Weight
      • Headset: 8.5oz (0.24kg)

    • GTIN:

      0663647921963
