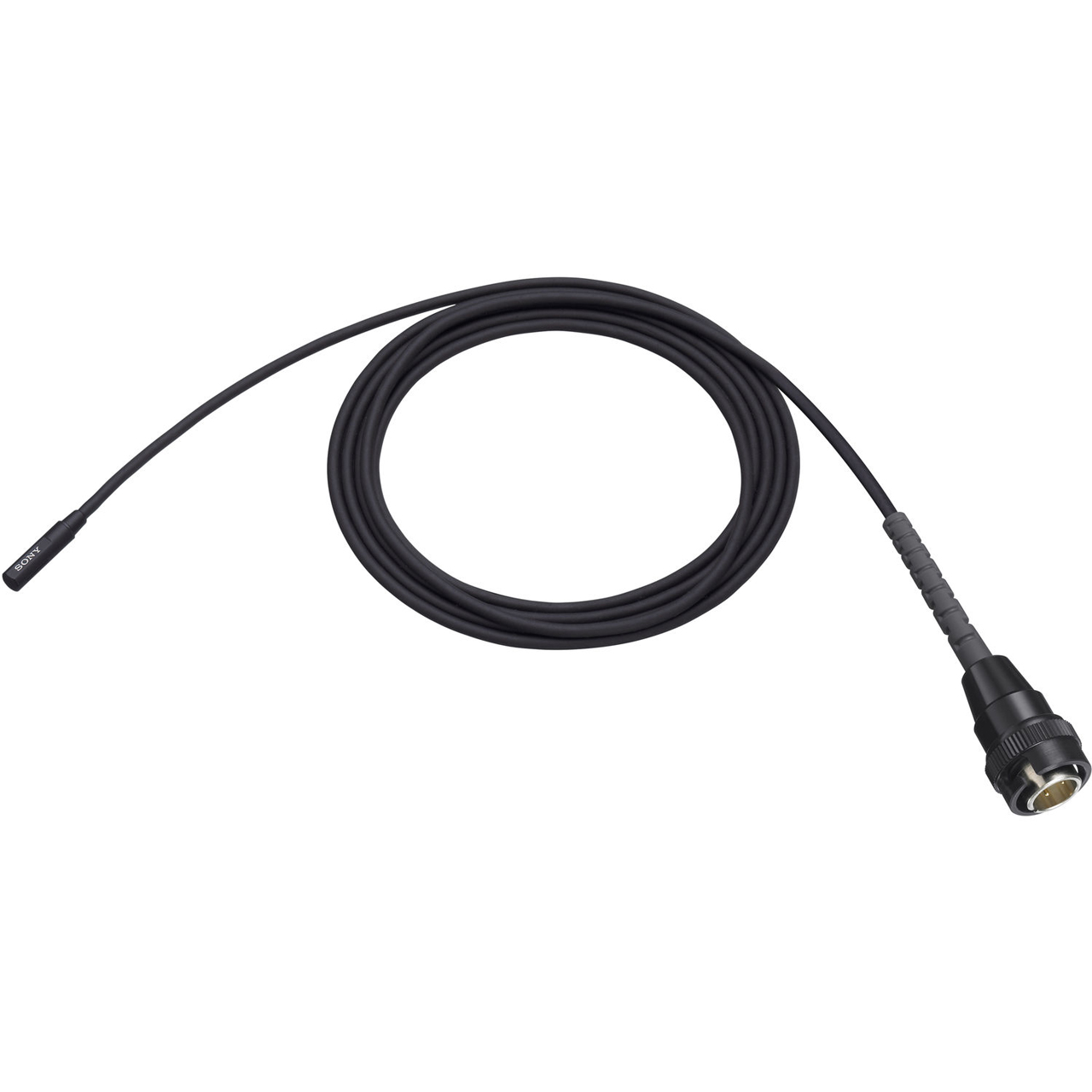

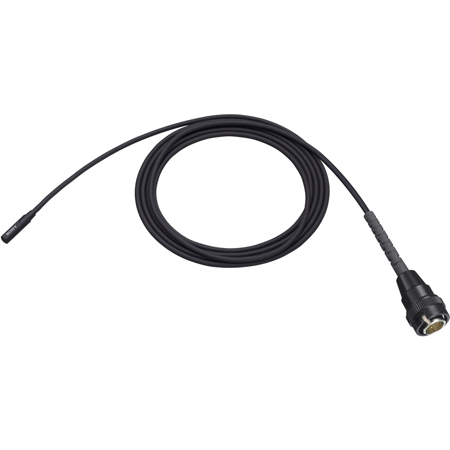

Sony ECM-90BC Omni-directional Electret Condenser Lavalier Microphone - 20 Hz to 20 kHz

ITEM #: SNY-ECM-90BC MFG #: ECM90BC

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$580.00

Our Price:

$436.71

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ECM90BC - Overview

The Sony ECM-90BCM iu an ultra-miniature, omni-directional electret condenser lavalier microphone designed for quality-critical applications in ENG, Studio, EFP, and Location Sound applications. Dual diaphragm design contributes to high sensitivity, wide dynamic range, and low noise. Generous diaphragm mounting architecture radically reduces common cable noise associated with lavalier microphone designs. Flat and wide frequency response (20 Hz-20 kHz) provides natural sound reproduction. Water-resistant design maintains sound clarity in almost any application or environment. Shielded for use with digital wireless transmitters.

  • Features:

    • Omnidirectional Lavalier Microphone
    • 20 Hz to 20 kHz Frequency Response
    • Includes Windscreen and Tie Clips

  • Specifications:

      Audio
    • Capsule Type: Electret Condenser
    • Frequency Response: 20 Hz to 20 kHz
    • Directivity: Omni-directional
    • Sensitivity: -38 dB (12.6 mV)
    • Output Impedance: 2.5 kΩ (unbalanced)
    • Dynamic Range (typ.): 99dB
    • Signal-to-Noise Ratio (typ.): 68 dB
    • Inherent Noise (typ): 26 dB SPL
    • Wind Noise: 45 dB SPL or less (with supplied windscreen)
    • Maximum Input Sound Pressure Level (typ.): 125 dB SPL

      General
    • Connector: BC type. Supplied with Sony 4-pin (SMC9-4P) connector
    • Mic Cable: 3.94 Ft
    • Power Requirements: DC 1.1 V to 10.0 V
    • Dimensions: 0.14" x 0.14" x 0.81" (3.55mm x 3.55mm x 20.57mm) (Mic head)
    • Weight (microphone body, excluding cable): 0.035 oz (1g)

  • Item Includes:

    • 1x Sony ECM-90BC Electret Condenser Microphone
    • 1x Urethane type windscreen
    • 1x Single/vertical type tie clip
    • 1x Single/horizontal type tie clip
    • 1x Operating instructions
