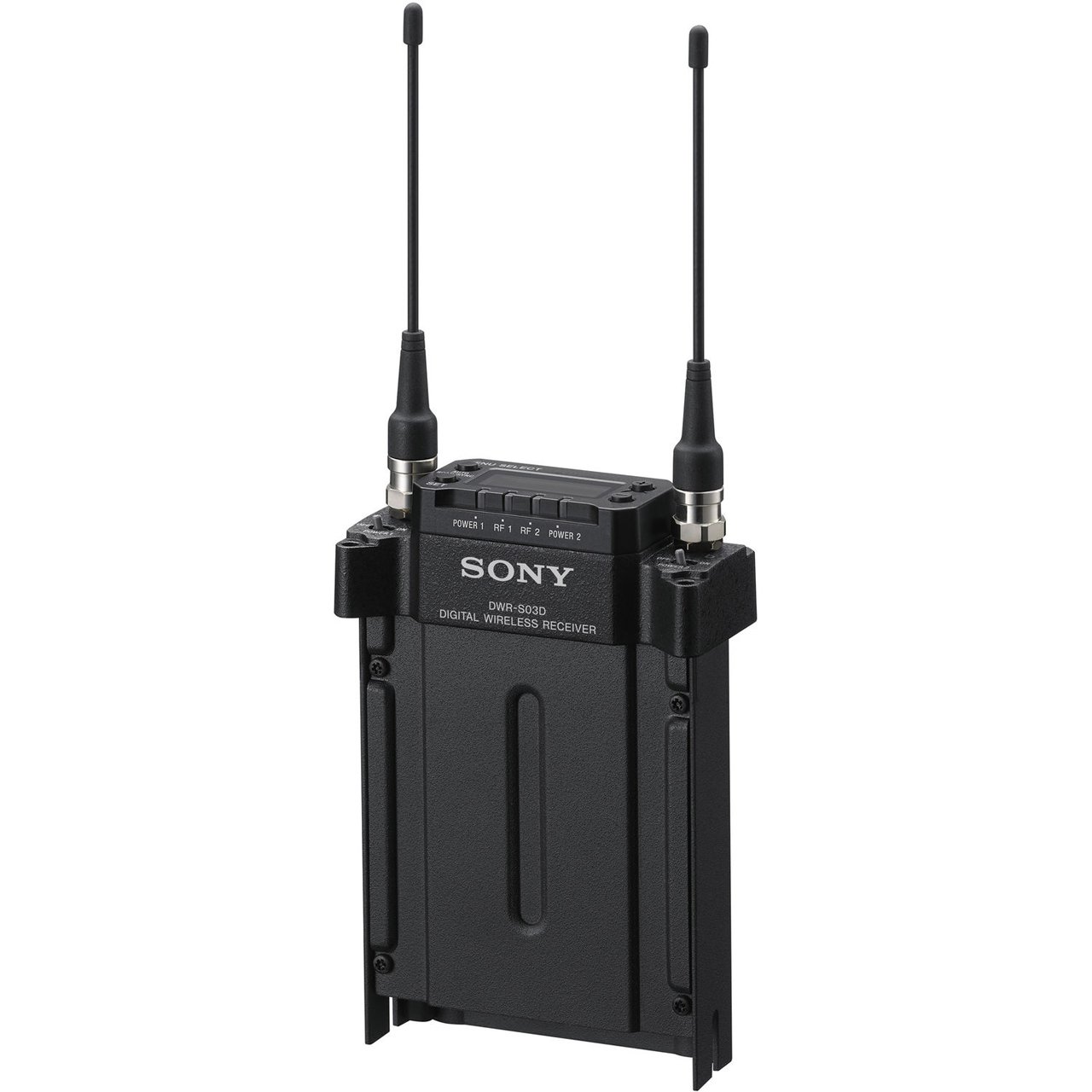

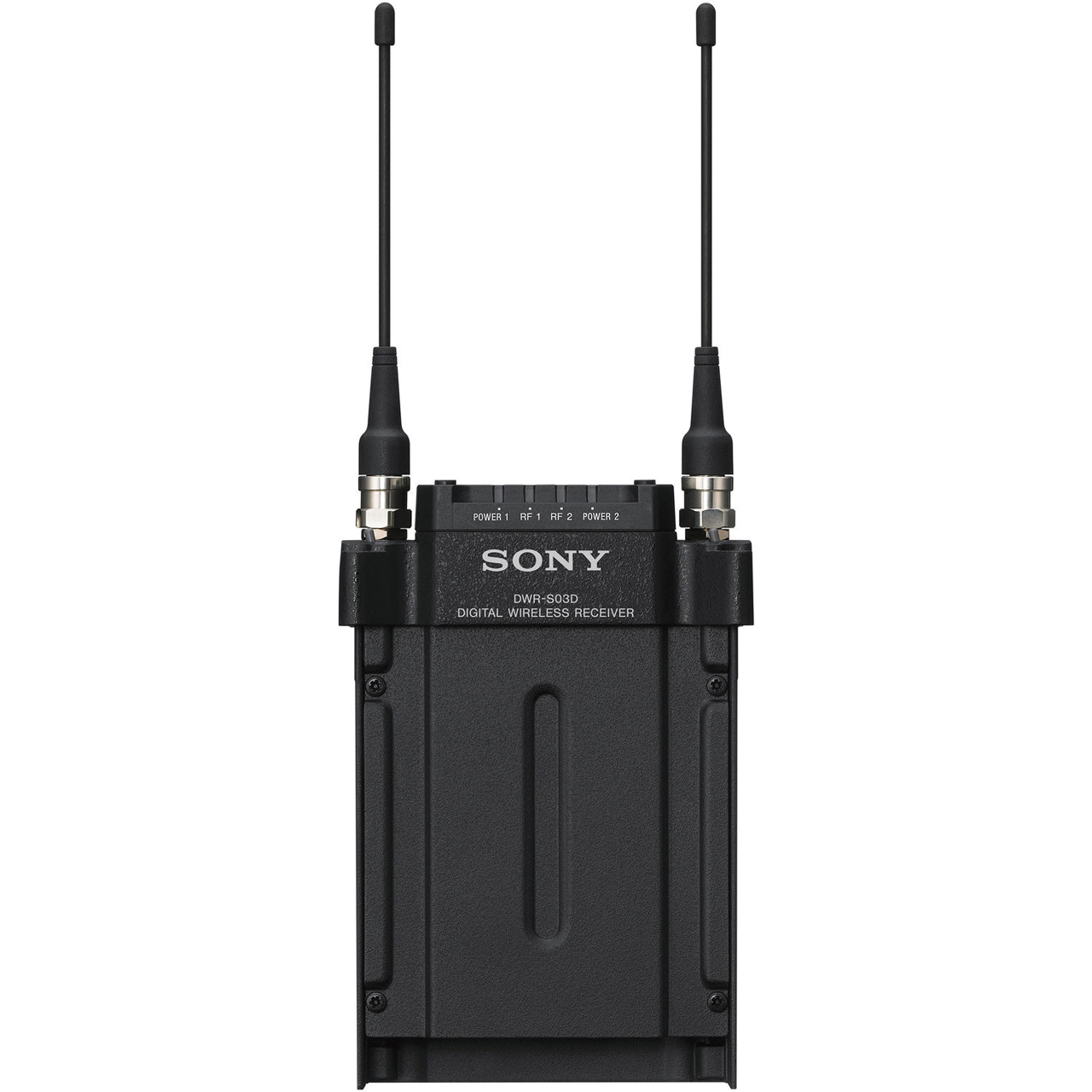

Sony DWR-S03D DWX Gen 3 2-Channel Digital Wireless Slot-in Receiver

Name: Sony DWR-S03D DWX Gen 3 2-Channel Digital Wireless Slot-in Receiver
Brand: Sony Pro Audio
SKU: SNY-DWR-S03D
Price: 2829.00 USD
Availability: PreSale

ITEM #: SNY-DWR-S03D MFG #: DWRS03D

Sony Pro Audio

List Price:

$3,090.00

Our Price:

$2,829.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DWRS03D - Overview

The Sony DWR-S03D high performance 2-channel portable slot-in receiver is an ideal choice for ENG/EFP and location sound applications. The DWR-S03D is part of Sony's third generation DWX series digital wireless microphone system that combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies and an enviable reputation for stability.

The receiver operates with a wide bandwidth up to 148 MHz (depending on region), increasing the probability of finding unoccupied frequencies in congested metropolitan areas.

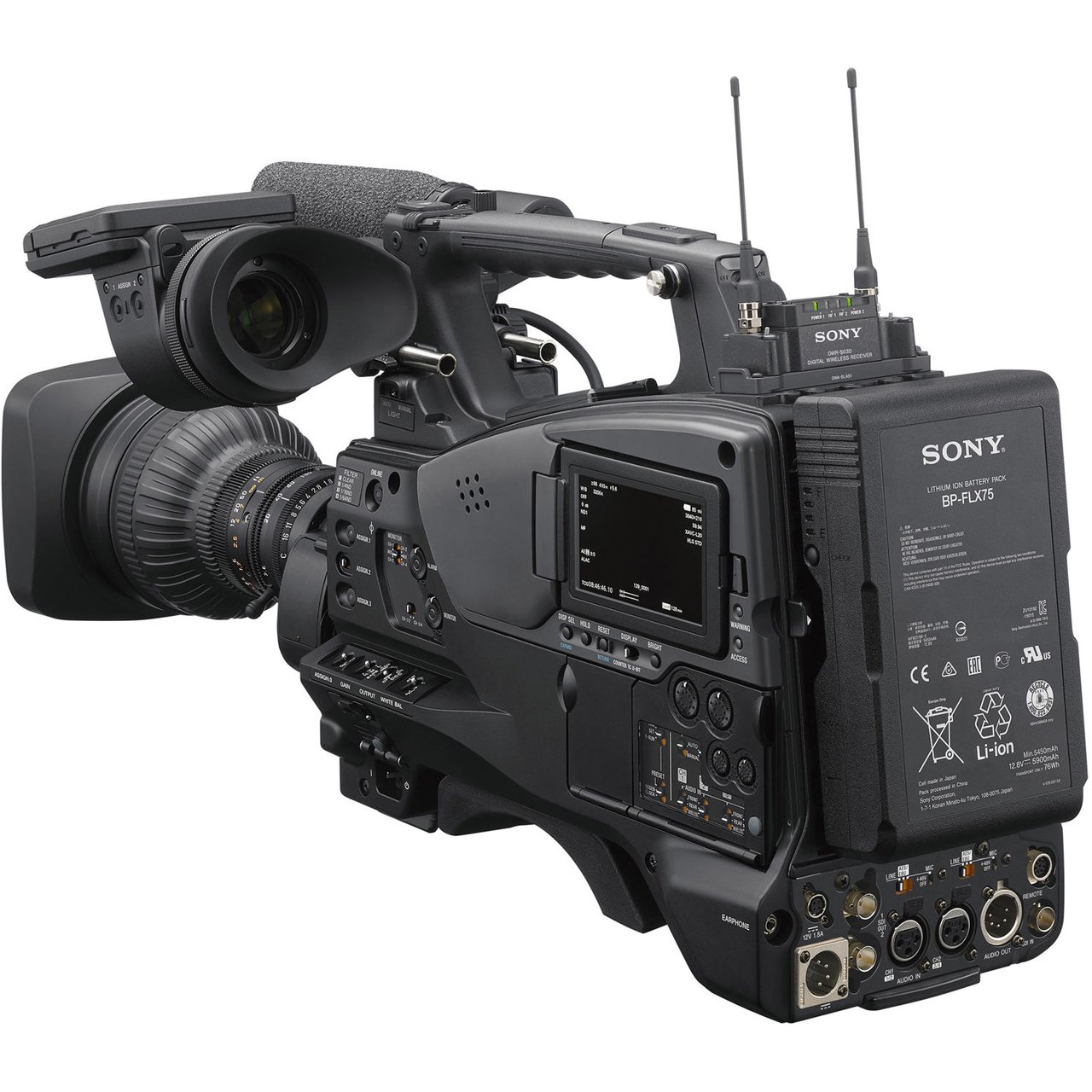

Light and compact, the DWR-S03D can be mounted in the slot of Sony or other professional camcorders using the optional DWA-SLAS1 or DWA-SLAU1 interface adaptor.

Automatic channel scan and sync permits quick, easy frequency setting, and the high density 375 kHz interval channel plan enables simultaneous multi-channel operation.

Features:
- Superb audio quality wireless transmission and reception
- Flexible interface
- Wide bandwidth
- High density multi-channel operation
- Automatic channel scan and sync function
- Stable RF transmission
- Cross Remote monitor/control functions
- Advanced integration with XDCAM shoulder camcorder
- Four codec modes for wide range of applications
- Low audio latency and high quality sound
- Stable, securely encrypted transmission and reception
- User settings memory
- Compact, lightweight, and rugged design
- Easy-to-read dot-matrix OLED display
- Camcorder rear mounting
- SuperSlot compatible
- Audio output setting
Specifications:
- Type of Receiver: Slot-in (2 channels)
- Transmission Method: 2x WiDIF-HP
- Circuit System: Double superheterodyne
- Oscillator Type: Crystal-controlled PLL synthesizer
- Reception Type: True Diversity Method
- RF Input Terminal: SMA-R, 50 ohms
- Antenna Type: Detachable
- Sensitivity: 20dBµ or less (at ambient temperature 77°F (25°C), bit error rate = 1 x 10 -5, no decline in S/N ratio)
- Carrier Frequencies:
  - UC7: 470.125MHz - 607.875MHz, 614.125MHz - 615.875MHz (UHF-TV channels 14 to 36, 38)
  - L/CE7: 470.025MHz - 614.000MHz (UHF-TV channels 21 to 38)
  - H/CE7: 566.025MHz - 714.000MHz (UHF-TV channels 33 to 51)
  - G/J: 1240.150MHz - 1251.825MHz, 1253.175MHz - 1259.850MHz, 25kHz steps
- Reference Output Level:
  - Analog -40dBu
  - Digital -36dBFS/-20dBFS (switchable)
- Dynamic Range: 106dB or more (A-weighted)
- Distortion (T.H.D): MODE1, MODE2, MODE4: 0.03% or less MODE3: 0.3% or less
- Audio Delay:
  - Analog output in combination with the DWA-01D/F01D; MODE1: 2.1 msec, MODE2: 1.7 msec, MODE3: 3.0 msec, MODE4: 1.7 msec
  - ABS/EBU output in combination with the DWA-01D/F01D; MODE1: 1.9 msec, MODE2: 1.5 msec, MODE3: 2.8 msec, MODE4: 1.5 msec
  - Through a digital connection with a camcorder; MODE1: 1.9 msec, MODE2: 1.3 msec, MODE3: 2.7 msec, MODE4: 1.4 msec
- Audio Output Connector:
  - 1x D-sub 15 pin (male) with optional adaptor DWA-SLAS1
  - 1x D-sub 25 pin (male) with optional adaptor DWA-SLAU1
- Display: OLED
- Operating Voltage: DC 6V - 18V
- Consumption Current:
  - 3.5W or less with optional adaptor DWA-SLAS1
  - 4.0W or less with optional adaptor DWA-SLAU1
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Wireless Remote Control: 2.4GHz IEEE802.15.4 compliant
- Dimensions:
  - With Optional Adaptor DWA-SLAS1 (excluding antennas): 3.46" x 4.68" x 1.25" (88mm x 119mm x 32mm)
  - With Optional Adaptor DWA-SLAU1 (excluding antennas): 2.91" x 4.68" x 1.22" (74mm x 119mm x 31mm)
- Weight:
  - With Optional Adaptor DWA-SLAS1 (including antennas): 0.425lbs (193g)
  - With Optional Adaptor DWA-SLAU1 (including antennas): 0.432lbs (196g)
Item Includes:
- 1x Sony DWR-S03D DWX Gen3 2-Channel Digital Wireless Slot-in Receiver
- 2x Antenna
- 1x CD-ROM
- 1x Frequency Band Label
- 1x Before Using this Unit Guide
Warranty:
- 1 Year Limited Warranty
