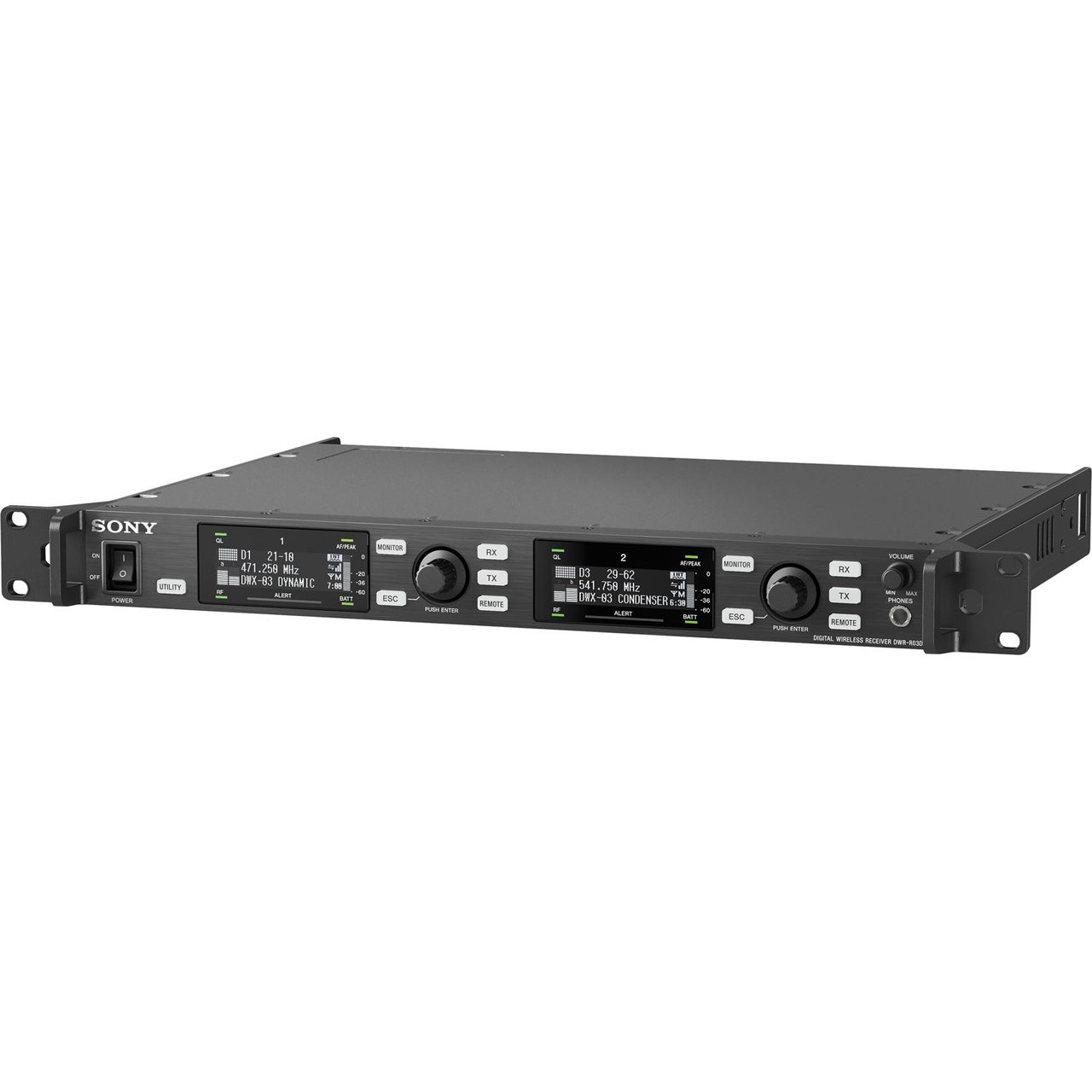

Sony DWR-R03D DWX Series 2-Channel Wireless Dante Enabled Audio Receiver

DWRR03D - Overview

• Features:

  • Very high quality wireless audio
  • Low-latency audio
  • Dante interface for audio-over-IP networking
  • Reliable transmission
  • Easy, versatile remote control
  • Auto Frequency Change function
  • Auto Channel Coordinate function
  • High density multi-channel operation
  • Four audio codec modes
  • 244MHz wideband
  • AES 256bit encryption
  • Spectrum analyzer function
  • Output Swap function
  • AC power cascade

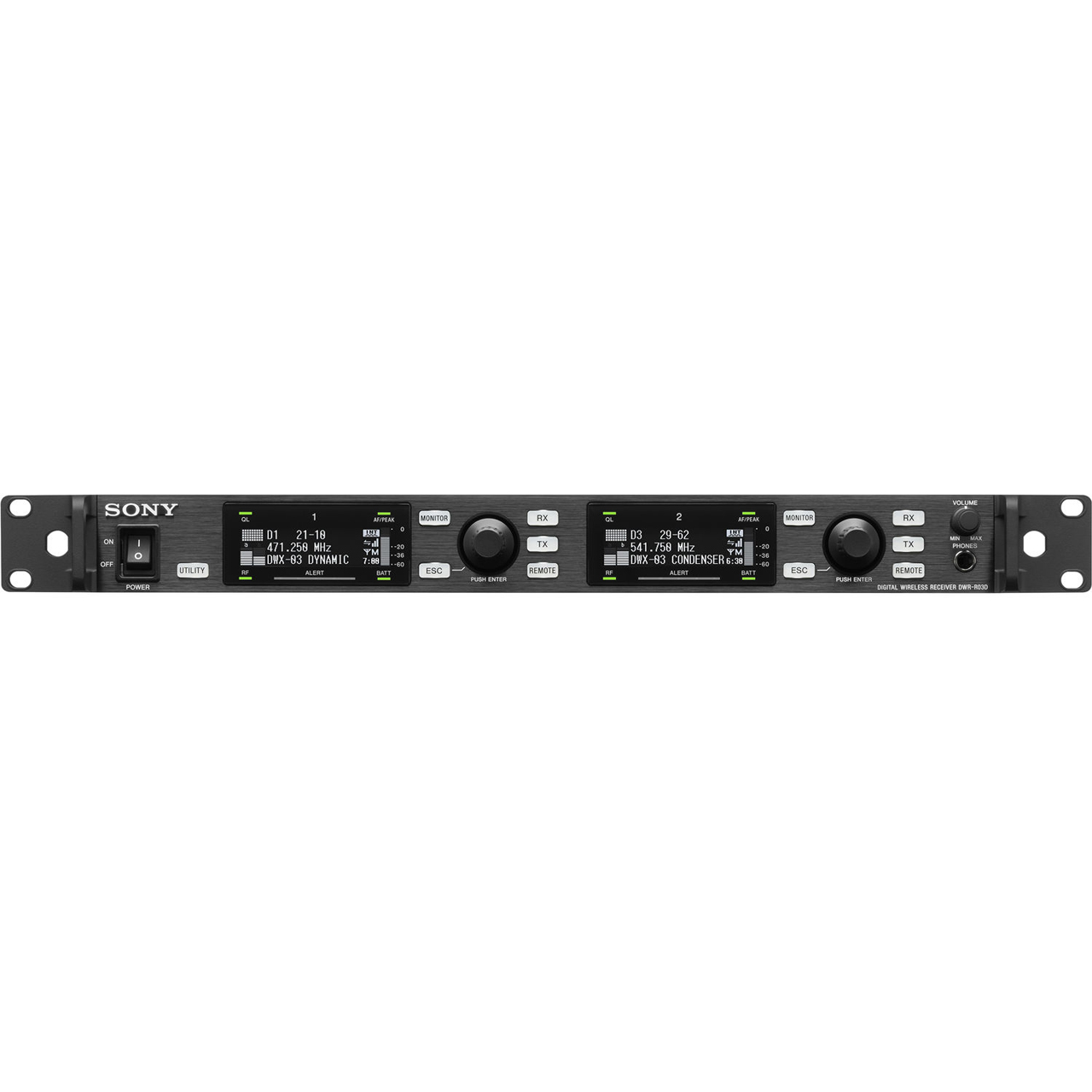

  • Dual OLED displays
  • User setting memory
  • Setting lock
  • Transmitter/receiver identify function
  • Switchable analog (balanced) and AES/EBU digital audio sub output
  • Adjustable audio output level (1dB step)


• Specifications:

  • Wireless Interface: WiDIF-HP
  • Oscillator Type: Crystal-controlled PLL Synthesizer
  • Reception Type: True diversity
  • Circuit System: Double Superheterodyne
  • Antenna Type: Detachable

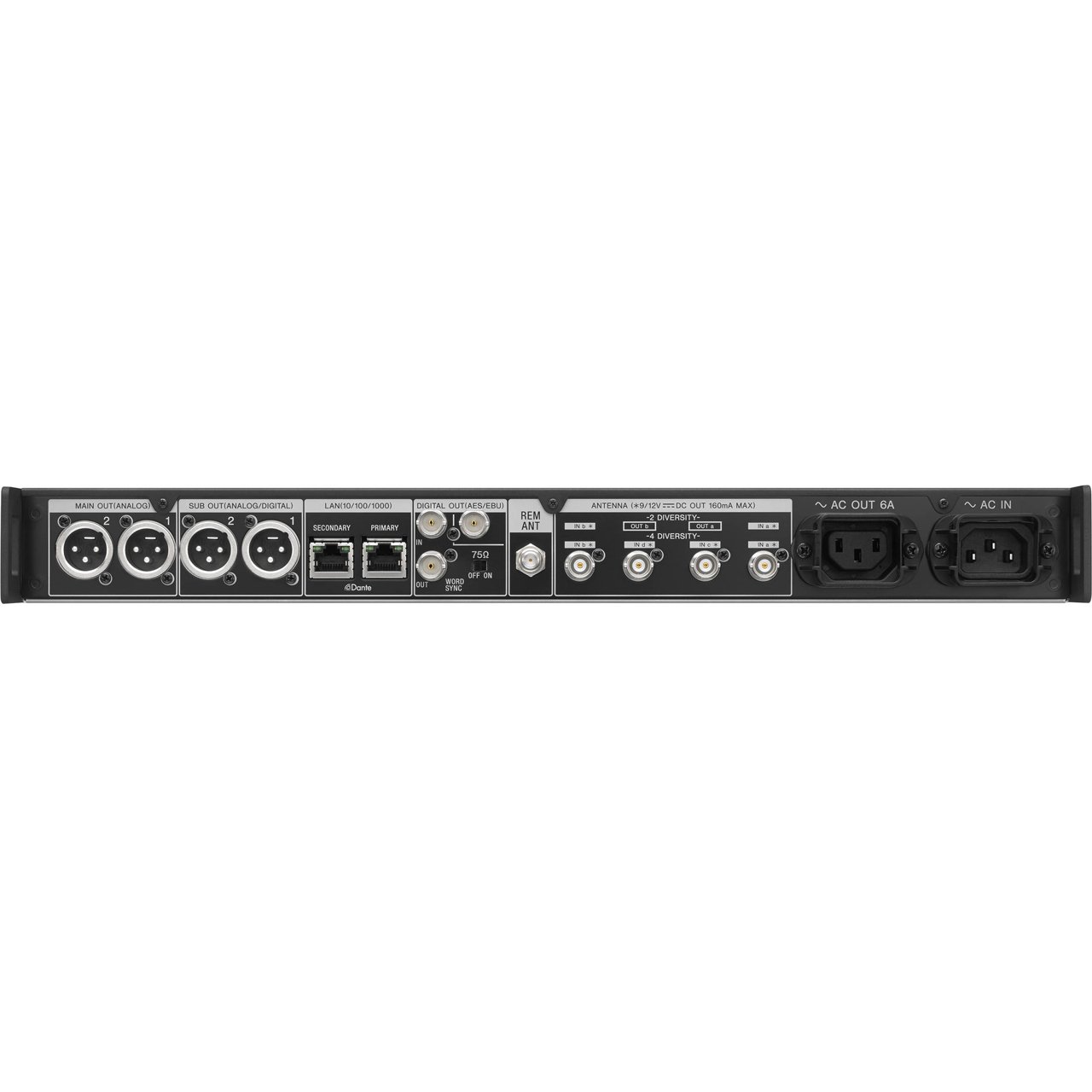

  • Antenna Connector:
    - 2 Diversity Mode: 2x Input BNC-R, 50Ω, 2x Cascaded Output BNC-R, 50 Ω (x2)
    - 4 Diversity Mode: 4x Input BNC-R, 50 Ω
    Carrier Frequencies - UC7: 470.125MHz - 607.875MHz, 614.125MHz - 615.875MHz, 25kHz steps
  • Carrier Frequencies - CEZ: 470.025MHz - 714.000MHz, 25kHz steps
  • Carrier Frequencies - J:
    - W: 470.150MHz - 713.850MHz, 25kHz steps
    - G: 638.025MHz - 713.850MHz, 1240.150MHz - 1251.825MHz, 1253.175MHz to 1259.850MHz, 25kHz steps, 806.125MHz - 809.750MHz, 125kHz steps
  • Frequency Response: 20Hz - 22kHz (typical)
  • Dynamic Range: 106dB or more typical (A-weighted, T.H.D=1%)
  • Distortion (T.H.D): MODE1, MODE2: 0.03% or less, MODE3: 0.3% or less
  • Audio Delay:
    - MODE1; 1.9 msec (total: 3.1*/3.4**msec)(Analog output), 1.9 msec (total: 3.1*/3.4**msec) (Digital output)
    - MODE2: 0.5 msec (total: 1.2*/1.5**msec)(Analog output), 1.5 msec (total: 2.2*/2.5**msec) (Digital output)
    - MODE3: 1.9 msec (total: 3.7*/4.0**msec)(Analog output), 2.8 msec (total: 4.6*/4.9**msec) (Digital output)
    *with DWT-B03R
    ** with other transmitters
  • Analog Output:
    - BAL: XLR-3-32 (male)(xMain 2, Sub 2), Output level (0dBu = 0.775Vrms)
    - Main BAL: +24dBu maximum/-58dBu to -12dBu (1dB step adjustable) reference
    - Sub BAL: +24dBu maximum/-12dBu reference
  • Digital Output: 2x XLR-3-32 (male), 110Ω/1x BNC-R, 75Ω, Reference output level: -36 dBFs
  • Headphone Output: φ1/4 inch stereo jack
  • WORD SYNC IN/OUT Connectors:
    - Input Connector: BNC-R with a 75Ω termination switch
    - Output Connector: BNC-R, External Word Sync: 32kHz - 96kHz
  • Wireless Remote Control: Cross Remote (2.4GHz IEEE802.15.4 compliant)
  • LAN Connector: 2x RJ-45 modular jack 1000BASE-T: IEEE802.3ab compliant
  • Display: 2x OLED
  • Power Requirements: AC: 100V - 240 V
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage/Transport Temperature: -4°F - 140°F (-20°C - 60°C)
  • Dimensions: Approx. 18.98" x 1.73" x 13.19"
  • Weight: 8.5lbs (3.9kg)


• Item Includes:

  • 1x Sony DWR-R03D DWX Series 2-Channel Wireless Dante Enabled Audio Receiver
  • 2x Whip Antennas
  • 1x AC Power Cord
  • 1x AC Cascade Cord


• Warranty:

  • 1 Year Limited Warranty
