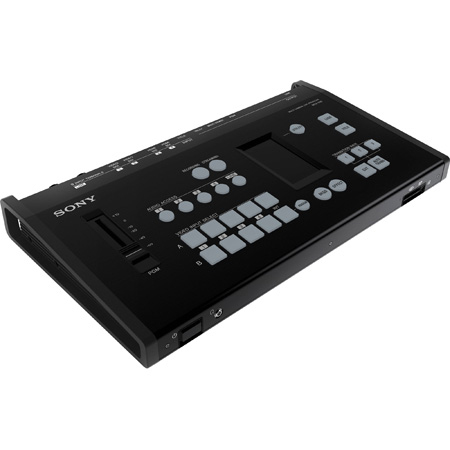

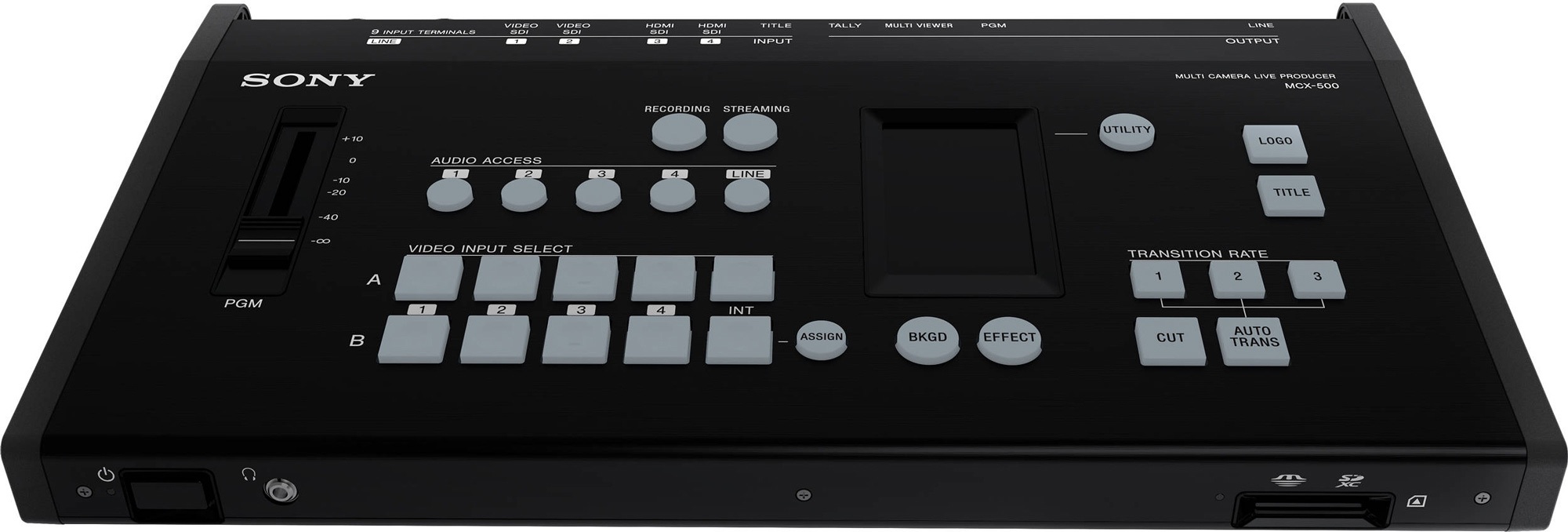

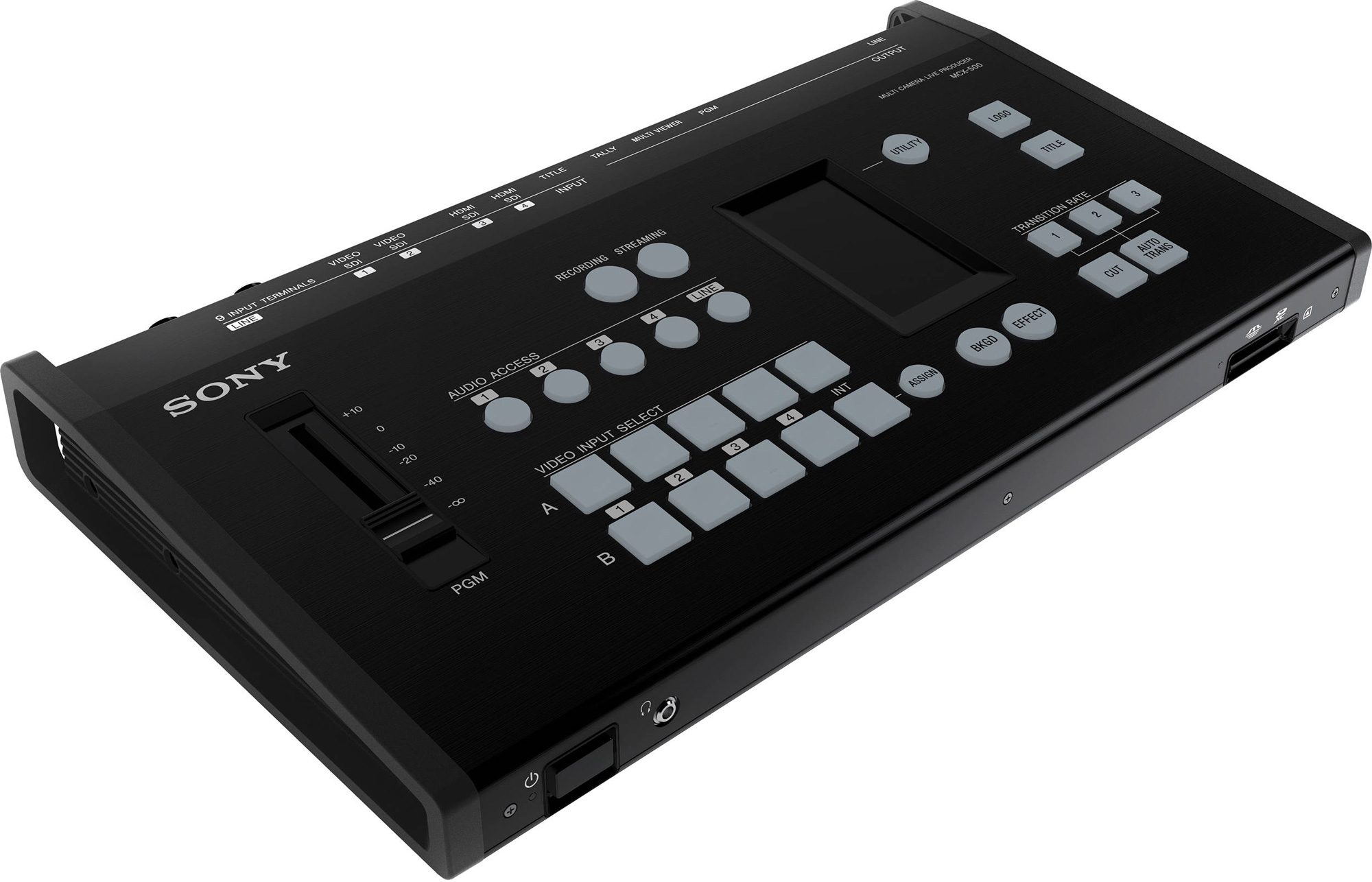

Sony MCX500 Multi-Camera Live Producer with 3G-SDI HDMI Composite Video and Dedicated DSK
  • Sony MCX500 Multi-Camera Live Producer with 3G-SDI HDMI Composite Video and Dedicated DSK
  • Sony MCX500 Multi-Camera Live Producer with 3G-SDI HDMI Composite Video and Dedicated DSK
  • Sony MCX500 Multi-Camera Live Producer with 3G-SDI HDMI Composite Video and Dedicated DSK
Questions? Ask a Markertek Expert:
800-522-2025 Email

Sony MCX500 Multi-Camera Live Producer with 3G-SDI HDMI Composite Video and Dedicated DSK

Manufacturer: Sony Electronics Inc.

Item #: SNY-MCX500   •   MFG #: MCX500


Our Price:$2,200.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    The Sony MCX-500 is an affordable, uniquely user-friendly and flexible production switcher that makes it simple for a single operator or small team to produce a broadcast quality live event. Multiple video inputs include professional 3G-SDI, HDMI, Composite Video plus dedicated DSK mean you can mix and match kit as needed for each production.

    New opportunities
    Live events increasingly rely on video to attract customers, enliven presentations and turn a profit via live streaming or selling recordings. The MCX-500 is ideal for a wide range of live and recorded applications from pop concerts to weddings, educational seminars to corporate presentations, and meetings at houses of worship. Using the MCX-500, you can go beyond simply capturing an event to transforming it into an experience that engages everyone.

    Meet any challenge
    Today’s event might be simply mixing together multiple video inputs to support a presenter’s on-stage presentation. Tomorrow’s event might be creating a program for distribution across multiple screens in a vast conference hall. Next week’s event might be live streaming, either via PC or Mac or directly from the MCX-500 itself using Ustream® with a router*. Whatever the event, it’s simple to give your customer an immediate recording of the event thanks to a built-in SD Card slot - no external recorder needed or time lost assembling a post-event cut.

    Events that excite and engage
    Keeping an audience’s interest during an event can be challenging. The MCX-500 puts at your fingertips a set of features to easily transform any event: cut between multiple cameras with a wide-range of broadcast quality transitions, mix in a secondary video feed with picture-in-picture, put a presenter in front of live or recorded video using Sony’s broadcast standard chroma key technology. 8 video inputs, plus a dedicated DSK channel (total 9 inputs) for on-screen graphics and a 5-channel audio mixer give you everything needed to wow an audience.

    • Specifications

      • General
      • Power requirement: DC 12V, Approx. 23W
      • Dimensions (W x H x D): 362 + 43.5 + 206 mm (Approx.)
      • Mass: Approx 2.1 kg

      • Video format: 1080/59.94i Hz (60i) 1080/50i Hz (50i)

      • Protocol: AVC/RTMP (Ustream)

      • Format: AVCHD
      • Media: Memory Stick ProDuo, Memory Stick PRO-HG Duo, Memory Stick XC-HG, SD, SDHC, SDXC memoy cards (Class 4 or higher)

        Video switcher
      • Function Input : 8 Primary Video inputs + Title, 4 Channel 1 M/E + 2 Keyer (1 x PinP, 1 x Title)
      • Output: PGM Output, Multi View Output
      • Key Type: Luminance Key / Chroma key

        Audio mixer
      • Function Input: Analog Stereo (x1) / Stereo Embedded Audio inputs (x4)
      • Mixing: Stereo Mixing (x5)
      • Output: PGM (Stereo) (x1)

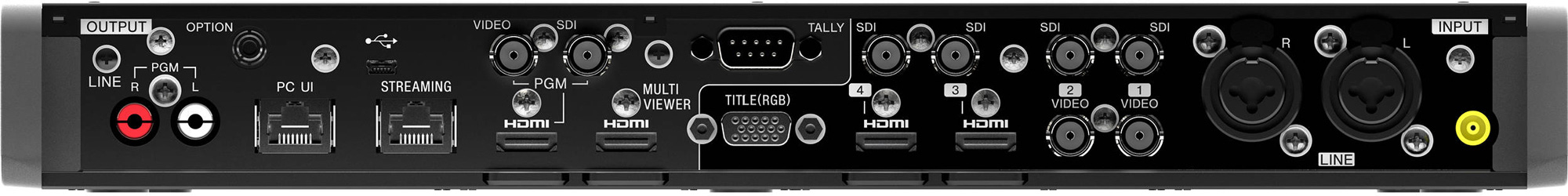

        Video input
      • SDI: BNC (x4), 75 Ω, 3G SDI/HD/SD SMPTE 292M/259M/424M/425M
      • HDMI: Type A (x2) (720x480/576p, 1280x720p, 1920x1080i/p)
      • VIDEO input: BNC (x2), NTSC/PAL
      • VIDEO: 1.0 Vp-p 75 Ω, negative sync
      • Title: D-Sub Shrink 15-pin (x1) (Female) RGB (1600x1200)

        Video output
      • HD SDI: BNC (x1, PGM) 75 Ω, 1.5 Gbps, 270 Mbps
      • SMPTE: 292M
      • HDMI: HDMI (Type A) (x1, PGM) (720x480/576p, 1280x720p, 1920x1080i/p); HDMI (Type A) (x1, Multi View) (720x480/576p, 1280x720p, 1920x1080i/p)
      • VIDEO output: BNC (x1)
      • VIDEO: 1.0 Vp-p 75 Ω, negative sync

        Audio input
      • Embedded audio input: SDI/HDMI 16bit, Sampling 48HKHz
      • Analog input: XLR/TRS Combo Type ( (CH-1, CH-2) )

        Audio output
      • Embedded audio output: SDI/HDMI 16bit, Sampling 48HKHz
      • Analog output: Phono jack (CH-1, CH-2)
      • Headphones: Stereo mini jack (x1)

        Other interface
      • LANRJ-45 (x2, PC UI Streaming), 100BASE-TX, 1000BASE-T
      • USB: 2.0USB Type-miniB (x1)
      • Option: ø3.5mm jack (x1)
      • TALLY: D-Sub 9-pin (x1) (male)
