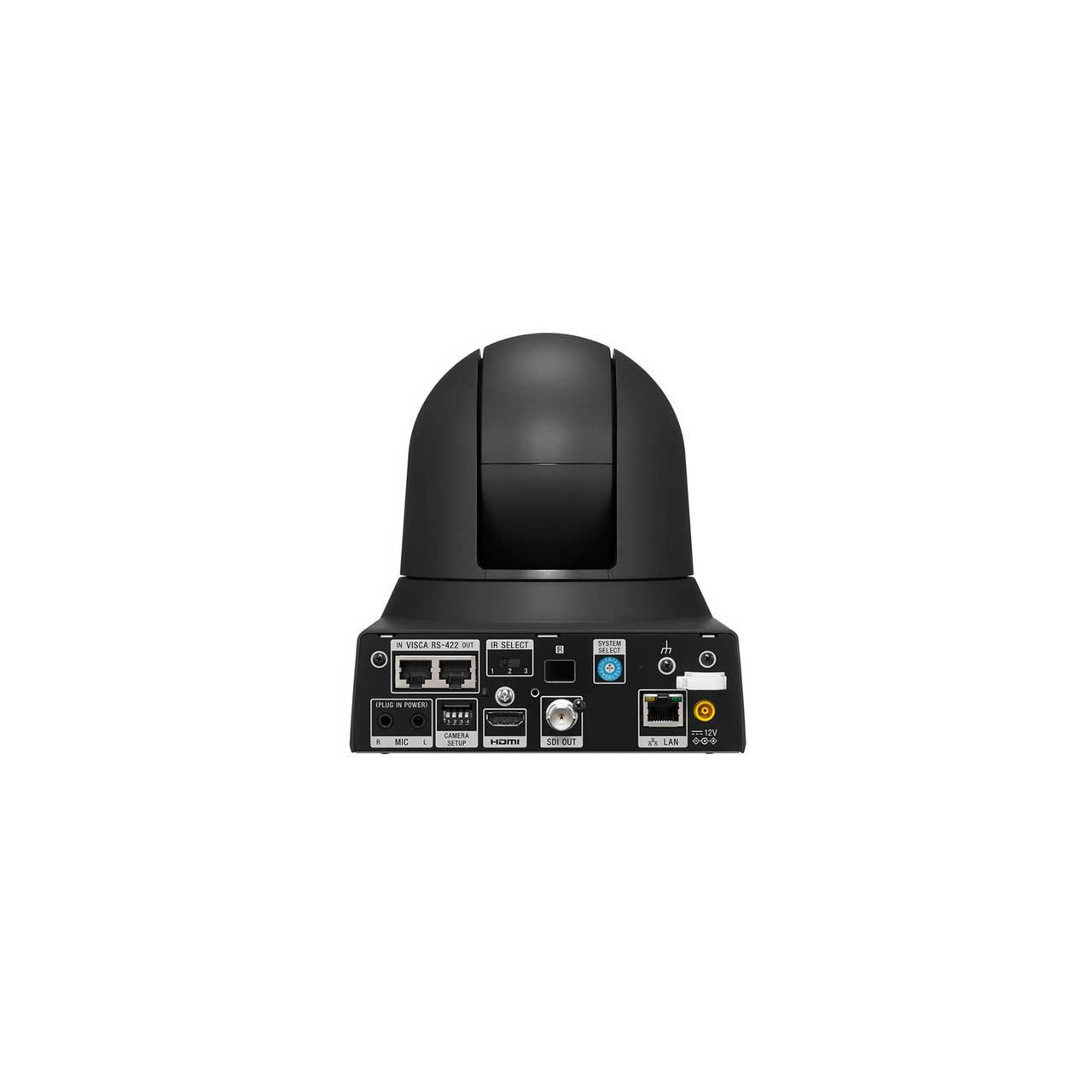

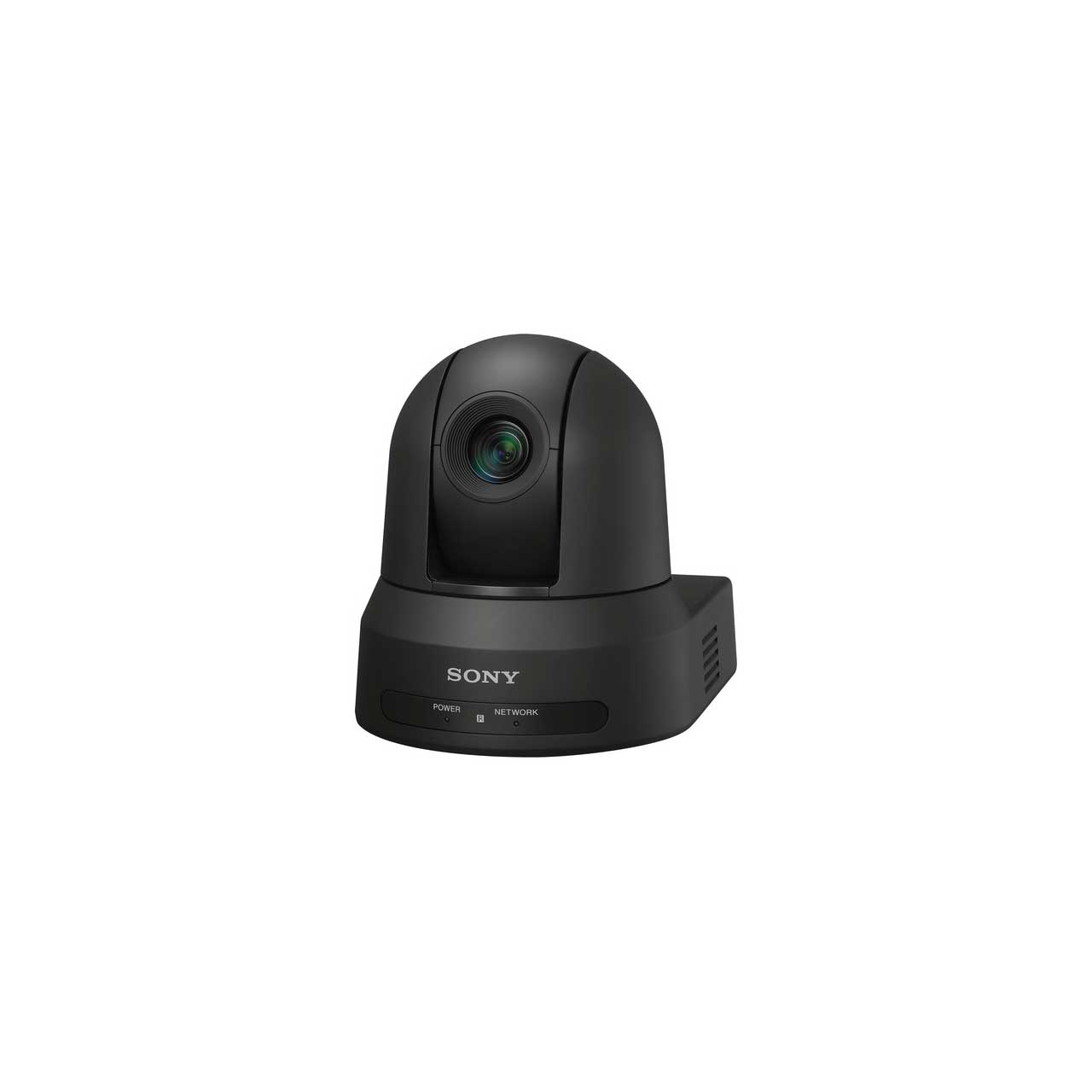

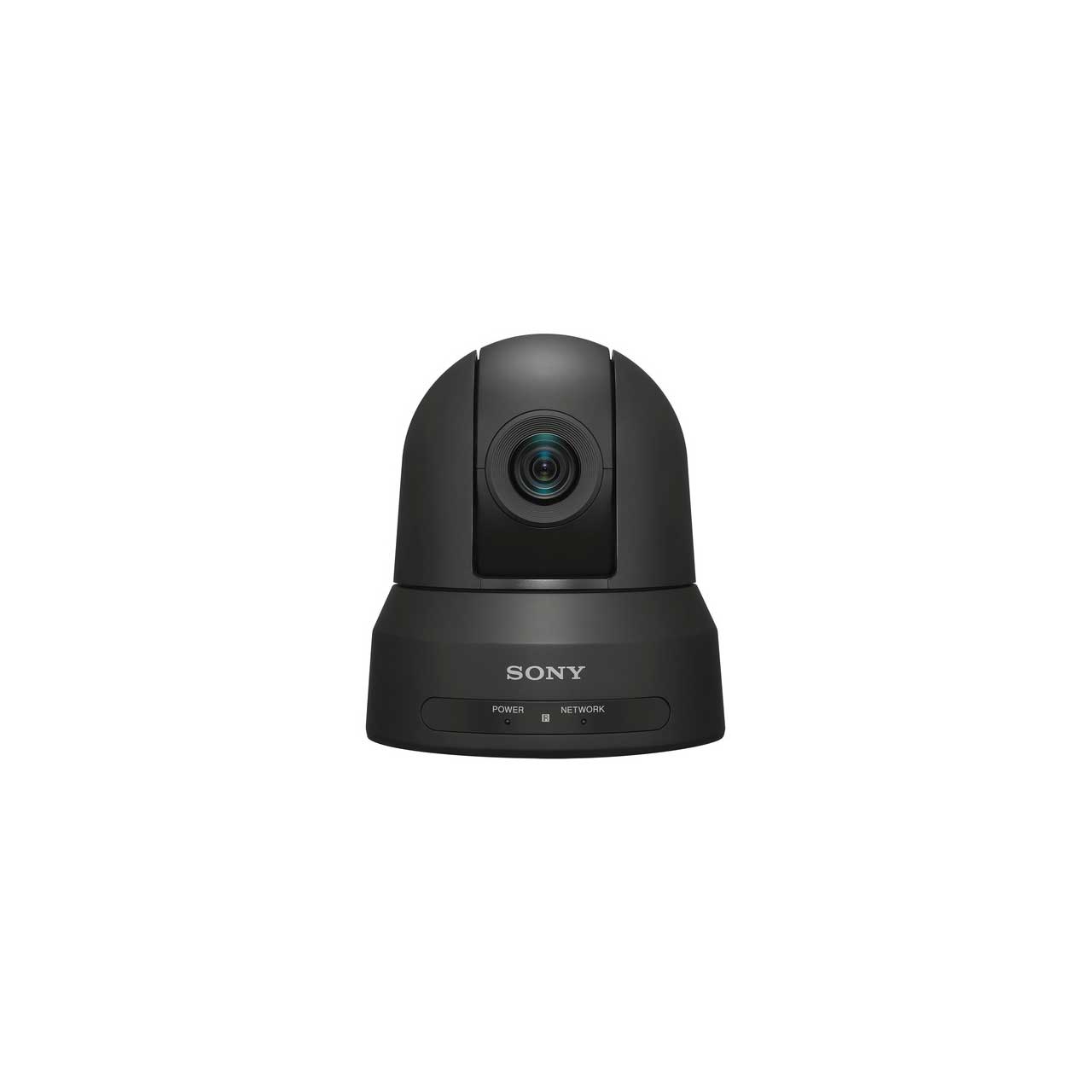

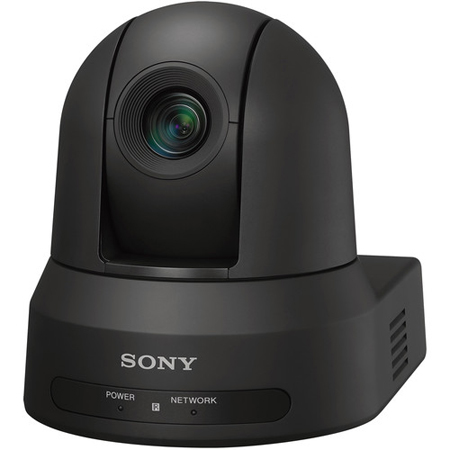

Sony SRG-X400/N 1080p 30x PTZ Camera with HDMI / IP / 3G-SDI Output and NDIHX License Included - Black

ITEM #: SNY-SRG-X400-N MFG #: 61-SRGX400N

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$5,975.98

Our Price:

$3,260.40

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    61-SRGX400N - Overview

    Capture every point of view with excellent picture quality and efficient IP production workflow

    The versatile Sony SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications-from classrooms and meeting spaces to faith centers, lecture halls, and medical environments.

    The camera's 1/2.5-type Exmor R sensor captures up to 4K* (*requires 4K optional license) resolution images with excellent sensitivity, very low noise, and rich, natural color reproduction. It's complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD (30x in 4K), with an expansive wide-angle coverage of approx. 70° to capture every point of view.

    High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

    Efficient IP-based live production is augmented with support for Support for NDI|HX, allowing flexible configuration with other networked NDI-enabled devices.

    Images also can be reviewed remotely via a web browser, with support for RTSP (Real Time Streaming Protocol), RTMP (Real Time Messaging Protocol) and SRT (Secure Reliable Transport) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

    • Features:

      • Excellent images, even in low light - The sensitive 1/2.5-type Exmor R sensor captures high-quality images with very low noise, even in dimly lit environments.
      • Wide viewing angle - Cover the whole scene in meetings and lecture theaters with a horizontal viewing angle of approx. 70°.
      • Smooth pan-tilt-zoom - PTZ Motion Sync function (Requires firmware V2.00) allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transitions.
      • Support for Support for NDI|HX - NDI|HX compatibility enables cost-effective school studio system integration, allowing flexible configuration with other networked NDI-enabled devices.Network services, content, and the operating system and software of this Product may be subject to individual terms and conditions and changed, interrupted, or discontinued at any time and may require fees, registration, and credit card information.
      • High-speed movement and Picture Freeze Preset - Accurately capture the presenter's movements with maximum 300°/s pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a new preset position-with no uncomfortable transitions for your audience.
      • Simpler installation, lower costs - A single network cable carries camera power, video output, and control signals to simplify installation and reduce cabling costs.
      • Flexible and efficient IP-based production - In addition to RTSP, RTMP(S) and SRT (Secure Reliable Transport) are supported. Video can be streamed directly from a camera to an online streaming service, and can be transmitted more securely, with lower latency and more stably even in unstable network environments.

    • Specifications:

      • Camera
      • Image Sensor: 1/2.5 Exmor R CMOS
      • Image Sensor (Number of Effective Pixels): Approx. 8.5M pixels
      • Signal System: 2160 / 29.97p, 25p, 23.98p 1080/59.94p, 50p, 29.97p, 25p, 23.98p 1080/59.94i, 50i 720/59.94p, 50p
      • 4K Capability: Yes (requires 4K optional license)
      • Minimum Illumination (50IRE): 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
      • Horizontal Resolution: 1700 TV lines (Center) (4K), 1000 TV lines or higher (Center) (FHD)
      • Gain: Auto/Manual (0 to +48 dB) (High Sensitivity On)
      • Shutter Speed: 1/1 to 1/10000 sec (59.94 Hz system), 1/1 to 1/10000 sec (23.98 Hz system), 1/1 to 1/10000 sec (50 Hz system)
      • Exposure Control: Auto, Manual, Priority AE (Shutter, Iris)
      • White Balance: Auto1, Auto2, One Push, WB, Indoor, Outdoor, Manual
      • Zoom capability: 30x (4K with Clear Image Zoom), 40x (HD with Clear Image Zoom)
      • Focusing System: Auto/Manual
      • Horizontal Viewing Angle: Approx. 70° (Wide)
      • Focal Length: f=4.4 mm (Wide) to 88.0 mm (Tele) F2.0 to F3.8
      • Minimum Object Distance: 80 mm (Wide)~, 800 mm (Tele)
      • Pan/Tilt Angle: Pan: ±170°, Tilt: +90°/-20°
      • Pan/Tilt Speed (Max.): Pan: 300°/s Tilt: 126°/s
      • Pan/Tilt Speed: Pan: 1.1° to 101°/s Tilt: 1.1° to 91°/s
      • Pan/Tilt Speed (Slow): Pan: 0.5° to 60°/s Tilt: 0.5° to 60°/s
      • Pan/Tilt Slow Mode: Yes
      • Pan/Tilt Operation Noise: NC30 or less
      • Preset Position: 256 (CGI), 100 (VISCA)

        Network
      • IP Video Resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 576, 720 x 480, 640 x 360
      • Compression Format: H.264: High, Main, Baseline Profile, H.265: Main Profile
      • Maximum Frame Rate: H.264: 60 fps, H.265: 60 fps
      • Bitrate Compression Mode: CBR/VBR (selectable)
      • Range of Bitrate Setting: 512 Kbps ~50 Mbps
      • Multi Streaming Capability: 3
      • Maximum Number of Clients: 5
      • Protocols: IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP

        Audio
      • Channel: 2 ch
      • Audio Codec: AAC LC 128 kbps/ST (IP), AAC LC 256 kbps/ST (IP)
      • Setting Option: Auto Level Control (ALC): On/Off, Equalizer: Off, Low cut, Voice enhancement, Input selection: Microphone/Line, Mic volume: -10 to +10 (21 steps), Audio codec
      • Embedded Audio in Baseband Video: Yes (3G-SDI, HDMI)
      • Embedded Audio in IP Streaming: Yes

        General
      • Power Requirements: DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
      • Power Consumption: 25.5 W Max.
      • Operating Temperature: 32°F to 104°F (0°C to 40°C)
      • Storage Temperature: -4 °F to + 140 °F (-20°C to + 60°C)
      • Dimensions (WxHxD): 6.25" x 7" x 8" (158.4mm x 177.5mm x 200.2mm)
      • Weight: 3 lb (1.8 kg)
      • Camera Body Color: White/Black
      • Mountable Angle< +15°
      • Ceiling Mount: Yes

    • Item Includes:

      • 1x Sony SRG-X400 PTZ Camera
      • 1x NDIHX License
      • 1x AC power adapter
      • 1x IR Remote Commander Unit
      • 2x Ceiling bracket
      • 1x Wire rope
      • 8x Screw M3
      • 6x Screw M2.6
      • 1x HDMI cable fixing plate

    • Warranty:

      • 5-Year Limited Warranty
