Sonifex AVN-AO16 1RU Dante to 16 Mono Channel Analog Input & Output Interface

ITEM #: SON-AVNAO16DANTE MFG #: AVN-AO16

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Sonifex Ltd.
Free Shipping with $49 Minimum Order

Our Price:

$2,246.11

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AVN-AO16 - Overview

The AVN-AO16 audio converter and interface converts up to sixteen analogue outputs from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).

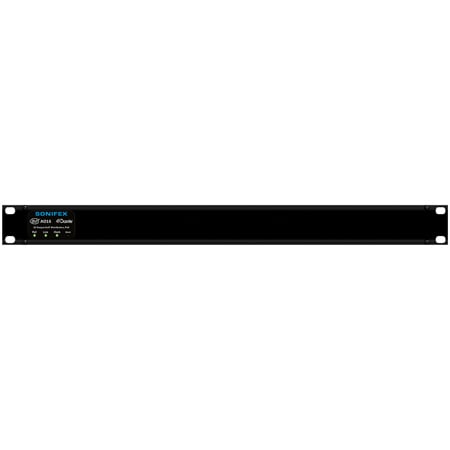

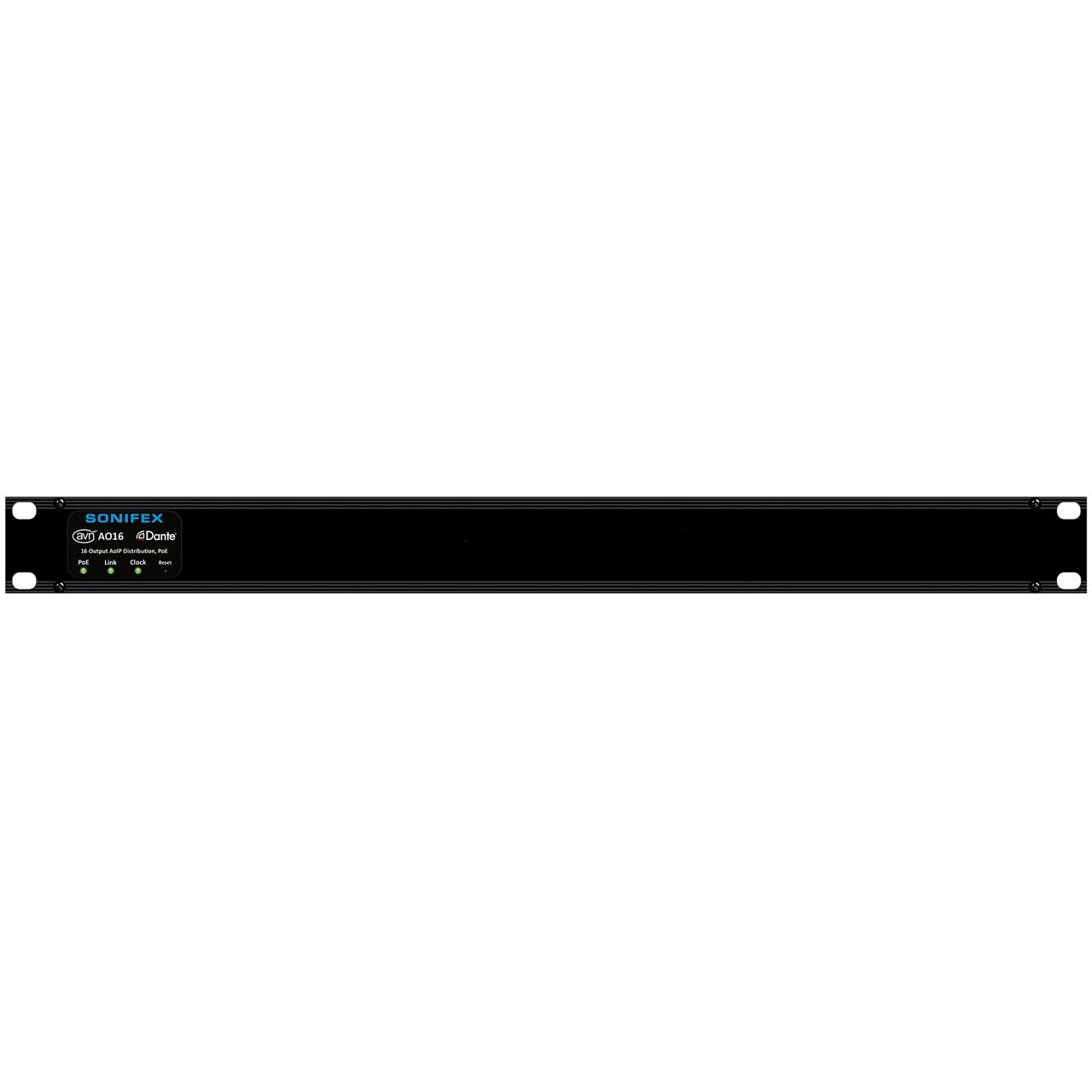

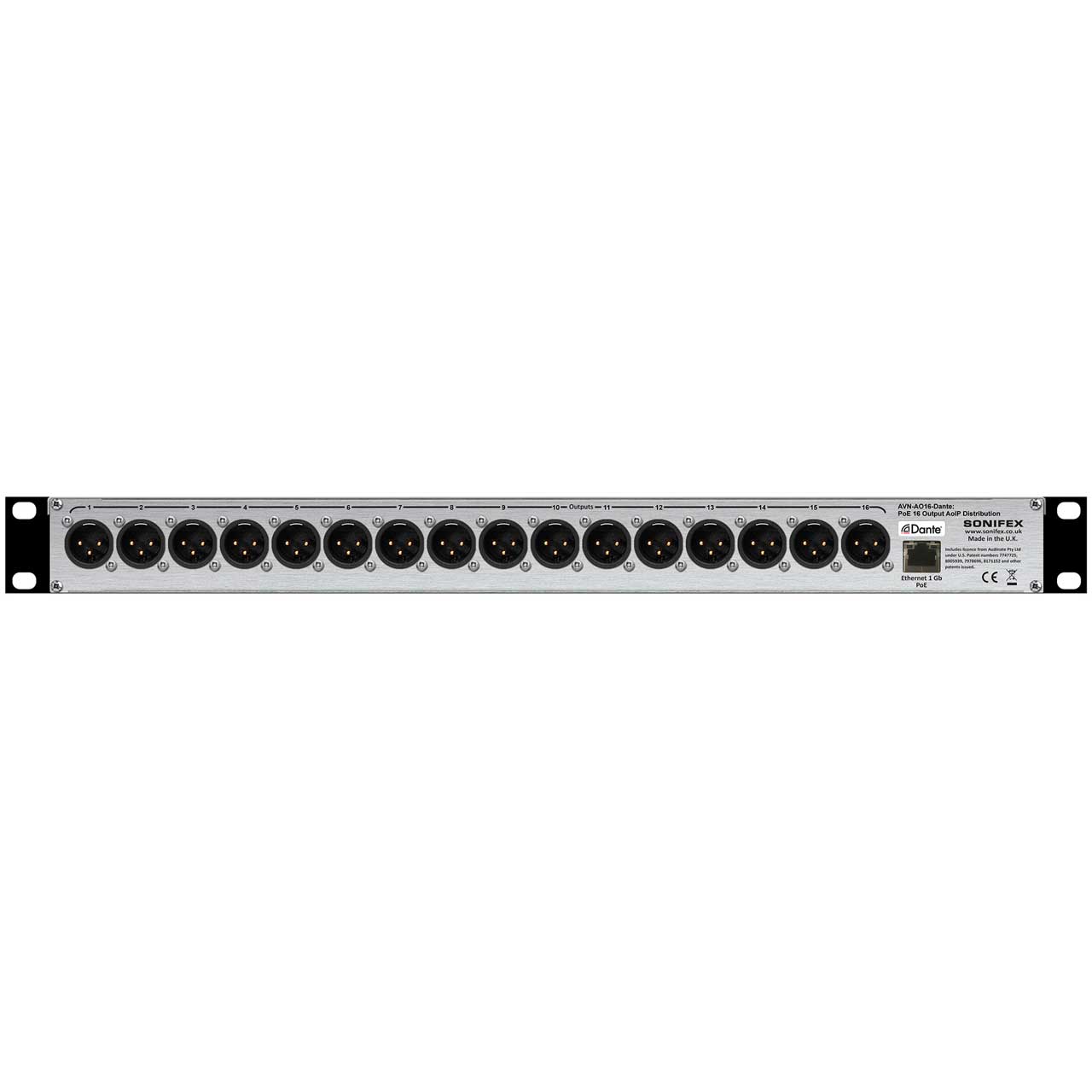

All analog outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.

  • Features:

    • 16 x balanced analogue outputs on XLR.
    • Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
    • 1 x RJ45 Dante connector (1 Gb/s Ethernet Port).
    • PoE, Link, and Clock LED status indicators.
    • Configuration using Dante Controller.
    • AES67 operation & Dante Domain Manager compliant.
    • Powered by PoE.
    • 1RU 19" rack-mount form factor.


  • Specifications:

    • Network and AoIP
    • AoIP Standard: Dante
    • Number of Channels: 16 receive
    • Number of Streams: 16 receive
    • Sample Rate: 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
    • Format: Linear PCM, 16, 24 or 32 bit
    • AES67 Support: Yes
    • Connectivity: 1 x RJ45
    • Speed: 1Gbps or 100Mbps
    • Dante Domain Manager Ready: Yes

      Audio Output Performance
    • Parameter: Line Output
    • Output Impedance: <50Ω balanced
    • 0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced
    • Frequency Response: 20Hz to 20kHz, +0/-0.5dB
    • THD+N: <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
    • Noise: -107dBFS, 20kHz BW
    • Crosstalk: <100dB

      Balanced Line Output XLR Pinout
    • Pin: Function
    • 1: Chassis Ground/Screen
    • 2: Output Phase/Positive
    • 3: Output Non-Phase/Negative

      PoE Power
    • Standard: 802.3af
    • Class: 0
    • PD Power Range: 0.44 W to 12.94 W
    • Typical PSE Power Usage: 7 W
    • Max PSE Power Usage: 15.4 W

      Equipment Type
    • AVN-AO16: 16 Output Danter Interface, PoE

      Physical Specification
    • Dimensions (Raw): (1U) 19" (W) x 4.3" (D) x 1.7" (H)
    • Nett Weight: 2.4lbs Gross: 3.5lbs
