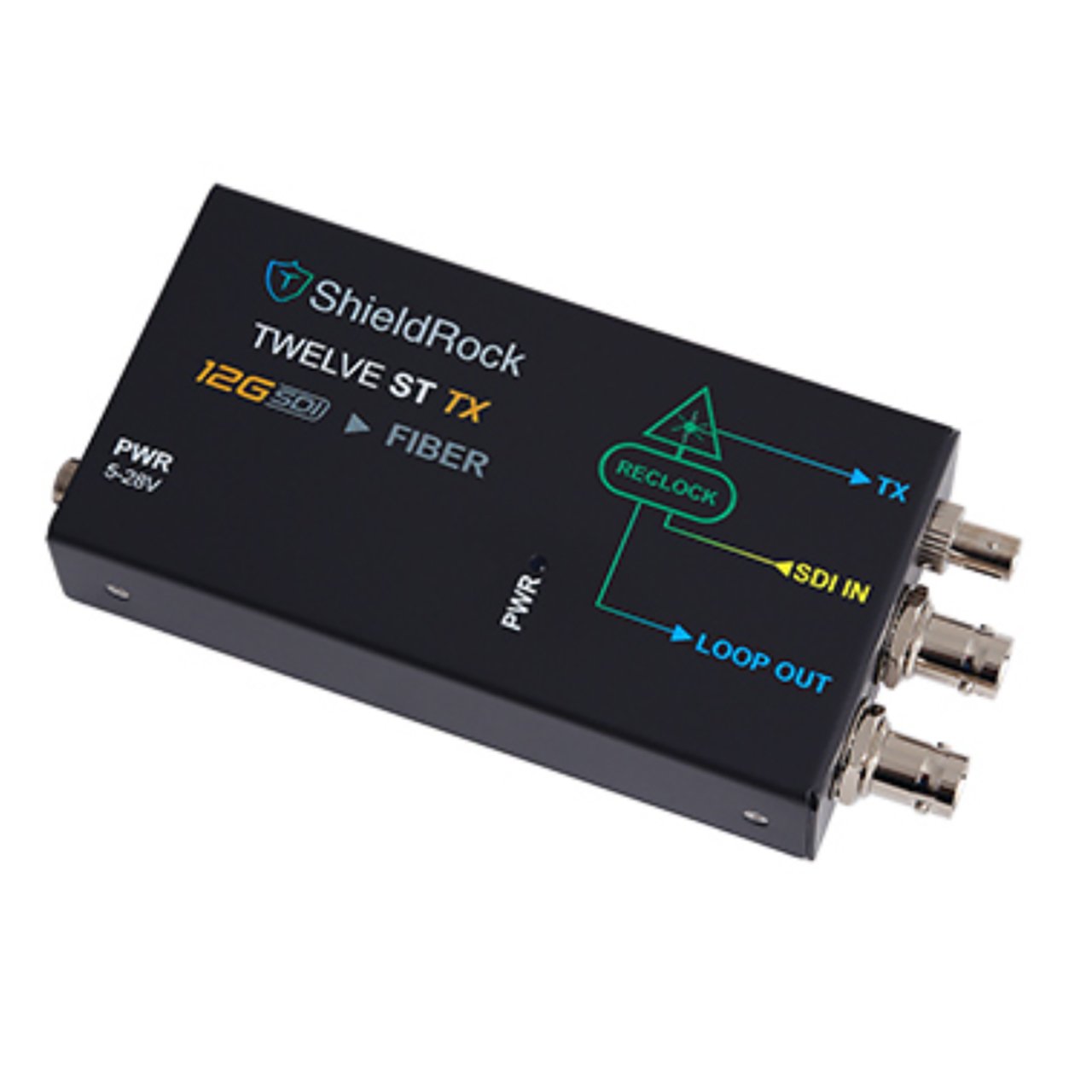

ShieldRock TWELVE-ST-TX 12G-SDI Optical Extender Transmitter - ST - 6.2 Mile Range

ITEM #: SRK-TWELVE-ST-TX MFG #: SRBMC-TWLVSTTX

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$590.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SRBMC-TWLVSTTX - Overview

Transmit 4K/UHD formats up to 2160p60 over fiber optic cable with the ShieldRock TWELVE-ST-TX. The transmitter includes both equalizing and reclocking functions. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. Though this unit uses a 1310nm singlemode-base optical engine, it can also work in multimode applications.

  • Features:

    • Transmit 4K/UHD formats up to 2160p60 over fiber optic cable
    • Compact and Lightweight
    • Supports AES10 multi-channel (MADI) audio

  • Specifications:

    • Video Format
    • 4K/UHD 2160p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 1080i: 50/59.94/60
    • 1080PsF: 23.98/24/25/29.97/30
    • 720p: 23.98/24/25/29.97/30/48/50/59.94/60
    • SDL 525i29.97 NTSC, 625i25 PAL

      Electrical
    • Input: 5-28 VDC
    • Power: 1.75W max

      Mechanical
    • Dimensions: 5.65" x 3.10" x 0.93" (143.5mm x 78.7mm x 23.6mm)
    • Weight: 0.39 lbs (180g)

  • Item Includes:

    • 1x ShieldRock TWELVE-ST-TX 12G-SDI Optical Extender Transmitter - ST

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0685239811292
