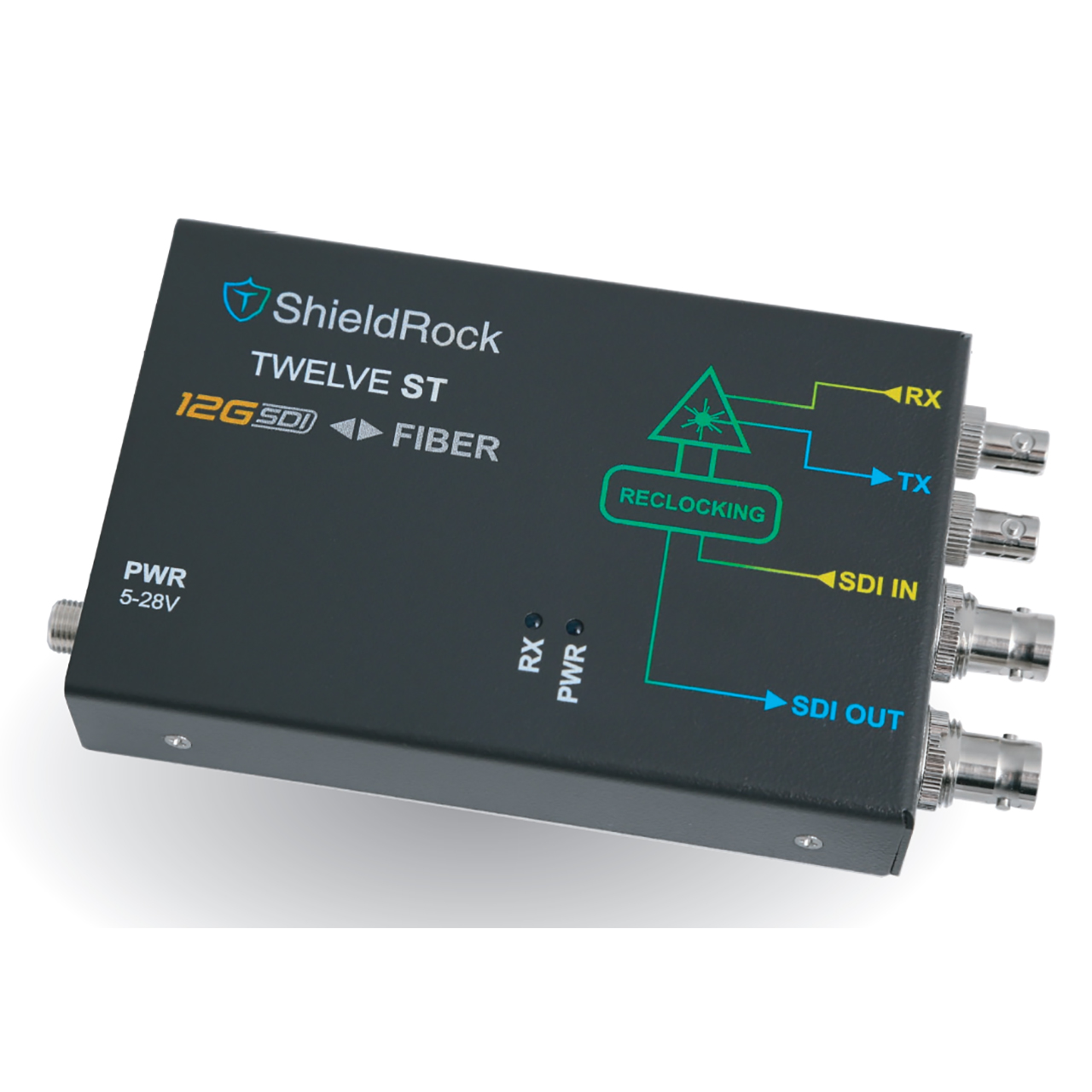

ShieldRock TWELVE-ST 12G-SDI Bidirectional 12G-SDI Optical Fiber Converter - ST - 6.2 Mile Range

ITEM #: SRK-TWELVE-ST MFG #: SRBMC-TWLVST

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
ShieldRock Inc.

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SRBMC-TWLVST - Overview

Transmit and recieve 4K/UHD formats up to 2160p60 over fiber optic cable with the ShieldRock TWELVE-ST. The converter includes both equalizing and reclocking functions. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. Though this unit uses a 1310nm singlemode-base optical engine, it can also work in multimode applications. Contact ShieldRock for list of optical options.

  • Features:

    • Transmit and recieve 4K/UHD formats up to 2160p60 over fiber optic cable
    • Compact and Lightweight
    • Supports AES10 multi-channel (MADI) audio


  • Specifications:

      Video Interface:
    • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, DVB-ASI (auto switching)
    • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

      Video Format
    • 4K/UHD 2160p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 1080i: 50/59.94/60
    • 1080PsF: 23.98/24/25/29.97/30
    • 720p: 23.98/24/25/29.97/30/48/50/59.94/60
    • SDL 525i29.97 NTSC, 625i25 PAL

      Electrical
    • Input: 5V - 28V DC
    • Power: 1.75W max

      Mechanical
    • Dimensions: 5.65" x 3.10" x 0.93" (143.5mm x 78.7mm x 23.6mm)
    • Weight: 0.39lbs (180g)


  • Item Includes:

    • 1x ShieldRock TWELVE-ST 12G-SDI Bidirectional 12G-SDI Optical Fiber Converter


  • Warranty:

    • 1 Year Limited Warranty


  • GTIN:

    0685239811605
