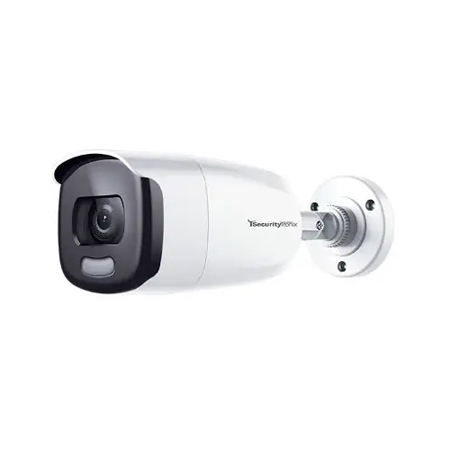

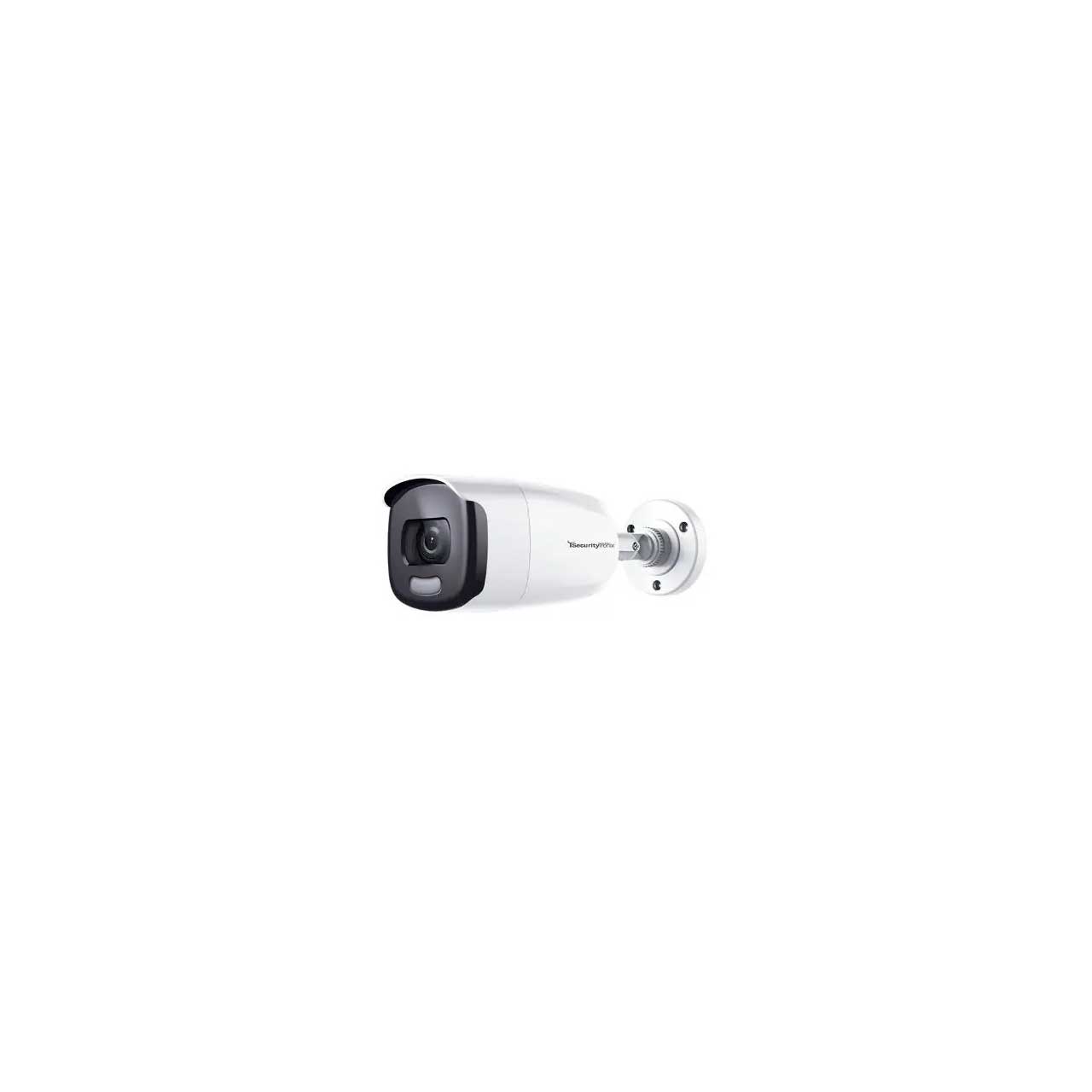

SecurityTronix ST-HDC5FB-CNV-2.8 5 Megapixel TVI Chroma Bullet Camera - 2560 x 1944 at 20fps - 2.8mm Fixed Lens

ITEM #: ST-HDC5FB-CNV-28 MFG #: ST-HDC5FB-CNV-2.8

Primary Image
SecurityTronix
Free Shipping with $49 Minimum Order

List Price:

$174.40

Our Price:

$129.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ST-HDC5FB-CNV-2.8 - Overview

    5MP Chroma 4 in 1 Fixed Lens Bullet Camera

    The SecurityTronix ST-HDC5FB-CNV-2.8 Chroma Bullet Camera provides 24/7 color night vision capturing color images or video in low lit locations while standard IR cameras would automatically shift to black and white mode. With Chroma technology it is easy to identify clothing color, hair color, license plates, and vehicles with clear color images whether day or night and with vivid detail. This camera is a high definition 5MP resolution bullet camera with 4 in 1 TVI/AHD/CVI/CVBS switchable connectivity. It has a fixed 3.6mm lens and can be easily integrated into any existing coax infrastructure or new commercial or residential install. Transmit TVI over 75 ohm coax (BNC).


    Please note! This Camera requires a power supply (Sold seperately) Part# is ST-PS12VDC2A .

    • Features:

      • 5 MP
      • 2560 x 1944 resolution
      • 24/7 Full Time Color
      • 2.8/3.6 mm fixed lens
      • Light Range: Up to 131' (40m)
      • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
      • Up the Coax (UTC)
      • IP67


    • Specifications:

      • Camera
      • Image Sensor: 5 MP CMOS
      • Signal System: PAL/NTSC
      • Frame Rate: TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
      • Min. illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
      • Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
      • Slow Shutter: Max. 16 times
      • Lens 2.8, 3.6 mm fixed lens
      • Horizontal Field of View: 99.7° (2.8 mm), 80.1° (3.6 mm)
      • Lens Mount: M16
      • Strobe Light Alarm: Yes
      • Day & Night: Color
      • WDR (Wide Dynamic Range): >130 dB
      • Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

        Menu
      • White Light: Auto/Off
      • Image Mode: STD/HIGH-SAT
      • AGC: Yes
      • Day/Night Mode: Color
      • White Balance: Auto/Manual
      • AE Mode (Auto Exposure): WDR/BLC/HLC/Global/HLS/Anti-banding
      • Privacy Mask: 4 programmable privacy masks
      • Motion Detection: 4 programmable motion areas
      • Noise Reduction: 3D DNR
      • Language: English
      • Function: Brightness, Sharpness, Mirror, Smart Light

        Interface
      • Video Output: Switchable TVI/AHD/CVI/CVBS

        General
      • Operating Conditions: -40°F to 140°F (-40°C to 60°C), humidity: 90% or less (non-condensing)
      • Power Supply: 12 VDC
      • Power Consumption: Max. 4.9 W
      • Protection Level: IP67
      • Material: Front Cover: Metal Main Body: Plastic
      • White Light: Up to 131' (40m)
      • Communication: UTC (Up the coax)
      • Dimensions: 3.25" x 3.04" x 8.49" (82.6 mm x 77.1 mm x 215.7 mm)
      • Weight: Approx. 0.91 lb. (415 g)


    • Item Includes:

      • 1x SecurityTronix ST-HDC5FB-CNV-2.8 Chroma Bullet Camera


    • Warranty:

      • 2-Year Limited Warranty
