SecurityTronix ST-IP4FD-2.8 4MP IP Fixed Lens Dome Camera - White

ITEM #: SCT-ST-IP4FD-2-8 MFG #: ST-IP4FD-2.8

free ship

Our Price:

$138.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    ST-IP4FD-2.8 - Overview

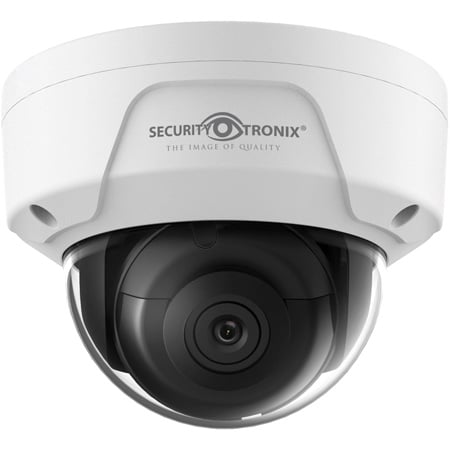

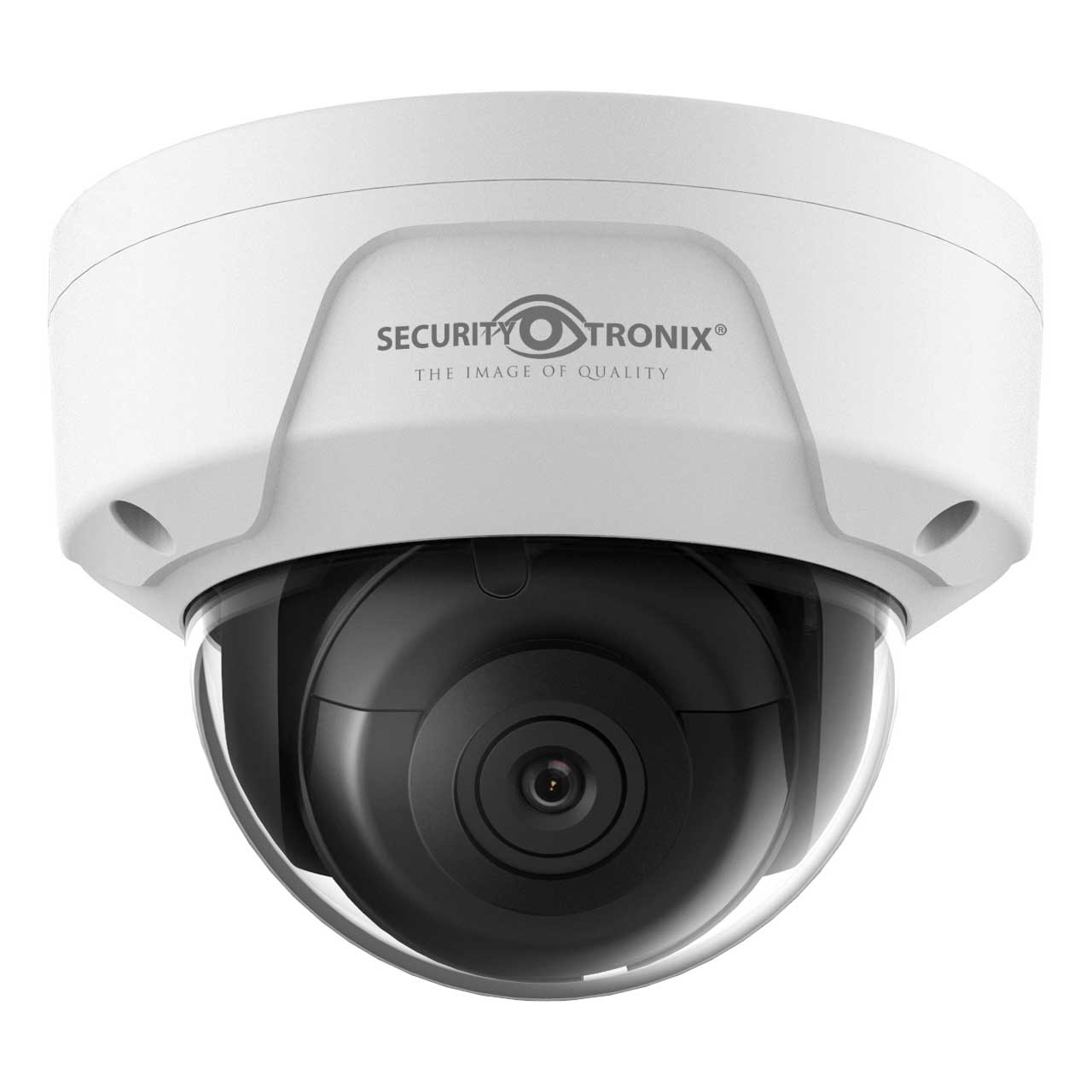

    The SecurityTronix ST-IP4FD is a 4MP (Megapixel), 2.8mm fixed wide angle lens dome camera with built in Infrared LEDs giving it the ability to see in total darkness. Dome cameras have a rounded style housing and this unit is IK10 vandal resistant which can minimize the risk of someone knocking the camera out of view with the ability to resist up to 20 joules of impact. They are sleek, aesthetically pleasing in design and can be used in commercial, residential, indoor and outdoor applications. It connects with Power over Ethernet technology (PoE) eliminating the need to run a separate power cable or or locally with a 12VDC power supply. Power supply sold separate.

    • Features:

      • Up to 4 megapixel high resolution
      • Full HD 2560 x 1440 @ 30fps video
      • Three streams
      • 2.8mm or 4.0mm fixed lens
      • 120dB Wide dynamic range
      • 3D Digital noise reduction
      • Backlight compensation
      • Region of interest
      • Black or white housing
      • DC12V & PoE
      • H.265+, H.265, H.264+, H.264
      • Up to 98’ IR range
      • 3-axis adjustment
      • IP67 weather-proof protection
      • IK10 Vandal rating
      • 2 Behavior analyses and face detection

    • Specifications:

      • Camera
      • Image sensor: 1/3" Progressive Scan CMOS
      • Min. Illumination: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
      • Shutter Speed: 1/3 s to 1/100,000 s
      • Lens Options: 2.8mm: horizontal FOV 98°, vertical FOV 55°, diagonal FOV 114° 4.0mm: horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
      • Lens Mount: M12
      • Day & Night: IR cut filter
      • Digital Noise Reduction: 3D DNR
      • Wide Dynamic Range: 120dB
      • Pan & Tilt Rotation: Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
      • Video Compression:
        Main Stream H.265 / H.264
        Sub Stream H.265 / H.264 / MJPEG
        Third Stream H.265 / H.264
      • Video Bit Rate: 32 Kbps – 16 Mbps
      • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
      • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
      • Behavior Analysis: Line crossing detection, intrusion detection
      • Face Detection: Yes
      • Region of Interest: 1 fixed region for main stream and sub-stream

      • Max. Image Resolution: 2560 x 1440
      • Frame Rate:
        Main Stream 50Hz:25fps (2560 x 1440, 2304 x 1296, 1920 x 1080) 60Hz: 30fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
        Sub Stream 50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
        Third Stream 50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288) 60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
      • Image Enhancement: BLC / 3D DNR
      • Day & Night: switch Auto / Schedule / triggered by alarm in
      • Image Settings: Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
      • ROI: Supported

        Network
      • Network Storage: Supports Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
      • Alarm Trigger: Motion Detection, Tampering alarm, Network disconnect , IP address conflict, Storage exception, illegal login, HDD full, HDD error
      • Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
      • General: One-key reset, anti-flicker, three streams, Flash-prevention, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
      • Standard: ONVIF (Profile S, Profile G), ISAPI
      • Client: Central management software
      • Simultaneous Live View: Up to 6 channels
      • User / Host: Up to 32 users, 3 levels: administrator, operator and user
      • Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

        Interface
      • Audio: 1 input (line in/mic.in), 1 output (line out), terminal block, mono sound
      • Communication Interface: 1 RJ45 10M/100M Ethernet interface
      • Alarm: 1 input, 1 output (up to 12 VDC, 30 mA), terminal block
      • On-Board Storage: Built in micro SD/SDHC/SDXC slot up to 128GB
      • Reset: Yes

        General
      • Operating Conditions: -22° to 140°F (-30° to 60°C)
      • Humidity: 95% or less (non-condensing)
      • Power Supply:12 VDC ± 25%, 5.5mm coaxial power plug, PoE (802.3af, class 3) (not included)
      • Power Consumption: 12 VDC, 0.5A, max. 6W
      • Protection Level: IP67, IK10 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
      • IR Range: Up to 98 Feet
      • Dimensions: 4.4 x 3.2" (111 x 82mm)
      • Weight: Approx. 1.3Lbs (610g)
